Default Puting on the crown - home straight

Oil return - Check




Compressor house rotated - Check




Down pipe - Check

omnia is offline   Reply With Quote
Old 04-16-2016, 06:01 PM   #2
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

Is that o2 sensor going to survive right there?
ryansmoneypit is offline   Reply With Quote
Old 04-16-2016, 06:22 PM   #3
Junior Member
Thread Starter

Join Date: Feb 2016
Location: Trondheim, Norway
Posts: 53
Total Cats: 1
Default

I dont know. Its about half the recommended distance of 24 inches. But the recommendation is based on application. I imagine with my setup I'm not producing or surpassing the most extreme tested operating conditions of this sensor. (Bosch came with innovate LC-2)
omnia is offline   Reply With Quote
Old 04-18-2016, 09:59 AM   #4
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,062
Total Cats: 48
Default

It should work fine for a while at least. Especially if it is a street car. My friend's 91 came with the WBO2 just after the turbo outlet, less than 6", and it has been fine for 6k miles or so. It is moving down to the end of the down pipe this week with any luck though.
x_25 is offline   Reply With Quote
Old 04-18-2016, 10:20 AM   #5
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 878
Total Cats: 93
Default

Most instructions say 24" from the head if it's naturally aspirated. 24" from the turbine if it's turbocharged.
acedeuce802 is offline   Reply With Quote
Old 04-19-2016, 05:26 PM   #6
Junior Member
Thread Starter

Join Date: Feb 2016
Location: Trondheim, Norway
Posts: 53
Total Cats: 1
Default

First start results. AN-fitting to hose assembly fail.

But it ran great.

omnia is offline   Reply With Quote
Old 04-19-2016, 06:02 PM   #7
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Those look like mud tires lol
aidandj is offline   Reply With Quote
Old 04-19-2016, 06:08 PM   #8
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

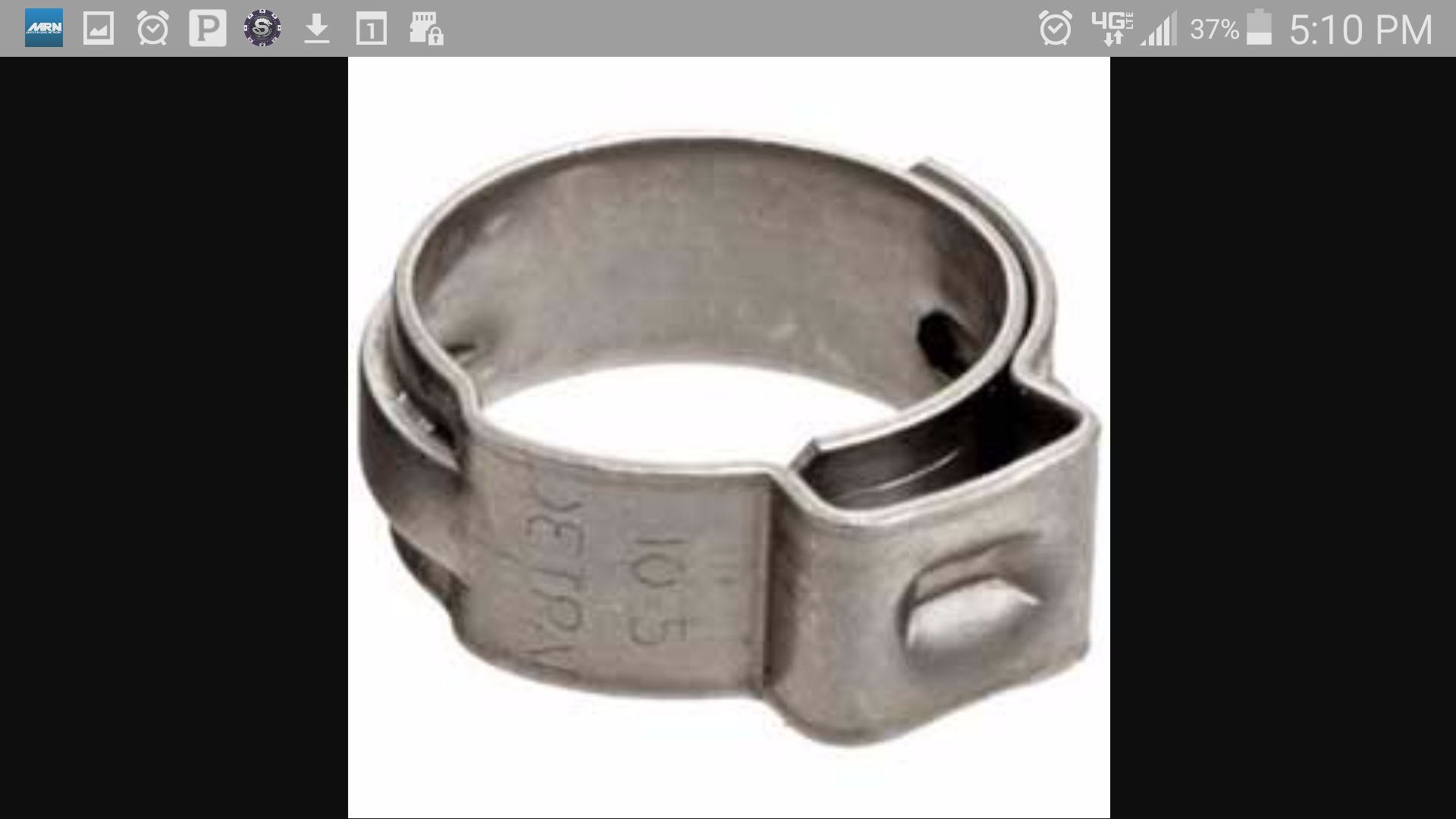

That fitting sucks nards, Has no barbs. Also need Oetiker clamps in your life. They are awesome.
Attached Thumbnails
Puting on the crown - home straight-80-screenshot_2016_04_19_17_10_28_b86451c395e399468243314963c970e69e4d510a.png
ryansmoneypit is offline   Reply With Quote
Old 04-19-2016, 06:12 PM   #9
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by omnia View Post
First start results. AN-fitting to hose assembly fail.

But it ran great.

This is exactly why I only use high-end fittings assembled at my local hydraulic shop. I don't want oil going on the ground from my being bad at making lines.
shuiend is offline   Reply With Quote
Old 04-21-2016, 05:15 PM   #10
Junior Member
Thread Starter

Join Date: Feb 2016
Location: Trondheim, Norway
Posts: 53
Total Cats: 1
Default



omnia is offline   Reply With Quote
Old 04-21-2016, 05:33 PM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by acedeuce802 View Post
24" from the turbine if it's turbocharged.
I've heard this as well, and never understood it.

It's not as though the turbine is generating heat. Yes, the exhaust gas does lose considerable thermal energy as it expands across the turbine, but that's an instantaneous transition.

In a rear-mount application with a pre-turbo muffler, does the sensor need to be located in free space a foot past the end of the tailpipe?

Joe Perez is offline   Reply With Quote
Old 04-21-2016, 05:38 PM   #12
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

Quote:
Originally Posted by Joe Perez View Post
I've heard this as well, and never understood it.

It's not as though the turbine is generating heat. Yes, the exhaust gas does lose considerable thermal energy as it expands across the turbine, but that's an instantaneous transition.
You're thinking about it like an engineer would. They thought about it like a product manager would.

"Turbo cars typically produce higher EGTs, so the sensor needs to be further away. What's an easy reference for our customers to measure from?"

Ideally, they publish the max EGT allowable, and you plumb EGT fittings into your exhaust system every 3" until you reach a point where the temps are acceptable to the sensor, but that's not terribly convenient for the end-user who's installing it in their gravel driveway with a hand-drill and a flux core welder.
Savington is offline   Reply With Quote
Old 04-21-2016, 05:43 PM   #13
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by Savington View Post
You're thinking about it like an engineer would. They thought about it like a product manager would.
"We'll design it so that the core of the sensor can be replaced in 2 minutes by popping out a single latch, sell the complete system for $59, and tout the benefits of being able to ensure accuracy and freshness by replacing the sensor on a monthly basis.

Because the sensor burns out after a month.

And sells for $59."
Joe Perez is offline   Reply With Quote
Old 04-22-2016, 04:24 PM   #14
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 324
Total Cats: -26
Default

Quote:
Originally Posted by aidandj View Post
Those look like mud tires lol
Could be snows.
huesmann is offline   Reply With Quote
Old 04-22-2016, 09:24 PM   #15
Junior Member
Thread Starter

Join Date: Feb 2016
Location: Trondheim, Norway
Posts: 53
Total Cats: 1
Default

Quote:
Originally Posted by huesmann View Post
Could be snows.
It is, and it f* snowed here today.
omnia is offline   Reply With Quote
Old 04-22-2016, 09:31 PM   #16
Junior Member
Thread Starter

Join Date: Feb 2016
Location: Trondheim, Norway
Posts: 53
Total Cats: 1
Default

Quote:
Originally Posted by Savington View Post
You're thinking about it like an engineer would. They thought about it like a product manager would.
In all big engineering firms with success those two are the same. You're thinking about it as a scientist. Its not a research instrument.
omnia is offline   Reply With Quote
Old 04-24-2016, 07:49 AM   #17
Newb

Join Date: Oct 2015
Location: south florida
Posts: 32
Total Cats: 0
Default

Compressor house rotated - Check



Did you only clock the compressor housing or did you also clock the hotside housing too?

Was it easier to clock it when the turbo was bolted up to the block?
captain_kjr is offline   Reply With Quote
Old 04-24-2016, 09:49 AM   #18
Junior Member
Thread Starter

Join Date: Feb 2016
Location: Trondheim, Norway
Posts: 53
Total Cats: 1
Default

I only rotated the compressor housing. The oil drain faced down in its original configuration.

Original turbo alignment


It is easiest to do with the turbo off. I rotated it while I did the rebuild of its internals. It is fixed with a C-snapring that is a bitch to get to without the right / big enough pliers. And it is a locking pin on the compressor house with a pin-hole on the center housing, I drilled a new hole for the new rotated pin position, but I might have gotten away with just fileing away the pin.

omnia is offline   Reply With Quote
Old 06-10-2016, 04:02 PM   #19
Junior Member
Thread Starter

Join Date: Feb 2016
Location: Trondheim, Norway
Posts: 53
Total Cats: 1
Default

Hi All

1. - Finally cleaned the car after it spent most of winter collecting dust in the garage during winter.

2. - Air filter installed at last. I've been testing the car without a filter driving around hoping nothing got sucked in to the turbo. I wonder how many degrees of intake temp i can save by putting it out to the side?

3. - Electronic boost control solenoid. Wastegate on this turbo is 1 psi so the EBC is worth its weight in gold. Its mounted by the windshield wiper fluid reservoir, with probably the longest vacuum line possible. How much response time is lost from over there?

4. - Engine bay, the flash photography really brings to attention the amount of dirt present in there.

5. - Sonic the Hedgehog - Hes fast, but faster than a turbo miata?






omnia is offline   Reply With Quote
Old 06-10-2016, 04:59 PM   #20
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 170
Total Cats: 9
Default

Thats a weird cat in the last pic
