Default Source for M10x1.25 x 45mm exhaust manifold studs? FM3 people chime in!

I have an older FM manifold (no logo) that has a super-thick flange on the 4 corner locations, but longer studs are IMPOSSIBLE to find:
  • The first guy I talked to at FM wasn't familiar with the older manifolds
  • Keith at FM knew what I needed, but said those studs were originally hand made (!) and they haven't stocked them in years
  • ARP doesn't have anything shorter than 86mm
  • Keith's suggestion for a metric bolt superstore (Metric MCC) didn't have anything in that pitch in stock
  • McMASTER CARR doesn't even carry studs in that pitch

Lots of Toyotas and Hondas use that pitch, but all I can find is a 40mm stud for those cars from Dorman (03105). That 40mm may even be overall length instead of "stick out" length.

I'm sure someone here has bought an old kit or broken an uber-stud... Vash? Viper? Ben? Any ideas on a source? I'm not even concerned with material at this point
delturcious is offline   Reply With Quote
Old 01-24-2011, 04:33 PM   #2
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by delturcious View Post
I have an older FM manifold (no logo) that has a super-thick flange on the 4 corner locations, but longer studs are IMPOSSIBLE to find:
  • The first guy I talked to at FM wasn't familiar with the older manifolds
  • Keith at FM knew what I needed, but said those studs were originally hand made (!) and they haven't stocked them in years
  • ARP doesn't have anything shorter than 86mm
  • Keith's suggestion for a metric bolt superstore (Metric MCC) didn't have anything in that pitch in stock
  • McMASTER CARR doesn't even carry studs in that pitch

Lots of Toyotas and Hondas use that pitch, but all I can find is a 40mm stud for those cars from Dorman (03105). That 40mm may even be overall length instead of "stick out" length.

I'm sure someone here has bought an old kit or broken an uber-stud... Vash? Viper? Ben? Any ideas on a source? I'm not even concerned with material at this point
Let me look around and see what I have. I cant promise anything, but I know I have a box of studs in the toolbox. I cant remember if they're from my FM3 setup or my older Greddy setup.
Vashthestampede is offline   Reply With Quote
Old 01-24-2011, 04:34 PM   #3
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

You can always buy a longer stud and cut it to fit.


http://www.clipsandfasteners.com/M10...w_p/a17560.htm
BenR is offline   Reply With Quote
Old 01-24-2011, 04:53 PM   #4
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Location: Southport, NC
Posts: 85
Total Cats: 0
Default

Quote:
Originally Posted by BenR View Post
You can always buy a longer stud and cut it to fit.
http://www.clipsandfasteners.com/M10...w_p/a17560.htm
48mm is overall length; I think those are a few MM longer than the stock studs but I don't think the nut would fully thread. The studs I'm after are closer to 57mm overall length. I may just try those though if I can't find anything longer. Thanks!

Quote:
Originally Posted by Vashthestampede View Post
Let me look around and see what I have. I cant promise anything, but I know I have a box of studs in the toolbox. I cant remember if they're from my FM3 setup or my older Greddy setup.
You sir would be my hero if you can find those 4 uber-studs
delturcious is offline   Reply With Quote
Old 01-24-2011, 05:01 PM   #5
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Have you tried Fastenal?
rharris19 is offline   Reply With Quote
Old 01-24-2011, 05:10 PM   #6
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Location: Southport, NC
Posts: 85
Total Cats: 0
Default

Quote:
Originally Posted by rharris19 View Post
Have you tried Fastenal?
I hadn't, but no studs in 1.25 pitch :( Thanks for the suggestion though... there's a Fastenal not too far from my house.
delturcious is offline   Reply With Quote
Old 01-24-2011, 05:18 PM   #7
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

An old high school friend runs part of Wayne bolt and nut. I bet they can make exactly what you want, but it probably wouldn't be cheap for small batches.

If you are serious, have exact dimensions, know what metals you'd prefer, and willing to pay I can shoot him a text and ask what they'd charge.


Just found these as well, probably easy to cut down to size if you need to shorten them.
http://www.mcmaster.com/#threaded-ro...-studs/=aqf3ji
BenR is offline   Reply With Quote
Old 01-24-2011, 05:19 PM   #8
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

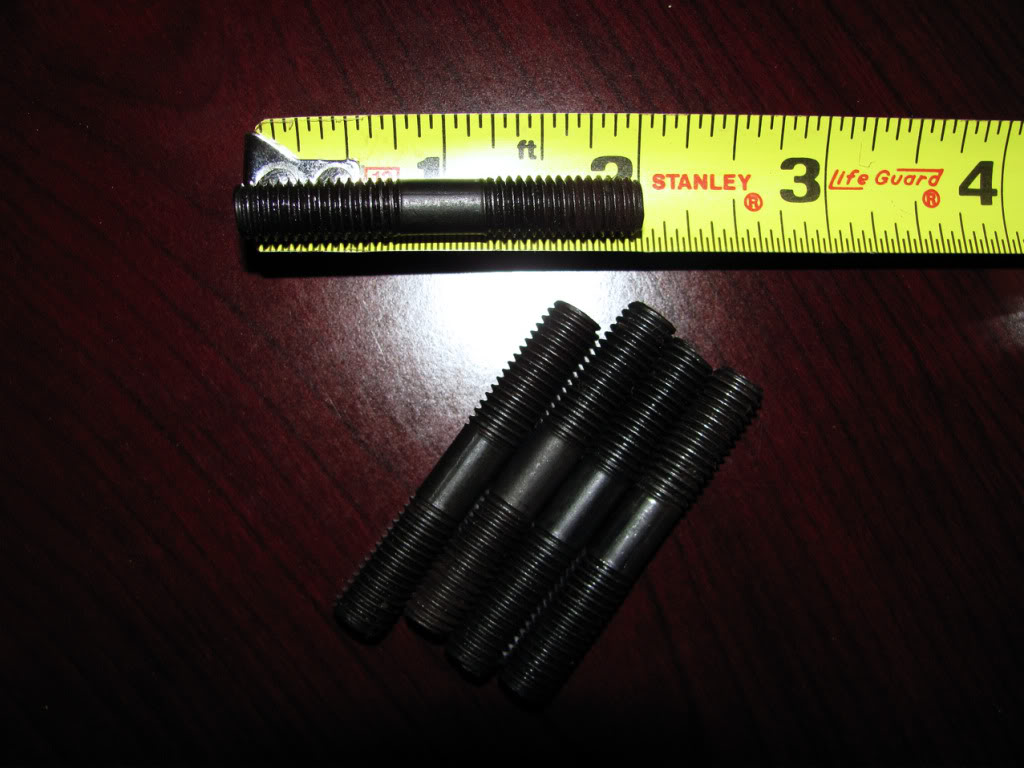

Well I looked around and I just found these studs. They came with my chinacharger. They are 2" long which I think is closer to 50mm.

Name:  studs01.jpg
Views: 177
Size:  105.6 KB

I remember the FM3 manifold having the 4 corners beefed up which made it about 1/4 or so thicker. I just don't know if the thread pitch is right. These are also the same thread as my Garrett turbo flange, so I'm thinking its the same but I'm not certain.

I know I had a small box of studs somewhere but I cant find it. If these are what you need though let me know and you can have them.
Vashthestampede is offline   Reply With Quote
Old 01-24-2011, 06:10 PM   #9
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Location: Southport, NC
Posts: 85
Total Cats: 0
Default

Quote:
Originally Posted by Vashthestampede View Post
Well I looked around and I just found these studs. They came with my chinacharger. They are 2" long which I think is closer to 50mm.

I remember the FM3 manifold having the 4 corners beefed up which made it about 1/4 or so thicker. I just don't know if the thread pitch is right. These are also the same thread as my Garrett turbo flange, so I'm thinking its the same but I'm not certain.

I know I had a small box of studs somewhere but I cant find it. If these are what you need though let me know and you can have them.
Thanks for digging those out, but from what I've seen, turbo hardware is mostly 8mm.

I may stop by Autozone tomorrow and just see if they have anything even a mm longer than the stock studs, like for the Tacoma that uses the same thread pitch.

Ben, I hope it doesn't come to making custom studs! Your link didn't work, but I did see they have long threaded rods that I might be able to cut... but dang... what possessed FM to hand-make hardware?
delturcious is offline   Reply With Quote
Old 01-25-2011, 09:18 PM   #10
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Location: Southport, NC
Posts: 85
Total Cats: 0
Default

Autozone = fail. FM does sell 35mm studs which are slightly longer than stock, but still not as long as I'd like. There's GOT to be someone out there that manufactures these things...
delturcious is offline   Reply With Quote
Old 01-25-2011, 09:27 PM   #11
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Find a Technical college....Hire a student to do them In class...would be good practice for what he is going to need to be able to do when He gets into the work force....then have them Heat treated....The right way Not a torch and a bucket of water...make three sets and sell the other two to cover your expenses..
(G)
Reverend Greg is offline   Reply With Quote
Old 01-25-2011, 09:59 PM   #12
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Do a google search > call what looks to be a competent vendor > profit

M-Carr is kinda terrible when it comes to metric hardware (which baffles me).

There are plenty of good metric hardware vendors out there (and usually somewhat local); however, they're used to selling in bulk so their websites are never set up for e-commerce - their a PO number type of place. If you call around there's a good chance you can get something close.

I wish I could suggest some but their saved on my work 'puter, which I'm not on.

-Zach
thasac is offline   Reply With Quote
Old 01-25-2011, 11:36 PM   #13
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,069
Total Cats: 253
Default

Don't listen to these ignorant fools.

I'll send you a PM
viperormiata is offline   Reply With Quote
Old 01-26-2011, 10:00 PM   #14
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Location: Southport, NC
Posts: 85
Total Cats: 0
Default

Quote:
Originally Posted by viperormiata View Post
Don't listen to these ignorant fools.

I'll send you a PM
Viper suggested MiataRoadster, and I thought he found the holy grail until the owner told me they only stock BOLTS for those corner locations now

BEGi is actually willing to make them, but they sure ain't cheap. I didn't know that BEGi used to make the hardware for FM. If I bought a piece of all-thread long enough to cut them myself, the price would be pretty close to what they're asking.

I'll probably just suck it up and support our vendor unless someone has a ringing endorsement for Grade 10.9 bolts. Bolts just sound like a terrible idea with all weight and heat stress they'll be subjected to though.

EDIT:
I read the PM from viper on a phone and didn't see the photo, and Bill didn't bother to tell me that by "bolts" he meant "ARP bolts with nordlock washers"! Maybe I will be going with bolts after all if Bill still carries them...

Last edited by delturcious; 01-26-2011 at 10:16 PM. Reason: lack of reading comprehension
