Default Spun bearing? Replace pitted pistons?

So,
Before going FI, I rebuilt the motor ~8 months ago (new rings, bearings, honed and decked the block), but left in the "slightly" pitted pistons in.

Two days ago I overboosted and hit 15psi during a tuning run, the motor developed a clunking noise right after. I pulled the plugs and the pistons and con rods appear intact. However, the pistons are really pitted (I can see that w/ my endoscope.)

I'm running 12psi, should I take the time to pull the pistons and replace them? If so, the rings have only a few thousand miles on them, can I reuse them?

I don't know what the clunking is, spun bearing? Who knows??
fluke is offline   Reply With Quote
Old 05-08-2009, 12:09 AM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

Depends on your goals. Do you want pictures of a catastrophic explosion and a $750-2000 replacement bill? Keep on driving it. Do you want to deal with the issue and make the car reliable again? Rebuild it.
Savington is offline   Reply With Quote
Old 05-08-2009, 12:53 AM   #3
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

were u by any chance logging durring this run? What were ur AFRS

Ik its kinda too late now anyway, but just curious.

I say rebuild it / replace them before something big gets damaged.
240_to_miata is offline   Reply With Quote
Old 05-08-2009, 12:57 AM   #4
Junior Member
iTrader: (1)

Join Date: Mar 2007
Location: South Florida
Posts: 491
Total Cats: -1
Default

I don't understand what the issue is...if the motor developed an internal noise after overboosting it...it is obvious that you are going to have to pull it apart and fix the damaged components. Are you going to wait for the whole thing to grenade and then have to spend money on an engine core?

It's a no-brainer.
mrtonyg is offline   Reply With Quote
Old 05-08-2009, 01:54 AM   #5
Elite Member
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,119
Total Cats: 44
Default

If you got the extra cash, forged internals, you won't regret it. I promise lol.

Definately rebuild it, I was in your shoes, some what, 2 weeks ago. Its worth it in the end. I'm saying this and Im not even into boost yet hah.
flier129 is offline   Reply With Quote
Old 05-08-2009, 08:57 AM   #6
Junior Member
Thread Starter

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

Quote:
Originally Posted by 240_to_miata View Post
were u by any chance logging durring this run? What were ur AFRS

Ik its kinda too late now anyway, but just curious.

I say rebuild it / replace them before something big gets damaged.

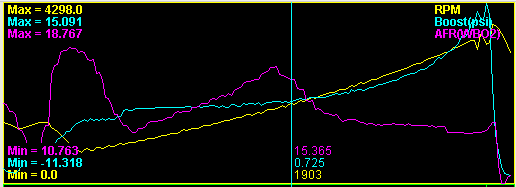

It did go lean under extremely light load.
Attached Images
File Type: bmp overboost 15 psi top plot.bmp (282.7 KB, 191 views)
fluke is offline   Reply With Quote
Old 05-08-2009, 09:04 AM   #7
Junior Member
Thread Starter

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

Quote:
Originally Posted by mrtonyg View Post
I don't understand what the issue is...if the motor developed an internal noise after overboosting it...it is obvious that you are going to have to pull it apart and fix the damaged components. Are you going to wait for the whole thing to grenade and then have to spend money on an engine core?

It's a no-brainer.
I'm not certain that it's from the bottom end, but if I need to replace the pistons since they're pitted, then I'll be rebuilding it.

What I don't know is: do pitted pistons warrant a rebuild? Assuming the noise isn't from the bottom end.
fluke is offline   Reply With Quote
Old 05-08-2009, 10:40 AM   #8
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

I don't know how a "clunking" noise wouldn't be from the bottom end.
gospeed81 is offline   Reply With Quote
Old 05-08-2009, 11:08 AM   #9
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default

How did you achieve 15psi under a "light load?" Are you suffering from flow restrictions or just understating how you blew it up?

Your engine could certainly run with a bent rod, it just might not run well and it might make abnormal noises while doing so.

BTW - Pitted piston tops will create hot spots and combined with FI is a recipe for acute depression. Out of concern for your mental health I would recommend that you change them.
sixshooter is offline   Reply With Quote
Old 05-08-2009, 11:57 AM   #10
Junior Member
Thread Starter

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

Quote:
Originally Posted by sixshooter View Post
How did you achieve 15psi under a "light load?" Are you suffering from flow restrictions or just understating how you blew it up?

Your engine could certainly run with a bent rod, it just might not run well and it might make abnormal noises while doing so.

BTW - Pitted piston tops will create hot spots and combined with FI is a recipe for acute depression. Out of concern for your mental health I would recommend that you change them.
There's two lean spots on the plot, this was under part throttle. From ~4psi - 15psi was WOT, but was running rich there.

Ok, so the advice so far is to replace the pistons and rods. I guess, based on what I've read, that I'll go ETD rods and possibly OEM pistons.

I've heard of people reusing rings if they're still pretty new. Is this a **** idea?
fluke is offline   Reply With Quote
Old 05-08-2009, 02:08 PM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by flier129 View Post
If you got the extra cash, forged internals, you won't regret it. I promise lol.

Definately rebuild it, I was in your shoes, some what, 2 weeks ago. Its worth it in the end. I'm saying this and Im not even into boost yet hah.
My "target boost" is 15psi.

I had a bottle of wine a few nights ago and on the drive home it was cold out and the car felt insano fast but kept popping and bucking...because I was overboosting to 19psi/230kpa. lol.

Oh well, just pull over and twist the boost controller and smile because I spent the money wisely on a built motor with overboost protection. If I had a stock motor I would have blown it up 3-times by now. So you have an idea of the amount of headroom I have with 8.6:1 pistons, on a dynodynamics I've had 252wtq/4000rpm/15psi with 30* of advance with no detonation. Buy the low-comp pistons because its $400 well spent.
hustler is offline   Reply With Quote
Old 05-08-2009, 03:13 PM   #12
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Quote:
Originally Posted by fluke View Post
I've heard of people reusing rings if they're still pretty new. Is this a **** idea?

It's a great idea if you really like the teardown and assembly process.
BenR is offline   Reply With Quote
Old 05-08-2009, 03:53 PM   #13
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Los Alamos/Las Crues New Mexico
Posts: 101
Total Cats: 0
Default

Quote:
Originally Posted by fluke View Post
I've heard of people reusing rings if they're still pretty new. Is this a **** idea?
You want them to mate to the cylinder walls to achieve a good seal. When you take them out and put them back in, it will be impossible to keep them in the exact orientation that they were already in and mated. Replace the rings and check the tolerances well to make sure you don't need an overbore. Be sure to re hone either way.
AlexandertheOk is offline   Reply With Quote
Old 05-08-2009, 03:59 PM   #14
Junior Member
Thread Starter

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
My "target boost" is 15psi.

I had a bottle of wine a few nights ago and on the drive home it was cold out and the car felt insano fast but kept popping and bucking...because I was overboosting to 19psi/230kpa. lol.

Oh well, just pull over and twist the boost controller and smile because I spent the money wisely on a built motor with overboost protection. If I had a stock motor I would have blown it up 3-times by now. So you have an idea of the amount of headroom I have with 8.6:1 pistons, on a dynodynamics I've had 252wtq/4000rpm/15psi with 30* of advance with no detonation. Buy the low-comp pistons because its $400 well spent.
Looks like the Belfab rod/piston combo is pretty reasonable, still not sure what compression ratio to go w/ though. I've read a lot of posts on the subject, guess there's no definitive answer.

Hustler, did you notice a significant loss of power when off boost w/ 8.6:1? Would you recommend 8.6 over 9:1?

Thanks.
fluke is offline   Reply With Quote
Old 05-08-2009, 04:00 PM   #15
Junior Member
Thread Starter

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

Quote:
Originally Posted by AlexandertheOk View Post
You want them to mate to the cylinder walls to achieve a good seal. When you take them out and put them back in, it will be impossible to keep them in the exact orientation that they were already in and mated. Replace the rings and check the tolerances well to make sure you don't need an overbore. Be sure to re hone either way.
That makes sense, I'll do that.

Thanks.
fluke is offline   Reply With Quote
Old 05-08-2009, 04:22 PM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by fluke View Post
Hustler, did you notice a significant loss of power when off boost w/ 8.6:1? Would you recommend 8.6 over 9:1? Thanks.
I came from a seriously tired 1.6 so no, it felt significantly stronger than my 1.6. You can advance spark MUCH further with lowered compression and I bet you can up the octane and get close to the stock off-boost output. FM seems to churn out tons and tons of 9.0:1 compression motors that make crazy power, but I think I'm making more torque/psi, especially when you compare dyno measurement differences.

Read through my dyno thread and you'll probably agree too. I have lots and lots of headroom.

if you're really worried about losing power off boost, then go with bigger pistons.
hustler is offline   Reply With Quote
Old 05-08-2009, 07:52 PM   #17
Junior Member
Thread Starter

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
I came from a seriously tired 1.6 so no, it felt significantly stronger than my 1.6. You can advance spark MUCH further with lowered compression and I bet you can up the octane and get close to the stock off-boost output. FM seems to churn out tons and tons of 9.0:1 compression motors that make crazy power, but I think I'm making more torque/psi, especially when you compare dyno measurement differences.

Read through my dyno thread and you'll probably agree too. I have lots and lots of headroom.

if you're really worried about losing power off boost, then go with bigger pistons.
I didn't realize you have a 1.6, 9:1 was stock for the 1.6 no? I'd like to make 15 psi safely.
fluke is offline   Reply With Quote
Old 05-08-2009, 08:33 PM   #18
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Quote:
Originally Posted by hustler View Post
You can advance spark MUCH further with lowered compression and I bet you can up the octane and get close to the stock off-boost output.
Seems like every thread i come into Hustler is talking about how much better low comp is.. btw i jumped on the bandwagon
thesnowboarder is offline   Reply With Quote
Old 05-08-2009, 08:58 PM   #19
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default

Hustler isn't the only one that understands that lower dynamic compression will allow you to run more boost and more timing and ultimately make significantly more power on pump gas. It is just a little science and math that happens to be indisputable. What you choose to do with this information is up to you. I wish there were more true believers like him on this forum. I guess it will take time for more to choose this route. You won't be disappointed.
sixshooter is offline   Reply With Quote
Old 05-08-2009, 09:50 PM   #20
Junior Member
Thread Starter

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

Quote:
Originally Posted by sixshooter View Post
Hustler isn't the only one that understands that lower dynamic compression will allow you to run more boost and more timing and ultimately make significantly more power on pump gas. It is just a little science and math that happens to be indisputable. What you choose to do with this information is up to you. I wish there were more true believers like him on this forum. I guess it will take time for more to choose this route. You won't be disappointed.
Well, it makes sense to me. I'm going w/ 9:1 Belfab pistons.
fluke is offline   Reply With Quote
