Default SR20DET turbo w/ Flyin' Miata maifold

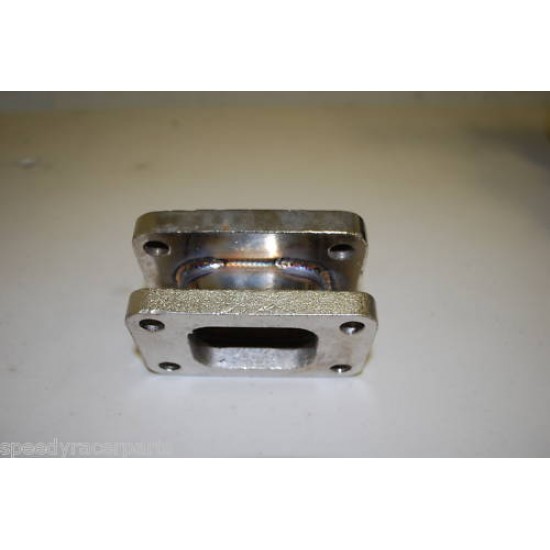

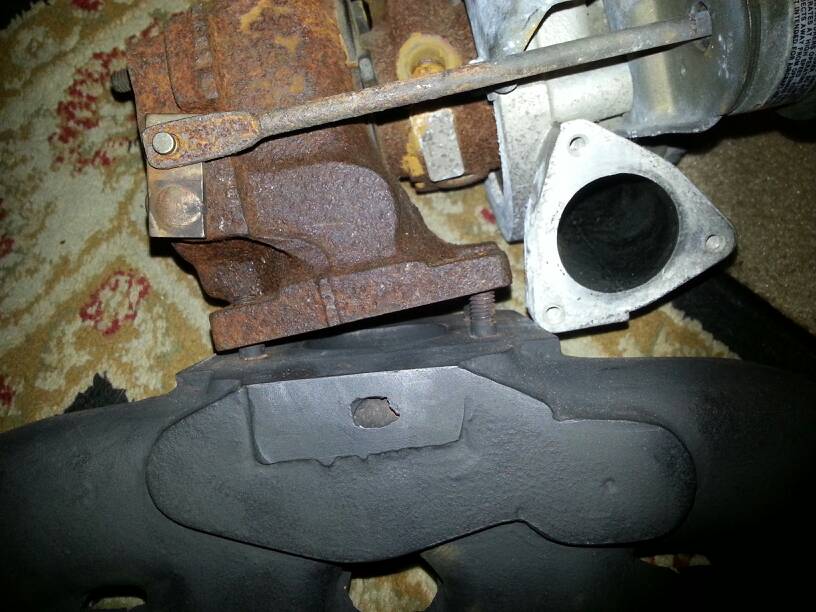

Hello friends. I'm trying to mount my sr20 turbo onto the manifold but the turbo outlet is in the way. I'm trying not to clock (rotate) it. I am thinking about getting a t25 flange extender. Similar to the attached photo. Does anyone make those? I can't seem to find one.
Attached Thumbnails
SR20DET turbo w/ Flyin' Miata maifold-t25.jpg   SR20DET turbo w/ Flyin' Miata maifold-adapter.jpg
L4nthonyl is offline   Reply With Quote
Old 10-22-2013, 06:52 PM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Why on earth are you not just clocking the turbo?
shuiend is offline   Reply With Quote
Old 10-22-2013, 07:03 PM   #3
Junior Member
Thread Starter

Join Date: Oct 2013
Location: Bay Area
Posts: 68
Total Cats: 0
Default

I was just wondering if a flange extender exist so I don't have to clock the turbo.
L4nthonyl is offline   Reply With Quote
Old 10-22-2013, 07:05 PM   #4
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 781
Default

So you aren't clocking the turbo, why?
concealer404 is offline   Reply With Quote
Old 10-22-2013, 07:12 PM   #5
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by L4nthonyl View Post
I was just wondering if a flange extender exist so I don't have to clock the turbo.
You are trying to solve one problem, by adding a ton more. Even if you find that extender, or get someone to make it for you, there will still be problems with keep it all attached. You also then have the extra complexity of trying to route intercooler pipes from there.

What I think happened is that you went extremely cheap on the turbo. I am guessing this based on the amount of rust it is covered in. Because of this you cannot loosen the bolts to clock it.
shuiend is offline   Reply With Quote
Old 10-22-2013, 07:17 PM   #6
Senior Member
iTrader: (7)

RedCarmel's Avatar

Join Date: Oct 2011
Location: Horse and Buggy, PA
Posts: 689
Total Cats: 18
Default

If you dont clock, will your oil supply and drain lines be oriented correctly? I can't tell from your photo but when I got my SR20 turbo I needed to clock it not only for intercooler routing but also so the turbo would be properly lubed and cooled.

I guess you could maybe grind down the triangle flange and that might get you clearance but really it just needs to be clocked.
RedCarmel is offline   Reply With Quote
Old 10-22-2013, 07:17 PM   #7
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Search my old posts or posts of the dozens of other members that clocked the SR20 T25 and ran it successfully on the FM manifold.

Don't reinvent the wheel here...
240_to_miata is offline   Reply With Quote
Old 10-22-2013, 07:19 PM   #8
Junior Member
Thread Starter

Join Date: Oct 2013
Location: Bay Area
Posts: 68
Total Cats: 0
Default

Wasn't thinking looking for lazy route. Extender/adapter equals more chance of leaks. Spraying pb blaster soon. Turbo was from friends car ran perfect. He just upgraded I'm going to clean it before I put everything on. Looking for injectors(450cc) atm please email if anyone is selling a set [email protected]
L4nthonyl is offline   Reply With Quote
Old 10-22-2013, 07:42 PM   #9
Junior Member
Thread Starter

Join Date: Oct 2013
Location: Bay Area
Posts: 68
Total Cats: 0
Default

I will definitely clock the turbo soon. I just realized that if leave it the way it sits oil return will face parallel to the ground. Thanks all!
L4nthonyl is offline   Reply With Quote
Old 10-25-2013, 01:53 AM   #10
Junior Member

Join Date: Nov 2012
Location: Camp Pendleton, CA
Posts: 49
Total Cats: 0
Default

I did the same thing last week. I soaked it in PB Blaster for like 2 days and that really didn't help at all. It was fused together pretty good. I ended up taking it to a local turbo shop and they just smacked it a few times with a brass hammer.
connor is offline   Reply With Quote
Old 10-29-2013, 10:14 AM   #11
Junior Member

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

I'm also doing an sr20 t25 build. You will need to clock it for the oil drain to be facing down correctly. You will also need to find a way to mount the wastegate after you clock it.

The t25 that I originally had couldn't be clocked after 2 hours of labor at the shop. It was very fused together. So I just went and bought a freshly rebuilt one instead.
Leach0789 is offline   Reply With Quote
Old 10-29-2013, 10:19 AM   #12
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,805
Total Cats: 183
Default

There's no such thing as "very fused together" at my shop. Still have that turbo and want to part with it?
thirdgen is offline   Reply With Quote
Old 10-29-2013, 10:34 AM   #13
Junior Member
Thread Starter

Join Date: Oct 2013
Location: Bay Area
Posts: 68
Total Cats: 0
Default

Quote:
Originally Posted by Leach0789 View Post
I'm also doing an sr20 t25 build. You will need to clock it for the oil drain to be facing down correctly. You will also need to find a way to mount the wastegate after you clock it.

The t25 that I originally had couldn't be clocked after 2 hours of labor at the shop. It was very fused together. So I just went and bought a freshly rebuilt one instead.
I clocked it last week. I sprayed PB blaster and left it for two days and I used a breaker bar to crack the bolts loose. Now I am just waiting for my rebuild kit to come in.
L4nthonyl is offline   Reply With Quote
Old 10-29-2013, 10:46 AM   #14
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by thirdgen View Post
There's no such thing as "very fused together" at my shop. Still have that turbo and want to part with it?
Have oxyacetylene, will torch for turbos.
Leafy is offline   Reply With Quote
Old 10-29-2013, 12:48 PM   #15
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

My mini bottle jacks worked amazingly, Just a bolt and a flanged nut. They provided more leverage than any amount of hammering or prying.
curly is offline   Reply With Quote
Old 10-31-2013, 05:40 PM   #16
Junior Member
iTrader: (1)

Join Date: Sep 2013
Posts: 186
Total Cats: 10
Default

How much are you guys paying for your sr20 turbo? Also, does anyone go with the t28? or the t25 from an s13?
carbon is offline   Reply With Quote
Old 10-31-2013, 05:49 PM   #17
Junior Member
Thread Starter

Join Date: Oct 2013
Location: Bay Area
Posts: 68
Total Cats: 0
Default

I got mine for free. You can find t25 for around 100-250 t28 300-500 on zilvia.net or Craigslist just know what you are looking for.
L4nthonyl is offline   Reply With Quote
Old 10-31-2013, 06:02 PM   #18
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Got mine for $75 with a broken stud on the DP flange, which was another $65 I think in machine work, plus $90 in a gopopshop.com rebuild kit. So all said and done it was $230 for a rebuild unit.

The T28 is definitely the better unit, but as stated above it's much harder to find and more expensive.
curly is offline   Reply With Quote
Old 11-01-2013, 12:14 PM   #19
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Quote:
Originally Posted by curly View Post
My mini bottle jacks worked amazingly, Just a bolt and a flanged nut. They provided more leverage than any amount of hammering or prying.
pics please.
Seefo is offline   Reply With Quote
Old 11-01-2013, 12:17 PM   #20
Junior Member

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

Quote:
Originally Posted by thirdgen View Post
There's no such thing as "very fused together" at my shop. Still have that turbo and want to part with it?
It had a lot of shaft play. Unless you're planning on rebuilding it, you don't want it.
Leach0789 is offline   Reply With Quote
