Default Subaru style Gauge pod

Hello, I have searched without finding anything, but I was wondering if anyone had done a subaru style gauge pod set up on the top of the dashboard in the center slightly facing the driver? I am not a fan of the A-Pillar gauges and would like to keep my radio as well as have maximum visibility of the gauges. I was thinking of using a pod like this:
3 Hole POD Dash Triple Gauge Tacho Temp OIL Meter Panel Mount Holder 52mm Black | eBay


Any thoughts or reasons why it wouldn't work?
mp5turbo is offline   Reply With Quote
Old 11-08-2013, 01:11 PM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

You block an enormous amount of your tach/speedo.
Savington is offline   Reply With Quote
Old 11-08-2013, 01:18 PM   #3
Newb
Thread Starter

Join Date: Nov 2013
Posts: 16
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
You block an enormous amount of your tach/speedo.
How would they block the tach and speedo, im talking about center dash top mounted above the radio on dashboard like this:
http://www.streettuned.com.au/images...r%20XT%201.jpg
mp5turbo is offline   Reply With Quote
Old 11-08-2013, 05:25 PM   #4
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,050
Total Cats: 5
Default

I have one of the genuine Subaru ones (at least I think it's genuine) and I was contemplating trying it out.

I don't really like the a-pillar one either, but I'm not sure how the suby one will fit on/in the miata dash.

I've been planning on test fitting mine, but it's been pretty low on the "to-do" list.
Efini~FC3S is offline   Reply With Quote
Old 11-08-2013, 05:51 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

it will look really really stupid and just as tacky as a-pillar gauges. Borrow one of those from someone and test it out, it looks terrible on a miata dash in real life.
18psi is offline   Reply With Quote
Old 11-08-2013, 06:05 PM   #6
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Quote:
Originally Posted by mp5turbo View Post
How would they block the tach and speedo, im talking about center dash top mounted above the radio on dashboard like this:
http://www.streettuned.com.au/images...r%20XT%201.jpg


The Miata dash isn't as flat as it looks.
concealer404 is offline   Reply With Quote
Old 11-08-2013, 07:28 PM   #7
Newb
Thread Starter

Join Date: Nov 2013
Posts: 16
Total Cats: 0
Default

fair points made, so what would you suggest as location for 3 gauges(I'd like to keep my vents for the colder days when i need heat!
mp5turbo is offline   Reply With Quote
Old 11-08-2013, 08:07 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

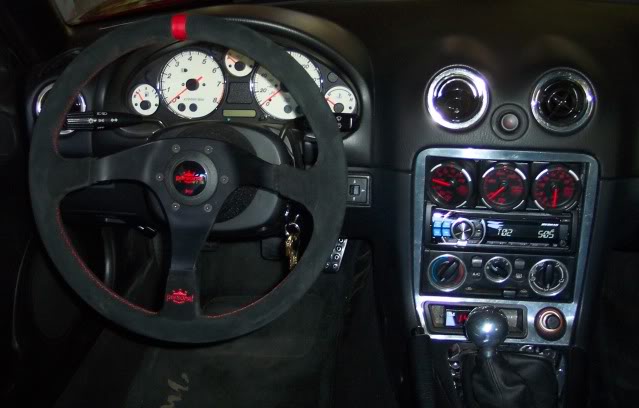

I use something similar to this:

Attached Thumbnails
Subaru style Gauge pod-interior.jpg
18psi is offline   Reply With Quote
Old 11-08-2013, 10:19 PM   #9
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Attached Thumbnails

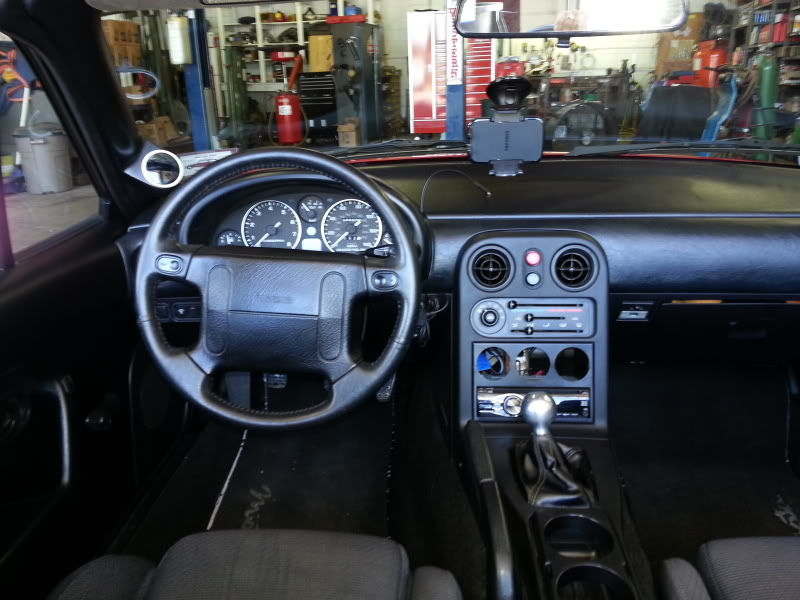

Subaru style Gauge pod-20130715_121515_zpsab741de9.jpg
BTMiata is offline   Reply With Quote
Old 11-10-2013, 03:14 PM   #10
Newb
Thread Starter

Join Date: Nov 2013
Posts: 16
Total Cats: 0
Default

Thank you!
mp5turbo is offline   Reply With Quote
Old 11-10-2013, 03:23 PM   #11
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by mp5turbo View Post
Thank you!
No Prob. The one I posted is a DDMworks radio kit --->

DDMWorks Miata Radio Surrounds...

It's ~$100 new but I picked up mine for $50 shipped from the FS section here. One pops up every now and again on here if you keep your eye's peeled.
BTMiata is offline   Reply With Quote
Old 11-10-2013, 09:48 PM   #12
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

The gauge pods in the tombstone are too low to be useful for track driving... and the A-pillar mounts block your view in left hand corners (pulled mine out for that reason). I like the idea of a Subaru style gauge pod with the gauges up level with the OEM instruments but it's a "DIY" deal from what I can find. No one makes one...
Rennkafer is offline   Reply With Quote
Old 11-10-2013, 09:52 PM   #13
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Rennkafer View Post
The gauge pods in the tombstone are too low to be useful for track driving... and the A-pillar mounts block your view in left hand corners (pulled mine out for that reason). I like the idea of a Subaru style gauge pod with the gauges up level with the OEM instruments but it's a "DIY" deal from what I can find. No one makes one...
My single a pillar pod blocks none of my view and it's easy to glance at. Anything screwed onto the dash would just look ghetto but if you were only using the car on the track it wouldn't matter much I suppose
BTMiata is offline   Reply With Quote
Old 11-10-2013, 11:31 PM   #14
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

All I can tell you is if it doesn't block your view into left hand corners on track you sit a lot differently in the car than I do. One of our local tracks has a long left hander about 190-200 degrees and the dual gauge pod totally blocked my view going into the corner.

YMMV...
Rennkafer is offline   Reply With Quote
Old 11-11-2013, 10:36 AM   #15
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

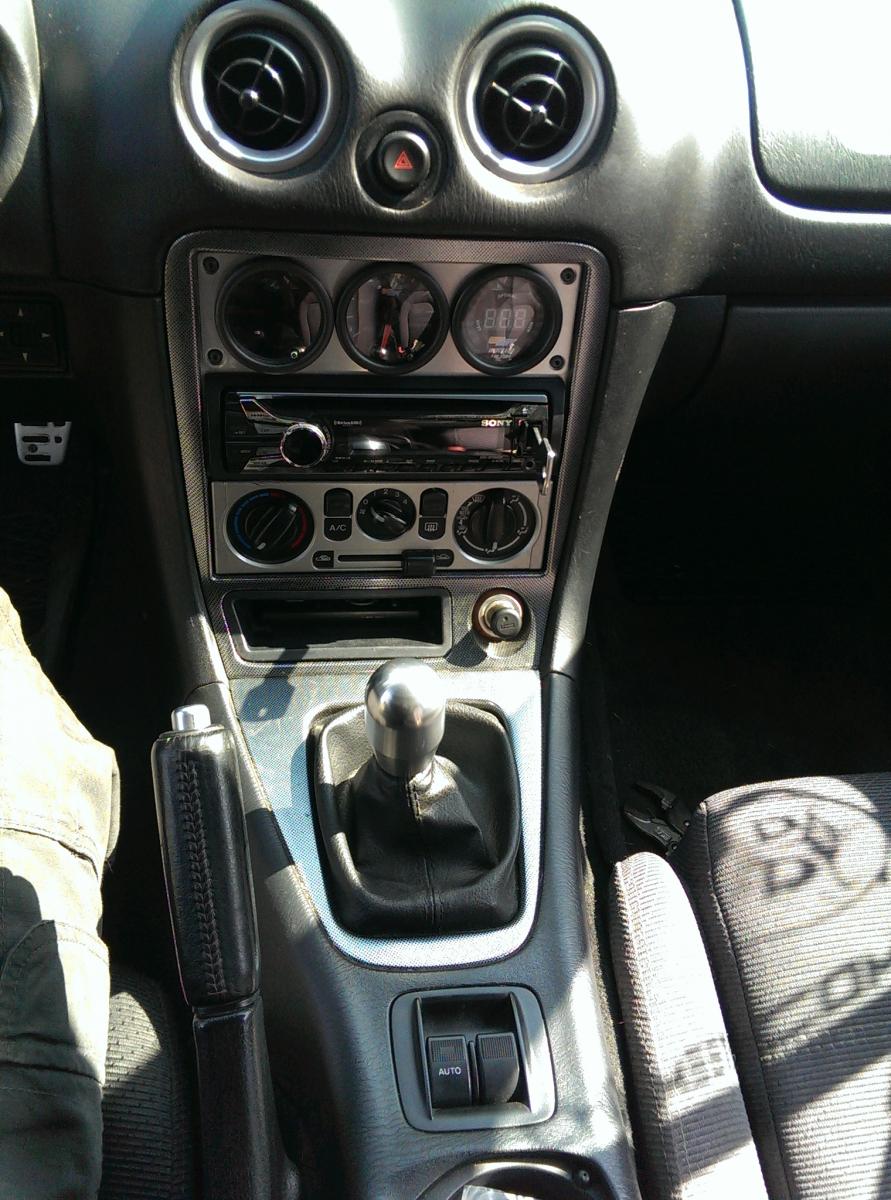

Here's mine, kinda wish the gauges were angled toward me, but it works well for the most part. I'm thinking about swapping out my boost and oil pressure gauges for digital ones so their easier to glance at.
Attached Thumbnails
Subaru style Gauge pod-2013-06-14-16.12.40.jpg
Mazduh is offline   Reply With Quote
Old 11-11-2013, 10:39 AM   #16
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Rennkafer View Post
All I can tell you is if it doesn't block your view into left hand corners on track you sit a lot differently in the car than I do. One of our local tracks has a long left hander about 190-200 degrees and the dual gauge pod totally blocked my view going into the corner.

YMMV...
Maybe I'm just used to not seeing out of that corner because of my inspection sticker.... I payed attention to it this morning on my way into work and it does block a tiny bit of my view in that corner but not enough to affect my view of where I need to look.. Who knows lol
BTMiata is offline   Reply With Quote
Old 11-11-2013, 12:46 PM   #17
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

Quote:
Originally Posted by BTMiata View Post
Maybe I'm just used to not seeing out of that corner because of my inspection sticker.... I payed attention to it this morning on my way into work and it does block a tiny bit of my view in that corner but not enough to affect my view of where I need to look.. Who knows lol
On the street I never really had any issue with it... but on the street I'm not going flatout.
Rennkafer is offline   Reply With Quote
Old 11-11-2013, 04:27 PM   #18
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

Quote:
Originally Posted by Rennkafer View Post
All I can tell you is if it doesn't block your view into left hand corners on track you sit a lot differently in the car than I do. One of our local tracks has a long left hander about 190-200 degrees and the dual gauge pod totally blocked my view going into the corner.

YMMV...
You learn to look through it. A roll cage puts a fairly substantial bar in the same spot.

I tried the radio area and never looked at the gauges. Then I screwed four gauges into the top of the gauge hood, two on each side, which worked until they all broke off (brittle plastic).

I finally gave up and went to a triple-gauge pod on the a-pillar. Wideband low, then boost, then oil temp. It was the best combination of function (I always kept my vents) and visibility I could come up with.
Savington is offline   Reply With Quote
Old 11-11-2013, 04:34 PM   #19
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Mazduh View Post
Here's mine, kinda wish the gauges were angled toward me, but it works well for the most part. I'm thinking about swapping out my boost and oil pressure gauges for digital ones so their easier to glance at.

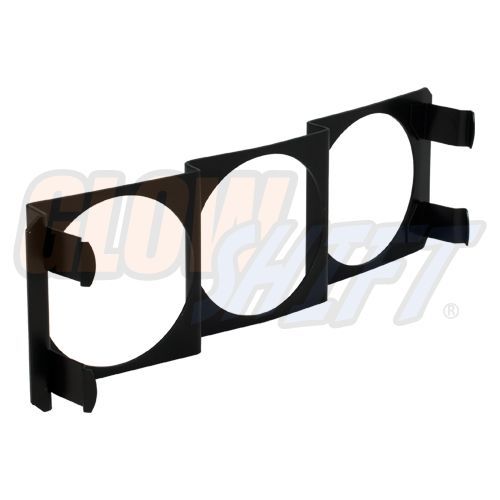

I have one of these guys from eBay. Seems to work fine.



I also had a 2 gauge pod for a while in the NB. I ended up pulling it out because it was too visible from outside the car. If the gauges were set lower it wouldn't be so bad, but it just screamed at me every time I looked at the car.
Attached Thumbnails
Subaru style Gauge pod-%24-kgrhqfhje4fjeynw-ftbsevwlk0vg%7E%7E60_12.jpg
EO2K is offline   Reply With Quote
Old 11-11-2013, 07:29 PM   #20
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

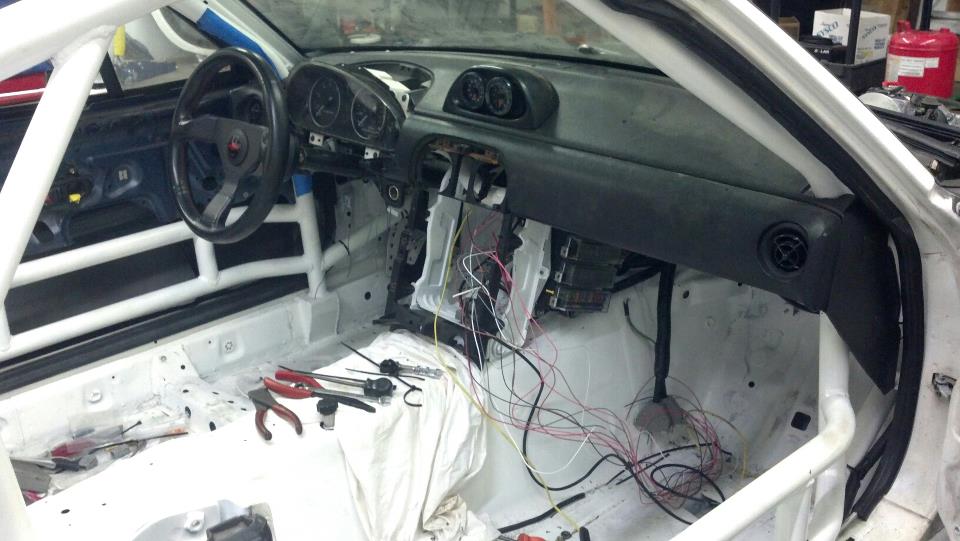

Ive been running an Autometer pod for a 94-04 Mustang. It took a little sanding work to get it to match the contour of the dash but it puts two gauges just a glance away. It matches the factory gauge hood pretty well too. I run oil temp and EGT in it. I have boost and AFR in the vent just below since I have safeguards in my MS3 that keep an eye on those. The only picture I have right now is in the stages of my build...

Attached Thumbnails
Subaru style Gauge pod-75989_478600188851569_1875632876_n.jpg
Sokool is offline   Reply With Quote
