So i guess my question should be what turbine housing should i get?
Loki047 is offline
Old 01-11-2008, 12:10 PM   #62
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

splitime has a GT2554/2560 housing right? and that didn't fit? I have no idea then. Specs-wise the GT25's have a 53.0mm/2.086" inducer, which is what you said is that turbo.
TurboTim is offline
Old 01-11-2008, 12:14 PM   #63
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

We don't know what he has.

Dave when you get home post up those numbers off the casting and measure the housing. Thanks man
Loki047 is offline
Old 01-11-2008, 12:45 PM   #64
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

449010-1 .64 AR

I won't be home until super late tonight... probably tomorrow
Splitime is offline
Old 01-11-2008, 01:04 PM   #65
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Loki047 is offline
Old 01-12-2008, 12:41 PM   #66
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

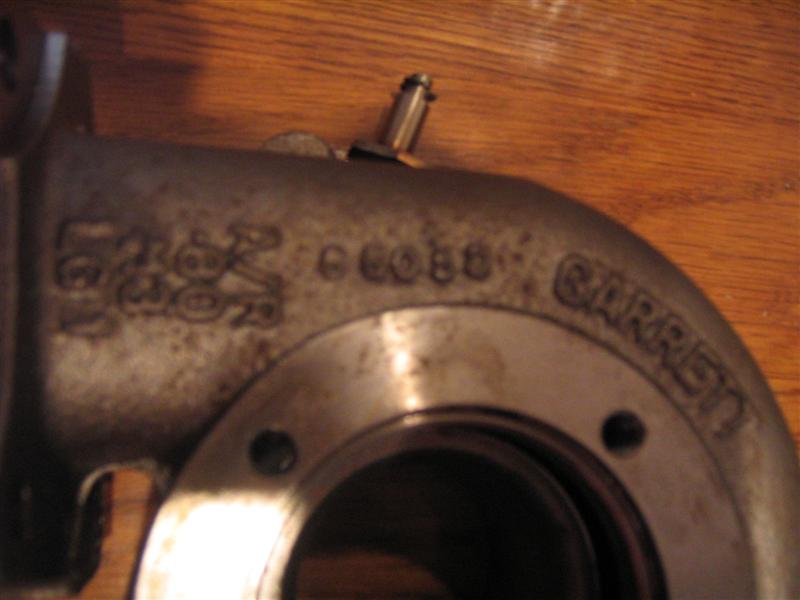

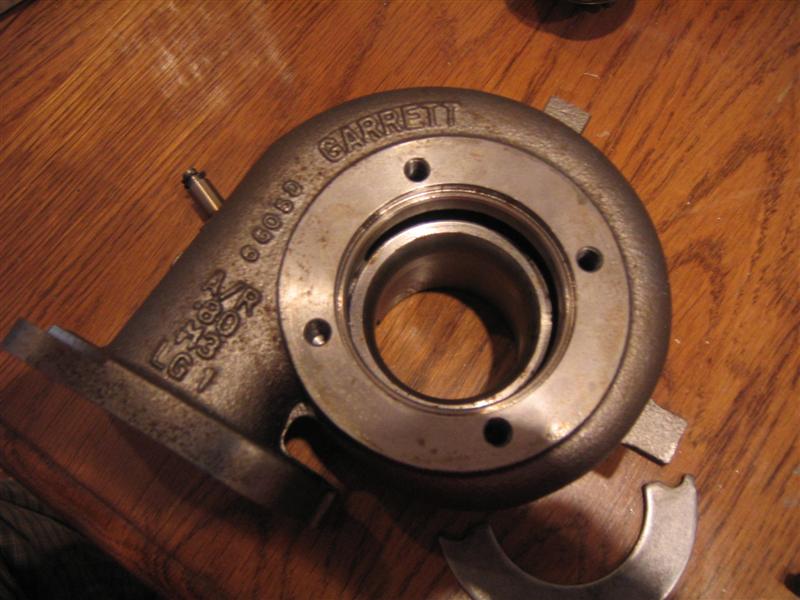

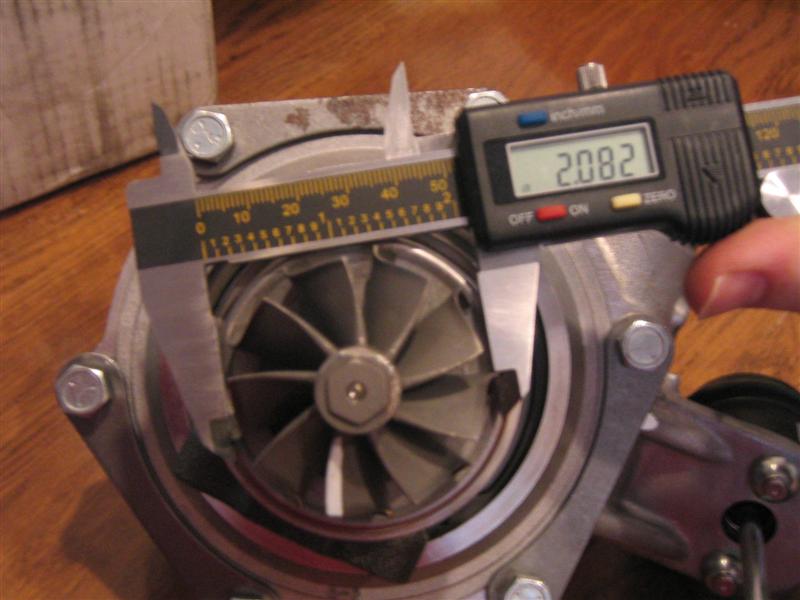

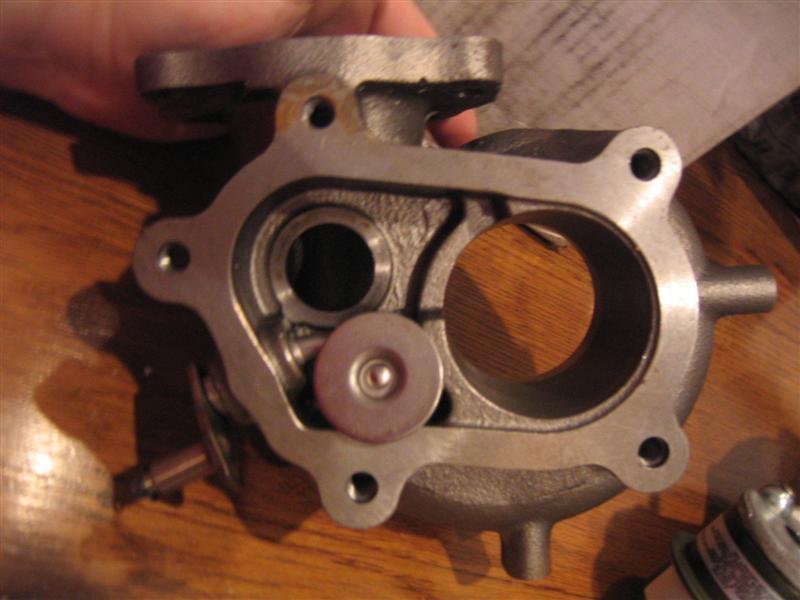

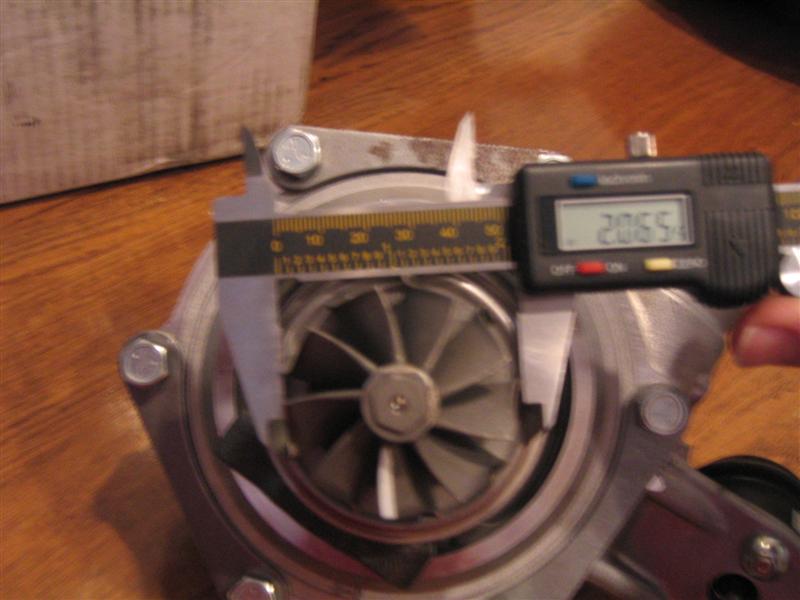

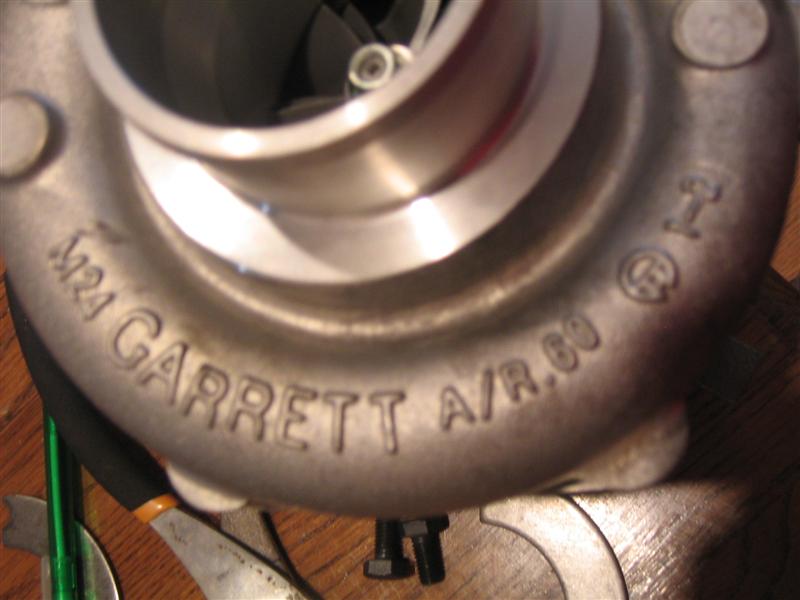

Heres come pictures hopefully someone can see what the hell i have.
Attached Thumbnails
Turbine Housing-img_0041-medium-.jpg   Turbine Housing-img_0042-medium-.jpg   Turbine Housing-img_0043-medium-.jpg   Turbine Housing-img_0044-medium-.jpg   Turbine Housing-img_0045-medium-.jpg

Turbine Housing-img_0046-medium-.jpg   Turbine Housing-img_0047-medium-.jpg   Turbine Housing-img_0048-medium-.jpg   Turbine Housing-img_0049-medium-.jpg
Loki047 is offline
Old 01-12-2008, 01:21 PM   #67
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

What's the number on the tag? Check it against this sheet. And find the Macro button on your camera!





C
chriscar is offline
Old 01-12-2008, 01:58 PM   #68
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

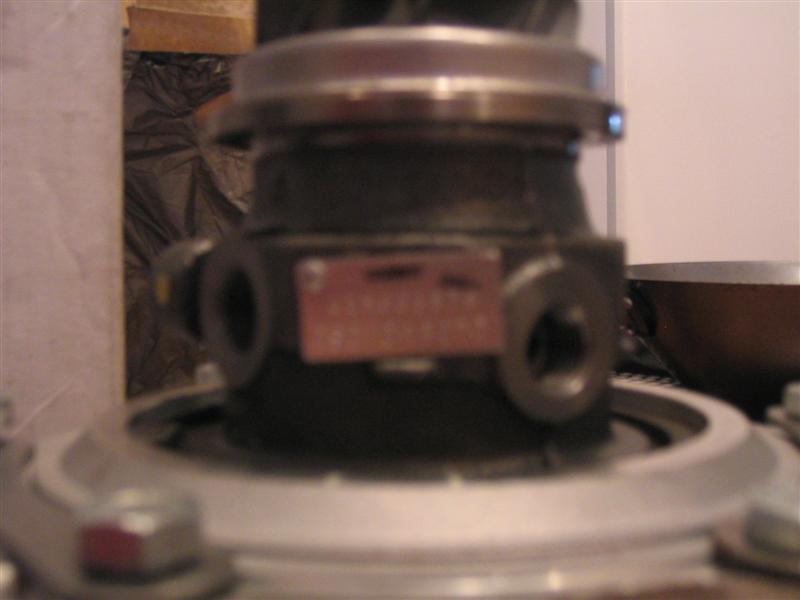

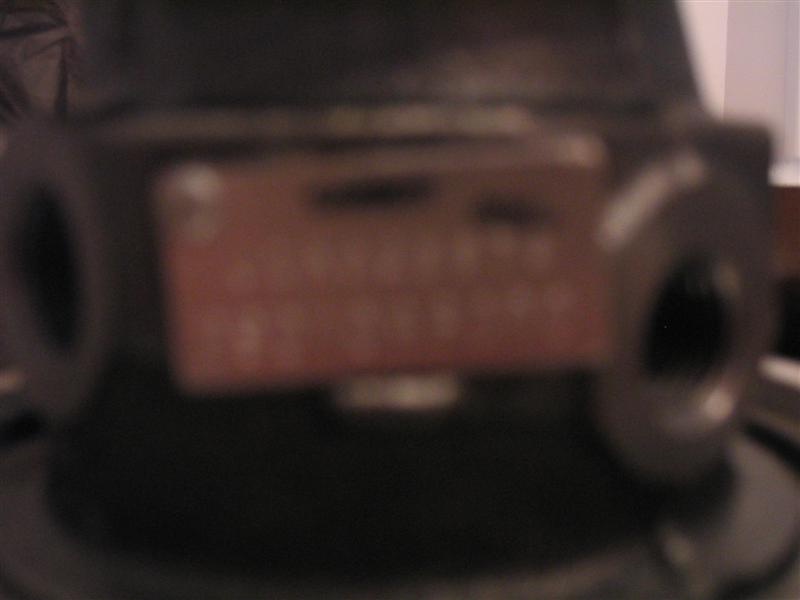

The numbers on the tag. And yeah I cant get the MAcro function good enough to get the numbers off of it.

JIM025579

1901098000
Loki047 is offline
Old 01-12-2008, 06:03 PM   #69
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Quote:
Originally Posted by TurboTim View Post
Sorry Loki, that smaller GT25xx turbine is not available seperately, just the larger GT28xx
They dont made the GT28 housing with different trims do they?
Loki047 is offline
Old 01-12-2008, 07:00 PM   #70
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by Loki047 View Post
They dont made the GT28 housing with different trims do they?
Yes they do. .86A/R and .65(?) A/R.

When I clocked paul's 2560 that turbine housing had 6 bolts that hole it onto the center section compared to 4 on the one in your pics.
TurboTim is offline
Old 01-12-2008, 08:39 PM   #71
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Yeah but long as i get the "clips?" that hold it together I should be fine. If you get a chance could you measure off the 2871 you have?
Loki047 is offline
Old 01-12-2008, 10:21 PM   #72
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

**** no.
TurboTim is offline
Old 01-12-2008, 10:33 PM   #73
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

To the clips or to measuing anything?
Loki047 is offline
Old 01-12-2008, 10:34 PM   #74
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

I meant to say sure, next time I'm at the shop I'll get the dimensions.

Yes, as long as those half-circle clamps are the same inner diameter it should be fine.
TurboTim is offline
Old 01-12-2008, 10:35 PM   #75
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

haha. WTF was that?

Sounds good, thanks man
Loki047 is offline
Old 01-16-2008, 12:09 PM   #76
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Dave / Tim,

Either one of you guys get a chance to measure some stuff up. I think the issue i am running into is that the lip that the housing rests on (where the clips and bolts rest) is larger than normal. Since obviously my turbine is a known size.

Dave this might have been your problem with that housing too since the housing is off a T series and we both have GT.

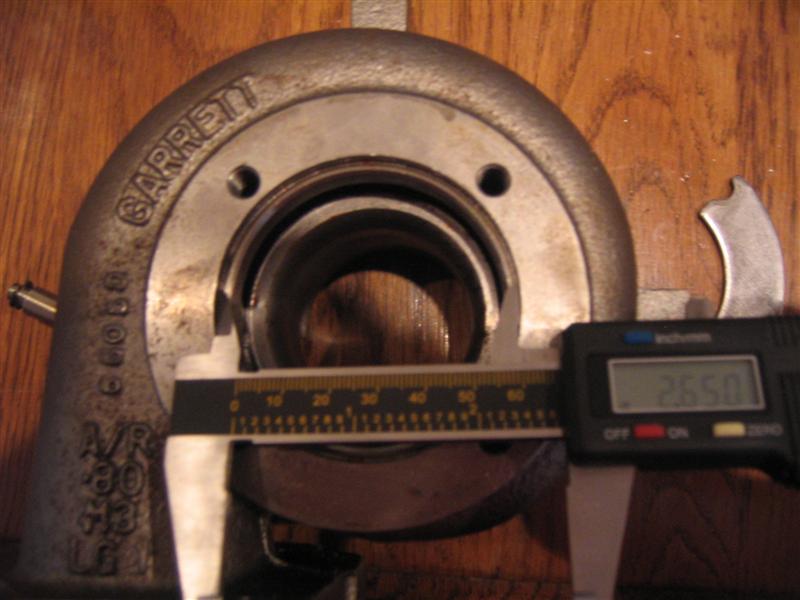

That 2.65 is the number i am very curious to see measured. Along with the other stuff
Loki047 is offline
Old 01-16-2008, 12:20 PM   #77
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Well, my housing issue is that the wheel itself wouldn't fit down into the housing....
Splitime is offline
Old 01-16-2008, 12:22 PM   #78
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Quote:
Originally Posted by Splitime View Post
Well, my housing issue is that the wheel itself wouldn't fit down into the housing....
Hey this is gonna sound down right retarded.

What was my problem? I was so sick I don't really remember much.
Loki047 is offline
Old 01-16-2008, 12:44 PM   #79
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Your wheel didn't fit, just like my gt28rs didn't fit.
Splitime is offline
Old 01-16-2008, 12:52 PM   #80
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Loki,

Sorry buddy, I decided I don't want to disassemble this new turbo to measure that dimension for you. I only removed the thing from it's packaging/bag to take pictures of it and I'm trying to sell it as a new part.

The 2.65 dimension on this turbo would be the same as splitime's disco potato housing.
