DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 09-07-2013, 11:36 AM   #1
Junior Member
Thread Starter

Join Date: Nov 2006
Posts: 89
Total Cats: -1
Default TURBO ADVICE PLEASE 1.6

Which of these turbos would be best suited for a 1.6 Miata that has Supertech forged pistons 8.8 compression and some slight porting work on the head.

I am open to suggestions, the manifold is a T3 manifold so hence why I am looking at T3/T4 turbo. I previously ran a IHI VJ-11 turbo on my older setup.

Cxracing T3 Internal Wastegate Turbo Charger turbocharger 42AR 8PSI 2 5" V Band | eBay

GSP T3 Turbo turbocharger Compressor AR42 Turbine 48 Internal Wastegate 350HP | eBay

Comments are most welcome.
mazdaaz3 is offline   Reply With Quote
Old 09-07-2013, 01:04 PM   #2
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

Neither of those... Get the Biggest Holset you can find, and run ALLOFIT!!!!!!!!!
supercooper is offline   Reply With Quote
Old 09-07-2013, 01:34 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

You want us to tell you what turbo to choose without even telling us your power goals? Seriously?

18psi is offline   Reply With Quote
Old 09-07-2013, 01:36 PM   #4
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

thenuge26 is offline   Reply With Quote
Old 09-07-2013, 01:49 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

oh wow
18psi is offline   Reply With Quote
Old 09-07-2013, 11:09 PM   #6
Junior Member
Thread Starter

Join Date: Nov 2006
Posts: 89
Total Cats: -1
Default

Sorry guys, my bad for not providing more info and thanks for pulling me up. LOL no offense taken.

I am looking at around 220-240whp in terms of power, I want decent spool with good wide powerband, in short a very fun street turbo setup.

I expect that I will be running 10-14psi.

Let me know if I need to provide more details.
mazdaaz3 is offline   Reply With Quote
Old 09-08-2013, 12:32 AM   #7
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

If you want 240whp, good spool, and a wide powerband, sell your built 1.6 and 1.6 turbo parts and buy a stock BP4W 1.8 motor, a T25 1.8 manifold, and a small T25-based turbo (either an SR20 T25 or a GT2560R). You will be significantly happier with the end results and your out of pocket costs should be minimal.
Savington is offline   Reply With Quote
Old 09-08-2013, 05:03 AM   #8
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

BORG WARNER

/Thread
triple88a is offline   Reply With Quote
Old 09-09-2013, 10:17 AM   #9
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

In for the same thread from OP in February 2017.
concealer404 is offline   Reply With Quote
Old 09-09-2013, 10:45 AM   #10
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

I didn't read very far in your first thread, but I did get to the part where Braineack spoonfed you the answer. Go back and reread it ya big dummy.
thenuge26 is offline   Reply With Quote
Old 09-09-2013, 11:18 AM   #11
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

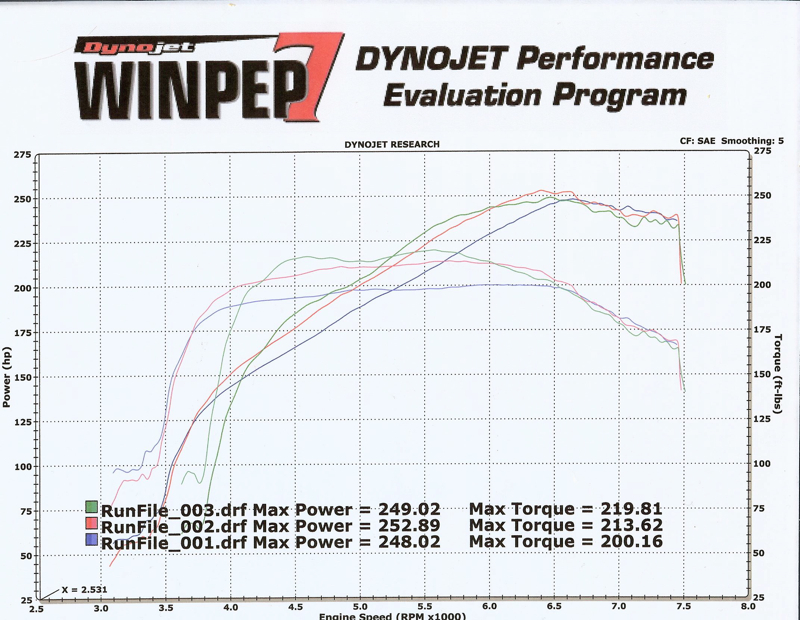

Run the turbo Braineack and Underdog use

Attached Thumbnails
TURBO ADVICE PLEASE 1.6-turbo_miata_dyno_4_2011.jpg
viperormiata is offline   Reply With Quote
Old 09-09-2013, 02:44 PM   #12
Newb

Join Date: Aug 2012
Posts: 8
Total Cats: -3
Default

A Garrett GT2560 or GT2860rs will be perfect for 250whp
thangcu35 is offline   Reply With Quote
Old 09-10-2013, 02:22 AM   #13
Junior Member
Thread Starter

Join Date: Nov 2006
Posts: 89
Total Cats: -1
Default

I have decided to go with the T3 50 trim turbo that Braineack is running and have already placed my order.

Will see how it goes from here.

Thanks for the advice.
mazdaaz3 is offline   Reply With Quote
Old 09-10-2013, 02:43 AM   #14
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

nice flat torque curve.
cyotani is offline   Reply With Quote
