Default Turbo build update.

My MS2 is almost done thanks to Reverant, so I decided to get started on the turbo install.

I'm using a BEGI log manifold.
Garrett GT2560 turbo with upgraded turbine wheel and housing.
Greddy type s BOV
Ebay Bar and plate intercooler.
Ebay universal charge pipe kit.
Bosch EV14 650cc injectors.
2-1/2" stainless exhaust with high flow cat and Magnaflow muffler.
F1 clutch.

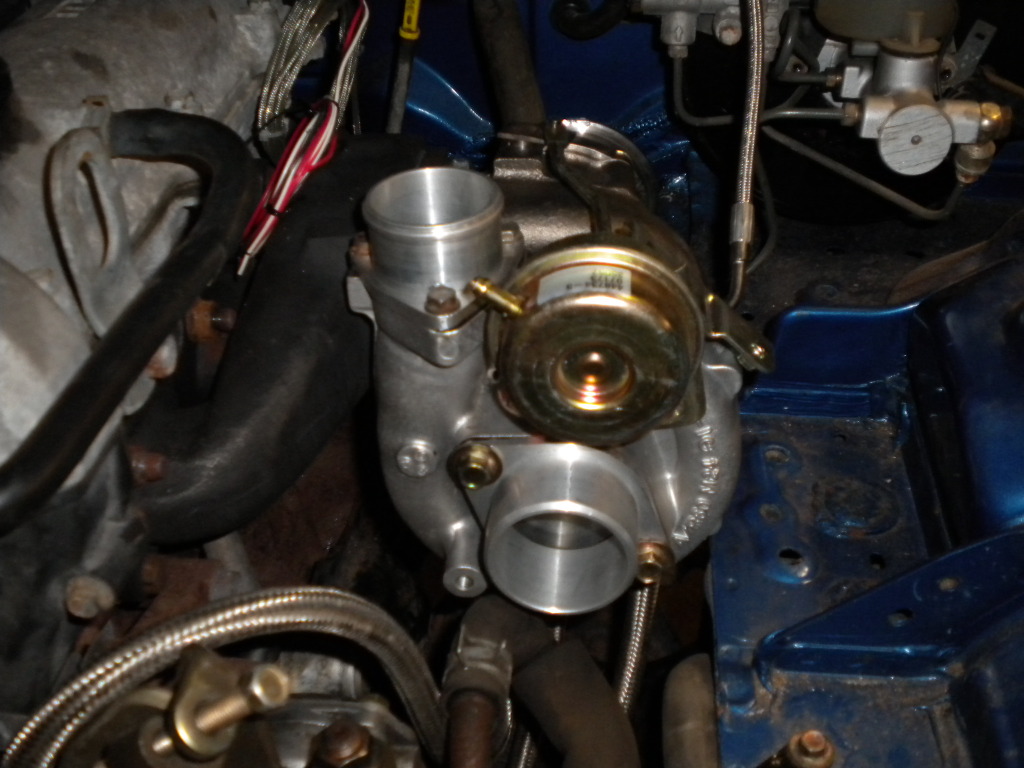

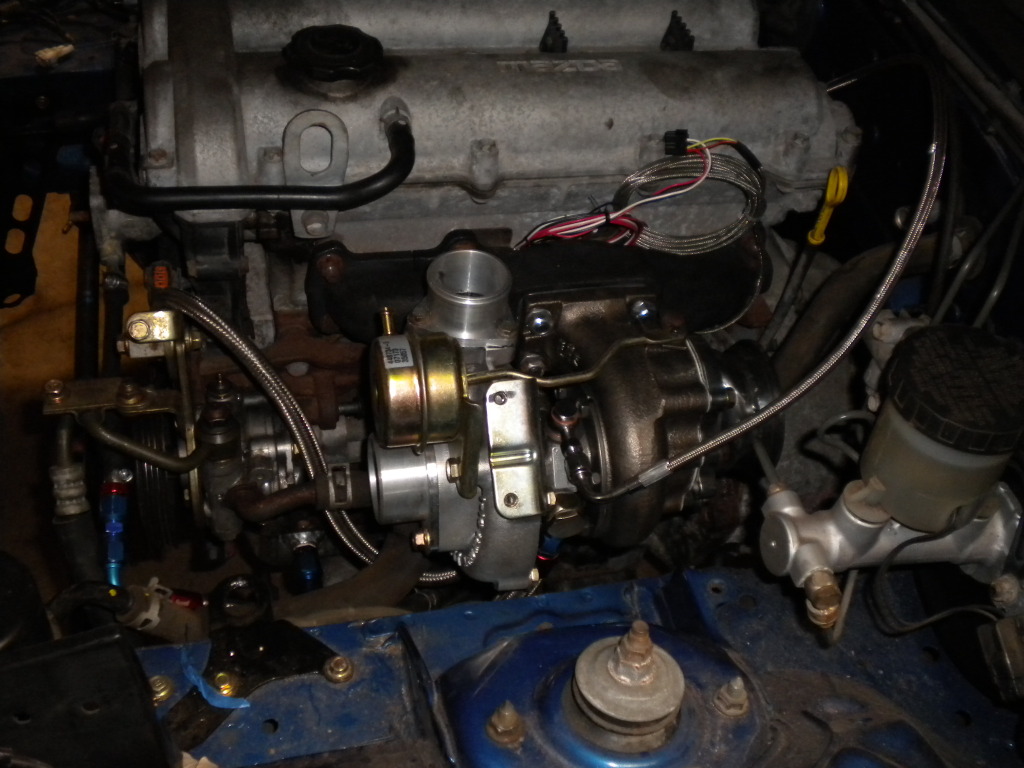

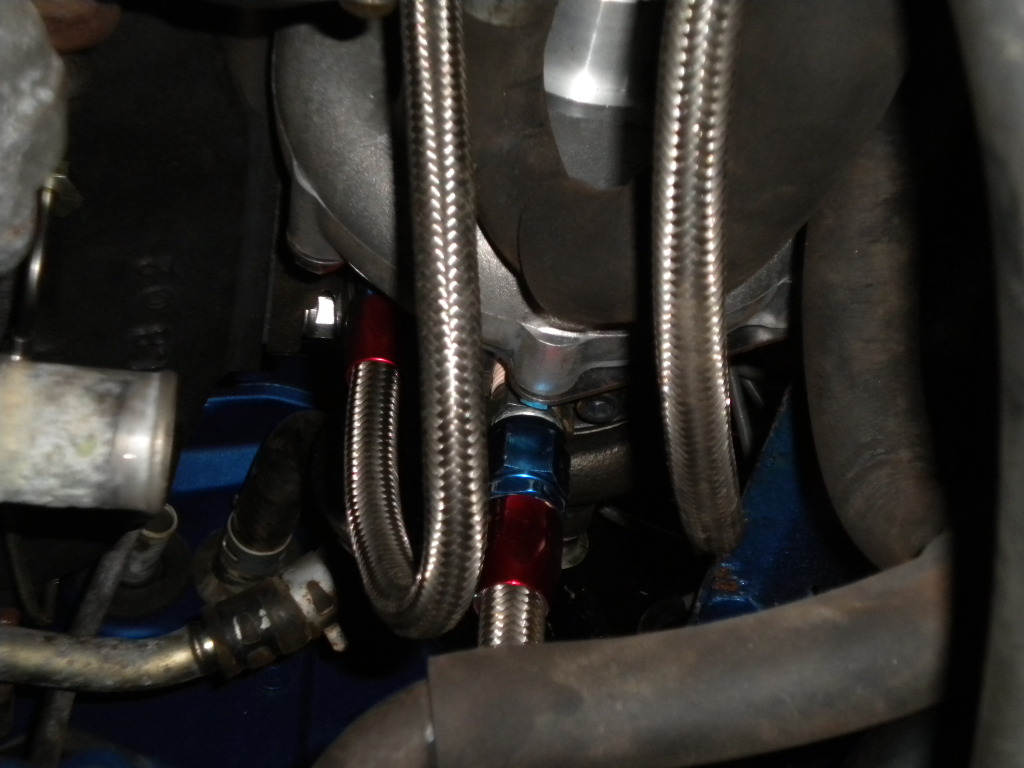

I pulled the motor and tranny today, put in the clutch, oil feed line, removed the EGR pipe and capped the intake manifold, moved water neck for coolant reroute, removed oil pan and TIG'D in a bung for the drain line. I put it all back in the car and proceeded to install the turbo with oil feed and return lines aswell as the cooling lines are finished up.

Tomorrow I am going to tackle the intercooler and piping and maybe get the down pipe built.

My car is really dusty under the hood, I have to clean it up when I get it done.







Attached Thumbnails
Turbo build update.-dscn0968.jpg   Turbo build update.-dscn0972.jpg   Turbo build update.-dscn0970.jpg

Last edited by hattrick; 10-14-2011 at 07:38 PM.
hattrick is offline   Reply With Quote
Old 10-13-2011, 09:03 PM   #2
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

gt2560 with 'upgraded turbine wheel and housing' ?? what exactly is that?
aaronc7 is offline   Reply With Quote
Old 10-13-2011, 09:27 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 53
Total Cats: 1
Default

Its just a metalurgy upgrade built out of inconel, it can handle more heat.
hattrick is offline   Reply With Quote
Old 10-13-2011, 10:21 PM   #4
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

ah gotcha, that one. looks good man
aaronc7 is offline   Reply With Quote
Old 10-13-2011, 10:28 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 53
Total Cats: 1
Default

Thanks, should look better tomorow when the charge pipes are in and everything is cleaned up.
hattrick is offline   Reply With Quote
Old 10-14-2011, 06:48 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 53
Total Cats: 1
Default

Well I got a little more work done today.

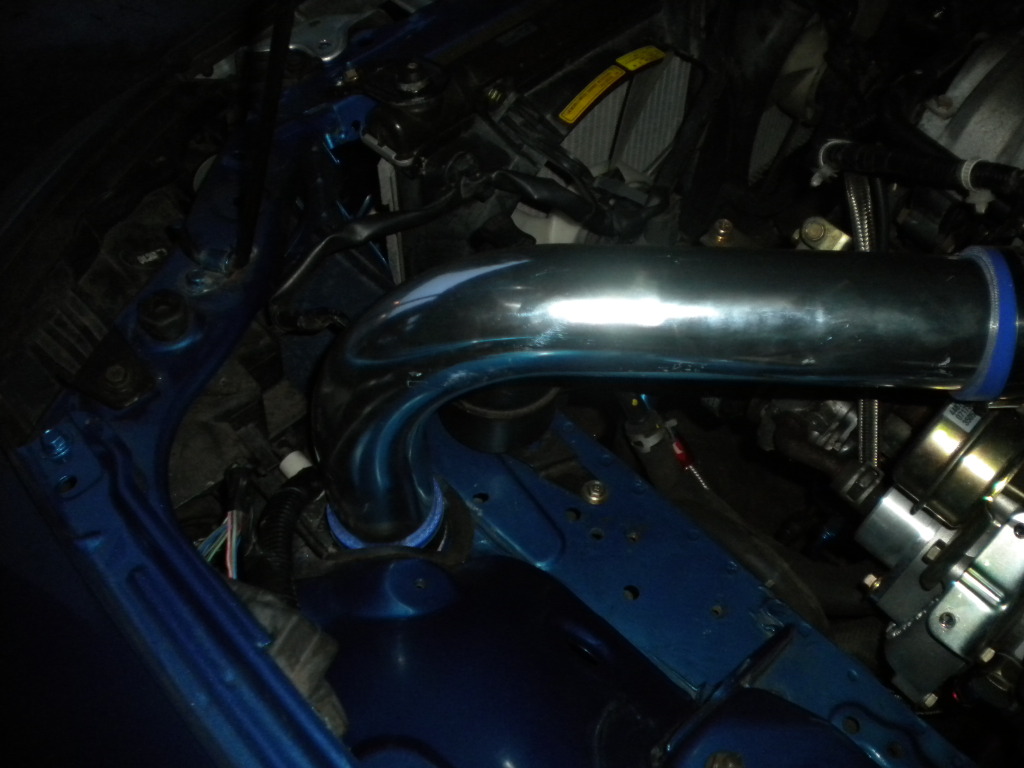

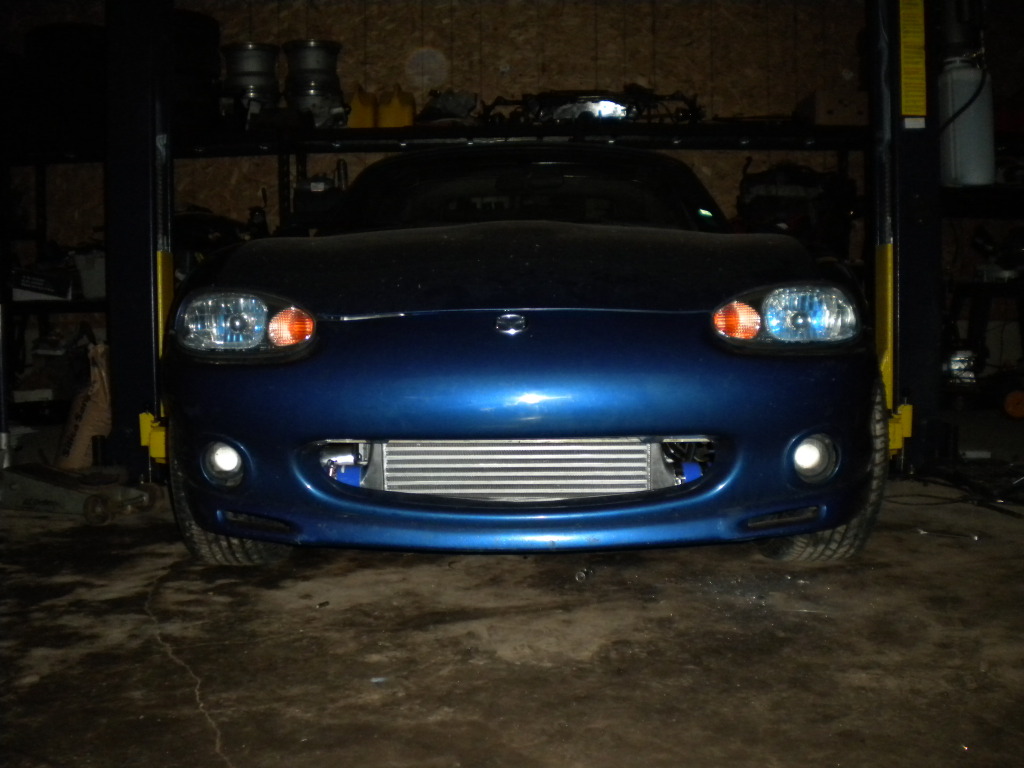

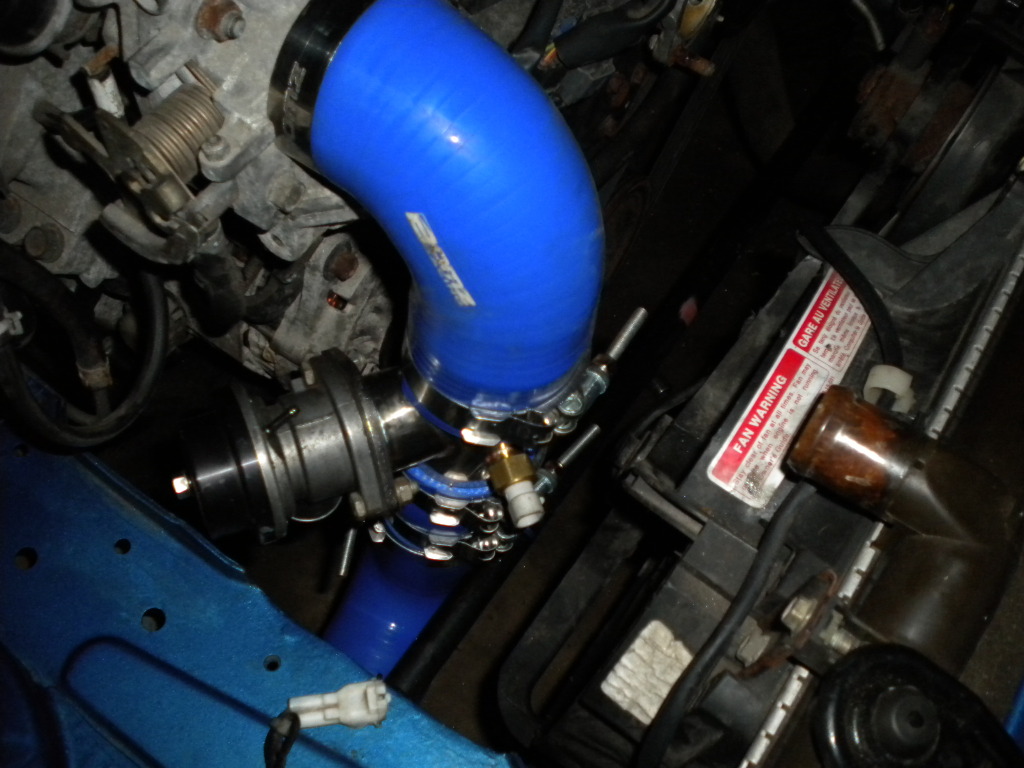

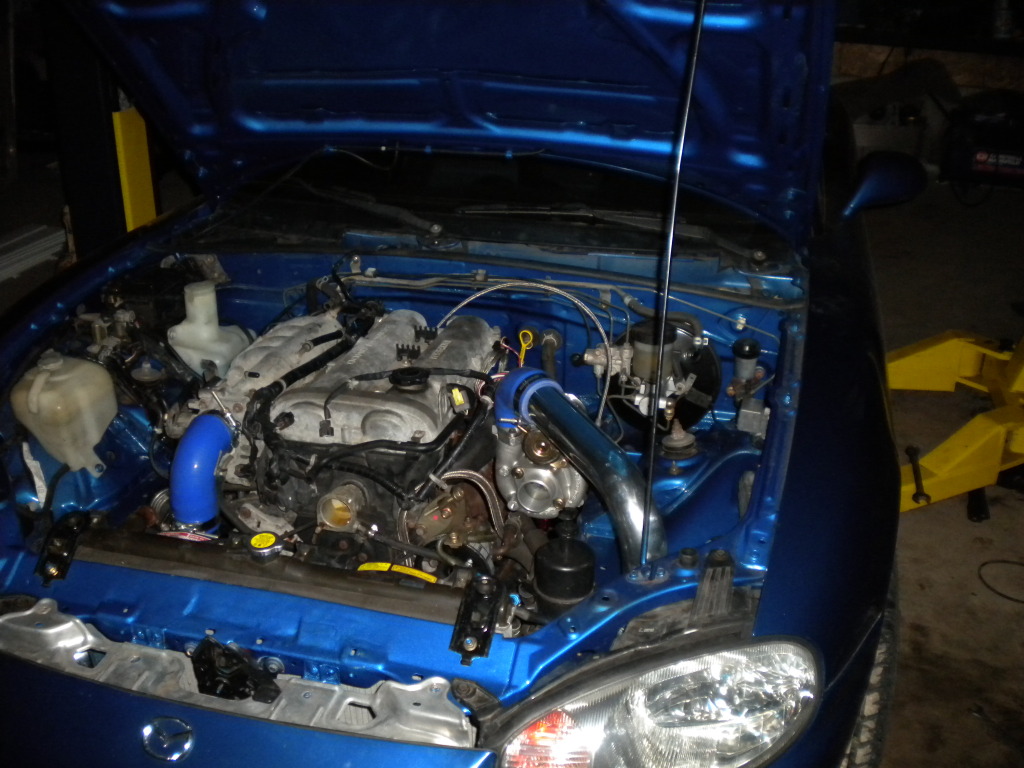

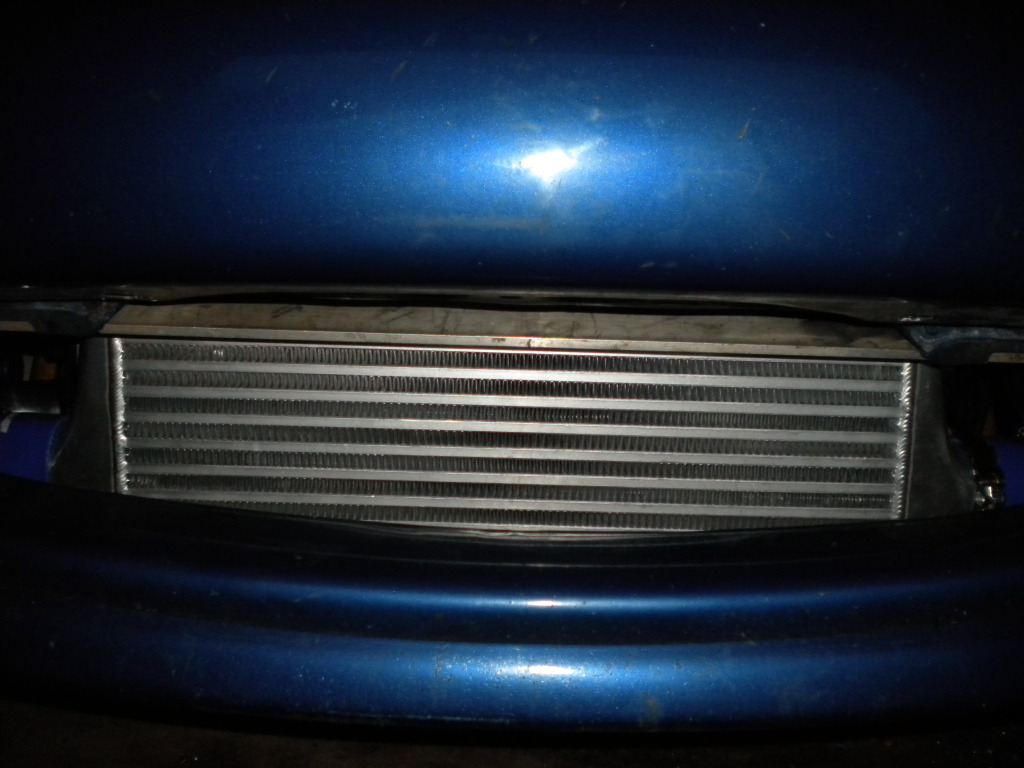

The intercooler and charge pipe are in as well as the Greddy BOV.








Attached Thumbnails
Turbo build update.-dscn0980.jpg   Turbo build update.-dscn0978.jpg   Turbo build update.-dscn0976.jpg   Turbo build update.-dscn0982.jpg   Turbo build update.-dscn0973.jpg

hattrick is offline   Reply With Quote
Old 10-14-2011, 06:55 PM   #7
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Nice build. TIG welder? I'm jealous.
hornetball is offline   Reply With Quote
Old 10-14-2011, 07:03 PM   #8
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

I like that hotside pipe routing. I had pretty much given out routing the pipe that way with the big 99-00 headlights (01+ there seems to be a lot more space)...but you did a nice job!
aaronc7 is offline   Reply With Quote
Old 10-14-2011, 07:27 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 53
Total Cats: 1
Default

I had to cut a little bit of the plastic tab on the headlight, but nothing serious, it fits together pretty good for a Ebay universal kit. Hopefully I can get the downpipe done tomorrow and start it up. I'm not going to change the injectors unitl my MS2 gets here, so I can at least idle the car and check for leaks.
hattrick is offline   Reply With Quote
Old 10-15-2011, 04:59 PM   #10
Newb

Join Date: Oct 2011
Location: Hungary
Posts: 9
Total Cats: 0
Default

On how much psi do you will run it? Is the egine stock?
Mulder is offline   Reply With Quote
Old 10-15-2011, 07:26 PM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 53
Total Cats: 1
Default

The engine is stock, going to start out at 7psi and work my way up to around 15Psi
hattrick is offline   Reply With Quote
Old 10-16-2011, 04:58 AM   #12
Newb

Join Date: Oct 2011
Location: Hungary
Posts: 9
Total Cats: 0
Default

Quote:
Originally Posted by hattrick View Post
The engine is stock, going to start out at 7psi and work my way up to around 15Psi
Very nice, if you have 15 psi what do you want to change in the motor ? I ask it becuse i will buy an NA miata in the future and i collect now some information .

Last edited by Mulder; 10-16-2011 at 05:11 AM.
Mulder is offline   Reply With Quote
Old 10-16-2011, 05:45 AM   #13
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 53
Total Cats: 1
Default

From what I read, with a good tune, there should not be any issues with 15psi on the stock engine, provided it is in good condition.
hattrick is offline   Reply With Quote
Old 10-16-2011, 06:18 AM   #14
Newb

Join Date: Oct 2011
Location: Hungary
Posts: 9
Total Cats: 0
Default

The stock engine can handle 15 psi with a good tune, this is a good news , my goal is 12 psi. Do you use the car for every day car or just for hobby car?

do you have a calculation what you spend for the kit? I'm just curious, how much i have to spend for a turbo kit.
Mulder is offline   Reply With Quote
Old 10-16-2011, 08:30 AM   #15
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Boost levels are not the limiting factor in engines grenading...
curly is offline   Reply With Quote
Old 10-16-2011, 09:59 AM   #16
Newb

Join Date: Oct 2011
Location: Hungary
Posts: 9
Total Cats: 0
Default

i know it, it's a more complex thing.
Mulder is offline   Reply With Quote
Old 10-16-2011, 02:43 PM   #17
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 53
Total Cats: 1
Default

Here's what I have spent so far.

Turbo $650
BEGI manifold with gaskets $450
CX racing intercooler $66 Ebay.
Universal intercooler piping kit $100 Ebay.
Reverant MS2 PNP $680
Bosch EV14 650cc injectors $300 Ebay.
LC1 Wide band with blue guage $167 Ebay.
Oil feed and drain lines, cooling lines $100 Ebay.
F1 stage 3 clutch $165 Ebay
Auto meter boost guage $45 Ebay
Auto meter EGT $150 Ebay
Greddy type S BOV $100 used.
DIY auto tune GM AIT $25
Magnaflow muffler, high flow cat and mandrel bends to build custom exhaust $400

So I am at around $3300 for everything, it is a lot cheaper to shop around and buy things seperate, but a kit is a lot more Convenient. Just make a list and work you way down throught it.

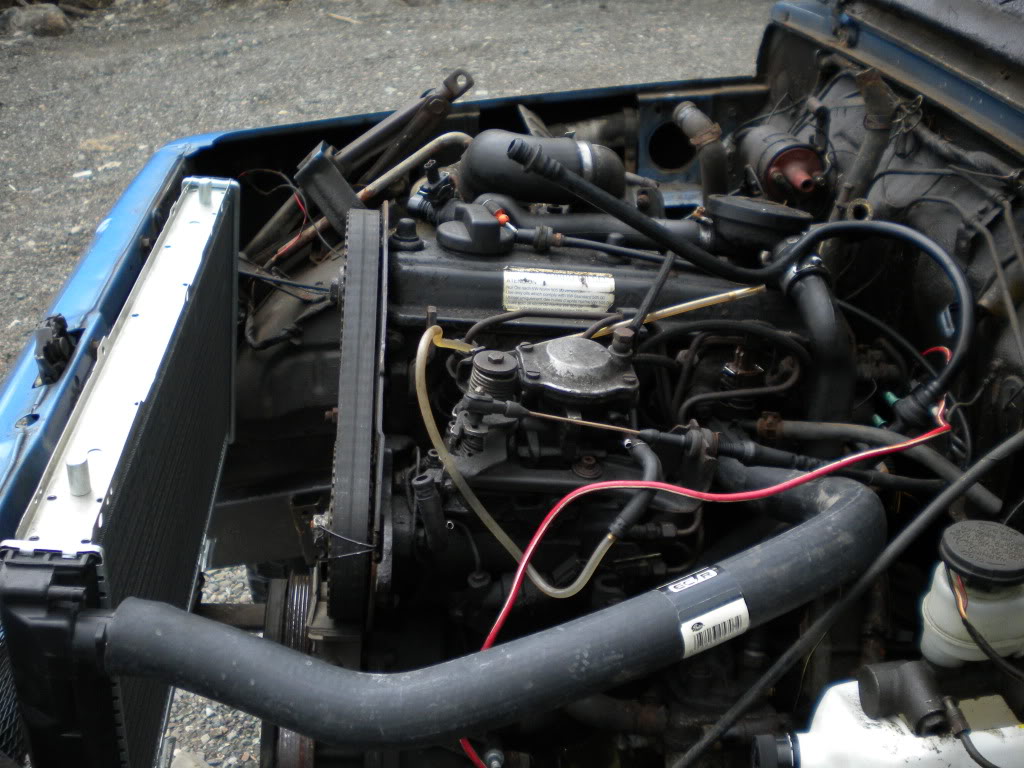

This is my first turbo miata, but I have put together 5 turbo civics, 1 toyota 4 runner, 1 1jz swapped 1974 FJ40 and I am just finishing a VW 1.9 turbo diesel swap in a custom suzuki SJ410.



Attached Thumbnails
Turbo build update.-dscn0864.jpg   Turbo build update.-dscn0832.jpg
hattrick is offline   Reply With Quote
Old 10-16-2011, 04:20 PM   #18
Newb

Join Date: Oct 2011
Location: Hungary
Posts: 9
Total Cats: 0
Default

thank you for the asnwer, yes i will buy things seperate, maybe i buy a used kit here from the forum.

Your suzuki is looking very good i have a turbo swift sport this is my, third supercharged car. The first one was an ignis sport with a compresszor after then i made a swift with a compressor and after that a swift sport turbo.

Is your miata finished?
Mulder is offline   Reply With Quote
Old 10-16-2011, 09:28 PM   #19
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2011
Posts: 53
Total Cats: 1
Default

I am waiting on my Megasquirt to be built, and I have to finish the down pipe this week on my days off, thats it.
hattrick is offline   Reply With Quote
Old 10-17-2011, 02:17 AM   #20
Newb

Join Date: Oct 2011
Location: Hungary
Posts: 9
Total Cats: 0
Default

It sounds great, is your Megasquirt a srand alone computer?
Mulder is offline   Reply With Quote
