Please share your opinions on how much clearance is needed for the turbo/hood. I am building a top mount setup and my turbo is going to be closer to the hood than planned. How close is too close?
Amellrotts is offline   Reply With Quote
Old 08-14-2013, 06:41 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

why don't you instead show us what you're working with (plans of how you wanna do it)

there's plenty of top mount setups on here all clear unless you want to do something really crazy.

also your dp is going to look like crap
18psi is offline   Reply With Quote
Old 08-14-2013, 06:44 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

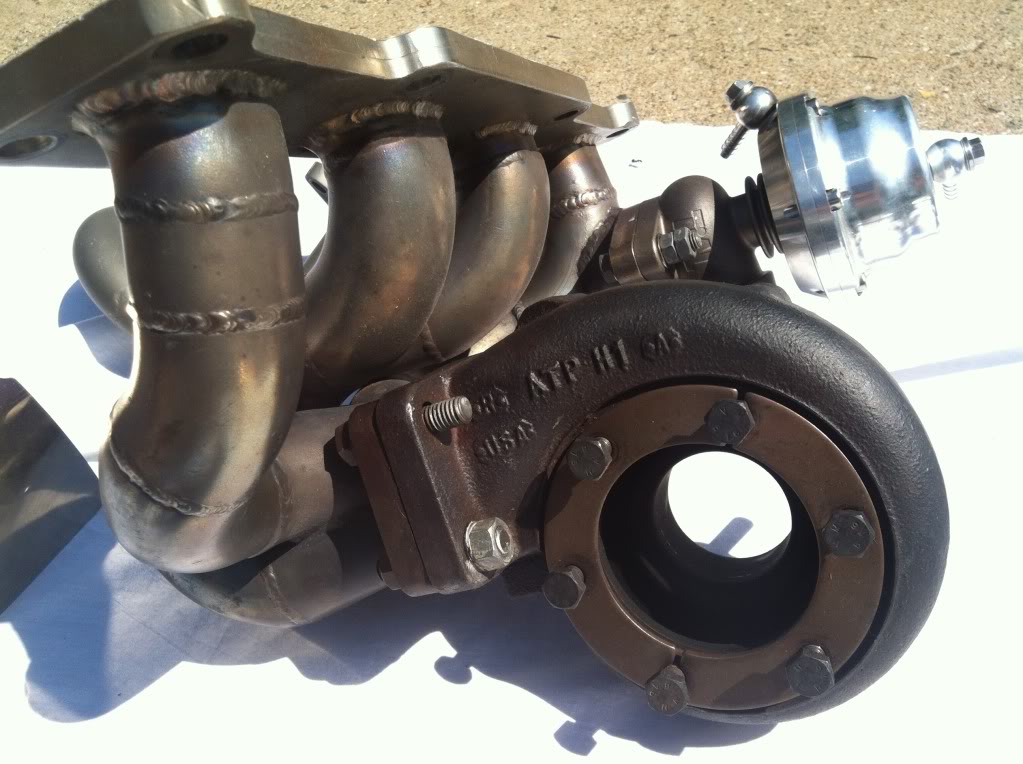

my etd long tube cleared fine fwiw



anything mounting the turbine inlet higher than the ports outlet height and you're gonna have a bad time
Attached Thumbnails
Turbo to hood clearance-img_0930.jpg
18psi is offline   Reply With Quote
Old 08-14-2013, 06:45 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

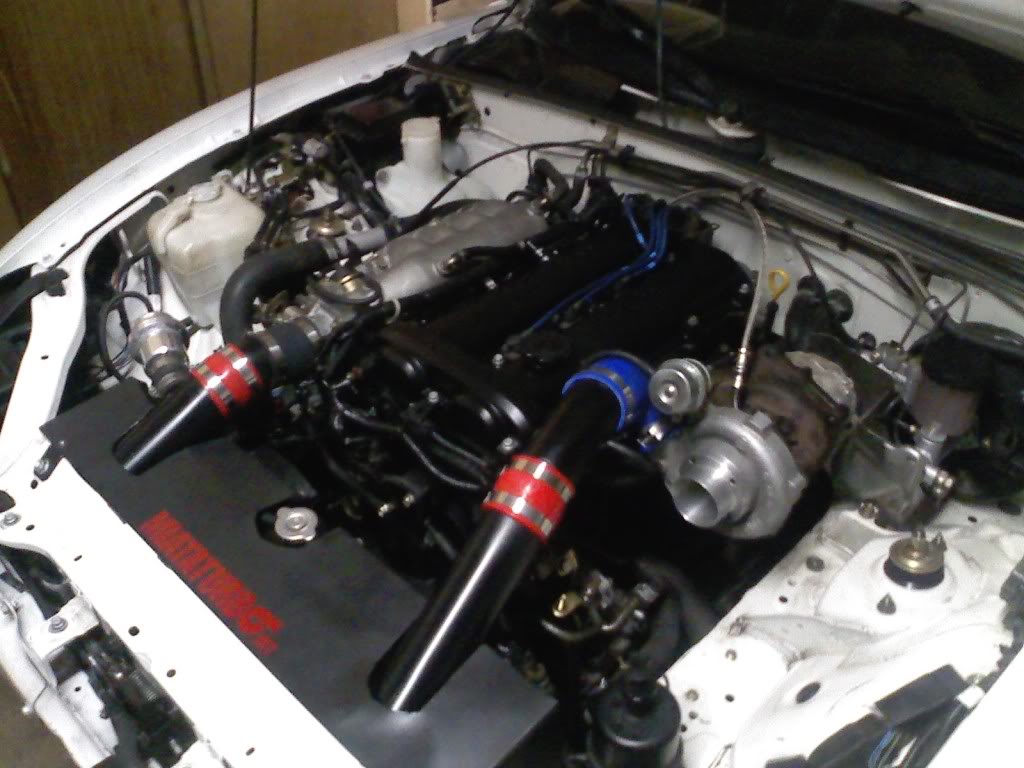

my custom etd shorty cleared fine too, but wasn't completely top mount




I think that's as high as you can go
Attached Thumbnails
Turbo to hood clearance-1120090350-00.jpg
18psi is offline   Reply With Quote
Old 08-14-2013, 07:24 PM   #5
Senior Member
Thread Starter
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

Mine clears, will get pics soon. I am just wondering how close to the hood is too close. What is considered the minimum. ...1"? 2"?.....I assume if there is less than an inch the paint on the hood might be in jeopardy?
Amellrotts is offline   Reply With Quote
Old 08-14-2013, 07:28 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

it will probably be fine.

you can get some of that gold or silver stick on reflective stuff to keep the paint from frying
18psi is offline   Reply With Quote
Old 08-14-2013, 07:30 PM   #7
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

If you're worried about it, put a blanket on that bitch.

Bitches love blankets.
concealer404 is offline   Reply With Quote
Old 08-15-2013, 01:16 PM   #8
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,695
Total Cats: 266
Default

Been looking for a pic of 18PSI's IC piping. Do you have A/C delete to allow this?
DNMakinson is offline   Reply With Quote
Old 08-15-2013, 01:28 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Nope. All my cars have ps and ac because daddy likes to be comfy
18psi is offline   Reply With Quote
Old 08-15-2013, 01:40 PM   #10
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,695
Total Cats: 266
Default More Pics, please

Quote:
Originally Posted by 18psi View Post
Nope. All my cars have ps and ac because daddy likes to be comfy
Please steer me to some more pics. IIRC, your build thread pic links are no longer working.

Thanks, DNM
DNMakinson is offline   Reply With Quote
Old 08-15-2013, 02:23 PM   #11
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,695
Total Cats: 266
Default Found Fat Pig Build

Maybe that will have what I'm looking for. Looks like radiator moved aft.
DNMakinson is offline   Reply With Quote
Old 08-16-2013, 01:29 AM   #12
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

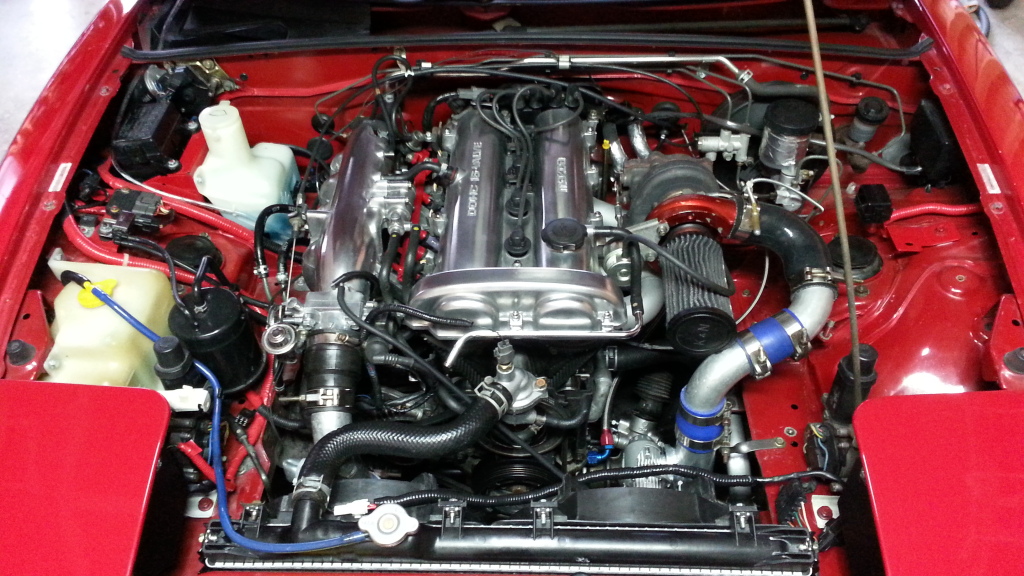

ETD Top mount here, no clearance issues at all. The hood was getting a little hotter than I wanted so I stuck a couple of pieces of insulation we use on our boiler casings on it. Where the turbo sits is now the coolest part of the hood after a spirited drive.
