Default Turbo Miata & ODB2

Howdy,
I own a 97 Miata with a FM Voodoo 2 turbo kit (gt2560r/stock motor). Car is running 12 PSI on 320cc injectors with a voodoo and an msd tuning box, 8 degrees BDTC static timing a yonaka (comma bro) catback and a test pipe. It wasn't my choice to go odb2 but I happened to trade it for my e30.
The car runs pretty well, idles smoothly and the AFRs go nicely to around 10-1 @ 12 PSI but the car will eventually throw a code for bank 1 mixture and one for lack of a catalytic convertor.

I have a year to get this thing inspected, which means having the car set ODB2 readiness. As much as I understand going megasquirt cures cancer, it just won't work in my application at the moment. I may decide one day to swap back and forth with MS only for inspection time. Considering I live in an urban apartment, swapping the drivetrain in an ODB1 shell is out of the question.

As I see it I have two possible options:

1. Run 305cc injectors, from searching the forums these seem to be within tolerance for the dme to adapt to but will they handle the 12 PSI or will I have to back down? What can these typically run?

2. Pick up an AFPR and dial down the fuel pressure ever so slightly to where the amount of fuel is within the DME's adaptability for a week before inspection. Stay out of high boost, let the car set readiness, turn it back up, profit.

3. Move to south carolina and forget having a full set of teeth because no ODB2 inspection?

I forgot to mention I've already picked up a magnaflow 2 1/4" high flow cat, but don't want to install it before my fueling issue is sorted as I'm afraid I'll brick it prematurely.



Thanks in advance!
Julien
Attached Thumbnails

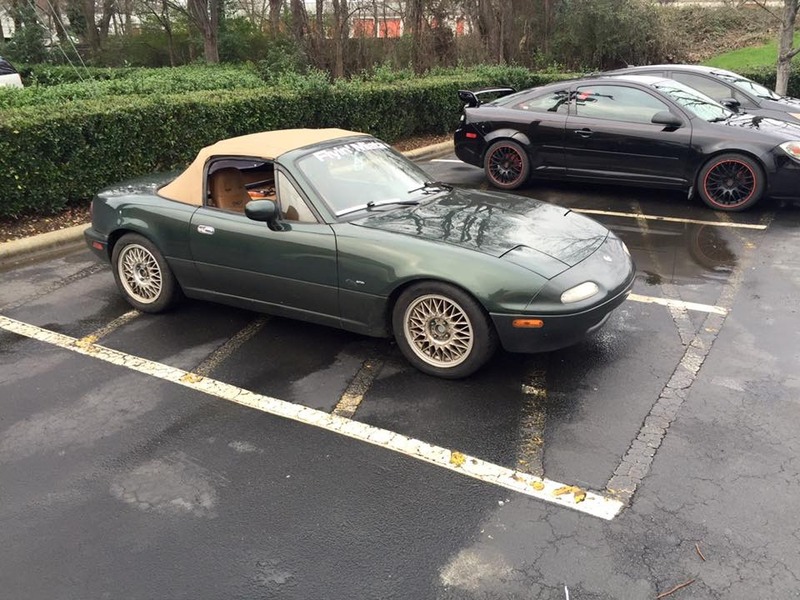

Turbo Miata & ODB2-1910131_912063585698_4900614348130607810_n_zpsxhrnns0t.jpg
eurojulien is offline   Reply With Quote
Old 01-11-2016, 01:24 AM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

You are using a piggyback system designed for 8psi, then trying to run 12psi. Stop doing this and all your problems will go away.
Savington is online now   Reply With Quote
Old 01-11-2016, 10:11 AM   #3
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

Agree'd with the above. Run the 8 pounds the VooDoo box is meant for. Want more? Get an MS.

"Tune" the car with what you have already installed, then install your cat. Preferably, in a fashion to which you can swap in that test pipe, after the inspection period. The reason? A turbo car running on a VooDoo box will never run clean enough to make that cat last, and it will likely get nuked in a few thousand miles at best. Might as well "save it" to use next year when you get to do this all over again.

Also, use whatever injector the VooDoo box is designed for. Anything of a different size will just be another variable to chase down. And leave the fuel pressure alone.
NBoost is offline   Reply With Quote
Old 01-11-2016, 10:30 AM   #4
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Since you don't plan on running Megasquirt, put stock njectors in and turn the boost down to 7psi. Enjoy getting no codes.
thirdgen is offline   Reply With Quote
Old 01-12-2016, 12:00 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2015
Location: San Francisco
Posts: 47
Total Cats: 2
Default

Quote:
Originally Posted by thirdgen View Post
Since you don't plan on running Megasquirt, put stock njectors in and turn the boost down to 7psi. Enjoy getting no codes.
Thanks for the feedback y'all. I guess I'll get a mbc to turn ze boost down when I swap injectors. About megasquirt, id consider it if I could make it an easy 1-2 hour swap process. I guess I could always tie the waste gate open, run oe injectors and run sans voodoo box and msd box for inspection time
eurojulien is offline   Reply With Quote
Old 01-12-2016, 12:19 PM   #6
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

Quote:
Originally Posted by eurojulien View Post
Thanks for the feedback y'all. I guess I'll get a mbc to turn ze boost down when I swap injectors. About megasquirt, id consider it if I could make it an easy 1-2 hour swap process. I guess I could always tie the waste gate open, run oe injectors and run sans voodoo box and msd box for inspection time
You don't need to buy any boost controller. Simply return the FM II kit to the way it is shipped to you, in the box. Use with stock injectors, and VooDoo box.
Drive the car a 100 miles or so until all the readiness monitors are satisfied. Don't take trips to redline, don't load the engine heavily, don't drive like an ***, and you will have a successful outcome at the emissions test.
NBoost is offline   Reply With Quote
Old 01-12-2016, 12:19 PM   #7
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 873
Total Cats: 93
Default

Quote:
Originally Posted by eurojulien View Post
Thanks for the feedback y'all. I guess I'll get a mbc to turn ze boost down when I swap injectors. About megasquirt, id consider it if I could make it an easy 1-2 hour swap process. I guess I could always tie the waste gate open, run oe injectors and run sans voodoo box and msd box for inspection time
Does it have anything now for boost control? If not, you need a lower wastegate. Boost controllers only can raise boost.
acedeuce802 is offline   Reply With Quote
Old 01-12-2016, 01:27 PM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2015
Location: San Francisco
Posts: 47
Total Cats: 2
Default

Afaik the way the kit is initially installed is with spacers on the waste gate to limit boost. I figured putting an mbc in line would be quicker/easier.


*shrig*
Quote:
Originally Posted by NBoost View Post
You don't need to buy any boost controller. Simply return the FM II kit to the way it is shipped to you, in the box. Use with stock injectors, and VooDoo box.
Drive the car a 100 miles or so until all the readiness monitors are satisfied. Don't take trips to redline, don't load the engine heavily, don't drive like an ***, and you will have a successful outcome at the emissions test.
eurojulien is offline   Reply With Quote
Old 01-12-2016, 02:16 PM   #9
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 873
Total Cats: 93
Default

Quote:
Originally Posted by eurojulien View Post
Afaik the way the kit is initially installed is with spacers on the waste gate to limit boost. I figured putting an mbc in line would be quicker/easier.


*shrig*
Spacers on the wastegate? Where? MBC will only raise boost.
acedeuce802 is offline   Reply With Quote
Old 01-12-2016, 02:36 PM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2015
Location: San Francisco
Posts: 47
Total Cats: 2
Default

Quote:
Originally Posted by acedeuce802 View Post
Spacers on the wastegate? Where? MBC will only raise boost.
" Medium (GT2560R) and small (G2554R) Turbos Only: Add a washer underneath each bolt holding the wastegate actuator to the bracket (in the picture they’re not increasing the boost (1)). The washer will need to be placed between the actuator and the bracket. Add one washer (to each side) at a time, until you achieve your target boost."

I guess I'll start playing around with it.
eurojulien is offline   Reply With Quote
Old 01-13-2016, 09:59 AM   #11
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,663
Total Cats: 1,560
Default

It sounds like they are using washers to increase actuator preload. Remove them and see if that doesn't drop the pressure.
sixshooter is online now   Reply With Quote
