Default Turbo usable

Yo bros,

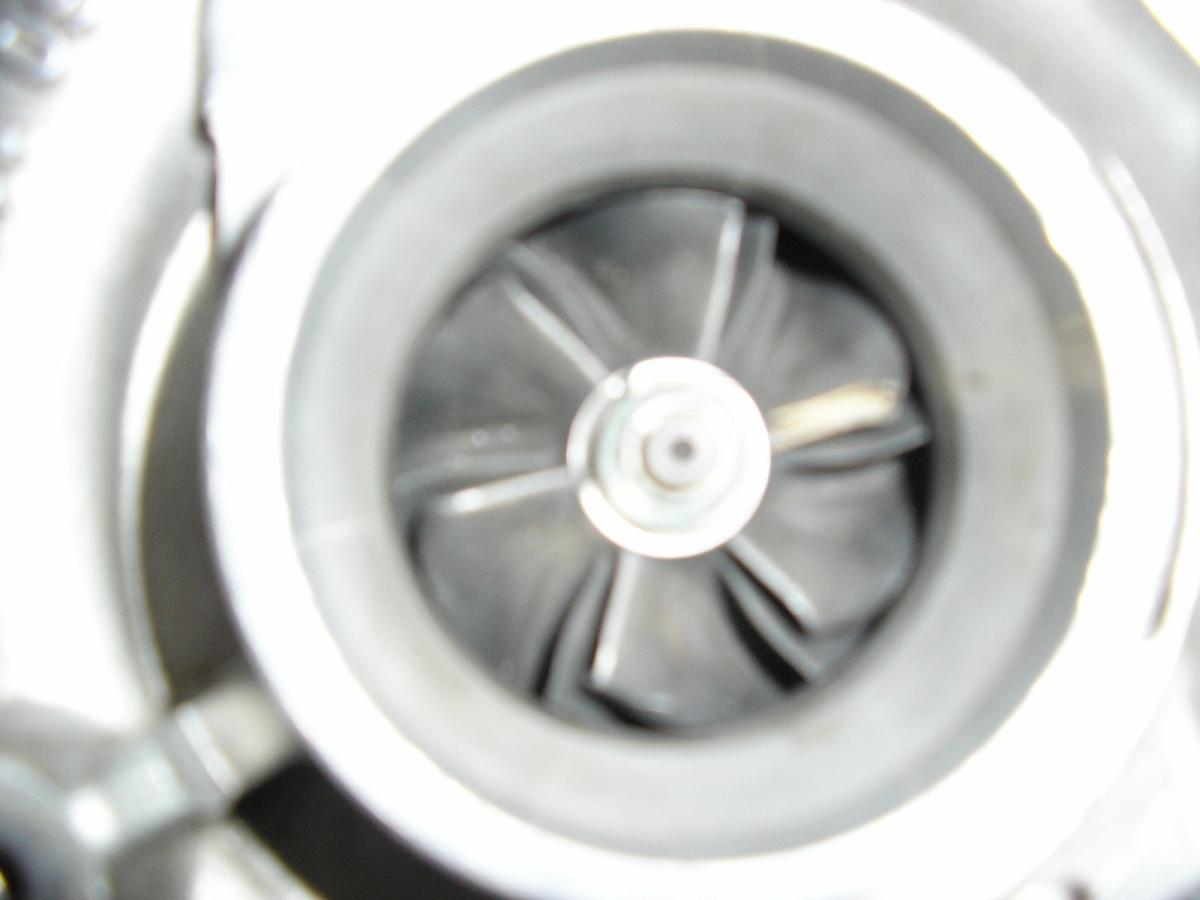

Is this compressor wheel usable? I get the feeling the answer is "no", and that it was damaged during transit.
Attached Thumbnails
Turbo usable-turbobig2.jpg

Last edited by blaen99; 01-27-2012 at 05:28 PM.
blaen99 is offline   Reply With Quote
Old 01-27-2012, 05:34 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,576
Default

I've no idea what I'm looking for, bro.
Post a less blurry image
18psi is offline   Reply With Quote
Old 01-27-2012, 05:37 PM   #3
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default



How about this? I have no clue how to take pictures :(
blaen99 is offline   Reply With Quote
Old 01-27-2012, 05:49 PM   #4
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Those fins weren't bent in transit. They are all bent in a fairly uniform manner, indicating that something probably got wedged between the wheel and housing as the turbo was spinning. Although for the fins to be bent the direction they are, the wheel would probably be spinning in the opposite direction in would when installed in the car. Whatever happened, it doesn't look like shipping damage to me. Get your money back.
ScottFW is offline   Reply With Quote
Old 01-27-2012, 05:57 PM   #5
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by ScottFW View Post
Those fins weren't bent in transit. They are all bent in a fairly uniform manner, indicating that something probably got wedged between the wheel and housing as the turbo was spinning. Although for the fins to be bent the direction they are, the wheel would probably be spinning in the opposite direction in would when installed in the car. Whatever happened, it doesn't look like shipping damage to me. Get your money back.
Could I just replace the compressor wheel in this case? As I picked it up for really cheap, I was not expecting perfect shape, although I would have normally expected the compressor wheel to be disclosed (Seller's pictures showed an undamaged compressor wheel).

The shaft play is within spec (On the loose end, granted, but it's within spec), and that's the only major red flag I saw on a brief visual inspection other than needing new turbine clamp plates, which are no big deal.

Last edited by blaen99; 01-28-2012 at 05:29 AM.
blaen99 is offline   Reply With Quote
Old 01-27-2012, 06:05 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,576
Default

Replacing that wheel and balancing the turbo will cost more than the turbo itself. just fyi
18psi is offline   Reply With Quote
Old 01-27-2012, 06:11 PM   #7
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by 18psi View Post
Replacing that wheel and balancing the turbo will cost more than the turbo itself. just fyi
The way I see it, I've got two options.

1) Throw in a new compressor wheel and exhaust clamps, say ---- it to balancing, run it 'till something goes wrong.

2) Throw in a brand new CHRA. This option, at my CHRA cost, will still put it over $200 cheaper than a new one.
blaen99 is offline   Reply With Quote
Old 01-27-2012, 06:34 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,576
Default

I wonder how long it will last unbalanced.
Kinda curious to find out.
Take that route lol
18psi is offline   Reply With Quote
Old 01-27-2012, 08:28 PM   #9
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Minot, ND
Posts: 242
Total Cats: 21
Default

china turbo!
sickmiatabra is offline   Reply With Quote
Old 01-27-2012, 08:43 PM   #10
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

Ebay churbo is your best cheap option. Sell that or give it away. My chinese t3 turbo was 180 shipped. 10k miles pushing 10psi stil works fine.
Clos561 is offline   Reply With Quote
Old 01-27-2012, 08:58 PM   #11
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by 18psi View Post
I wonder how long it will last unbalanced.
Kinda curious to find out.
Take that route lol
After researching the topic, ---- it. I'm on board with this. Let's see how long it lasts. I'll be certain to post updates in this thread, so STAY TUNED FOR either MASSIVE TURBO WIN or MASSIVE TURBO CARNAGE.

I'm good with either. $150 for a 2560, or massive turbo carnage ftmfw. 'Cause I don't give a ---- about the 1.6 I have either, so ---- it. Nothing that I give a damn about can be hurt in this experiment.

Last edited by blaen99; 01-27-2012 at 09:19 PM.
blaen99 is offline   Reply With Quote
Old 01-27-2012, 09:47 PM   #12
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

besides your wallet
Clos561 is offline   Reply With Quote
Old 01-27-2012, 10:13 PM   #13
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

Quote:
Originally Posted by blaen99 View Post
After researching the topic, ---- it. I'm on board with this. Let's see how long it lasts. I'll be certain to post updates in this thread, so STAY TUNED FOR either MASSIVE TURBO WIN or MASSIVE TURBO CARNAGE.

I'm good with either. $150 for a 2560, or massive turbo carnage ftmfw. 'Cause I don't give a ---- about the 1.6 I have either, so ---- it. Nothing that I give a damn about can be hurt in this experiment.
deserves props
wittyworks is offline   Reply With Quote
Old 01-28-2012, 03:19 AM   #14
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Yeah, if I keep it, I have to go with option 1.

The id plate, serial number, etc. are gone from it. I do not believe I can do a core exchange of the CHRA in that case.
blaen99 is offline   Reply With Quote
Old 01-28-2012, 05:03 AM   #15
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

And before I head over to Europe, I figured I'd leave one last tidbit.

I've just confirmed that most mid-frame garretts (T2s and T3s) are component balanced.

This means that there is no need to worry about the compressor wheel's balance with respect to the rest of the rotating assembly as the compressor wheel is balanced against itself. However, it is necessary to index the compressor nut against the shaft and encertain that you get it back to the proper position, as that part is a balanced assembly (compressor nut to turbine wheel).

Translation: I'm effing golden. Thanks guys.
blaen99 is offline   Reply With Quote
Old 01-28-2012, 05:55 AM   #16
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

One fin (right side top on ur pic) is bent/ripped one way, the other is bent the other way... almost as if the piece got wedged and instantly stopped the wheel which then sprung back and damaged the fin behind it the other way. At this point i wouldnt be surprised if the center shaft is twisted and bent.
triple88a is offline   Reply With Quote
Old 01-28-2012, 11:24 AM   #17
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Hey guys that the snail I posted for sale. The turbo was never put into use. It has been in storage in my garage for a long time. The pictures that I posted in the for sale thread were taken soon after the seller showed interest in purchasing the turbo. The box in which the turbo was stored, to my knowledge, was never dropped, hit, or wedged by or against something. I disclosed that the turbo had a damaged plate and did not intentionally withheld information regarding any further damage.

Link to FS thread
https://www.miataturbo.net/miata-parts-sale-trade-5/parts-sale-na-nb-turbo-62816/
buffon01 is offline   Reply With Quote
Old 01-28-2012, 01:10 PM   #18
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by buffon01 View Post
Hey guys that the snail I posted for sale. The turbo was never put into use. It has been in storage in my garage for a long time. The pictures that I posted in the for sale thread were taken soon after the seller showed interest in purchasing the turbo. The box in which the turbo was stored, to my knowledge, was never dropped, hit, or wedged by or against something. I disclosed that the turbo had a damaged plate and did not intentionally withheld information regarding any further damage.

Link to FS thread
https://www.miataturbo.net/showthread.php?t=62816
Quote:
Originally Posted by ScottFW View Post
Those fins weren't bent in transit. They are all bent in a fairly uniform manner, indicating that something probably got wedged between the wheel and housing as the turbo was spinning. Although for the fins to be bent the direction they are, the wheel would probably be spinning in the opposite direction in would when installed in the car. Whatever happened, it doesn't look like shipping damage to me. Get your money back.
ScottFW, are you trolling me? 'Cause I gotta give you props man, that was an excellent troll.
blaen99 is offline   Reply With Quote
Old 01-28-2012, 06:04 PM   #19
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Granted, the fins look straight in buffoon's FS thread. Sure, it is possible that it was somehow damaged in transit, but people ship turbos all the time without managing to ---- up the wheels like that. The wheel should be quite securely protected by the compressor housing from any foreign objects banging into it. Did the packing material consist of a random assortment of bolts? Was the housing not attached, leaving the wheel naked? Was the housing secured only loosely, leaving it free to whack against the wheel when the box got jostled? Since you're obviously convinced it is shipping damage, you tell me what hit the wheel during transit and how. Or don't. If you're happy just replacing the wheel and running it, great. It's not like you paid a lot for it.

I don't troll about mechanical stuff or megasquirt issues. Or at least when I do, I make it obvious enough to leave no doubt.
ScottFW is offline   Reply With Quote
Old 01-28-2012, 10:10 PM   #20
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

The turbo was heavily wrapped in bubbled sheets. The compressor was only placed on top of the inducer as I did not have the bolts and then secured as tight as possible and placed into the box for shipping. Thus, my "SOLD AS-IS" disclosure on the FS thread, before the agreement for purchase was made. This is a pic of the shipped item.



I did not advertise this item as a "mint" condition turbo. I listed the damage that I was aware of, and listed pictures of the current state of the item as well.
Attached Thumbnails
Turbo usable-0aa5bd1a.jpg
buffon01 is offline   Reply With Quote
