Default Turbo Water Lines Question

I went to Kragen tonight to get the water lines for the turbo, however they only sell fuel injector line.

Is this what most of you guys use? Wasn't sure what the temp rating for fuel injector lines are or if they are even OK to run water through.
kenzo42 is offline   Reply With Quote
Old 02-16-2009, 11:34 AM   #2
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

I use fuel hose line for little water lines on my motor, but I don't have a water cooled turbo.

I will say though that for the same price, you can buy a roll of stainless braided line from Summit Racing and then do up your lines. They'll look better and be better protected and last longer. Kinda like how I did my coolant lines by the down pipe. These costed me 20 bucks.

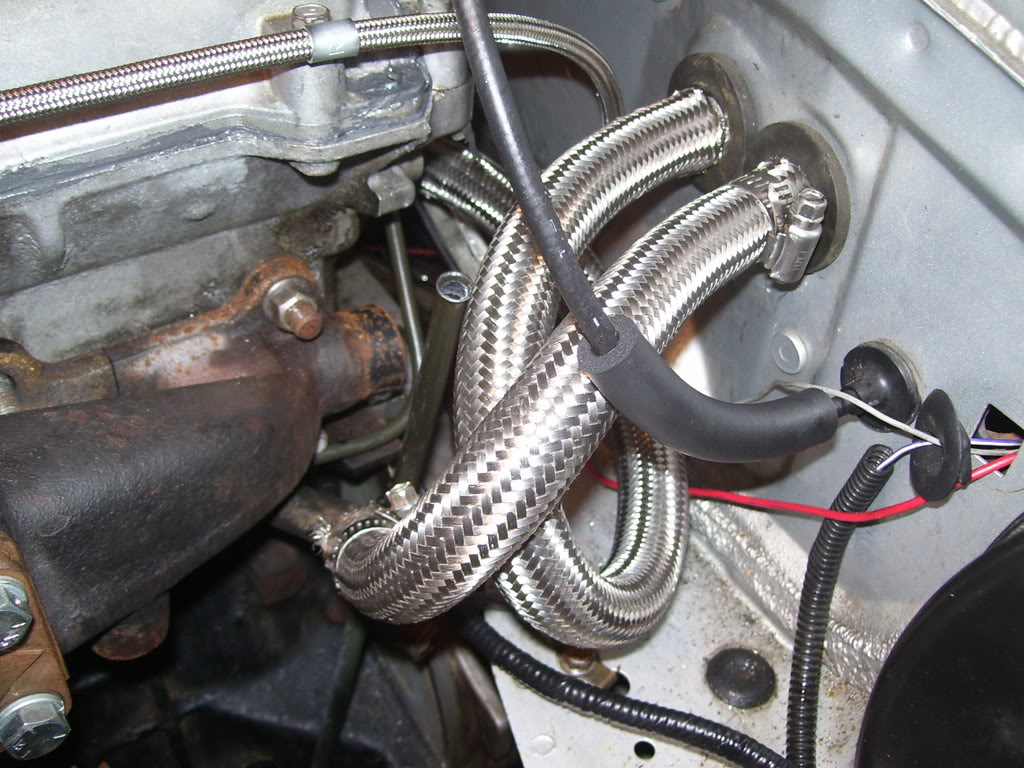

Name:  100_1931.jpg
Views: 3
Size:  164.4 KB
patsmx5 is online now   Reply With Quote
Old 02-16-2009, 03:59 PM   #3
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

I use industrial grade silicone coolant hose.
spike is offline   Reply With Quote
Old 02-17-2009, 03:21 AM   #4
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

Do they have to be rubber? Can you do hard line near turbo and then transition to something more flexible?
A couple I did...not on a Miata but may give you an idea. I used 3/8" stainless and flared it 37degrees to use =6 tube nuts and sleeves. We used these fittings from ATP.
http://www.atpturbo.com/Merchant2/me...gory_Code=GTBB
http://www.atpturbo.com/Merchant2/me..._Code=ATP-FTG1

Sorry its not a Miata but hopefully it will help.

The Tools:


They were ugly before:


Starting out:


Getting there:


Didn't turn out too bad:


Kelly is offline   Reply With Quote
Old 02-17-2009, 03:23 AM   #5
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

zomg man that is art very nice work.
magnamx-5 is offline   Reply With Quote
Old 03-19-2009, 04:03 AM   #6
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Holy crap, those are some great looking coolant lines. Awesome job Kelly.
cjernigan is offline   Reply With Quote
Old 03-19-2009, 04:58 PM   #7
Junior Member
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

Kelly, where'd you find the tools to flare the stainless line? All I've found is "soft metal" flare kits.
--Alex
AlexO35 is offline   Reply With Quote
Old 03-19-2009, 05:43 PM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

mkippen car ftw!
hustler is offline   Reply With Quote
Old 03-19-2009, 05:50 PM   #9
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by AlexO35 View Post
Kelly, where'd you find the tools to flare the stainless line? All I've found is "soft metal" flare kits.
--Alex
I'm almost positive anplumbing.com sells the kit but I don't know if their prices are affordable in comparison to elsewhere.
cjernigan is offline   Reply With Quote
Old 03-24-2009, 02:12 AM   #10
Newb

Join Date: Mar 2009
Posts: 6
Total Cats: 0
Default

Nice work. Bending those stainless lines by hand is a serious pain. Doesn't look like it crimped down the radius too bad either.
mandrel-bends is offline   Reply With Quote
Old 03-26-2009, 12:06 AM   #11
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

Thanks for all the nice comments. Here are the tools I used.
Summit SUM-900311 - SummitŪ 37 Degree Flare Tool Sets

Summit SUM-900156 - SummitŪ Triple Head 180 Degree Tube Benders

Here are the lines I built this weekend for my new turbo. Disregard the
ugly wastegate line. Its an old one I rebent by hand for the new setup while I wait on my 1/4" stainless tube.

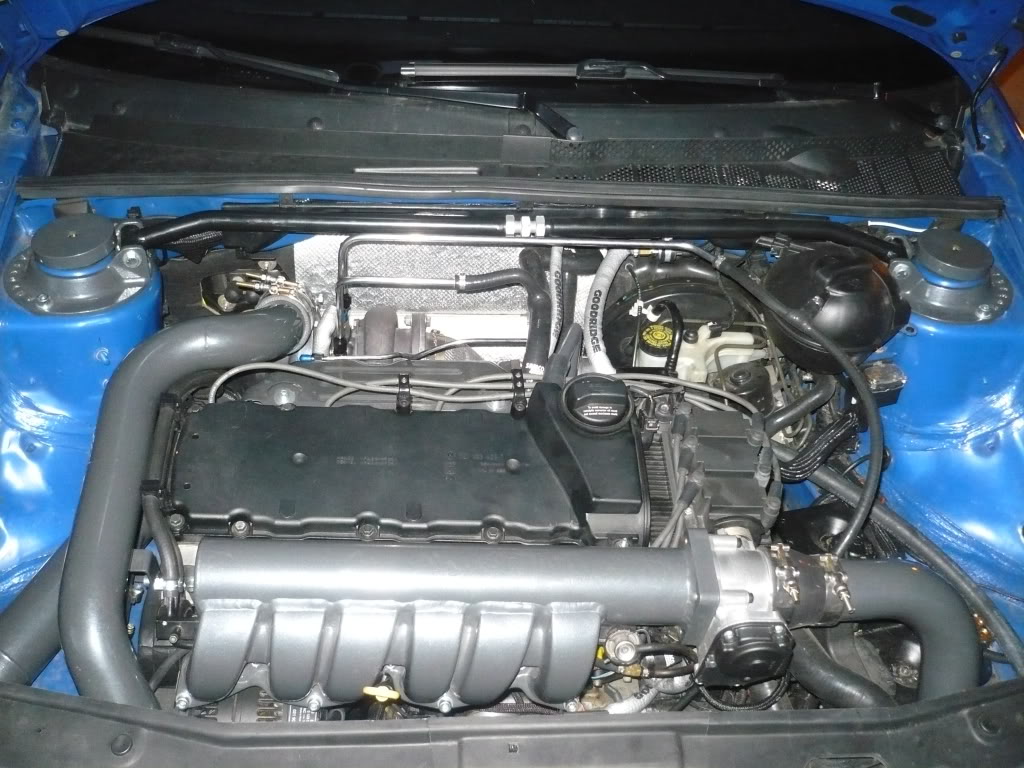

Name:  P1010298.jpg
Views: 6
Size:  150.8 KB

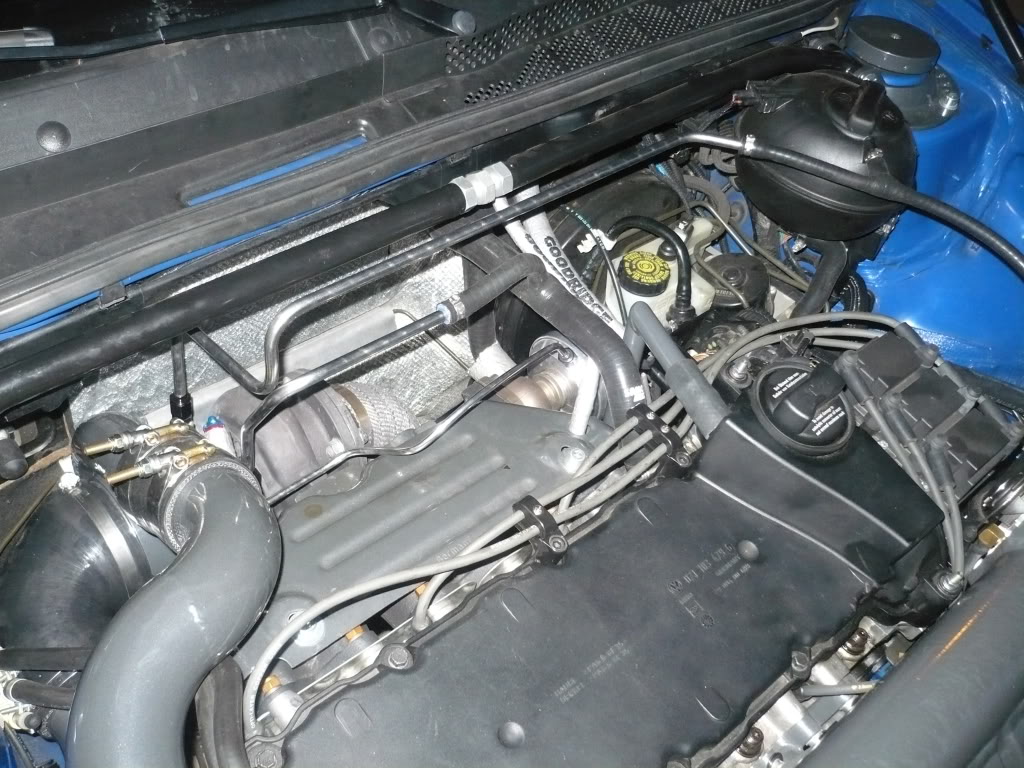

Name:  GtiWaterLines001.jpg
Views: 3
Size:  171.6 KB

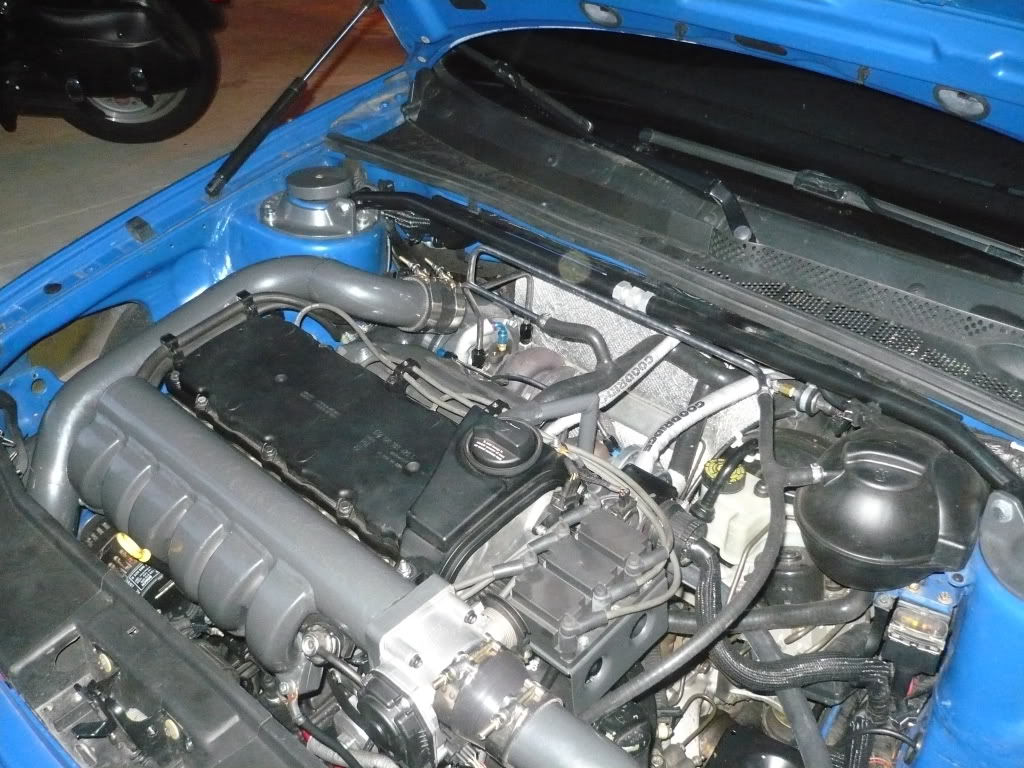

Name:  GtiWaterLines003.jpg
Views: 3
Size:  172.5 KB
Kelly is offline   Reply With Quote
Old 03-26-2009, 02:17 PM   #12
Junior Member
iTrader: (7)

Join Date: Aug 2006
Location: Binghamton, NY
Posts: 448
Total Cats: 1
Default

So the "not desgined to flare stainless steel line" will do the job anyway? Sweet. Looks like I'm buying one....
--Alex
AlexO35 is offline   Reply With Quote
Old 03-26-2009, 08:32 PM   #13
Junior Member

Join Date: Sep 2006
Location: E.City NC
Posts: 81
Total Cats: 0
Default

Snap-on sells a nice kit too. A lil more pricey, but you get what you pay for. Life time warranty too
yadayada is offline   Reply With Quote
Old 03-27-2009, 12:21 AM   #14
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

Stainless is tricky. What I do to ensure it seals after its final assembled is tighten it and loosen the tube nut multiple times on a steel AN fitting of whatever size I am using. I have a set of steel fittings for this task only. That ensures the line is flared to the correct shape and has ample sealing surface.

When I am flaring at the shop I use this tool. Its pretty outstanding.
Mastercool Inc., Flaring Tools
Kelly is offline   Reply With Quote
