Old 02-12-2008, 11:38 PM   #1
Junior Member
Thread Starter

Join Date: May 2006
Location: Ft. Worth Texas
Posts: 84
Total Cats: 0
Default Updated Pics of My Beast

I've been out of the loop for quite some time now due to work. I just took some new pics a couple of weeks ago, and thought I would share. The car is running fantastic, Its been great getting to drive it on a regular basis. Anyhow, here are the Pics.

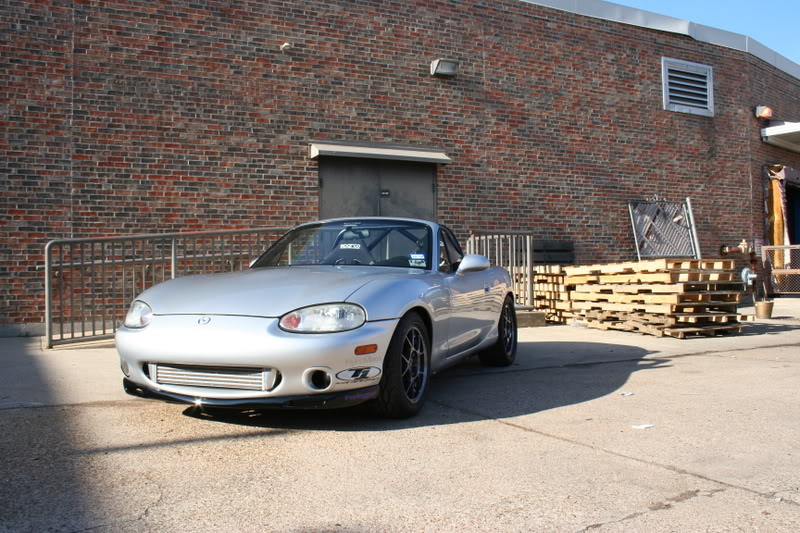

Name:  IMG_0435.jpg
Views: 1
Size:  130.8 KB

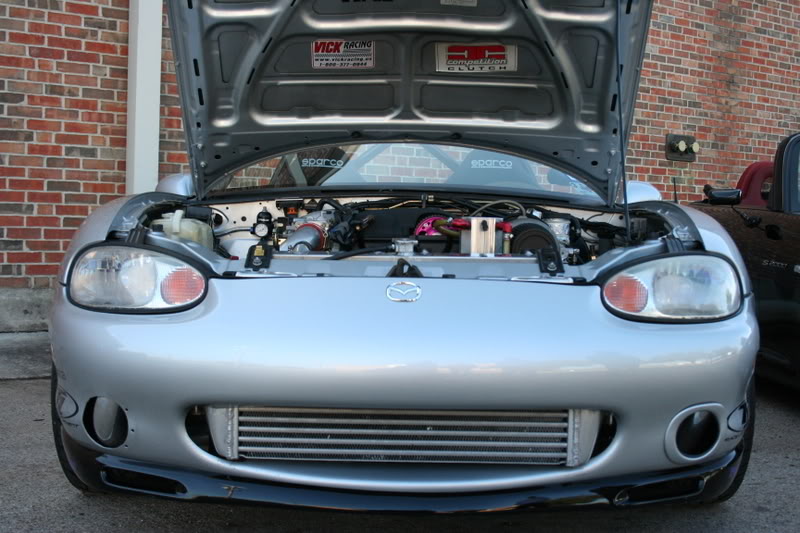

Name:  IMG_0403.jpg
Views: 1
Size:  92.7 KB

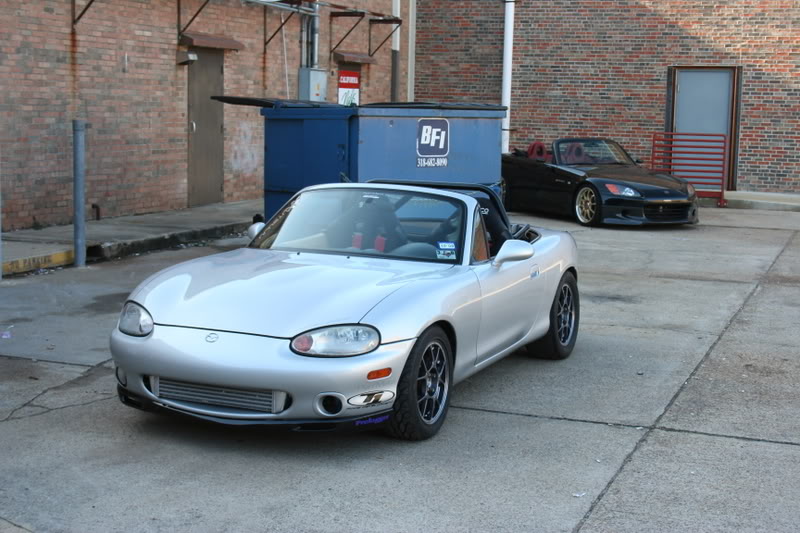

Name:  IMG_0417.jpg
Views: 1
Size:  96.3 KB

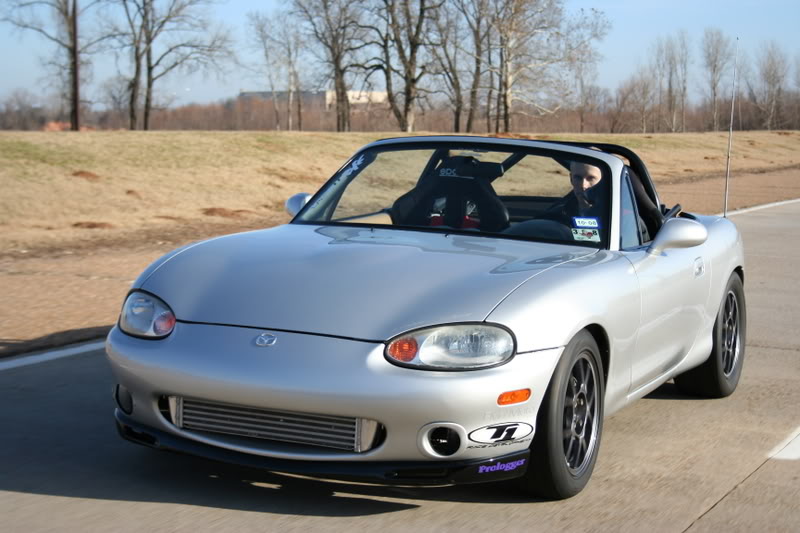

Name:  IMG_0512.jpg
Views: 1
Size:  79.1 KB

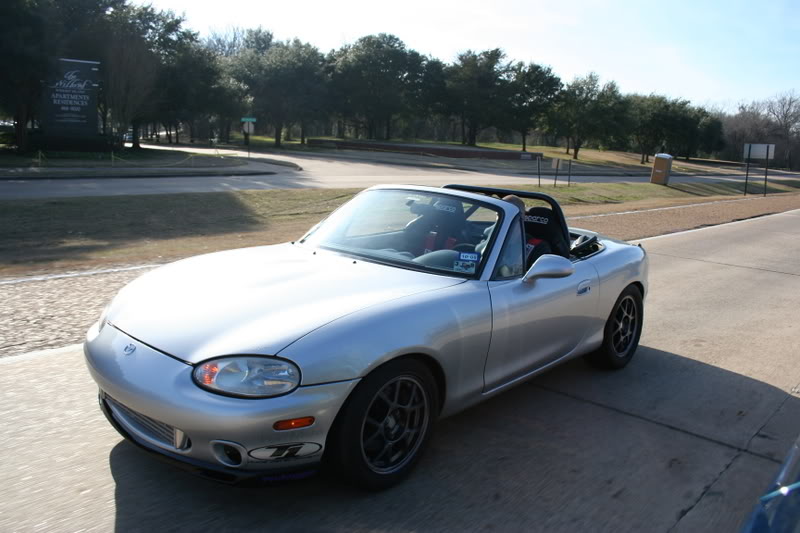

Name:  IMG_0482.jpg
Views: 1
Size:  73.6 KB

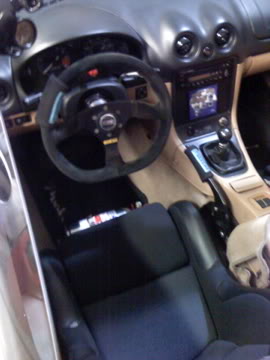

Name:  IMG_0196.jpg
Views: 1
Size:  18.1 KB

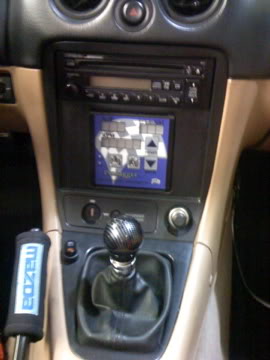

Name:  IMG_0206.jpg
Views: 1
Size:  18.1 KB

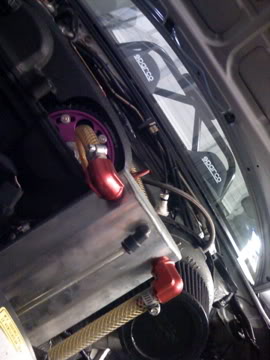

Name:  IMG_0211.jpg
Views: 1
Size:  22.5 KB

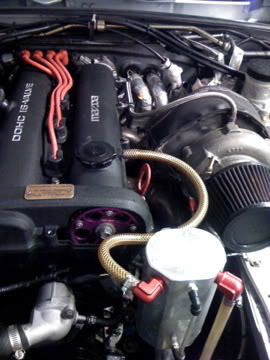

Name:  IMG_0208.jpg
Views: 1
Size:  26.5 KB

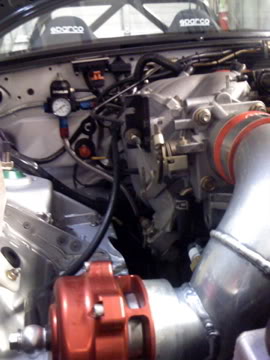

Name:  IMG_0210.jpg
Views: 1
Size:  23.4 KB
1BadMX5 is offline   Reply With Quote
Old 02-12-2008, 11:42 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You're a picture *****. Leave us in the dark forever and then come ***** your badass car pics out.
Tell us about the in car PC setup and did you ever make more than 505HP or whatever the last dyno was?
cjernigan is offline   Reply With Quote
Old 02-12-2008, 11:43 PM   #3
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,704
Total Cats: 237
Default

Looks good, this is the 450+whp miata right? Or am i confusing some names. Either way badass.

Edit: im guessing by the post above me it is.
Fireindc is offline   Reply With Quote
Old 02-12-2008, 11:47 PM   #4
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

What's the overall and core specs on that intercooler?
patsmx5 is offline   Reply With Quote
Old 02-12-2008, 11:48 PM   #5
Junior Member
Thread Starter

Join Date: May 2006
Location: Ft. Worth Texas
Posts: 84
Total Cats: 0
Default

LOL, sorry about being a pic *****, just always busy. The "in car PC" set up is called a prologger. It can record data up to 6 min for play back through MoTeC software, or on Screen. Its basically a glorified Wide band, but it does much more...I've been driving the car everyday, so we have had the boost turned down a little. Its making a conservative 470. The car is still Hella fun!
1BadMX5 is offline   Reply With Quote
Old 02-12-2008, 11:49 PM   #6
Junior Member
Thread Starter

Join Date: May 2006
Location: Ft. Worth Texas
Posts: 84
Total Cats: 0
Default

Core Specs are 12x24x3.5 I believe. The end-tanks are custom.
1BadMX5 is offline   Reply With Quote
Old 02-12-2008, 11:51 PM   #7
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

470 reliable would be awesome to have in the driveway.
You ended up sticking with the stock 5 spd or 6 spd trans and diff didn't you?
What about the E85, you running that daily?
cjernigan is offline   Reply With Quote
Old 02-12-2008, 11:54 PM   #8
Junior Member
Thread Starter

Join Date: May 2006
Location: Ft. Worth Texas
Posts: 84
Total Cats: 0
Default

Currently, Im running Stock 5 spd transmission, with stock diff and LSD. We are running Q 16 fuel now.
1BadMX5 is offline   Reply With Quote
Old 02-13-2008, 12:20 AM   #9
Junior Member
Thread Starter

Join Date: May 2006
Location: Ft. Worth Texas
Posts: 84
Total Cats: 0
Default

there is no E85 in Shreveport LA (where I am currently living)
1BadMX5 is offline   Reply With Quote
Old 02-13-2008, 12:30 AM   #10
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I see, makes sense then. How much is Q16 a gallon? It is 116 octane right?
cjernigan is offline   Reply With Quote
Old 02-13-2008, 12:41 AM   #11
Junior Member
Thread Starter

Join Date: May 2006
Location: Ft. Worth Texas
Posts: 84
Total Cats: 0
Default

Yes oxygen enriched 116.
1BadMX5 is offline   Reply With Quote
Old 02-13-2008, 01:02 AM   #12
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

The S2000 looks scared hiding behind the dumpster.
spike is offline   Reply With Quote
Old 02-13-2008, 01:04 AM   #13
Junior Member
Thread Starter

Join Date: May 2006
Location: Ft. Worth Texas
Posts: 84
Total Cats: 0
Default

Haha. It does doesn't it. Well unfortunately, that S2000 makes right under 600 whp now...
1BadMX5 is offline   Reply With Quote
Old 02-13-2008, 01:18 AM   #14
Senior Member
iTrader: (5)

Join Date: Dec 2007
Location: worcester ma
Posts: 1,124
Total Cats: 0
Default

o god, those two cars must be a blast to drive
urgaynknowit is offline   Reply With Quote
Old 02-13-2008, 01:19 AM   #15
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

Quote:
Originally Posted by 1BadMX5 View Post
Well unfortunately, that S2000 makes right under 600 whp now...
Any pics of this monster ?
spike is offline   Reply With Quote
Old 02-13-2008, 01:24 AM   #16
Junior Member

Join Date: May 2006
Location: Portland, OR
Posts: 70
Total Cats: 0
Default

I LOVE your car. you are an inspiration to us all.
Agent935 is offline   Reply With Quote
Old 02-13-2008, 01:29 AM   #17
Junior Member
Thread Starter

Join Date: May 2006
Location: Ft. Worth Texas
Posts: 84
Total Cats: 0
Default

Thanks a lot man. I have allotted much time in this project. I really appreciate it.

Actually, the S is sitting in my bay at work...I'll get pics and post them up.
1BadMX5 is offline   Reply With Quote
Old 02-13-2008, 01:30 AM   #18
Senior Member
iTrader: (5)

Join Date: Dec 2007
Location: worcester ma
Posts: 1,124
Total Cats: 0
Default

Quote:
Originally Posted by spike View Post
Any pics of this monster ?
x2
urgaynknowit is offline   Reply With Quote
Old 02-13-2008, 01:32 AM   #19
Junior Member
Thread Starter

Join Date: May 2006
Location: Ft. Worth Texas
Posts: 84
Total Cats: 0
Default

The S basically has the same turbo setup as my Miata. It has a slightly different Compressor Housing on the turbo. I believe its a Garrett GT3082R.
Full race manifold, etc...
1BadMX5 is offline   Reply With Quote
Old 02-13-2008, 03:28 AM   #20
Senior Member
iTrader: (2)

Join Date: May 2007
Location: Malibu, CA
Posts: 749
Total Cats: 0
Default

What seats/wheel do you have? The interior looks really nice. Then again, the entire car looks stunning.

That car must be absolutely bonkers! You must surprise quite a few unsuspecting... well almost anything but that S2K, you sure roll with a tough crowd.
speedf50 is offline   Reply With Quote
