Old 09-25-2009, 09:10 PM   #21
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

personally what i dont like is how your oil and coolant lines gets pinched between the turbo and the sheet metal of the car. Do you see what i'm talking about on ur first pic of ur last post? i'd turn those a bit, at least turn the lower one so its out of the way.
triple88a is offline   Reply With Quote
Old 09-25-2009, 10:03 PM   #22
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

Quote:
Originally Posted by triple88a View Post
personally what i dont like is how your oil and coolant lines gets pinched between the turbo and the sheet metal of the car. Do you see what i'm talking about on ur first pic of ur last post? i'd turn those a bit, at least turn the lower one so its out of the way.
+1, and no heat shielding on those lines?
rccote is offline   Reply With Quote
Old 09-25-2009, 11:10 PM   #23
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

push on rubber for oil feed line? Did you install that right? I could have sworn begi used a ss braided feed line.
ARTech is offline   Reply With Quote
Old 09-25-2009, 11:13 PM   #24
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by ARTech View Post
push on rubber for oil feed line? Did you install that right? I could have sworn begi used a ss braided feed line.
they have stainless in their instructions however thats optional, otherwise it comes with the basic rubber one.
triple88a is offline   Reply With Quote
Old 09-26-2009, 01:08 AM   #25
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

If the mani is being that much of a berk then i would take that bugger to a exhaust shop and get it on the lift and from there it will be alot easier to deal with. The boost gauge is simple the red wire is hot and the white wire is ground, and from there you should have a vaccumm nipple or something of a sort to get your vac/boost signal from. If you do any more drives before the car is fully sorted plz for the love of your engine be carefull, and keep your ears open for detonation it is improbable to happen but still quite possible.
magnamx-5 is offline   Reply With Quote
Old 09-26-2009, 01:34 AM   #26
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

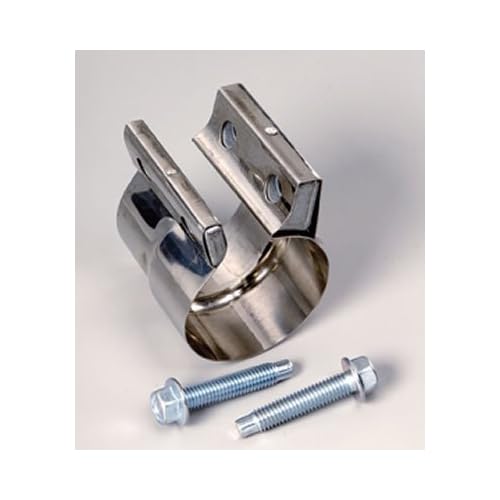

You might just get one of these for your exhaust problem:


And I agree with the others that you should protect that oil line that runs to the top of the turbo from abrasion and heat. And again, the aluminum air conditioner pipe next to it needs to be protected from heat as well or you will likely have a failure.
sixshooter is offline   Reply With Quote
Old 09-26-2009, 06:18 AM   #27
Junior Member
Thread Starter

Join Date: Aug 2009
Location: Coventry, UK
Posts: 97
Total Cats: 0
Default

Thanks for the heads up there guys, ill definatly get those lines insulated and protected better.
As for the exhaust its not the down pipe anymore its the manifold itself, it was such a tight fit i realy had to struggle to get it on and even then it wasnt realy sitting right.
my plan is to take it off and widen the holes and hope it will then slip straight on.
A real pain as i will have to remove all the piping and the turbo, not please about that, id expect the quality be alot better for what i paid for it all.
Viper is offline   Reply With Quote
Old 09-26-2009, 02:13 PM   #28
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

how is the manifold not sitting right? you are talking about the turbo to manifold joint or the manifold to head?
triple88a is offline   Reply With Quote
Old 09-26-2009, 02:52 PM   #29
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

did you make sure the tab on the heater tube isn't under your manifold? it's pretty easy to do
Mach929 is offline   Reply With Quote
Old 09-26-2009, 03:22 PM   #30
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

That's why I rerouted and eliminated that hard pipe. It makes taking off/on the manifold so much easier without it there.
neogenesis2004 is offline   Reply With Quote
Old 09-26-2009, 04:15 PM   #31
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

Quote:
Originally Posted by neogenesis2004 View Post
That's why I rerouted and eliminated that hard pipe. It makes taking off/on the manifold so much easier without it there.
never really seemed like a big deal to me as my manfold just recently came off and went back on for the first time since it was originally installed 7 years ago. but yeah i was cursing it and remebered doing the same thing last time
Mach929 is offline   Reply With Quote
Old 09-26-2009, 05:37 PM   #32
Junior Member

Join Date: Mar 2009
Location: North wales
Posts: 60
Total Cats: 0
Default

please take those wings off!
bet it overboosts like ****! mine did 10+psi without even getting to full throttle!(but my exhaust is minimal factor?)
you should be ok with the washer bottle lines etc. as ambient lower.
intercooler ftw
with our lower ambient temps and allegedly higher octane fuel I'm gonna try an get away without retarding the timing at 6psi(but fully expect a blown engine)
paulsub is offline   Reply With Quote
Old 09-27-2009, 11:40 PM   #33
Junior Member
Thread Starter

Join Date: Aug 2009
Location: Coventry, UK
Posts: 97
Total Cats: 0
Default

Quote:
Originally Posted by Mach929 View Post
did you make sure the tab on the heater tube isn't under your manifold? it's pretty easy to do
Ah now that i didnt check.
If thats the case then ill be happy.
thanks for that!
Viper is offline   Reply With Quote
