Question VVT Oil Feed

Hi guys,
I've just joined the forum. I've got a 2002 Sport that I'm turbocharging. I've got a Reverant built MS3 installed and my turbo should be arriving today so I've decided to tackle the oil supply. As I have the VVT it seems sensible to take a feed off the VVT 'unit?' on the cam cover. I believe this has been done before but I'm having trouble finding any information on it. Does anyone know if I can simply take out the bolt 'A' and make a fitting or if I would need to drill and tap somewhere like 'B' in the photo? Any advice on how I should go about this and whether it's a good or bad idea would be great.
Cheers
James



[img]blob:https%3A//mail.google.com/4abefaef-ee21-4c2b-a6c9-7aa1ef663ba7[/img]
JamesGSY is offline   Reply With Quote
Old 05-04-2016, 08:49 AM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Tee off the oil pressure sender under the intake manifold like everyone else. Buy the TSE adapter and then run your -4an line around the back of the engine.
shuiend is offline   Reply With Quote
Old 05-04-2016, 12:08 PM   #3
Newb
Thread Starter

Join Date: May 2016
Posts: 7
Total Cats: 1
Default

Quote:
Originally Posted by shuiend View Post
Tee off the oil pressure sender under the intake manifold like everyone else. Buy the TSE adapter and then run your -4an line around the back of the engine.
Thanks for the reply, I may well go down that that route. My thoughts were as the VVT takes it's oil from there anyway just taking it from higher up would save a bit of piping and could potentially be simpler. I'll see if anyone posts anything on here and have a play on the weekend.
JamesGSY is offline   Reply With Quote
Old 05-04-2016, 12:31 PM   #4
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

I've taken the oil supply from the VVT actuator. The link you posted above doesn't work, so I don't know if it is A or B. I had a custom fitting made at a machine shop for the oil line.
Reverant is offline   Reply With Quote
Old 05-04-2016, 12:49 PM   #5
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

any concern on feeding a journal bearing turbo from the VVT location?
Sirnixalot is offline   Reply With Quote
Old 05-04-2016, 12:56 PM   #6
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

What concern?
Reverant is offline   Reply With Quote
Old 05-04-2016, 01:03 PM   #7
Newb
Thread Starter

Join Date: May 2016
Posts: 7
Total Cats: 1
Default

Quote:
Originally Posted by Reverant View Post
I've taken the oil supply from the VVT actuator. The link you posted above doesn't work, so I don't know if it is A or B. I had a custom fitting made at a machine shop for the oil line.

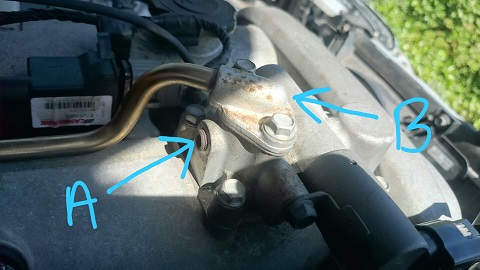

Hi Dimitris, I'm hoping if that hex bolt/grub screw 'A' is a viable feed port I could just get a converter off eBay to match my AN line which are relatively cheap. If not I'd probably try drilling and tapping 'B' not sure if that's a very good idea though! I've uploaded it to photobucket now which should work. Also guys I'm running a ball bearing turbo so it shouldn't be using much oil and either way it's coming from the same place as the oil pressure sender so I can't see it being any worse than taking it from there?
Attached Thumbnails
VVT Oil Feed-vvt%2520oil%2520feed_zpsx96tdnbu.jpg
JamesGSY is offline   Reply With Quote
Old 05-04-2016, 01:25 PM   #8
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

I'm using A with a ball bearing Garrett turbo. No issues so far.
Reverant is offline   Reply With Quote
Old 05-05-2016, 10:46 AM   #9
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

**** it then. I'll just feed my TD05 from port A in the pic.

Is that 1/8BSPT?
Sirnixalot is offline   Reply With Quote
Old 05-06-2016, 05:02 PM   #10
Newb
Thread Starter

Join Date: May 2016
Posts: 7
Total Cats: 1
Default

Quote:
Originally Posted by Sirnixalot View Post
**** it then. I'll just feed my TD05 from port A in the pic.

Is that 1/8BSPT?
I'll check tomorrow mate, luckily my fitting kit came with a T that had an adapter in it that went from whatever A is to my 4AN feed line. It's well over 1/8" though I believe. This is the kit I ordered not sure if it says it anywhere Garrett Ball Bearing Turbo Oil Water Line Gasket Install Kit GT2854R GT2860R (RS | eBay
JamesGSY is offline   Reply With Quote
Old 05-06-2016, 05:04 PM   #11
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,701
Total Cats: 319
Default

Oh my god. Never thought to use that location. that would def simplify plumbing under the manifold and would be far easier to reach to correct any leaks than on either side of the block.
psyber_0ptix is online now   Reply With Quote
Old 05-12-2016, 03:33 AM   #12
Newb

Join Date: Dec 2015
Location: Fort Payne, Alabama
Posts: 23
Total Cats: 7
Default

I've been reading soviet's build thread over the last few and I know they talked about it somewhere around page 50-60. From the way it sounded it's definitely a decent option.
elijah_mckay is offline   Reply With Quote
Old 05-18-2016, 12:53 PM   #13
Newb

Join Date: Jul 2015
Posts: 12
Total Cats: 0
Default

I'm not sure what the threads are for that port, but its close to 1/8 npt. I ran a 1/8 npt tap through it and its working great for me. npt to AN fitting are very easy to find
L3mur is offline   Reply With Quote
Old 05-29-2016, 02:11 PM   #14
Newb
Thread Starter

Join Date: May 2016
Posts: 7
Total Cats: 1
Default

I got the car running yesterday and I've been trying to track down a nasty noise. I've narrowed it down to what seems to be the VVT mechanism, it sounds identical to this..
It happens at a certain rpm above idle and sounds particuarly bad on the overun.
I'm wandering if I'm pulling too much oil away from the VVT mechanism but this seems unlikely to me as I'm running a 1mm restrictor. Has anyone who used this location come across a similar issue? If not I'm thinking I have a more severe issue as it does sound pretty bad.

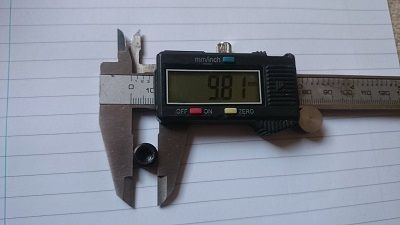

Oh and I've measued the plug I took out, it's outer threads measure 9.81mm if that's any use.

Oil feed plug



Attached Thumbnails
VVT Oil Feed-80-vvt_feed_plug_small_70ada6e0eee16e7157aee3fbec9ad6c6be4d1c98.jpg
JamesGSY is offline   Reply With Quote
Old 05-29-2016, 02:43 PM   #15
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Replug the hole and see if it goes away?
aidandj is offline   Reply With Quote
Old 05-30-2016, 06:05 PM   #16
Newb
Thread Starter

Join Date: May 2016
Posts: 7
Total Cats: 1
Default

Quote:
Originally Posted by aidandj View Post
Replug the hole and see if it goes away?
Thanks for the reply, I didn't fancy removing the turbo again (as the turbo wouldn't have oil) with my DIY manifold it's a pain to remove so I've ordered a cheap ebay sandwich plate to try a different feed, seems like the NC cars suffer from a similar noise but I'm not sure how similar their VVT system is to the MK2.5's. I only drove the car a few times before starting the project as I have another MK2 that I use normally and didn't really rev the engine with the bonnet up so I'm wandering if it's been like it all the time and I just haven't noticed. I'll update this if I make any progress.
JamesGSY is offline   Reply With Quote
Old 06-13-2016, 09:39 PM   #17
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

checking in for an update
Sirnixalot is offline   Reply With Quote
Old 06-15-2016, 12:32 AM   #18
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Reverant View Post
I'm using A with a ball bearing Garrett turbo. No issues so far.
I never considered that plug, never even noticed it before. I ended up drilling tapping the rear cast piece on that hardline and using a 1/8 npt to -4an adapter, there wasnt much threads of engagement on the npt side, but it never leaked.
Leafy is offline   Reply With Quote
Old 06-16-2016, 08:46 AM   #19
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

Quote:
Originally Posted by JamesGSY View Post
Thanks for the reply, I didn't fancy removing the turbo again (as the turbo wouldn't have oil) with my DIY manifold it's a pain to remove so I've ordered a cheap ebay sandwich plate to try a different feed, seems like the NC cars suffer from a similar noise but I'm not sure how similar their VVT system is to the MK2.5's. I only drove the car a few times before starting the project as I have another MK2 that I use normally and didn't really rev the engine with the bonnet up so I'm wandering if it's been like it all the time and I just haven't noticed. I'll update this if I make any progress.
Sandwich plates work, but cheap ones have always leaked for me. Return it and buy that tee fitting and a length of -4an line to go off the oil pressure sender. For diagnosis obviously.
NBoost is offline   Reply With Quote
Old 06-16-2016, 09:05 AM   #20
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,701
Total Cats: 319
Default

Also if feeding the turbo from a sandwich plate, that's all pre-filtered oil.

You can move your pressure sender to the sandwich plate, and source the feed from the 1/8" bspt sender port.
psyber_0ptix is online now   Reply With Quote
