Old 03-10-2009, 10:34 PM   #21
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by Gotpsi? View Post
Is that water heater strap holding you IC on?
no idea what it is so that is a possibility. It is pretty sturdy with the pipes connected at each end though.
wayne_curr is offline   Reply With Quote
Old 03-12-2009, 09:39 PM   #22
Newb

Join Date: Mar 2009
Location: Seattle
Posts: 4
Total Cats: 0
Default

So, how's the build going? Any updates?
SlowEM1 is offline   Reply With Quote
Old 03-12-2009, 09:59 PM   #23
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by SlowEM1 View Post
So, how's the build going? Any updates?
Omg a civic driving smelly hippy is among us!

Nothing worth posting. I worked yesterday for an hour just getting the rear lower exhaust nut on and as tight as I can get it. I lack dexterity.

Started putting the bumper back on. I need to get the right sized drill bit/tap for the pan but cannot find it at lowes or napa or schucks. Mostly just reassembly at this point.

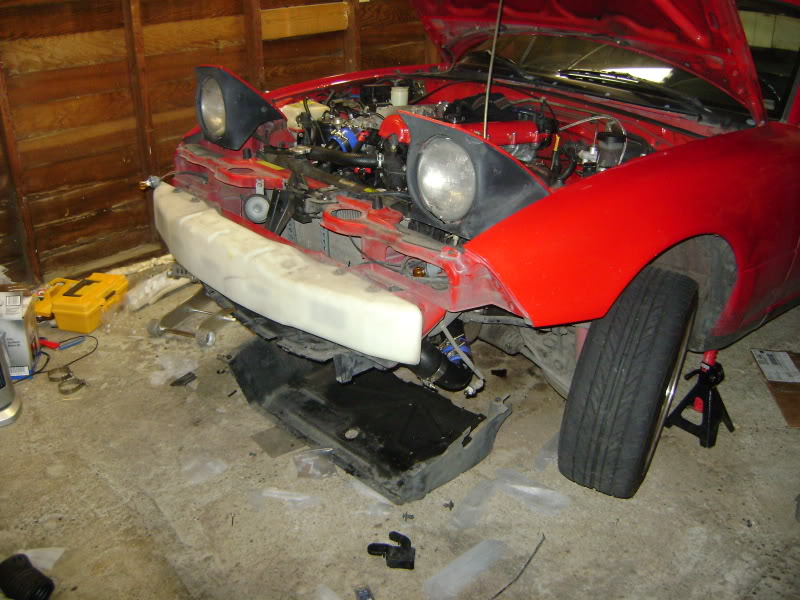

Here is the bumper starting to go back on:
Name:  DSC00859.jpg
Views: 1
Size:  106.8 KB

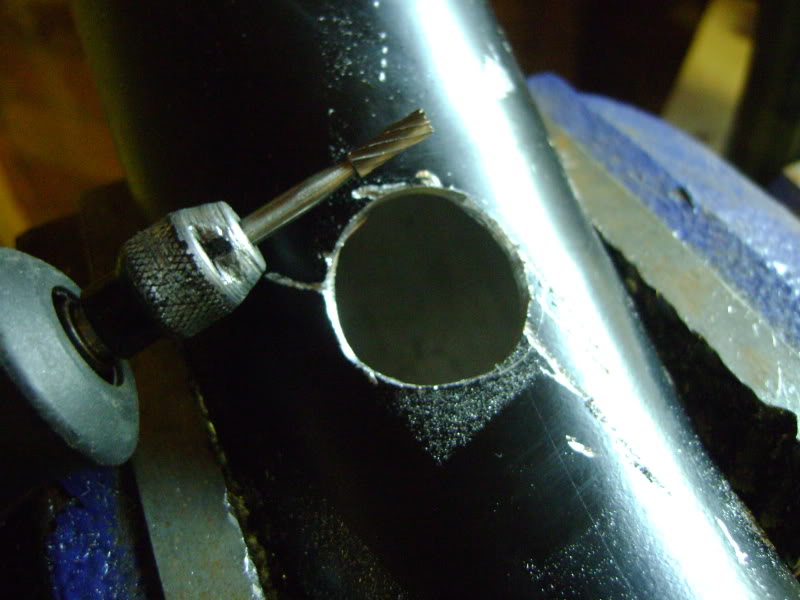

Here is the hole I dremeled in a cold side pipe for my AIT:
Name:  DSC00857.jpg
Views: 1
Size:  74.7 KB

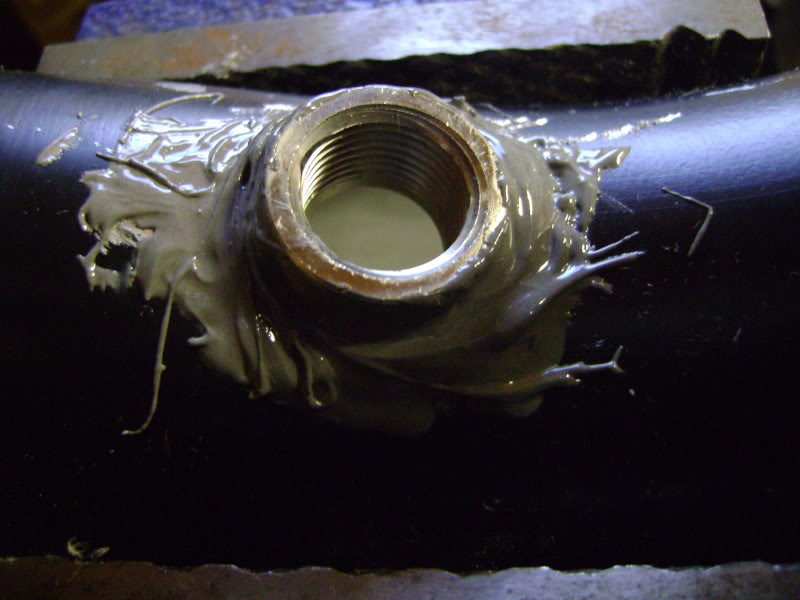

Here is the bung being JB welded:
Name:  DSC00858.jpg
Views: 1
Size:  71.2 KB

JB weld is gangster...
wayne_curr is offline   Reply With Quote
Old 03-12-2009, 10:08 PM   #24
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

your build is progressing exactly as mine is!!! im just too lazy to document it.
240_to_miata is offline   Reply With Quote
Old 03-12-2009, 10:12 PM   #25
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by 240_to_miata View Post
your build is progressing exactly as mine is!!! im just too lazy to document it.
Ya we have pretty much all the same parts goin in our cars haha. Yours is a 1.8 i think that is the only difference.

Oh that and you're totally awesome WGA adapter you had made. I just drilled and tapped right into the compressor housing for mine =P
wayne_curr is offline   Reply With Quote
Old 03-12-2009, 10:32 PM   #26
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

and i have PS to work around....

Just wait till i post up pics of my hotside piping. im finishing it 2morro. It reminds me of this:

240_to_miata is offline   Reply With Quote
Old 03-12-2009, 11:10 PM   #27
Newb

Join Date: Mar 2009
Location: Seattle
Posts: 4
Total Cats: 0
Default

Quote:
Originally Posted by wayne_curr View Post
Omg a civic driving smelly hippy is among us!
haha -Way to call out the honda fanboy -Thanks for that! Your build is looking ******* awesome though -I'm getting jealous man... Still look like this weekend is a realistic deadline?
SlowEM1 is offline   Reply With Quote
Old 03-13-2009, 03:06 AM   #28
Newb

Join Date: Mar 2009
Location: Seattle
Posts: 4
Total Cats: 0
Default

Quote:
Originally Posted by wayne_curr View Post
So today on my way home from class I got hustled up a freeway on-ramp by something i'd rather not admit being hustled by.
Just a little motivation to keep you on track with your build buddy!



SlowEM1 is offline   Reply With Quote
Old 03-13-2009, 03:28 AM   #29
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Nice mani and dp man! Im truly missing mine, the 1.8 one i got from begi doesn't fit like that one did :(
thesnowboarder is offline   Reply With Quote
Old 03-13-2009, 09:16 PM   #30
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

My buddy came back and put my bumper back on today. It seems to me like a huge step forward, but it really isn't. I've still got a few things to figure out and a couple questions.

First for the oil feed. I'm having a BITCH of a time figuring out how to get the oil pressure sender off to put my tuner toys oil feed in. Is there a trick i'm missing? It doesn't seem like there is any room to fit an open end wrench in there. I threaded the 1/8 bspt feed into my spare block a little bit at the traditional 1.6 oil feed location and it seems to fit slightly. Could I pull this off as a one-time thing? Like, thread it in, let it cross thread or whatever and just not remove it?

I'll post a couple pics a little later, nothin special. Just the same car but with a bumper this time.

Last edited by wayne_curr; 03-13-2009 at 10:21 PM.
wayne_curr is offline   Reply With Quote
Old 03-14-2009, 11:47 PM   #31
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

A couple of updates.

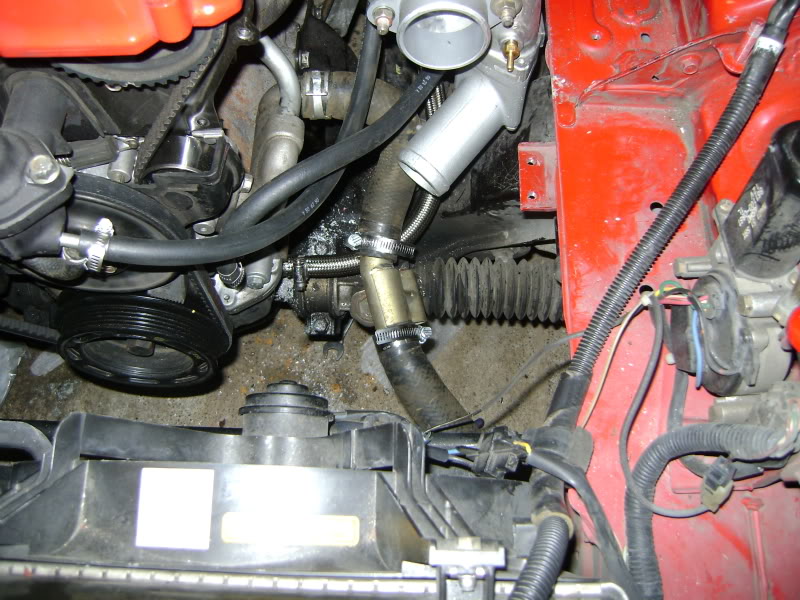

Here is how I re-routed my lower radiator hose finally. I used all of the stock pieces to get this where I wanted it. I used the hose originally connected to the radiator to run into the block, and vice versa. I cut the 45* portion of the hardline off to connect the two. You can also see my drain line in place as I drilled/tapped the pan today:
Name:  DSC00865.jpg
Views: 2
Size:  130.1 KB

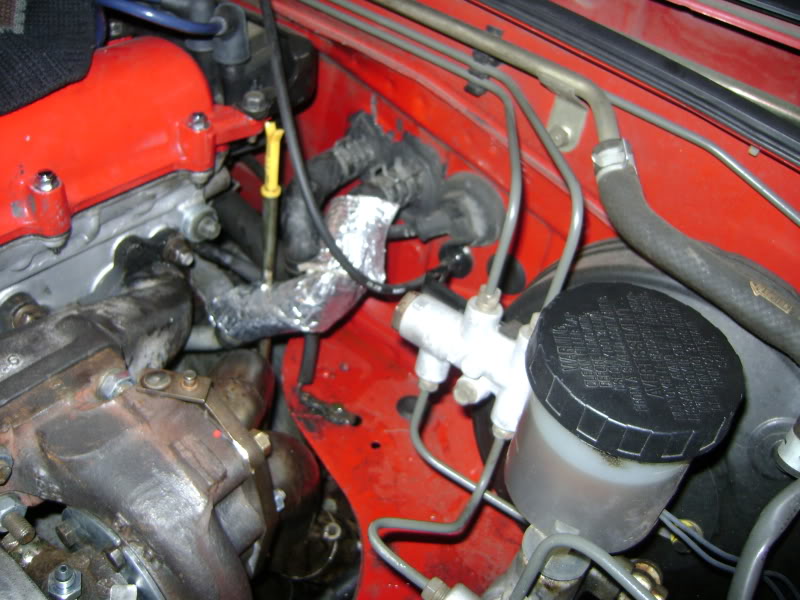

Started wrapping the heatercore lines:
Name:  DSC00866.jpg
Views: 1
Size:  101.9 KB

So at this point I need to only do a few things before the start up:
-Fix a coolant leak at the back of the head
-Move my LC1 and re-wire it
-Make a couple of cuts and put my under tray back on
-Figure out how in the ******* hell i'm going to get oil to this turbo...

I cannot for the life of me get the oil pressure sender off the block with the engine in the car. If I had known this would be this huge of a PITA, i would have put my oil Tee in while the engine was out. Omg its seriously impossible, there is no way to get a wrench on the nut behind the sender unit and actually have room to move the wrench to loosen it. I'm thinking about either picking up an oil filter sandwich plate or figuring out how to make the oil port on the hotside work with my -3AN oil feed hose.

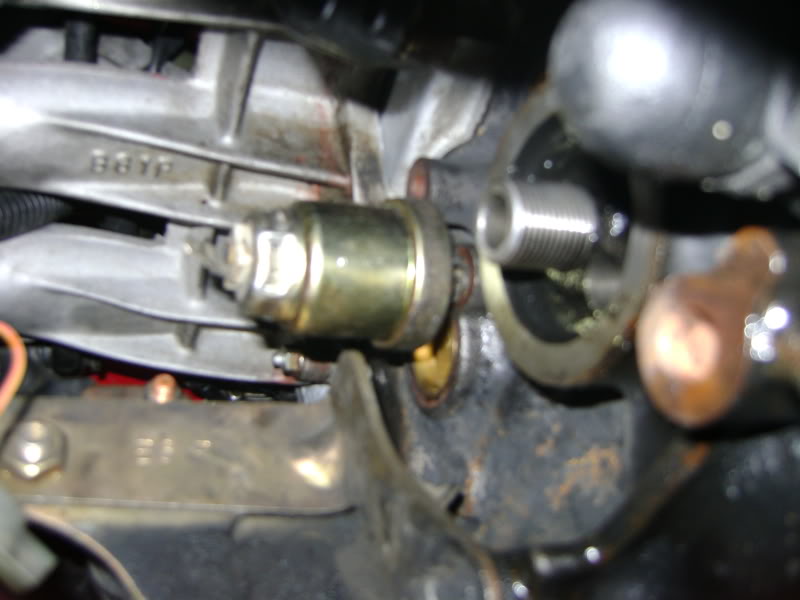

Heres the bitch:
Name:  DSC00867.jpg
Views: 1
Size:  63.0 KB
wayne_curr is offline   Reply With Quote
Old 03-15-2009, 12:03 AM   #32
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

i took mine off last week so that i knew it would be pretty easy to throw on when i put the turbo on. Then again, i have the 1.8 pressure sensor which is much smaller.


P.S. i am one 90* silicone coupler away from being boosted. I am coming home from college friday to install everything.

Am i going to beat you to boost???? lol
240_to_miata is offline   Reply With Quote
Old 03-15-2009, 12:08 AM   #33
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by 240_to_miata View Post
i took mine off last week so that i knew it would be pretty easy to throw on when i put the turbo on. Then again, i have the 1.8 pressure sensor which is much smaller.


P.S. i am one 90* silicone coupler away from being boosted. I am coming home from college friday to install everything.

Am i going to beat you to boost???? lol
Oh lord, you may if I have to order something that takes longer than a week...or if I decide to pull my intake manifold to get this ******* thing off. I guess it depends on how motivated I am tomorrow =P

If I could find a place like anpluming.com locally i'd be set.
wayne_curr is offline   Reply With Quote
Old 03-15-2009, 02:08 AM   #34
Junior Member

Join Date: May 2007
Location: Homestead Fl.
Posts: 92
Total Cats: 0
Default

Why get behind the sensor? Why not just screw it off from the top of the sensor?
redrumracer is offline   Reply With Quote
Old 03-15-2009, 04:37 AM   #35
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by redrumracer View Post
Why get behind the sensor? Why not just screw it off from the top of the sensor?
The housing spins but it does not loosen at the block. I can only imagine that by spinning it as such is destroying the wiring inside.
wayne_curr is offline   Reply With Quote
Old 03-15-2009, 05:01 PM   #36
Senior Member
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

If you decide to go with an oil filter sandwich plate, I have a brand new one sitting in my garage I can sell you
greenday3437 is offline   Reply With Quote
Old 03-15-2009, 05:08 PM   #37
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by greenday3437 View Post
If you decide to go with an oil filter sandwich plate, I have a brand new one sitting in my garage I can sell you
How much (out of curiosity)?
wayne_curr is offline   Reply With Quote
Old 03-15-2009, 05:14 PM   #38
Senior Member
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

Quote:
Originally Posted by wayne_curr View Post
How much (out of curiosity)?
To be honest I dont know what to charge for it, I will go take some pictures and post it up. I got it from Urbansoot when I bought my turbo from him.
greenday3437 is offline   Reply With Quote
Old 03-15-2009, 05:18 PM   #39
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by greenday3437 View Post
To be honest I dont know what to charge for it, I will go take some pictures and post it up. I got it from Urbansoot when I bought my turbo from him.
Well i'll have to make up my mind soon as I need that **** in the mail like 2 days ago if I end up buying it from you. I also have no idea what they're worth...new or used.
wayne_curr is offline   Reply With Quote
Old 03-15-2009, 05:24 PM   #40
Senior Member
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default





Looks to have 3 ports for tapping for oil. One has a fitting on it and the other two are plugged. Let me know what you think.
greenday3437 is offline   Reply With Quote
