Default Who here has a Water to Air intercooler setup?

Show me some pictures please?
StealthNB is offline   Reply With Quote
Old 09-04-2014, 09:34 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

or just google image it
18psi is offline   Reply With Quote
Old 09-04-2014, 10:06 PM   #3
Junior Member
iTrader: (5)

Join Date: Mar 2010
Location: Houston
Posts: 370
Total Cats: 62
Default

Only when it rains.
hankclaussen is offline   Reply With Quote
Old 09-05-2014, 12:40 PM   #4
I'm Miserable!
Thread Starter

Join Date: Aug 2014
Posts: 130
Total Cats: -162
Default

All find are pics with supercharger cars. Yuk!!
StealthNB is offline   Reply With Quote
Old 09-05-2014, 12:44 PM   #5
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by StealthNB View Post
All find are pics with supercharger cars. Yuk!!


Just hedging bets here, but i bet it looks almost exactly the same.

You're welcome!
concealer404 is offline   Reply With Quote
Old 09-05-2014, 12:57 PM   #6
I'm Miserable!
Thread Starter

Join Date: Aug 2014
Posts: 130
Total Cats: -162
Default

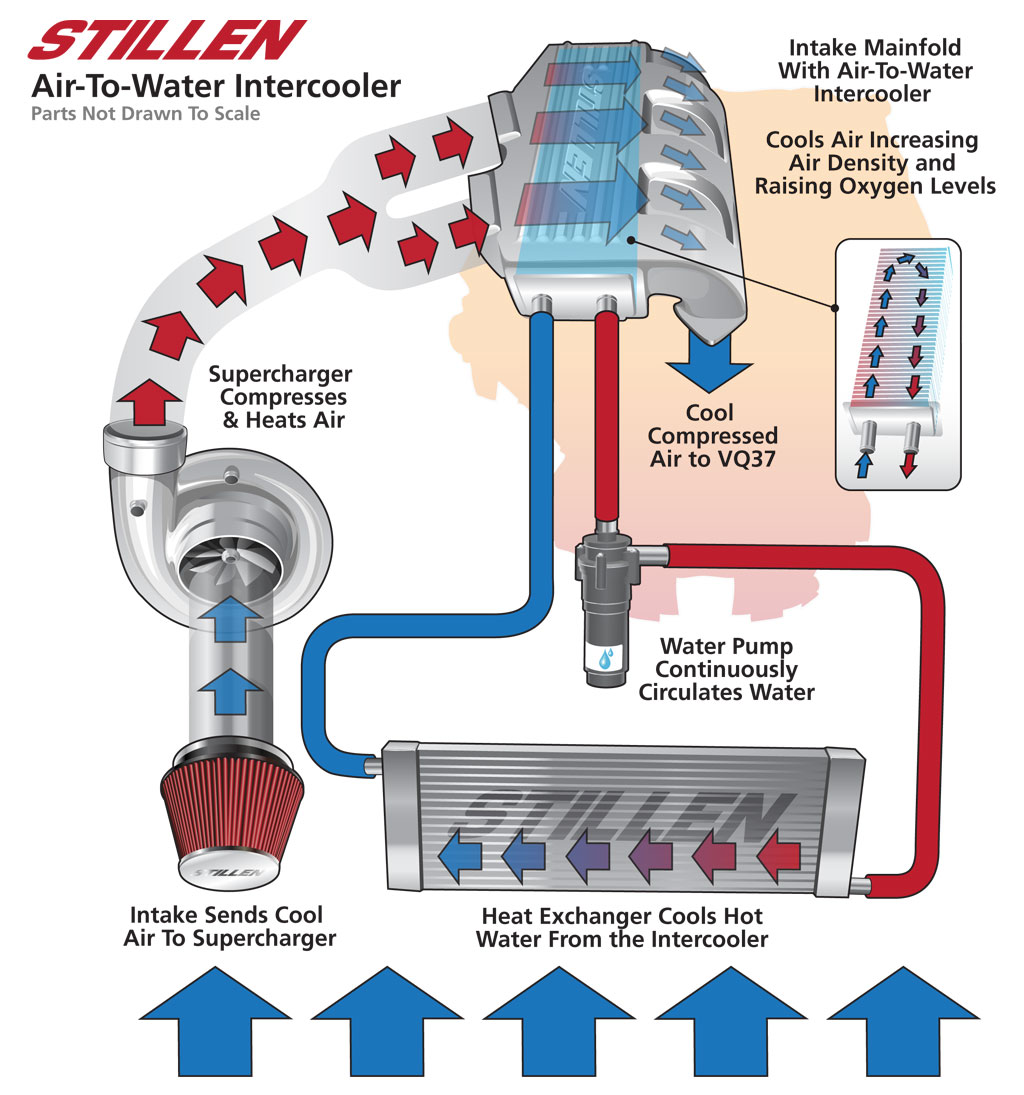

been thinking of building something similar to Stillen water to air intercooler in the Ford Mustang. A concept like this will save a lot of space and be effective a hell.



What do you people think?
Attached Thumbnails
Who here has a Water to Air intercooler setup?-water%2520to%2520air%2520intercooler1.jpg
StealthNB is offline   Reply With Quote
Old 09-05-2014, 12:58 PM   #7
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

I tried water to air for a while.

Then I put down the crack pipe. What a waste of time and energy! It made as much sense as plumbing a toilet into your home air conditioning.
y8s is offline   Reply With Quote
Old 09-05-2014, 01:01 PM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

Quote:
Originally Posted by StealthNB View Post
been thinking of building something similar to Stillen water to air intercooler in the Ford Mustang. A concept like this will save a lot of space and be effective a hell.


What do you people think?
1. It will require MORE space: 2 heat exchangers, pump, water reservoir, somewhere for all those water lines and electric pump power wires to go, hoses, hoses, hoses, clamps, custom fab, etc.

2. more weight at the front of the car where it shouldn't be. Again, two heat exchangers full of heavy, sloshy water.

3. effectiveness is limited unless you add complicated controls for the pump based on AIT that can account for heat soak and limited water capacity.

4. "Hell" is effective at heating things from what I've heard.
y8s is offline   Reply With Quote
Old 09-05-2014, 01:19 PM   #9
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,695
Total Cats: 266
Default

As you can see. You end up with (2) air to water exchanges. All in the name of not having (2) easy-to-route charge pipes.

Drivers for a water system:
a) When you cannot use a FMIC or other easy-to-position air to air IC on the vehicle. Not the case with Miata.

b) Roots or twin scoll S/C's that deliver right into the intake.
DNMakinson is online now   Reply With Quote
Old 09-05-2014, 02:45 PM   #10
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

"keep it simple stupid"

water intercoolers have benefits in vehicle with air to air intercooler packaging restrictions. The Miata is not one of these vehicles.
cyotani is offline   Reply With Quote
Old 09-05-2014, 02:46 PM   #11
I'm Miserable!
Thread Starter

Join Date: Aug 2014
Posts: 130
Total Cats: -162
Default

Not really I can cut 1/4 the of radiator in half and do two heat exchangers in one. Use a high speed fan kit and be done with it.

With regard to the Stillen intercooler design it looks like I can remove my A/A intercooler pipes, intercooler and corresponding bracket, save weight and run a very short pipe to the turbo. All I have to do is put is my mind and soul into building a custom intake manifold with integrated intercooler.
StealthNB is offline   Reply With Quote
Old 09-05-2014, 02:55 PM   #12
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by StealthNB View Post
Not really I can cut 1/4 the of radiator in half and do two heat exchangers in one. Use a high speed fan kit and be done with it.
This is the stupidest thing I have read in this thread so far, and there is a lot of stupid in here. Miata's already have marginal cooling systems and you want to remove radiator space.
shuiend is offline   Reply With Quote
Old 09-05-2014, 02:59 PM   #13
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by StealthNB View Post
Not really I can cut 1/4 the of radiator in half and do two heat exchangers in one. Use a high speed fan kit and be done with it.

With regard to the Stillen intercooler design it looks like I can remove my A/A intercooler pipes, intercooler and corresponding bracket, save weight and run a very short pipe to the turbo. All I have to do is put is my mind and soul into building a custom intake manifold with integrated intercooler.


Words fail me.
concealer404 is offline   Reply With Quote
Old 09-05-2014, 03:05 PM   #14
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

On the upside, the 3/4 size radiator will now have nice cold intercooler water nearby to dump its heat into.
y8s is offline   Reply With Quote
Old 09-05-2014, 03:06 PM   #15
I'm Miserable!
Thread Starter

Join Date: Aug 2014
Posts: 130
Total Cats: -162
Default

Quote:
Originally Posted by shuiend View Post
This is the stupidest thing I have read in this thread so far, and there is a lot of stupid in here. Miata's already have marginal cooling systems and you want to remove radiator space.
What I see is a bunch negative people telling what I can and I can not do. I asked for pictures just to see what has been done.

Either way the issue that disturbs me the most is that I don't understand how so so many people run superchargers with Air/Water intercooler set ups and don't complaint about overheating.
StealthNB is offline   Reply With Quote
Old 09-05-2014, 03:07 PM   #16
I'm Miserable!
Thread Starter

Join Date: Aug 2014
Posts: 130
Total Cats: -162
Default

Quote:
Originally Posted by y8s View Post
On the upside, the 3/4 size radiator will now have nice cold intercooler water nearby to dump its heat into.
very true. gold wrapped heatshield?
StealthNB is offline   Reply With Quote
Old 09-05-2014, 03:12 PM   #17
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by StealthNB View Post
What I see is a bunch negative people telling what I can and I can not do. I asked for pictures just to see what has been done.

Either way the issue that disturbs me the most is that I don't understand how so so many people run superchargers with Air/Water intercooler set ups and don't complaint about overheating.

Overheating what, exactly?


And what we're doing is drawing centuries of collective experience and telling that what you're talking about doing is a bad idea. Just because YOUR idea sucks doesn't mean that we're negative. It just means your idea sucks. If you want to try it anyways, go right on ahead.
concealer404 is offline   Reply With Quote
Old 09-05-2014, 04:22 PM   #18
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

Quote:
Originally Posted by StealthNB View Post
I asked for pictures just to see what has been done.

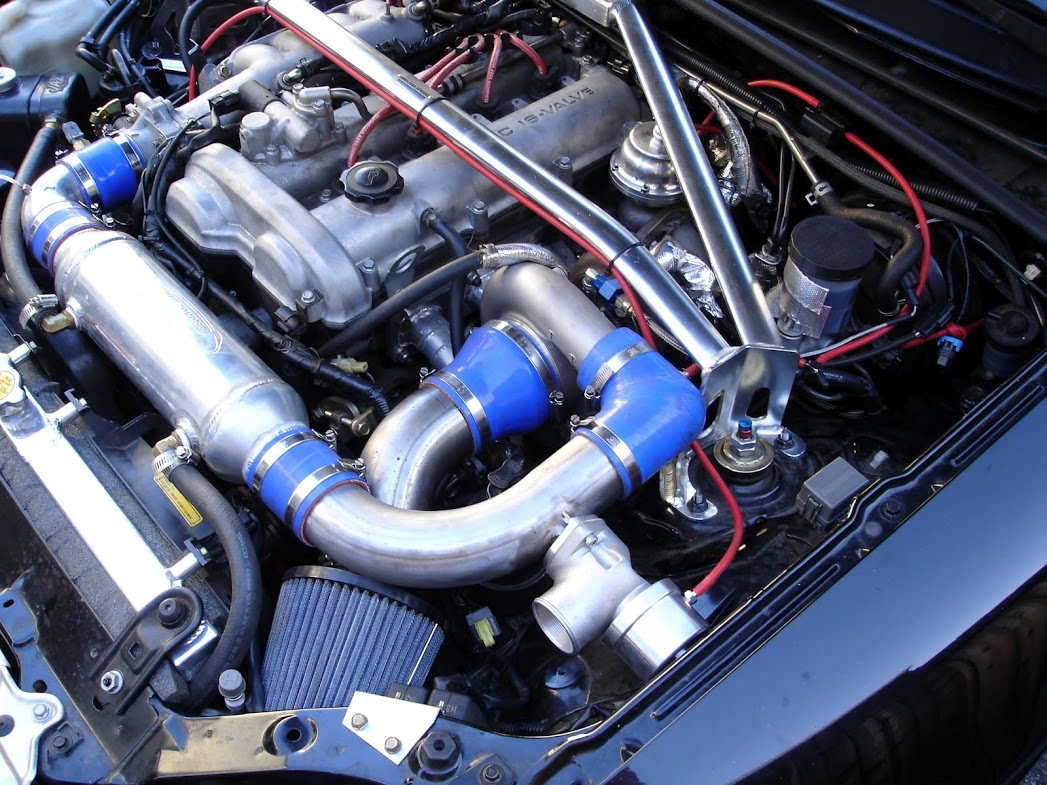

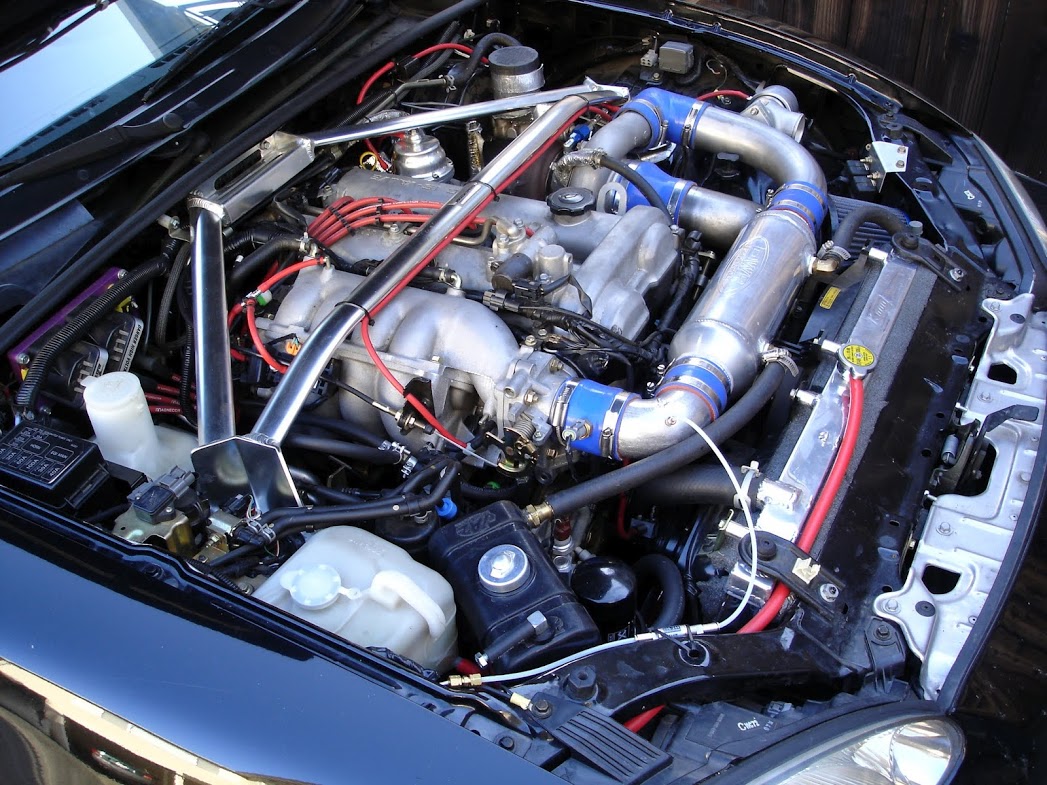

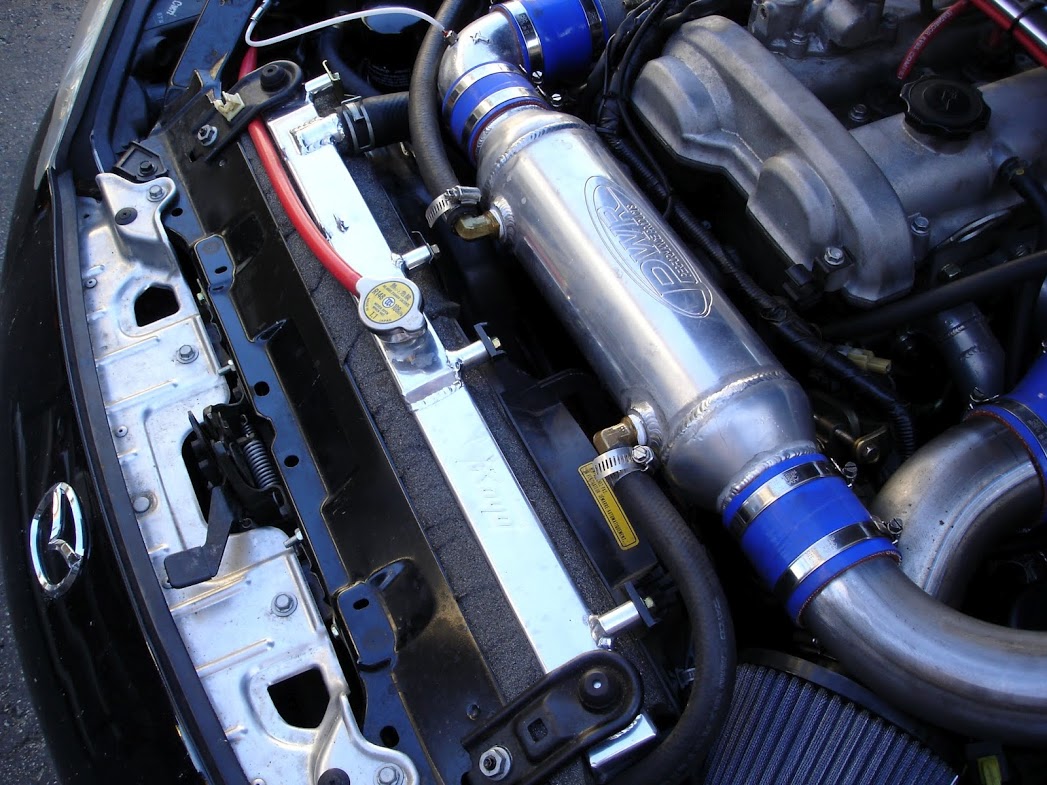

I broke the internet and deleted all my pictures of my setup. OH WAIT **** I DIDN'T, YOU'RE IN LUCK!









Either way the issue that disturbs me the most is that I don't understand how so so many people run superchargers with Air/Water intercooler set ups and don't complaint about overheating.[/QUOTE]

Maybe they don't run them on miatas. Of course many people with superchargers on a Miata are known for not giving a hoot about air intake temps. Many. Not all. Some people use centrifugal supers and don't *need* air-water intercoolers.
Attached Thumbnails
Who here has a Water to Air intercooler setup?-dsc00746.jpg   Who here has a Water to Air intercooler setup?-dsc00747.jpg   Who here has a Water to Air intercooler setup?-dsc00748.jpg   Who here has a Water to Air intercooler setup?-dsc00752.jpg
y8s is offline   Reply With Quote
Old 09-05-2014, 04:27 PM   #19
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Wait, how exactly is a couple gallons of water at 6lbs/gal supposed to be lighter than a few feet of aluminum intercooler piping at 0.58lb/ft. Not to mention the ~2lb water pump.
Leafy is offline   Reply With Quote
Old 09-05-2014, 04:29 PM   #20
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

The only real justification for an air to water setup in my opinion is in a dedicated high boost drag racing machine... or just to be different on a daily driver. From everything I have researched they are not suitable for a track car and could be marginal on an autocross car.

If you are doing it "just to be different" go right ahead... but remember that the kids who were "different" got picked on in school and it is the same here.

Keith
Twodoor is offline   Reply With Quote
