Default Why am I knocking?

Had my car tuned by Jei @ Blacktrax performance in Milpitas, CA.

Car is:
1.6 L
Greddy TD04-15G
3" Exhaust
440cc injectors
FMIC
55mm CX Radiator
Toyota Coil Packs
GM Mass Pressure Sensor
MS PNP2

We ended up backing out of boost at 197 whp and a little under 10 psi. Beyond these levels the car started knocking even under extremely rich conditions, and with pulling timing (we since reset the settings to more reasonable levels at 10psi). Thinking its a weak ignition system parts causing the issues, but trying to diagnose. Any ideas where to look first?
MITengineer is offline   Reply With Quote
Old 09-24-2016, 02:07 PM   #2
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,915
Total Cats: 1,433
Default

What intercooler? Its on california gas so low knock thresholds are common. But 10psi is a little low. What timing are you running at 10psi.
aidandj is offline   Reply With Quote
Old 09-24-2016, 03:53 PM   #3
Newb
Thread Starter

Join Date: Sep 2016
Posts: 12
Total Cats: 0
Default

Its a 24" x 12" x 3" eBay intercooler. IAT's were low on the dyno.

I'll pull the tune file to get timing #'s don't remember off the top of my head.

- Chris
MITengineer is offline   Reply With Quote
Old 09-26-2016, 12:50 AM   #4
Former Vendor

Join Date: Jul 2016
Posts: 66
Total Cats: 0
Default

By Toyota coil packs, do you mean the Toyota COP's? Are you running them sequential or wired for wasted spark? And yes, the timing table helps!
LamanDesigns is offline   Reply With Quote
Old 09-29-2016, 12:53 AM   #5
Senior Member

farpolemiddle's Avatar

Join Date: May 2016
Location: Lents, Oregon
Posts: 558
Total Cats: 81
Default

Bad gas? Chance you have 87 in it? I would drain the tank and try again with fresh gas.

How confident are you with your base timing?

Last edited by farpolemiddle; 09-29-2016 at 12:59 AM. Reason: Timing ?
farpolemiddle is offline   Reply With Quote
Old 11-13-2016, 12:50 PM   #6
Newb
Thread Starter

Join Date: Sep 2016
Posts: 12
Total Cats: 0
Default

No 87 .... its 91 octane. Yes, Toyota COP.

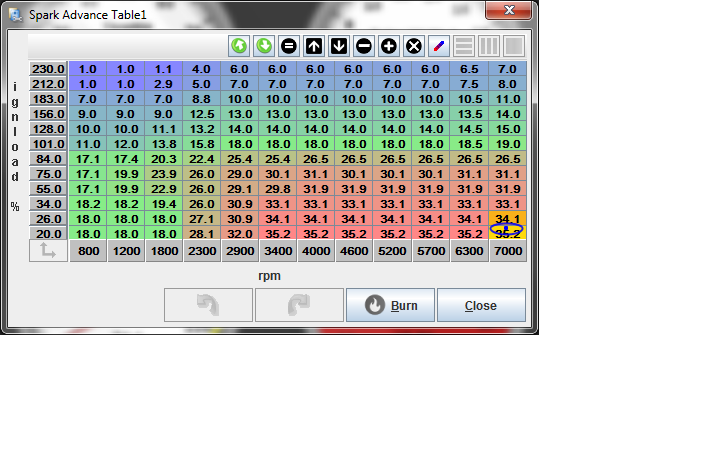

Here's the Timing Maps attached:

Why am I knocking?-spark_advance.png

- Chris
MITengineer is offline   Reply With Quote
Old 11-14-2016, 10:06 PM   #7
Newb
Thread Starter

Join Date: Sep 2016
Posts: 12
Total Cats: 0
Default

Anyone here?
MITengineer is offline   Reply With Quote
Old 11-14-2016, 11:40 PM   #8
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,197
Total Cats: 66
Default

Your timing looks reasonable. CA 91 Octane sucks. Maybe your engine has other issues.

And please don't be offended, but the IATs you claim were low- were they measured before or after the turbo?
stefanst is offline   Reply With Quote
Old 11-14-2016, 11:57 PM   #9
Newb
Thread Starter

Join Date: Sep 2016
Posts: 12
Total Cats: 0
Default

I didn't outline the exact IAT's - tuner said they were low, no figure in mind off my head!
MITengineer is offline   Reply With Quote
Old 11-15-2016, 12:13 AM   #10
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,790
Total Cats: 336
Default

Jei is a pretty well-respected tuner in the bay area, so I would expect he's giving IATs after the intercooler.

Did he datalog the dyno tuning runs on the MS? If so, do you have those logs? That would answer the IAT question quantitatively.

Some motors are just more ping-prone than others. I've heard of people using seafoam to clean out deposits that can contribute to detonation, might be worth a try. Also, how much oil is getting into the intake? If it's a lot (say, if the motor has a lot of blow-by and you don't have a good catch-can setup) then that can cause pinging -- oil has a very low octane.

--Ian
codrus is offline   Reply With Quote
Old 11-15-2016, 01:40 AM   #11
Senior Member

farpolemiddle's Avatar

Join Date: May 2016
Location: Lents, Oregon
Posts: 558
Total Cats: 81
Default

Quote:
Originally Posted by codrus View Post
Jei is a pretty well-respected tuner in the bay area, so I would expect he's giving IATs after the intercooler.

Did he datalog the dyno tuning runs on the MS? If so, do you have those logs? That would answer the IAT question quantitatively.

Some motors are just more ping-prone than others. I've heard of people using seafoam to clean out deposits that can contribute to detonation, might be worth a try. Also, how much oil is getting into the intake? If it's a lot (say, if the motor has a lot of blow-by and you don't have a good catch-can setup) then that can cause pinging -- oil has a very low octane.

--Ian
I thought about this as well but wouldn't be using a fair amount of oil to cause this?
farpolemiddle is offline   Reply With Quote
Old 11-15-2016, 08:58 AM   #12
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,230
Total Cats: 1,475
Default

Which spark plugs?
sixshooter is offline   Reply With Quote
Old 11-15-2016, 09:09 AM   #13
Newb
Thread Starter

Join Date: Sep 2016
Posts: 12
Total Cats: 0
Default

No catch can setup - simply vent to atmosphere (Pep-Boys filters). I think this could be one of the issues.

Will check IAT on the logs.
MITengineer is offline   Reply With Quote
