Default why my turbo is so laggy!

just wonder wat rpm range would ur turbo kick in?? my turbo kicks in ~4000rpm at 1st gear, ~3600rpm at 2nd and ~3200rpm at 3rd, the high the gear is the lower rpm it kicks in, i wonder if it's programing problem or exhaust problem, also very intersted in ur exhaust setup, pls let me know wat kinda piping u're using:

here is my set-up
1.6L engine
Greddy Exhaust Manifold
Greddy 16G turbine with Garret TD04 Compressor
customized 2.5" downpipe with flexpipe
2.5" in/out high-flow cat.
2.25" exhaust b-pipe with 1 resonator
2.5" single in, dual out dynomax SuperTurbo exhuast
3" intake pipe + 2.5" intercooler piping w/starion FMIC
ACT ProLite flywheel + HD clutch kit (1.8L convertion)
Walbro 255LPH fuel pump
BEGI 2025 RRFPR
305cc Supra injectors
NGK 2 degree cooler spark-plug
Greddy Emanage Ultimate with MAP + intake temp sesor
AFM removed
TurboXS RFL BOV
TurboSmart Boost controller set to 10PSI

so i guess my fuel system is more then enough to handle 10PSI but the turbo is kinda laggy, is it becos my 2.25 exhasut piping + cat + resonator which hold it back, or the IC piping is too big...or smthg else possibly?? look forward to see any subjection or solution, thz alot.
Attached Thumbnails

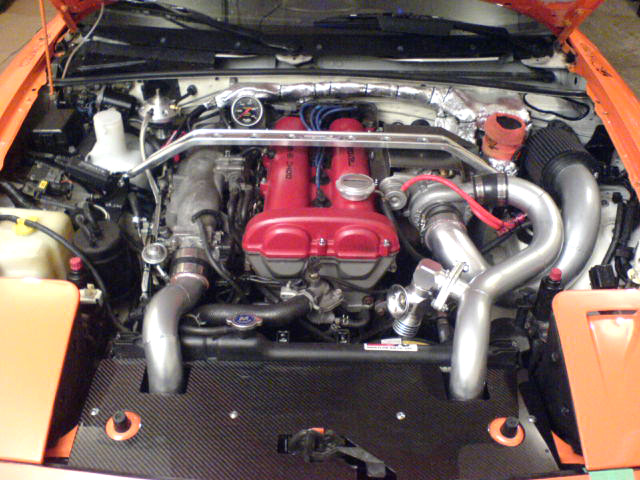

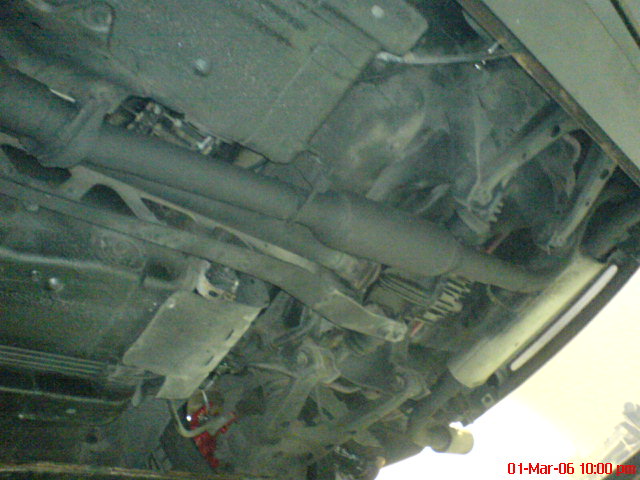

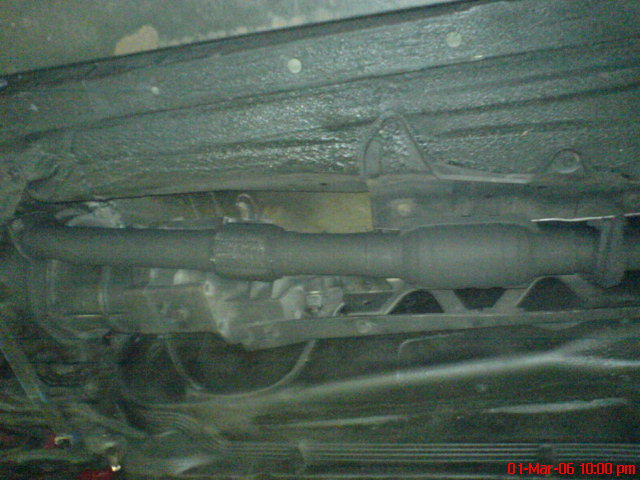

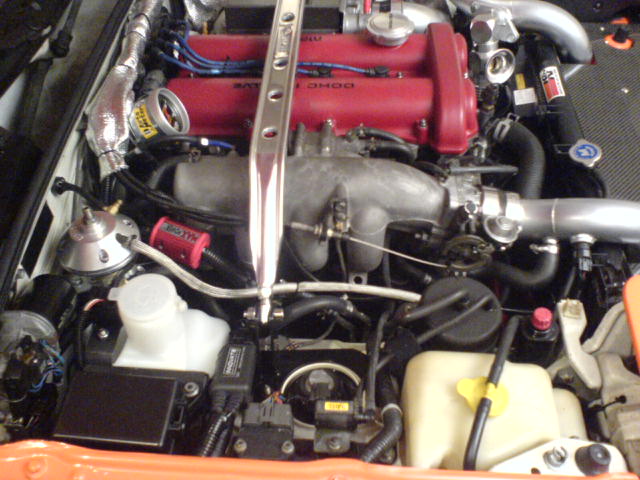

why my turbo is so laggy!-miata-0117.jpg   why my turbo is so laggy!-miata-0118.jpg   why my turbo is so laggy!-miata-0010.jpg   why my turbo is so laggy!-miata-0011.jpg   why my turbo is so laggy!-miata-0012.jpg

OverRev is offline   Reply With Quote
Old 07-02-2006, 05:23 PM   #2
Junior Member

Join Date: Jun 2006
Posts: 70
Total Cats: 0
Default

hha, no comments to your questions. .. but man that engine bay looks nice!
thatguy is offline   Reply With Quote
Old 07-02-2006, 05:46 PM   #3
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

Yeah the greddy downpipe is no good... other than that your muffler is probably the biggest backpressure producer. Try removing your exhaust from the cat-back and see if it makes a difference. If it does, swap your muffler for a magnaflow.
Al Hounos is offline   Reply With Quote
Old 07-02-2006, 06:01 PM   #4
Newb
Thread Starter

Join Date: Dec 2005
Posts: 9
Total Cats: 0
Default

i replaced the greddy downpipe with a 2.5" already, but still looking for a replacement for the manifold. and wat rpm range would ur turbo kick-in?? i am not sure if it's da back pressure which holds it back, or just da intake piping and IC piping are too big so there is too much free space for the boost to fill up b4 it goes into the cylinders. anyways, i will try removing my cat and resonator and see if it makes difference, but do u guys use 2.25", 2.5" or 2.75" for exhaust piping??
OverRev is offline   Reply With Quote
Old 07-02-2006, 06:25 PM   #5
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

As fas as "~4000rpm at 1st gear, ~3600rpm at 2nd and ~3200rpm at 3rd"

The higher the gear, the more load the turbo sees, thus the reduced rpm spool. This is a perfect example of a turbo that's just a little too big for the engine. (For your desired traits)

As Hounos said, the smallish exhaust is creating backpressure which is not helping spool.
UofACATS is offline   Reply With Quote
Old 07-02-2006, 06:27 PM   #6
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Quote:
Originally Posted by OverRev
and IC piping are too big so there is too much free space for the boost to fill up b4 it goes into the cylinders.
If this were the case, the spool point would not change from gear to gear.



As stated above, for a quick and dirty exhaust test, just unbolt the sucka and take it around the block for a "the neighbors hate me test."

When your turbo spools earlier, quicker, and you feel that additional power at high RPM, you'll be

And last, nice underhood!!!

Last edited by UofACATS; 07-02-2006 at 06:36 PM. Reason: addition
UofACATS is offline   Reply With Quote
Old 07-02-2006, 06:51 PM   #7
Newb
Thread Starter

Join Date: Dec 2005
Posts: 9
Total Cats: 0
Default

thz, i'll try it, and if the exhaust is the problem, then how big of piping should i use when making a new exhaust??
OverRev is offline   Reply With Quote
Old 07-02-2006, 07:14 PM   #8
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

It's not really the size of the piping that is the problem, except for the 2.25" piece. Your muffler is more restrictive than it needs to be. Get a straight through muffler like a magnaflow, I have one and it doesn't sound bad or too loud at all. Haven't been running the car much though with ECU problems.
Al Hounos is offline   Reply With Quote
Old 07-02-2006, 07:27 PM   #9
Newb
Thread Starter

Join Date: Dec 2005
Posts: 9
Total Cats: 0
Default

i see, i would try different muffler with 2.5" all the way, i guess i would keep the resonator but not da cat.
OverRev is offline   Reply With Quote
Old 07-02-2006, 07:50 PM   #10
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

exactly.
kung fu jesus is offline   Reply With Quote
Old 07-03-2006, 08:47 AM   #11
Newb
Thread Starter

Join Date: Dec 2005
Posts: 9
Total Cats: 0
Default

hmm, i just found out the problem with help of my frd, red90 who drives a turbo miata with simular setup as my, the reason it's laggy is very very stupid, on the ultimate there is an option for u to update ur injector size, so i set it to 305cc instead of the origianl 210cc, and the result is that the ultimate pulls the ign. timing back crazily, it's almost like 8-10 deg. lower thru-out the entire map, that's y it's laggy and not making pwr. imagine setting ur ign timing to 0 deg on the pully and dat's y it runs like sh*t.
OverRev is offline   Reply With Quote
Old 07-03-2006, 02:21 PM   #12
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

well my Greddy when I had one didnt hit full boost in 1st gear until about 4000rpm ( 12psi ) and that was with a 2.5in dp and full 2.5in exhaust. Thats just the nature of that turbo....its got a large turbine a/r and it takes longer than a T25 to get into boost. Thats just how it is....
F20turbo is offline   Reply With Quote
Old 07-03-2006, 03:17 PM   #13
Junior Member

Join Date: Sep 2005
Location: Altus AFB, Oklahoma
Posts: 144
Total Cats: 0
Default

deez and dose.......

good luck man
ColoradoSpringsMiata is offline   Reply With Quote
Old 07-05-2006, 11:57 PM   #14
Junior Member

Join Date: Oct 2004
Posts: 171
Total Cats: 3
Default

Hmmm...that doesnt make sense.If you put in a bigger injector size, it will LESSEN the airflow value the ecu sees to trim back the fuel. The less the load, the more advanced the timing. not sure how a low load would retard timing...
4sfed5 is offline   Reply With Quote
