Default 1.6L @7psi, 215 hp & 203 tq

I recently had my 92 1.6L (refreshed, but stock internals) tuned and dyno'd. My base tune was extremely rich, pulled nearly 5% from each bin from the VE table. Anyways,

Garrett T25 (SR20DET)
Flyin' Miata manifold
Begi 2.25" downpipe
2.5" Magnaflow exhaust, no cat
Intercooled (18x11x3)
460cc RX-7's
steady 7psi boost (small 8psi spikes)
DIYPNP (MS2)
VTPS
No MAF

How'd I do?
Attached Thumbnails
1.6L @7psi, 215 hp & 203 tq-twisted-tuning-92-turbo-miata-dyno-08_15_12.jpg
fluffypillows is offline   Reply With Quote
Old 08-16-2012, 09:16 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Well, I managed 155hp/148tq on pretty much the exact same setup but with ms1, a cat, and a 3" dp, and 12psi.

So to say I'm impressed is an understatement. Skeptical would be more accurate.

edit: what gear were you in?
curly is offline   Reply With Quote
Old 08-16-2012, 09:25 PM   #3
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

also skeptical. Those are strong numbers.

I got 225 on my 1.8 with a fairly aggressive tune, 2.5" dp, 3" exhaust, 550cc inj, ms1, 12PSI on a fairly fresh t25. (5th gear on 6spd (1:1)) stock rear end ratio. dynojet I think.
Impressive #'s, but I question the accuracy. they are a bit on the optimistic side for sure
240_to_miata is offline   Reply With Quote
Old 08-16-2012, 09:54 PM   #4
Newb
Thread Starter

Join Date: Jan 2012
Location: SE PA
Posts: 42
Total Cats: 0
Default

It also seemed high to me. I was kind of expecting 150ish/150ish, but it pulls and drives great. They were 4th gear pulls, newly built T25, fresh injectors, valve job, 2.5" plumbing, Dynocom dyno.

Last edited by fluffypillows; 08-16-2012 at 10:18 PM.
fluffypillows is offline   Reply With Quote
Old 08-16-2012, 10:06 PM   #5
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 185
Default

Is this for real?? What dyno were you on?
thirdgen is offline   Reply With Quote
Old 08-17-2012, 12:21 AM   #6
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Small T25, log mani, 2.25" DP, and 7-8psi = 215hp out of a 1.6?

IMPOSSIBRU
buffon01 is offline   Reply With Quote
Old 08-17-2012, 12:25 AM   #7
Senior Member
iTrader: (2)

Join Date: Jun 2007
Location: Shalimar, FL
Posts: 965
Total Cats: 7
Default

Not doubting you have a solid tune or that it drives well....but c'mon, 7 psi is like adding 50% more air. There's no way that 50% more air == 115% power increase. Don't think we need to go any further than that.
messiahx is offline   Reply With Quote
Old 08-17-2012, 12:26 AM   #8
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

I have a small T25, full ARTech 3" exhaust, rx7 460cc injectors with a MS2 but running a 1.8L. If those numbers are accurate then just wow what a great tune
FowlerMotorsports is offline   Reply With Quote
Old 08-17-2012, 12:31 AM   #9
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Quote:
Originally Posted by FowlerMotorsports View Post
I have a small T25, full ARTech 3" exhaust, rx7 460cc injectors with a MS2 but running a 1.8L. If those numbers are accurate then just wow what a great tune
Even with the best tune possible that turbo is not capable of providing the airflow needed to generate that power at that psi level. That turbo at 12-14 psi could produce those numbers.

However, I noticed that the post says "hp" is OP taking his whp and transforming them to fly wheel hp?
buffon01 is offline   Reply With Quote
Old 08-17-2012, 12:33 AM   #10
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

On my Begi setup at 14psi with a 2554 I made 225hp on a dynojet. I am calling BS on your numbers. There is no way that you are making over 200hp with 7psi with a 1.6l.
shuiend is offline   Reply With Quote
Old 08-17-2012, 12:33 AM   #11
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Quote:
Originally Posted by buffon01 View Post
Even with the best tune possible that turbo is not capable of providing the airflow needed to generate that power at that psi level. That turbo at 12-14 psi could produce those numbers.

However, I noticed that the post says "hp" is OP taking his whp and transforming them to fly wheel hp?
That is my thought buffon, hp would be more understandable



Quote:
Originally Posted by fluffypillows View Post
I recently had my 92 1.6L (refreshed, but stock internals) tuned and dyno'd. My base tune was extremely rich, pulled nearly 5% from each bin from the VE table. Anyways,

Garrett T25 (SR20DET)
Flyin' Miata manifold
Begi 2.25" downpipe
2.5" Magnaflow exhaust, no cat
Intercooled (18x11x3)
460cc RX-7's
steady 7psi boost (small 8psi spikes)
DIYPNP (MS2)
VTPS
No MAF

How'd I do?
**** OR GTFO
FowlerMotorsports is offline   Reply With Quote
Old 08-17-2012, 12:35 AM   #12
Newb
Thread Starter

Join Date: Jan 2012
Location: SE PA
Posts: 42
Total Cats: 0
Default

Well it is a Dynocom. I don't have much knowledge about the different types of dynamometer, but from a quick google search, Dynocom seems the most exaggerated of all the dyno's. What numbers do you guys think I should be putting down?
fluffypillows is offline   Reply With Quote
Old 08-17-2012, 12:42 AM   #13
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

Quote:
Originally Posted by fluffypillows View Post
Well it is a Dynocom. I don't have much knowledge about the different types of dynamometer, but from a quick google search, Dynocom seems the most exaggerated of all the dyno's. What numbers do you guys think I should be putting down?
The most used in this forum are Mustang and Dynojet. Dynojet being the one that read the higher of the two.

Depending on your tune you could make from 140 to 160 whp. Try to locate a shop with a Mustang/Dynojet meter and post again
buffon01 is offline   Reply With Quote
Old 08-17-2012, 12:58 AM   #14
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

1.6L * 72ft.lbs * 1.48bar = 170wtq, and on a 2.25" exhaust, 72ft.lbs/atmo/L is a big stretch.

Dyno reads ~18% high, assuming it reads consistently (a pretty big assumption for a Dynocom unit).
Savington is offline   Reply With Quote
Old 08-17-2012, 03:00 AM   #15
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Go do a Virtual Dyno street pull for us. Or maybe a 1/4 mile. Physics doesn't lie. Dynos might.
hornetball is offline   Reply With Quote
Old 08-17-2012, 08:29 PM   #16
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

or just post datalog of injector Pulsewidth and dutycycle
Techsalvager is offline   Reply With Quote
Old 08-17-2012, 10:42 PM   #17
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Fluffy, please tell us the location of this dyno you used, and the name of the operator.

People have been boosting Miatas for over 2 decades now, and I find it impossible that a legit dyno operator would let you leave his shop believing you made that much power.

The journal bearing T25's are good for about 10whp per psi with a good manifold, big exhaust, and proper tune. In absolutely no way can they flow enough to make the 18whp per psi that your dyno sheet indicates.
samnavy is offline   Reply With Quote
Old 08-17-2012, 10:56 PM   #18
Newb
Thread Starter

Join Date: Jan 2012
Location: SE PA
Posts: 42
Total Cats: 0
Default

Attached Thumbnails

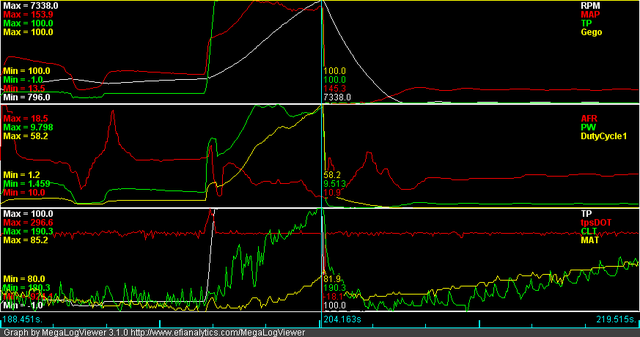

1.6L @7psi, 215 hp & 203 tq-megalog.png
fluffypillows is offline   Reply With Quote
Old 08-22-2012, 02:57 AM   #19
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

at that dutycycle I made around 150~ whp on a dynojet
Techsalvager is offline   Reply With Quote
Old 06-13-2014, 03:26 AM   #20
Newb

Join Date: Jan 2013
Location: Pomona
Posts: 13
Total Cats: -47
Default

wow thats good i just had my car tuned and on the dyno its a stock 1.6 flying miata kit with the gt2560r at 10psi i made 190hp and 163tq hmmm i find these numbers very hard to believe. it was on a dynojet. using 1000cc injectors with e85
miatagmo is offline   Reply With Quote
