Default 1999 Miata - GT2560R @ 15-16psi

1999 Mazda Miata
Stock engine
GT2506R @15-16psi
DIYPNP
550cc RX7 injectors
Devil's Own Meth/water injection
ARTech manifold
ARTech 3" downpipe and exhaust
CXRacing "George foreman grill" FMIC

Did 3 runs. First was in 3rd gear and didn't include it in the printout, it made 263whp. Probably about a 1 minute break between each pull. No fan or anything in front of the car (looking back I should have made them set something up). Car kept making more power each pull.

Some of you may remember my boost creep issue... still not perfect. Tried to flatten boosted out with EBC, but it's less than ideal. Going WOT at 2500rpm like this, the boost will hit 11-12psi intially, then easy up and hold 15-16 most of the way and creeps about 1psi past 6000. This helps hold some of the power past peak I'm sure...but maybe not, might be outflowing the turbo at this point.

Going GT2781R and EWG next. Wanted to get a good 'baseline' in this setup before moving on... probably run about 12-14 with that turbo until I can build the motor and get a 6 speed tranny.

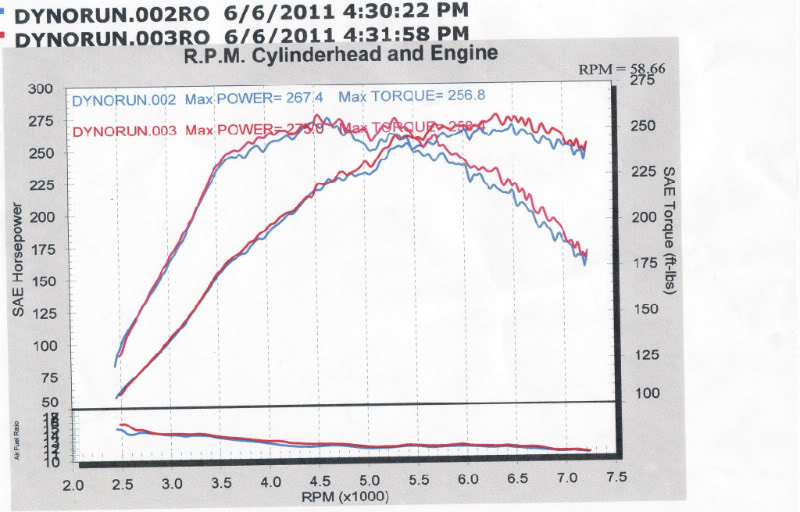

275whp/258wtq SAE Corrected

Name:  Miata_Dyno_275-1.jpg
Views: 84
Size:  73.4 KB

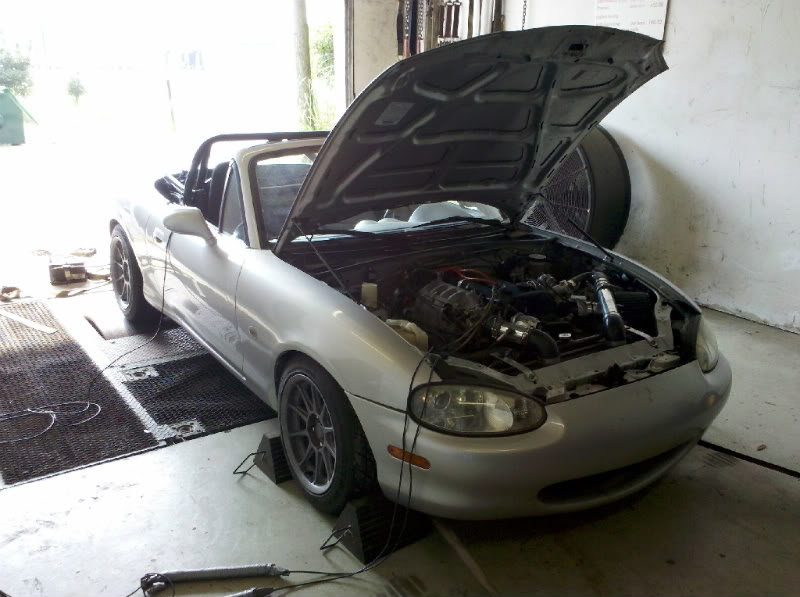

Name:  IMG_20110606_162057.jpg
Views: 68
Size:  83.6 KB


Last edited by aaronc7; 06-06-2011 at 08:40 PM.
aaronc7 is offline   Reply With Quote
Old 06-06-2011, 07:51 PM   #2
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Looks like some good useable torque!
Gotpsi? is offline   Reply With Quote
Old 06-06-2011, 07:57 PM   #3
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Based on my...guesswork, I should be able to hit full torque/boost closer to 3k, 3200, if my boost control was right. I have to really 'numb' my EBC so it wont overboost going from part throttle boost to WOT. The boost control fail is also evident in the wavy torque, especially in blue.

At the end of the day, i wanted 250whp, so im very happy right now!
aaronc7 is offline   Reply With Quote
Old 06-06-2011, 08:15 PM   #4
Junior Member
iTrader: (3)

Join Date: May 2011
Posts: 161
Total Cats: 0
Default

Nice numbers. how much for your old 2560
trakhoar is offline   Reply With Quote
Old 06-06-2011, 08:41 PM   #5
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

OP Updated with pic and video

haha, 2560 is spoken for at the moment...but if it falls thru you'll definitely be seeing it on here.
aaronc7 is offline   Reply With Quote
Old 06-06-2011, 08:43 PM   #6
Junior Member
iTrader: (3)

Join Date: May 2011
Posts: 161
Total Cats: 0
Default

Name:  fuuu.png
Views: 66
Size:  170.6 KB
trakhoar is offline   Reply With Quote
Old 06-06-2011, 08:49 PM   #7
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

there are two people speaking for that 2560. and i'm gonna kick chris's ***, so yeah.
good **** aaron
phillyb is offline   Reply With Quote
Old 06-06-2011, 09:52 PM   #8
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Those are great numbers on a stock engine... shows you the benefits of that style manifold over an fm/begi cast piece. An intake manifold or even a basic head-job should see you touching 300whp... bust as as been demonstrated before, you are close to the limit of the 2560. On the stock motor, I'd think an ati dampner would be a good investment to help the internals last a little longer.

In for 2871 numbers.
samnavy is offline   Reply With Quote
Old 06-06-2011, 09:58 PM   #9
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

thanks samnavy. used your Fuel pump install how to on the miataturbo wiki FAQ today lol.

Looking into intake manifold for when i strap the 2871 on. I'll probably have to turn the boost way down so I don't make too much power, but that's fine. Engine build one day.
aaronc7 is offline   Reply With Quote
Old 06-06-2011, 10:08 PM   #10
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Just looked at the datalogs. AFR was pretty good around 11.5-11.7 for most of the runs, but past... 6k or so, it goes down, 10.5 by redline lol.

I was probably losing some fuel pressure at redline with the stock pump.... threw on the Walbro today and now it's getting too much. Might have been able to eek out a bit more power but whatever, at least it was safe I guess.
aaronc7 is offline   Reply With Quote
Old 06-06-2011, 11:10 PM   #11
Senior Member
iTrader: (2)

Join Date: Jun 2007
Location: Shalimar, FL
Posts: 965
Total Cats: 7
Default

Quote:
Originally Posted by aaronc7 View Post
thanks samnavy. used your Fuel pump install how to on the miataturbo wiki FAQ today lol.

Looking into intake manifold for when i strap the 2871 on. I'll probably have to turn the boost way down so I don't make too much power, but that's fine. Engine build one day.
We're gonna have to pioneer the hondafold since in that other thread, after 10+ pages of talking about it, it has yet to happen.
messiahx is offline   Reply With Quote
Old 06-06-2011, 11:23 PM   #12
Junior Member
iTrader: (2)

Join Date: Jan 2011
Location: Columbus Ohio
Posts: 259
Total Cats: 4
Default

<3 phillyb
<3 aaron
somebody buy my stupid ms3...
/me wants that turbo...
cpolly69 is offline   Reply With Quote
Old 06-06-2011, 11:31 PM   #13
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Nice numbers man. I loved going from my 2560 to a 2871, hope you have the same experience. If you wouldn't mind posting your spark map I would love to take a look at it.
pdexta is offline   Reply With Quote
Old 06-07-2011, 12:01 AM   #14
Junior Member
iTrader: (2)

Join Date: Sep 2010
Location: GA
Posts: 95
Total Cats: 1
Default

Good **** Aaron!
Subbed for 2871 results.
kilik2 is offline   Reply With Quote
Old 06-07-2011, 12:18 AM   #15
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

lolololool @ the amount of msfers
phillyb is offline   Reply With Quote
Old 06-07-2011, 12:25 AM   #16
Senior Member
iTrader: (2)

Join Date: Jun 2007
Location: Shalimar, FL
Posts: 965
Total Cats: 7
Default

Quote:
Originally Posted by phillyb View Post
lolololool @ the amount of msfers
All of you caught the gay . I already had the gay before I started occasionally posting on msf.
messiahx is offline   Reply With Quote
Old 06-07-2011, 01:53 AM   #17
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

we appreciate it.
you already know...............
phillyb is offline   Reply With Quote
Old 06-07-2011, 01:02 PM   #18
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

nice numbers, seeing your dyno motivates me to finish my car!
Clos561 is offline   Reply With Quote
Old 06-08-2011, 02:11 PM   #19
Senior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

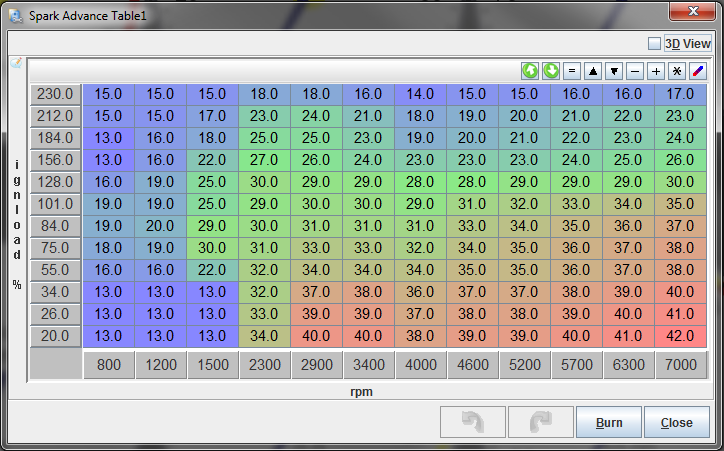

pretty aggressive timing map. here it is. running about 30 percent meth/70 percent water mix. Found a place that sells VP M1, might start mixing my own using that.

Name:  TimingMay2011.png
Views: 69
Size:  73.6 KB
aaronc7 is offline   Reply With Quote
Old 06-08-2011, 03:46 PM   #20
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by messiahx View Post
We're gonna have to pioneer the hondafold since in that other thread, after 10+ pages of talking about it, it has yet to happen.
That's partially because the guy who currently owns it is still deployed.
kotomile is offline   Reply With Quote
