Default 2000 SE with Ecotec 2.4 LE5 swap.

Finally got dyno tune and a quickie track evening done with Swag. I had a LOT of polishing and buttoning up to make this car run properly.
At the track, the DA was 2876ft.







vteckiller2000 is offline   Reply With Quote
Old 08-16-2016, 09:17 PM   #2
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,637
Total Cats: 144
Default

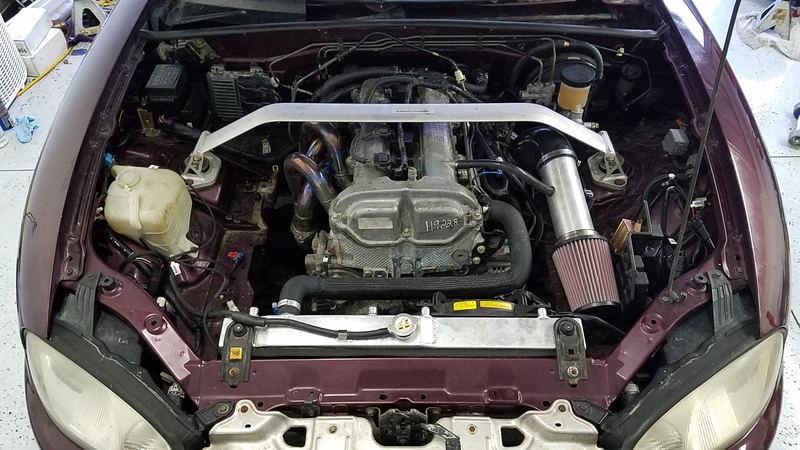

Interesting swap. Engine bay pics? What made you choose to do this?
thirdgen is offline   Reply With Quote
Old 08-16-2016, 09:23 PM   #3
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

Quote:
Originally Posted by thirdgen View Post
Interesting swap. Engine bay pics? What made you choose to do this?
I needed valve stem seals in my BP and decided I wanted to try something different. It is very torquey and fun, but it does NOT by any stretch of the imagination make 200 whp like advertised.


vteckiller2000 is offline   Reply With Quote
Old 08-16-2016, 09:30 PM   #4
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 660
Total Cats: 11
Default

Hah I just put 2 and 2 together, didn't realize you were a member here. It seemed to be running pretty strong at MATG this year. Are you and/or Ben coming back down to NC for MiB in September?
paNX2K&SE-R is offline   Reply With Quote
Old 08-16-2016, 09:41 PM   #5
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

Quote:
Originally Posted by paNX2K&SE-R View Post
Hah I just put 2 and 2 together, didn't realize you were a member here. It seemed to be running pretty strong at MATG this year. Are you and/or Ben coming back down to NC for MiB in September?
Funny thing, the oil pan was shoved into the steering rack for all of matg, causing a ton of false knock and pulling ~10* timing. Couple that with the fact that I gained 20whp with just the tune. It is running much stronger now than it was at the dragon.

I am hoping to be there, but i won't place any money on making it. Work is super fickle about time off.
vteckiller2000 is offline   Reply With Quote
Old 08-16-2016, 10:25 PM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,901
Total Cats: 487
Default

You shoved a really shitty Ford motor in and were surprised when it didn't make 200hp?
curly is online now   Reply With Quote
Old 08-16-2016, 10:50 PM   #7
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

Quote:
Originally Posted by curly View Post
You shoved a really shitty Ford motor in and were surprised when it didn't make 200hp?
Chevy, but who's counting. The makers of the kit claim an "easy 200 whp".


Also, all of the above was blowing through a 2" pipe. So, that may have something to do with it.
vteckiller2000 is offline   Reply With Quote
Old 08-16-2016, 10:53 PM   #8
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,602
Total Cats: 432
Default

Quote:
Originally Posted by vteckiller2000 View Post
I needed valve stem seals in my BP and decided I wanted to try something different. It is very torquey and fun, but it does NOT by any stretch of the imagination make 200 whp like advertised.
You realize all the ecotec swap sites are quoting "200 HP", not 200 WHP, right?
mgeoffriau is offline   Reply With Quote
Old 08-16-2016, 10:56 PM   #9
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

Quote:
Originally Posted by mgeoffriau View Post
You realize all the ecotec swap sites are quoting "200 HP", not 200 WHP, right?
Yeahhh, naw they are quoting 200 whp.

https://www.miataturbo.net/engine-pe...-201whp-80165/
Ecotec Miata Engine Swap Kits

Front page. "200whp & 200wtq 2.4L GM 4 Cylinder Engine"
Posted dyno sheets: 201whp, 211whp, 202whp
vteckiller2000 is offline   Reply With Quote
Old 08-16-2016, 10:58 PM   #10
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,637
Total Cats: 144
Default

This is the reason I am going with a K Honda.
thirdgen is offline   Reply With Quote
Old 08-16-2016, 11:01 PM   #11
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

Quote:
Originally Posted by thirdgen View Post
This is the reason I am going with a K Honda.
Don't get me wrong, it craps all over an NA BP. A little quicker than a stock s2k and just as fast when you take into account the DA at the track.

That being said, I wish I had waited or developed the engine a little before I stuffed it in. But who is ever happy with power? We always want more.
vteckiller2000 is offline   Reply With Quote
Old 08-16-2016, 11:02 PM   #12
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,602
Total Cats: 432
Default

Quote:
Originally Posted by vteckiller2000 View Post
Yeahhh, naw they are quoting 200 whp.

https://www.miataturbo.net/engine-pe...-201whp-80165/
Ecotec Miata Engine Swap Kits

Front page. "200whp & 200wtq 2.4L GM 4 Cylinder Engine"
Posted dyno sheets: 201whp, 211whp, 202whp
I dunno. It took me 30 seconds of googling to find out that they had a tune (e85?) and a few other bits on those cars. Plenty of references stating 200 HP for a stock LE5.
mgeoffriau is offline   Reply With Quote
Old 08-16-2016, 11:05 PM   #13
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

Quote:
Originally Posted by mgeoffriau View Post
I dunno. It took me 30 seconds of googling to find out that they had a tune (e85?) and a few other bits on those cars. Plenty of references stating 200 HP for a stock LE5.
Only one ecotec car running e85 and it is the customer car with DI they had at MATG. Shop cars are all gas. The highest hp/tq dyno they posted up there was with head porting, header, tune and balance shaft delete. I asked.
vteckiller2000 is offline   Reply With Quote
Old 08-17-2016, 12:13 AM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,267
Default

who cares. I like that it makes 150wtq everywhere. fun daily, congrats
moar power? boost it. problem solved. ecotecs love the boost
18psi is offline   Reply With Quote
Old 08-17-2016, 11:12 AM   #15
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

Quote:
Originally Posted by 18psi View Post
who cares. I like that it makes 150wtq everywhere. fun daily, congrats
moar power? boost it. problem solved. ecotecs love the boost
Staying na for now. I like the simplicity. 3" exhaust soon. Will see what that does for this thumper of an engine. 2" is way too small.
vteckiller2000 is offline   Reply With Quote
Old 08-17-2016, 11:13 AM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,453
Total Cats: 2,267
Default

Or you coulda unbolted the exhaust right on the dyno and tested gains? But yeah
18psi is offline   Reply With Quote
Old 08-17-2016, 03:17 PM   #17
Senior Member
Thread Starter
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

Quote:
Originally Posted by 18psi View Post
Or you coulda unbolted the exhaust right on the dyno and tested gains? But yeah
The v band for the header is right up next to the clutch slave and line. I'd have fried it and gotten stuck out of town. It will be corrected soon enough.
vteckiller2000 is offline   Reply With Quote
Old 08-17-2016, 03:35 PM   #18
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,635
Total Cats: 14
Default

I'd rather have this, a MZR, LFX or pretty much anything besides a ghey, er K-series swap.. because honda. Love those torques.
Stealth97 is offline   Reply With Quote
Old 08-17-2016, 03:49 PM   #19
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,447
Total Cats: 473
Default

Quote:
Originally Posted by thirdgen View Post
This is the reason I am going with a K Honda.
That's great, but so so so so so so much more $$.
turbofan is offline   Reply With Quote
Old 08-17-2016, 03:50 PM   #20
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,447
Total Cats: 473
Default

Also, thanks for posting. I didn't realize this was your car now. Haven't seen Ben around for a while.
turbofan is offline   Reply With Quote
