Default 92 1.6 T3/T04E 12psi

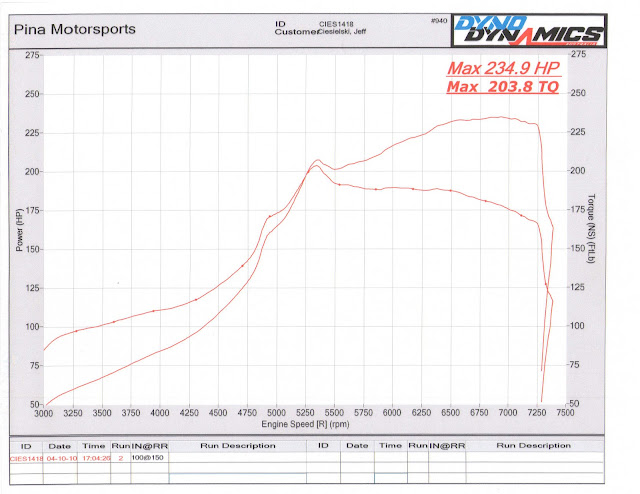

Went to the nwquattro dyno day today over at Pina Motorsports. I was pleased considering I was only running 12psi and had just got my **** halfway dialed in about 5 minutes before I strapped into the dyno



And before the hating starts about how absolutely useless my power curve is, remember the whole point of this car is highway pwnage. Add another 8-10psi on top of this and I'll be a happy guy.

Oh, and this is with a 2.25" downpipe to 2.5" crush bent exhaust and a BEGi log. I'm leaving a shitload on the table.


-edit-
I moved this from my build thread to here because I didn't realize that there was a dedicated dyno section

-edit #2 -
This **** is in the wrong section. I fail this morning. Can someone please move it to the dyno/timesheet subforum?
Jeff_Ciesielski is offline   Reply With Quote
Old 04-11-2010, 06:51 PM   #2
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

1.6 doin' work. You gonna run 20 psi. Damn!
turotufas is offline   Reply With Quote
Old 04-11-2010, 06:55 PM   #3
Elite Member
Thread Starter
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by turotufas View Post
1.6 doin' work. You gonna run 20 psi. Damn!
Thats the plan. Either 300whp or 20psi, whichever comes first, I'm not sure how the 8:1cr pistons will affect power delivery to be honest, so I might need to end up running more boost than it would usually take to make 300.
Jeff_Ciesielski is offline   Reply With Quote
Old 04-11-2010, 06:58 PM   #4
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

I wanna see it with a 3" exhaust/DP

I bet the spool will be greatly improved
Full_Tilt_Boogie is offline   Reply With Quote
Old 04-11-2010, 07:00 PM   #5
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
I wanna see it with a 3" open downpipe.

I bet the spool will be greatly improved
Fixed
Tw34k is offline   Reply With Quote
Old 04-11-2010, 07:18 PM   #6
Elite Member
Thread Starter
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
I wanna see it with a 3" exhaust/DP

I bet the spool will be greatly improved
I'm sure it will. A recent conversation between turboroach and myself actually yielded some interesting and unconventional thoughts about exhaust system design that I'm probably going to test out on my car. I don't want to get all 'hyper' about the subject, but I cant fully disclose the concept. Hold on, my PS3 is acting up...

Quote:
Originally Posted by Tw34k View Post
Fixed

I'm really torn right now about how low-key I want to keep things, but whichever way I go, an open DP just isn't in the mix. Washington state cops can be dicks and I dont need too much attention.

Fun fact, a new 3 week long speeding crackdown just started. There will be a fuckload of speeding tickets issued, and some people are reporting fines for speeds as low as 3 over. This is especially shitty because Washington allows the proceeds from speeding tickets to count towards the general state budget. Most states don't allow that kind of bullshit because of the obvious conflict of interest.
Jeff_Ciesielski is offline   Reply With Quote
Old 04-11-2010, 07:23 PM   #7
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

yeah 24/7 open dp is annoying and draws attention, im considering a cutout in my new system
Tw34k is offline   Reply With Quote
Old 04-11-2010, 07:29 PM   #8
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

i like it man very nice indeed
magnamx-5 is offline   Reply With Quote
Old 04-11-2010, 07:31 PM   #9
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
I don't want to get all 'hyper' about the subject, but I cant fully disclose the concept. Hold on, my PS3 is acting up...


you gonna run 4" IC piping?
Full_Tilt_Boogie is offline   Reply With Quote
Old 04-11-2010, 10:22 PM   #10
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

I always wanted to run a recirced EWG right at the openign for a cutout, so you basically had a dumped WG and exhaust or a standard setup based on the cutout.

Failing that, I really think they should be making or re-purposing mufflers for external dumped EWGs. I think a muffler right off a lawnmower might work. Dumped EWG means your ex. does not have to be perfect. Your back pressure is pretty well eliminated anyway.
Sparetire is offline   Reply With Quote
Old 04-11-2010, 10:44 PM   #11
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

I dont see any issue with dumped EWG, its not like a leaky internal w/g, they seal up nicely, so it doesnt get loud until youre at full boost, at which point it gets reeeeal loud, haha
Full_Tilt_Boogie is offline   Reply With Quote
Old 04-12-2010, 10:33 AM   #12
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

Looks good for such a restrictive exhaust system
johnmatt is offline   Reply With Quote
Old 04-12-2010, 10:40 AM   #13
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Good numbers Jeff.
JayL is offline   Reply With Quote
Old 04-12-2010, 10:52 AM   #14
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Full specs on turbo? AR?/50trim-AR?/trim?
m2cupcar is offline   Reply With Quote
Old 04-12-2010, 11:14 AM   #15
Elite Member
Thread Starter
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by JayL View Post
Good numbers Jeff.
Thanks man, I'm glad you talked me into going (and tuning for more boost :P )

Yours weren't too shabby either.

Quote:
Originally Posted by m2cupcar View Post
Full specs on turbo? AR?/50trim-AR?/trim?
.63ar stage 3 turbine wheel
50 trim t04e compressor
Jeff_Ciesielski is offline   Reply With Quote
Old 04-12-2010, 11:30 AM   #16
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

60AR compressor? That's a big turbine. A 48AR would help the lower rpm power and still have enough flow for 300whp- IF you wanted that. But there's the option of a 50AR compressor housing first- if you don't have that already. This stuff is fairly common used (if you're running a typical ford 5 bolt turbine housing).
m2cupcar is offline   Reply With Quote
Old 04-12-2010, 11:32 AM   #17
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Could you not get that dip at 5500 out with some tuning?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 04-12-2010, 12:06 PM   #18
Elite Member
Thread Starter
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by m2cupcar View Post
60AR compressor? That's a big turbine. A 48AR would help the lower rpm power and still have enough flow for 300whp- IF you wanted that. But there's the option of a 50AR compressor housing first- if you don't have that already. This stuff is fairly common used (if you're running a typical ford 5 bolt turbine housing).
I'm running the 50ar compressor housing currently not the 60.

I know I could run a .48ar turbine housing, but after talking with some friends and some local tuners, I decided that the .63 would allow me to make the power easier.

Understand that the low end that I currently have is perfectly fine for me. 'daily driving' this thing means putting it around seattle streets. The only time I get to bust loose is on the highway, so up top is where it is at. Plus I'm pretty sure a proper exhaust will help things along.

Quote:
Originally Posted by levnubhin View Post
Could you not get that dip at 5500 out with some tuning?
That is actually from a boost spike to ~14psi which then dropped to 11 or so and slowly started climbing back up to 12. I'm experiencing the worst case scenario for boost control, Spikes, fall off, and slight creep in upper RPMs. After doing this dyno, it fully made up my mind on getting a proper EWG setup.
Jeff_Ciesielski is offline   Reply With Quote
Old 04-12-2010, 01:41 PM   #19
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
I dont see any issue with dumped EWG, its not like a leaky internal w/g, they seal up nicely, so it doesnt get loud until youre at full boost, at which point it gets reeeeal loud, haha

I loved mine, it was just a TiAL 38 with about 1.5 feet of 1.5 inch diameter spiral flex tube. Never had a problem, though I would hit full boost pretty often. But then I was lucky, some areas (apperantly WA state is one of them) are super sensitive to stuff like that. Thats where a small muffler for EWG dumps might be handy.

When I someday get to actually effing doing something rather than talking about it, I think I will run that same flex dump tube, but I will try to have a DP with a recirc tube on it. I will use a Autozone special clamp to secure the EWG dump to the DP tube if I am worried about noise, but I can always just cap the tube on the DP and run the EWG open too.
Sparetire is offline   Reply With Quote
Old 04-13-2010, 11:46 PM   #20
I'm Miserable!
iTrader: (1)

Join Date: Mar 2010
Location: North Carolina
Posts: 471
Total Cats: 0
Default

got any pictures of that setup jeff?
na8psi is offline   Reply With Quote
