Got my miata dyno tuned on friday. - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Reply



LinkBack Thread Tools Search this Thread
Old 09-09-2006, 01:37 PM   #1
Junior Member
Thread Starter

Join Date: Apr 2006
Location: bay area,California
Posts: 79
Total Cats: 0
Default Got my miata dyno tuned on friday.

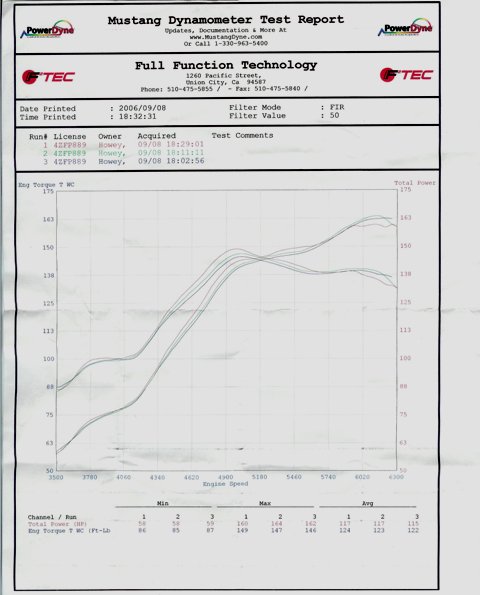

I got my 92 miata with the greddy kit dyno tune with emanage on friday here are my results max rwhp 164 max rwtrq 149, I got it dyno on a mustang dyno
so it reads lower than other dyno's.
Attached Thumbnails
Got my miata dyno tuned on friday.-dyno.jpg
deseroner is offline   Reply With Quote
Old 09-09-2006, 05:50 PM   #2
Junior Member
Thread Starter

Join Date: Apr 2006
Location: bay area,California
Posts: 79
Total Cats: 0
Default

I forgot to mention I ran the car on the dyno at 10psi on pump gas 91 ca
deseroner is offline   Reply With Quote
Old 09-10-2006, 09:50 PM   #3
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

seems about right for a mustang dyno. do you have an a/f log?
Mach929 is offline   Reply With Quote
Old 09-10-2006, 11:45 PM   #4
Junior Member
Thread Starter

Join Date: Apr 2006
Location: bay area,California
Posts: 79
Total Cats: 0
Default

no did not ask for one but my tuner told me it was 10.5 flat, he said it was perfect, no problems.
deseroner is offline   Reply With Quote
Old 09-11-2006, 12:46 AM   #5
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

nice stuff. 10 psi if you are realy 10.5-1 then you could lean it out abit with some more boost.
magnamx-5 is offline   Reply With Quote
Old 09-11-2006, 12:54 AM   #6
Junior Member
Thread Starter

Join Date: Apr 2006
Location: bay area,California
Posts: 79
Total Cats: 0
Default

so my numbers on the mustang dyno are 164 rwhp/149rwhp, wonder what numbers would they be on a dynojet the reads higher, so how much correction.
deseroner is offline   Reply With Quote
Old 09-11-2006, 01:09 AM   #7
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

about 13-15% you would be around 185-190 whp wich is not to shabby at all but you probably have a little more on the table
magnamx-5 is offline   Reply With Quote
Old 09-11-2006, 05:58 AM   #8
Junior Member

Join Date: Jan 2005
Location: United Kingdom
Posts: 255
Total Cats: 0
Default

nice figures!
tabs604 is offline   Reply With Quote
Old 09-11-2006, 09:02 AM   #9
Senior Member
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Quote:
Originally Posted by deseroner View Post
so my numbers on the mustang dyno are 164 rwhp/149rwhp, wonder what numbers would they be on a dynojet the reads higher, so how much correction.
When I dynoed a similar setup at 10psi on a dynojet, I had 189rwhp so that 13-15% correction from mustang dyno to dynojet seems about right. Nice numbers.
brgracer is offline   Reply With Quote
Old 09-17-2006, 03:41 PM   #10
Junior Member

Join Date: Oct 2004
Location: Windsor, Canada
Posts: 191
Total Cats: -2
Default

Ya, if your 10.5 a/f, there is some more hidden horsies there.....
MiataNuTca is offline   Reply With Quote
Old 09-17-2006, 05:09 PM   #11
Junior Member
Thread Starter

Join Date: Apr 2006
Location: bay area,California
Posts: 79
Total Cats: 0
Default

thats what my tuner told me, I was at 10.5 a/f . Iam only at 10psi, and want to raise the boost to 14psi on race gas and see how much power I can increase. I've done it before on race gas, and felt it pull more at 13psi.
deseroner is offline   Reply With Quote
Old 09-17-2006, 09:36 PM   #12
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

if you dont have enough fuel to make the hp then all the boost in the world is useless the reason 13 felt better than 14 is most likely becouse you only had enough fuel for 13 on that day.
magnamx-5 is offline   Reply With Quote
Old 09-18-2006, 05:32 PM   #13
Junior Member

Join Date: May 2006
Posts: 87
Total Cats: 0
Default

nice man
im located in the bay also so im wondering where did you get tuned at?
clshrckr is offline   Reply With Quote
Old 09-18-2006, 06:28 PM   #14
Junior Member
Thread Starter

Join Date: Apr 2006
Location: bay area,California
Posts: 79
Total Cats: 0
Default

In union city at full function technology sean is the tuner, he installed my emanage and he did my dyno tune, He is a good tuner.
deseroner is offline   Reply With Quote
Old 05-13-2007, 12:02 PM   #15
Newb

Join Date: May 2007
Location: hella norcal yo, socal, phoenix, taipei, tokyo
Posts: 23
Total Cats: 0
Default

that's pretty good on a mustang. dragged your car before?
ghettoracer is offline   Reply With Quote
Old 07-31-2007, 05:38 PM   #16
Junior Member
Thread Starter

Join Date: Apr 2006
Location: bay area,California
Posts: 79
Total Cats: 0
Default

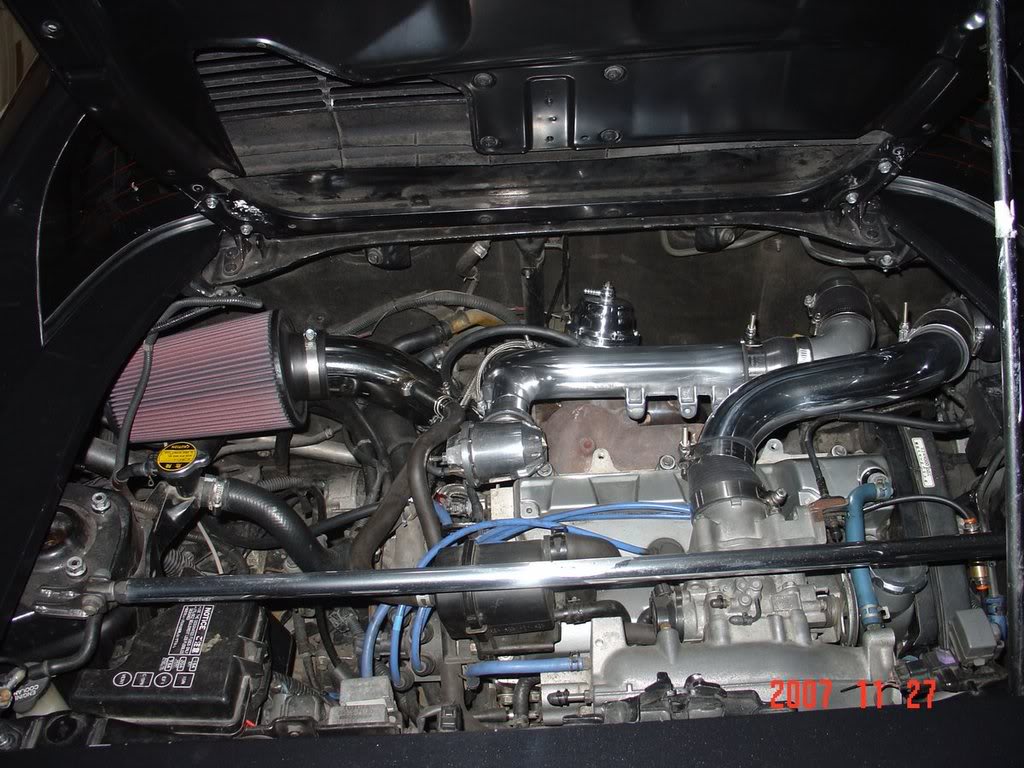

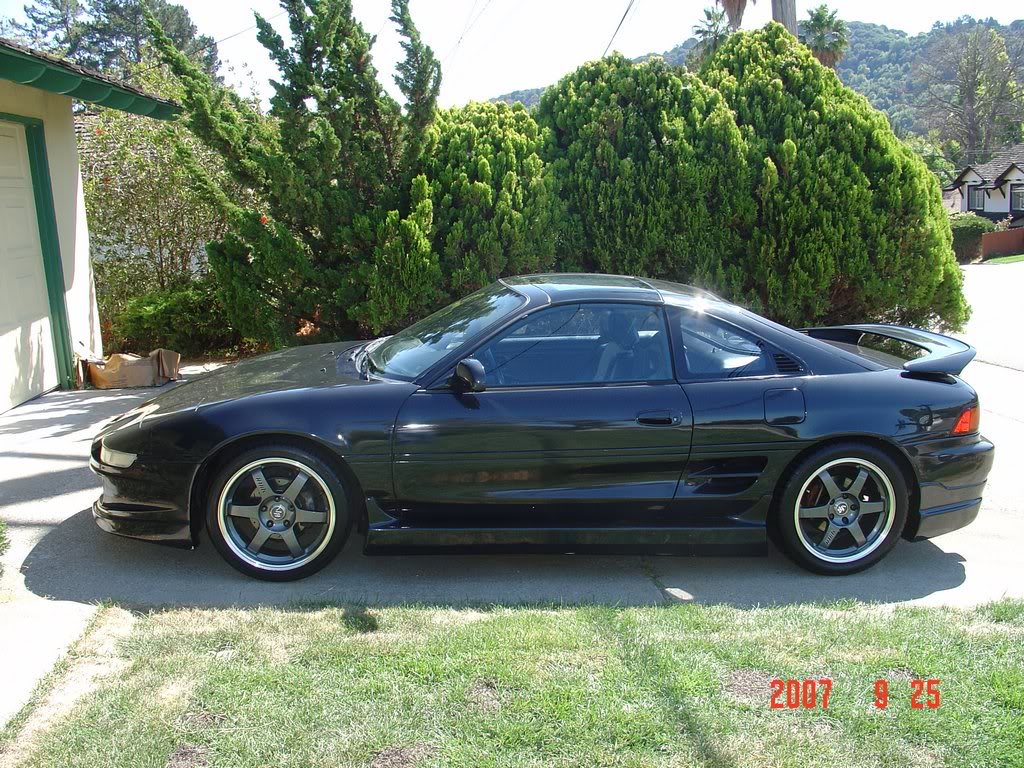

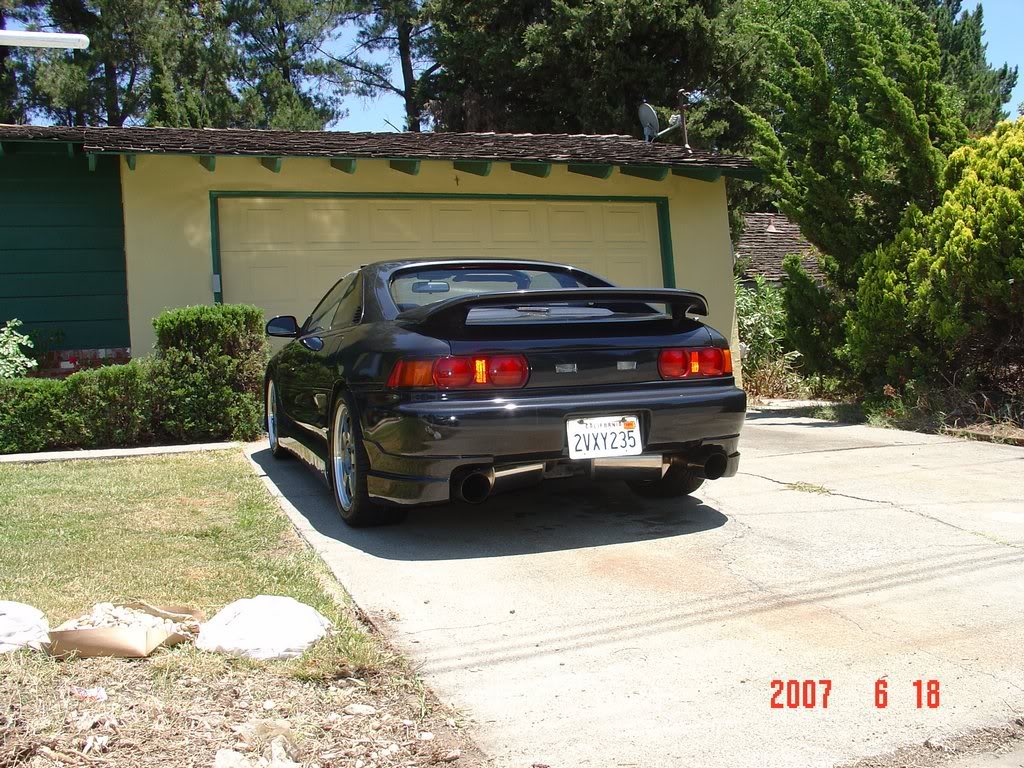

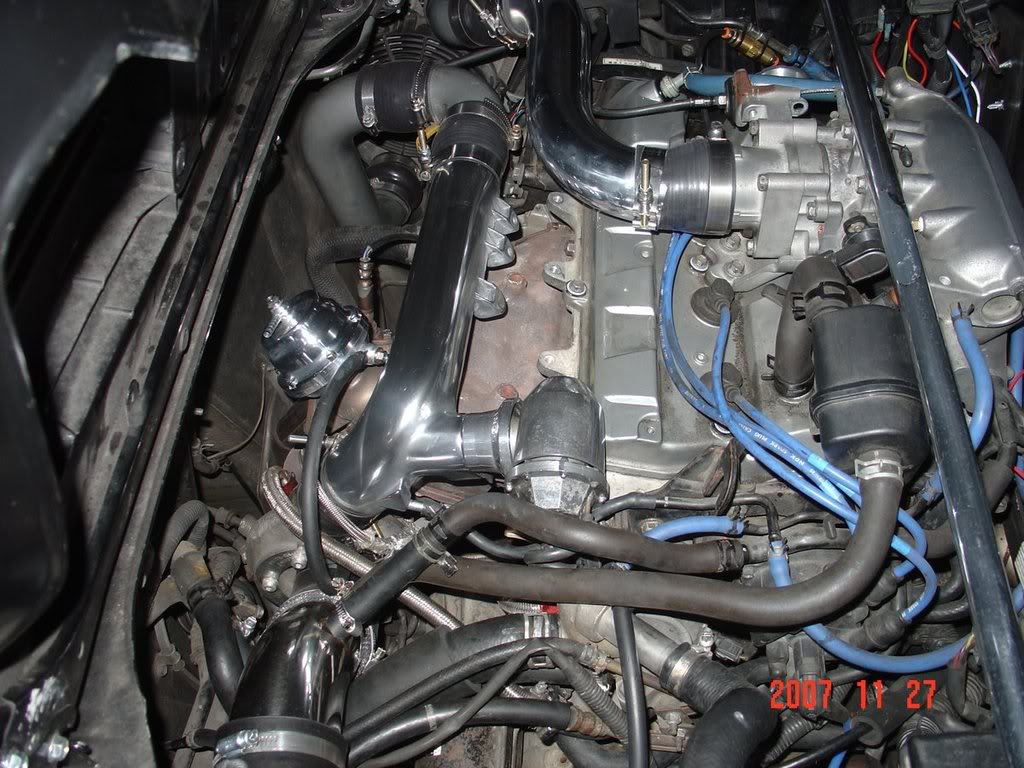

no, wreck the miata and got me a mr2 turbo, and had my problems with new car , had to replace a bad built engine, but now its fully operational no more problems, will get the new car tune, miss the miata, but oh well had to move on . Has anyone consider putting a 3sgte into a miata, wonder how that would work.. Name:  Image00001-12.jpg
Views: 4
Size:  233.9 KB
old engine setup
Name:  Image00004.jpg
Views: 2
Size:  134.5 KB

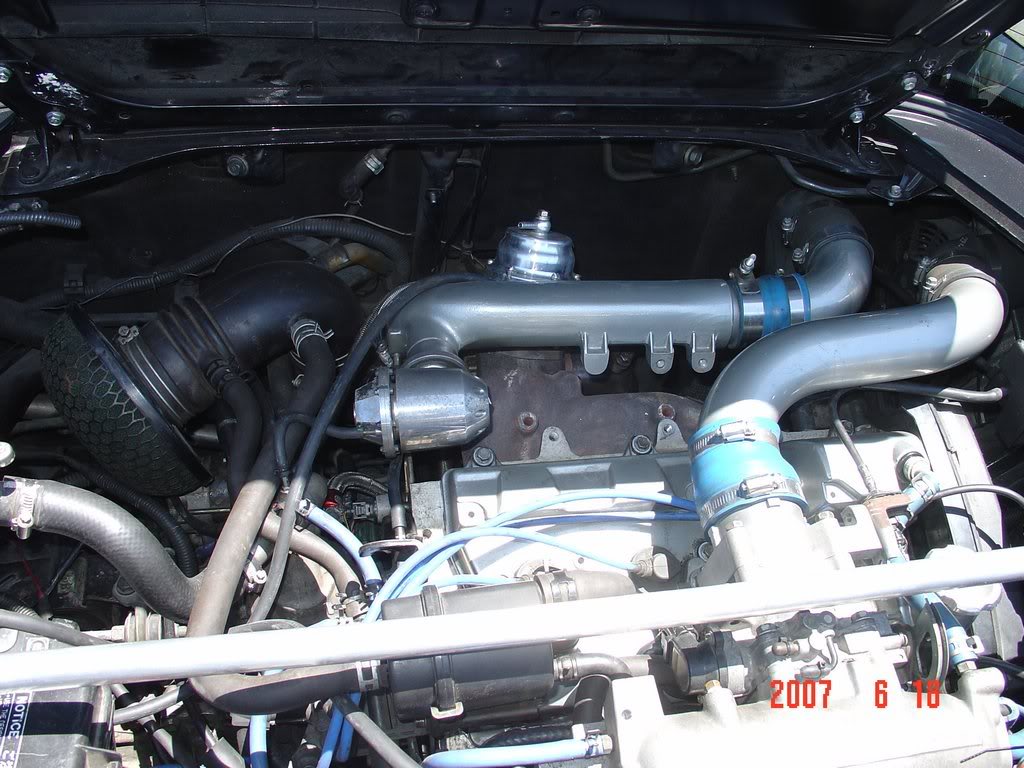

new setup
Name:  Image00001-28.jpg
Views: 2
Size:  140.4 KB

Name:  Image00002-11.jpg
Views: 2
Size:  153.2 KB

Name:  Image00002-4.jpg
Views: 2
Size:  213.6 KB

Last edited by deseroner; 11-27-2007 at 11:05 PM.
deseroner is offline   Reply With Quote
Old 10-09-2007, 02:29 PM   #17
Junior Member
Thread Starter

Join Date: Apr 2006
Location: bay area,California
Posts: 79
Total Cats: 0
Default got my mr2 dyno tune

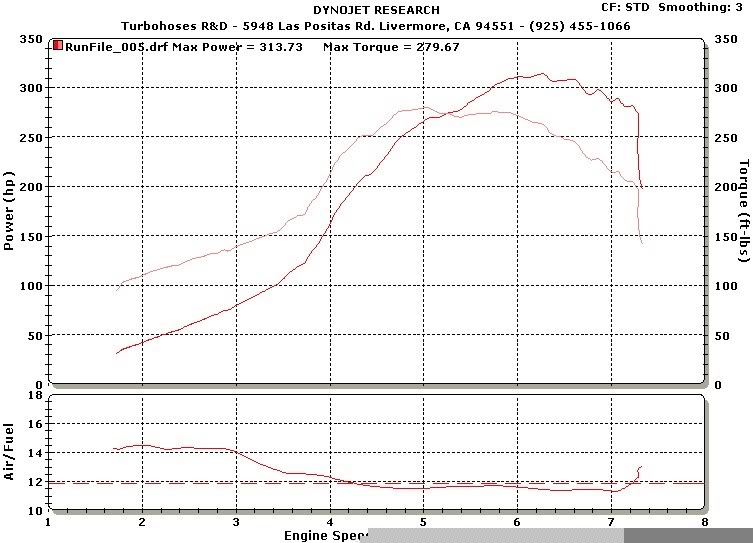

1991 mr2 turbo with gen3, stock longblock, coolingmist methanol 50/50,sard 800 cc, ats td06-20g wastegate at 1.2bar, full exhaust, power fc w/datalogit.
the power was made at 22psi, cause my wastegate is set for 17.4 but I guess all the flow of eexhaust makes it go higher, so I will get a 15.4 spring, no boost controller, so I can run safer dynoed on 91 ca pump gas 313.73rwhp torque 279.67, no race gas
Name:  jose005.jpg
Views: 2
Size:  86.3 KB
deseroner is offline   Reply With Quote
Old 10-09-2007, 03:08 PM   #18
Senior Member
iTrader: (2)

Join Date: Aug 2005
Location: Granbury, TX
Posts: 567
Total Cats: 1
Default

In the pic it looks like your wastegate has no boost signal going to it? If its still like that i could see why your boosting so high
greenday3437 is offline   Reply With Quote
Old 10-09-2007, 03:27 PM   #19
Junior Member
Thread Starter

Join Date: Apr 2006
Location: bay area,California
Posts: 79
Total Cats: 0
Default

I've change it from a 17.4 spring to a 15.4 spring psi , and Iam boosting at 1.2bar to 1.4bar 18 to 20 psi
before I was 22-23

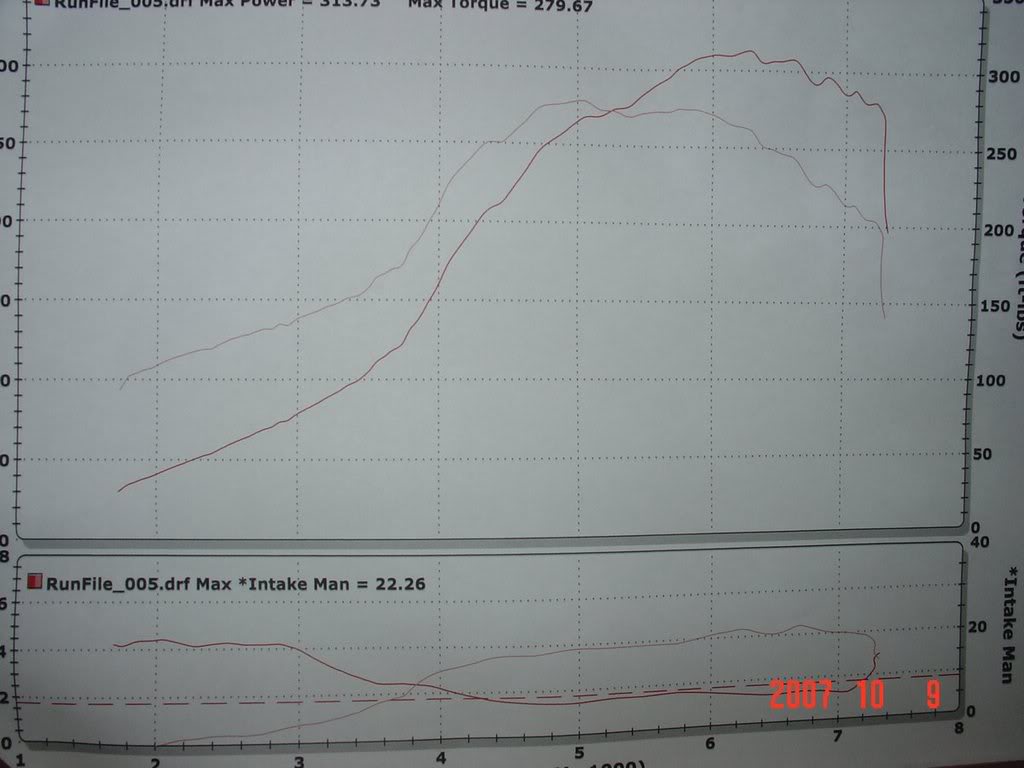

here is the original copy of dyno
Name:  Image00001-19.jpg
Views: 3
Size:  67.5 KB
deseroner is offline   Reply With Quote
Old 10-10-2007, 02:17 AM   #20
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

dude, did you drag your MR2 out in Sacramento a few months ago? There was this baddass MR2 pulling mid 12's (definitely turboed too by the sound)? If so I was the black turbo miata running out there
akaryrye is offline   Reply With Quote
