Default MS2 and COP -No spark

I have been working on my megasquirt install for a few weeks now. When I installed MS the car idled, but the rpms and AFR were not stable at low rpms. I noticed that 2 on my spark plug wires had a much weaker spark then the other two. So I decided to switch to COP, after the install my car ran for about 10-15 minutes then it died. It never ran again. While cranking, it sounds like the car does build compression. The engine also fires through one or 2 cycles, but not long enough to start. While attempting to start the AFR is at around 9. I'm getting rpms signal on tunerstudio. i didn't change my settings on TS just left it at 99-00 miata. I have good ground and power at the coils.

1.Did I fry the Coils?
2.if so, would all four go out at the same time?
3.Was it my settings that fried the cop?
Baker99miata is offline   Reply With Quote
Old 09-17-2013, 03:42 PM   #2
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jun 2013
Location: Dallas TX
Posts: 149
Total Cats: -3
Default

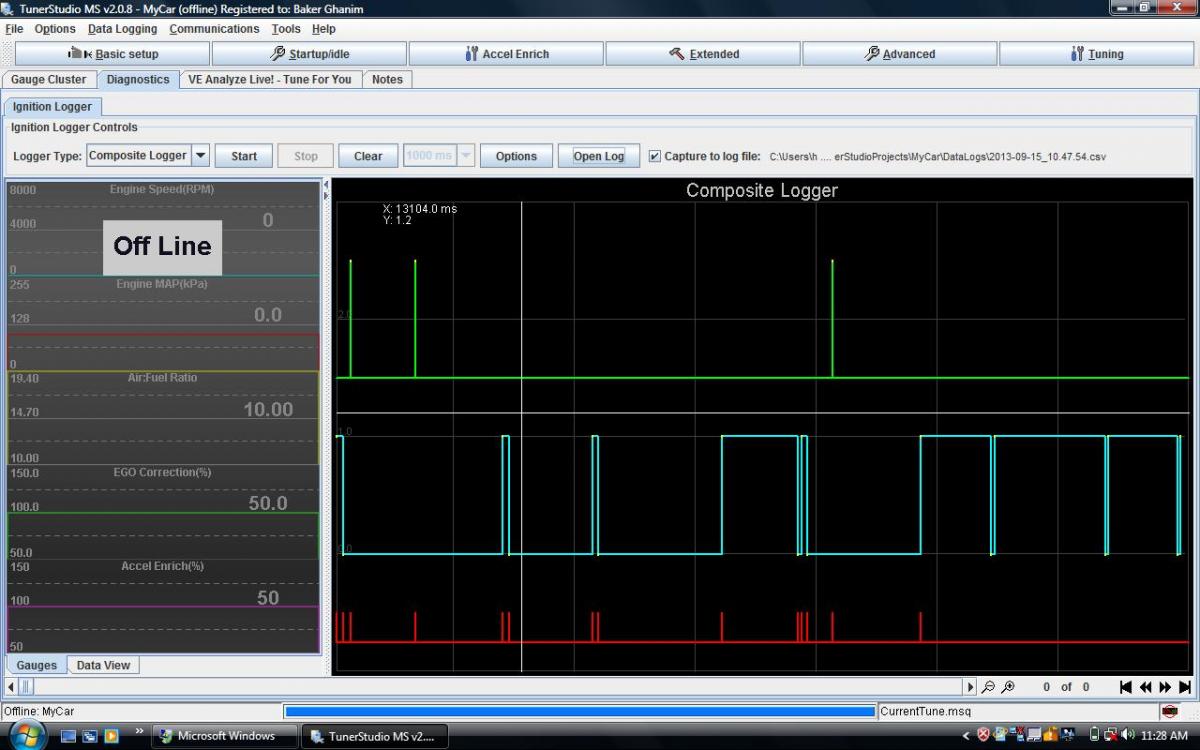

Above is the log from the car, I dont know much about that.


What do you guys think?
Attached Thumbnails
MS2 and COP -No spark-idmyu.jpg
Baker99miata is offline   Reply With Quote
Old 09-17-2013, 04:44 PM   #3
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jun 2013
Location: Dallas TX
Posts: 149
Total Cats: -3
Default

Attached Thumbnails
MS2 and COP -No spark-e38ki.jpg   MS2 and COP -No spark-e38ki.jpg
Baker99miata is offline   Reply With Quote
Old 09-17-2013, 05:14 PM   #4
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

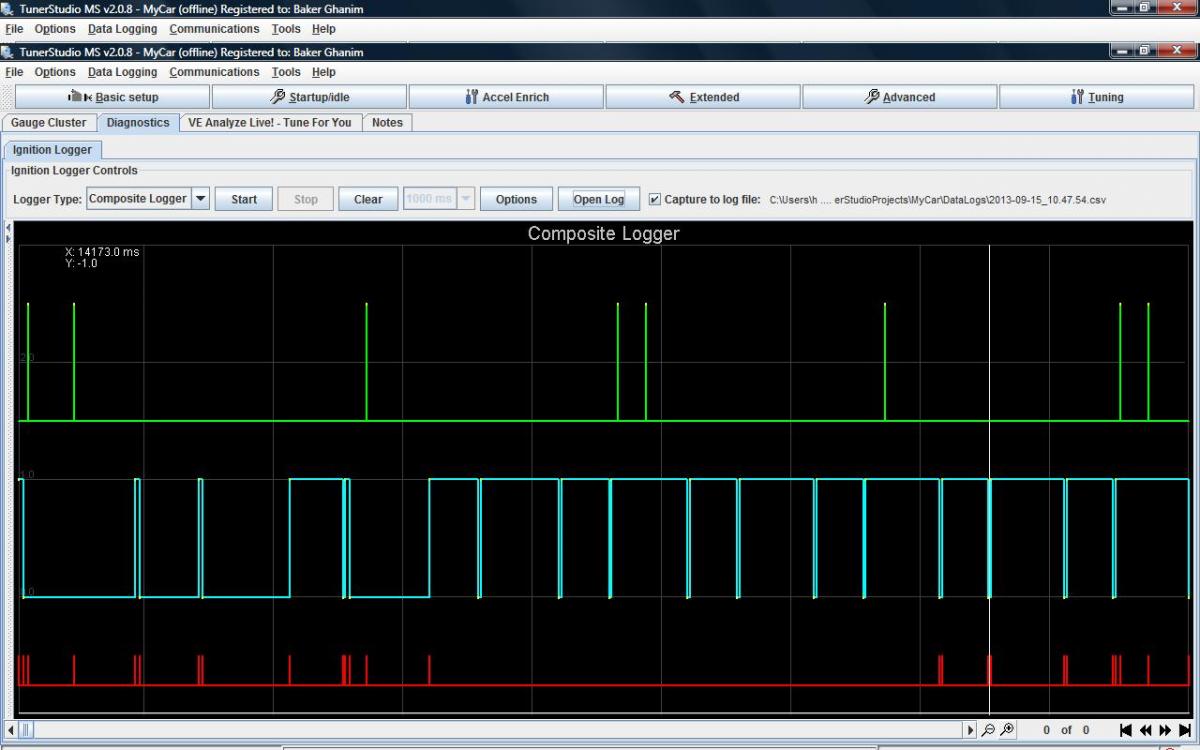

Something is a bit suspect about the composite log; the crank signal (middle trace) doesn't look right. How are the RPM inputs wired up?
Matt Cramer is offline   Reply With Quote
Old 09-22-2013, 07:34 PM   #5
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jun 2013
Location: Dallas TX
Posts: 149
Total Cats: -3
Default

I really don't have a clue about the rpm input wires (PNP bought used on this forum), but the car was running for over a month without any issue. I then installed the COP and then it ran for only 10 min. after that it would not start. so as matt suggested to look at the crank signal. I bought a brand new crank sensor (Autozone), installed it and it was still the same. I moved the sensor closer to the pulley and now the car starts, the sensor is making contact with signal pickups. This is the only way the car runs on MS. I put the Oem ECU and the car now runs regardless of how close the sensor is.
Baker99miata is offline   Reply With Quote
Old 09-24-2013, 10:25 AM   #6
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Precisely what MegaSquirt version is this?
Matt Cramer is offline   Reply With Quote
Old 09-25-2013, 09:43 AM   #7
Senior Member
iTrader: (8)

Join Date: Oct 2010
Posts: 581
Total Cats: 4
Default

DIYPNP V1.5B, MS2 Extra

Have you try spark and fuel injector test mode ?
