Sanity Check: MSLabs MS3 Basic Fused Output Pin1


Old 07-07-2018, 05:01 PM
  #1
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Madison
Posts: 159
Total Cats: 7
Default Sanity Check: MSLabs MS3 Basic Fused Output Pin1

Brand new MS3 Basic from MSLabs, purchased from TSE.
Followed all install steps provided, successfully. Now adding power/ground/analog signal for MTX-L.
Pin 1: Fused 12v Out (6A)
Pin 2: Device ground
Pin 4: Analog input

MTX-L face comes up as normal with no sensor attached. Went to calibrate in open air for the first time, and it went ER9 (insufficient voltage) and went blank. Battery/voltage is fine.

Tested Pin 1 output, no voltage.
Opened MS3 case. Only fuse I can find is a small glass tube type. 500ma. Not 6A. But, it does appear to fuse the output for Pin 1 according to a glance at the board traces. It doesn't visibly look toasty, but does not pass a continuity test. It's blown.

Questions:
Have I identified the appropriate fuse for the 12v+ wideband output?
If so, why the heck is it a 500ma?
If it was erroneous, I'm assuming I can go find a 5-6a tube style fuse and replace?

Thanks in advance.
jt@namiata.com is offline
Old 07-07-2018, 05:54 PM
  #2
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 1,146
Total Cats: 152
Default

Edit: Disregard my post, I didn't realize MS3 Basics have 12V outputs for widebands
acedeuce802 is offline
Old 07-07-2018, 05:57 PM
  #3
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,536
Total Cats: 1,083
Default

Pretty sure the 500mA fuse is for 5vref
hi_im_sean is offline
Old 07-07-2018, 07:09 PM
  #4
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Madison
Posts: 159
Total Cats: 7
Default

Sourced a replacement 500ma fuse, so I've got my MTX-L display back (no sensor).

Don't want to replace with correct? 6A fuse until I can confirm I've got the facts straight. Again, I can't find another fuse elsewhere on either board.

I'll write Andrew/TSE as well.
jt@namiata.com is offline
Old 07-08-2018, 03:40 AM
  #5
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,584
Total Cats: 241
Default

The fuse should be a 6A, not a 500mA one. Please post a picture of the fuse. We don't have 500mA fuses as there's nothing we would use them for, so I don't see how this could have happened. The only way I can think of, is if a 500mA fuse was put in the 6A lot from the factory. I just checked all our fuse stock and there is no 500mA fuse in there.

tldr; put a 6A fuse, not a 500mA fuse.
__________________
Originally Posted by ninerwfo View Post
The “into to megasquirt thread” mentions that the MS3 basic has 5 inputs with built in pull up resistors - and I was just wondering why it would have so many, while the MS3Pro PnP has just 2 (with no pull ups?)
MS Labs: Plug and Play Megasquirt ECUs for ANY 90-05 Miata (NA, NB1, NB2 w/VVT, MSM), including basemaps to get you started ASAP. PM me or email or details.
For support on MS Labs ECUs: Please email, be sure to include the unit's serial number and include a datalog and your current map.
Reverant is offline
Old 07-08-2018, 08:37 AM
  #6
Junior Member
Thread Starter

Join Date: Jan 2014
Location: Madison
Posts: 159
Total Cats: 7
Default

Thanks for confirming. Here's what came out of it:

jt@namiata.com is offline
Old 07-08-2018, 09:12 AM
  #7
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,584
Total Cats: 241
Default

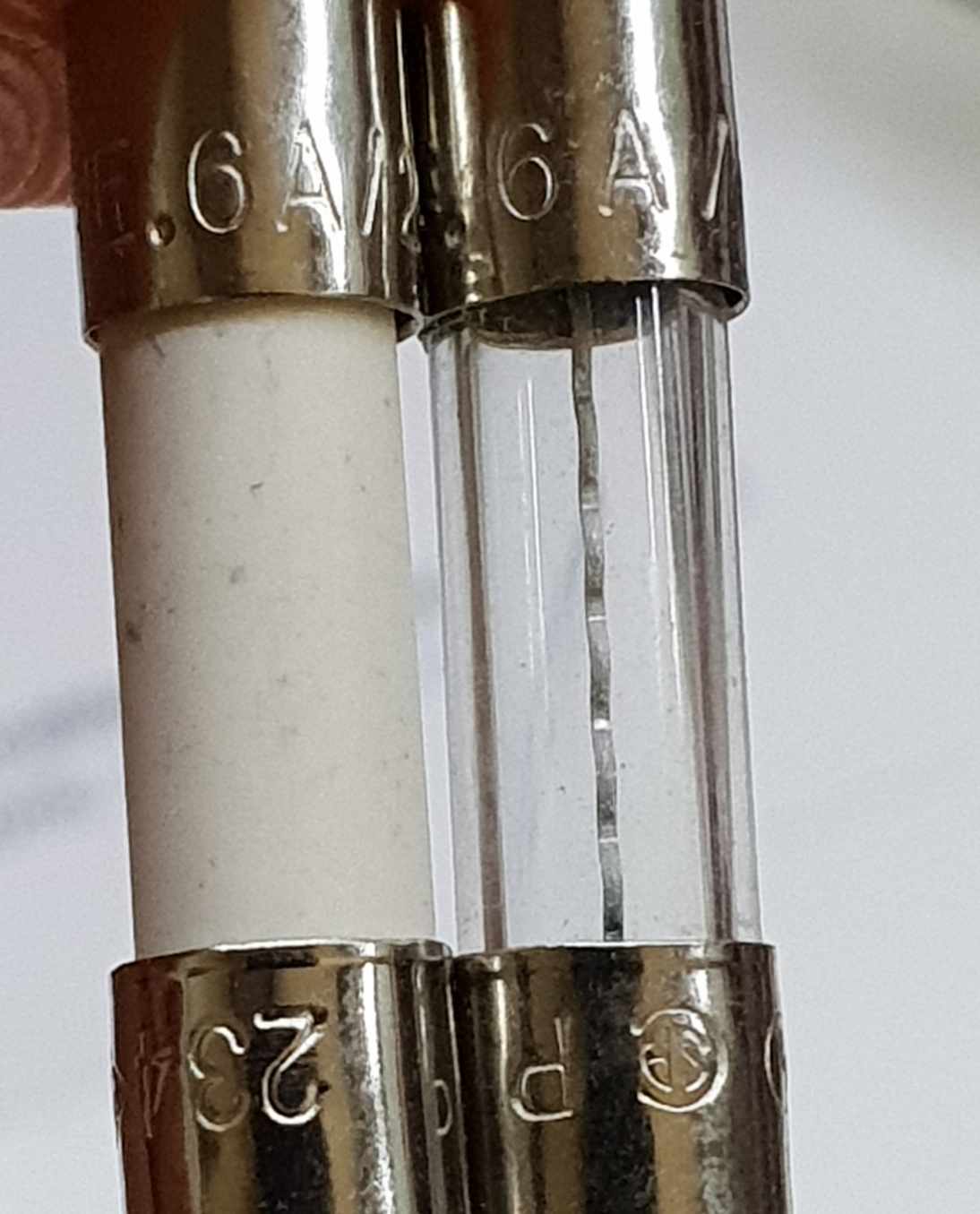

These are the only two fuses we have ever used, both are 6A. Thanks for bringing this to our attention, we'll need to be a little more cautious in the future.
Attached Thumbnails Sanity Check: MSLabs MS3 Basic Fused Output Pin1-20180708_160753.jpg
__________________
Originally Posted by ninerwfo View Post
The “into to megasquirt thread” mentions that the MS3 basic has 5 inputs with built in pull up resistors - and I was just wondering why it would have so many, while the MS3Pro PnP has just 2 (with no pull ups?)
MS Labs: Plug and Play Megasquirt ECUs for ANY 90-05 Miata (NA, NB1, NB2 w/VVT, MSM), including basemaps to get you started ASAP. PM me or email or details.
For support on MS Labs ECUs: Please email, be sure to include the unit's serial number and include a datalog and your current map.
Reverant is offline
