Default Spike in air fuel ratio

What's up guys

I have run into a issue and can't figure it out. My car is a 04 msm with 56000 with the big enchilada from FM using hydra. I had a datalog tune done by Ken Hill and she was running awesome but now I'm getting some hesitation while around 5k rpms. Did a datalog and found the a/f is all over the place. I have checked the spark plug gap, injectors are firing. I have 3 month old coil packs on with the 8.5 mm wires. Alternator voltage is 13.9 in hydra 13.5 at the battery. Wideband was calibrated before tuning started. She drives pretty well besides the hesitation. No real bucking or power issues. I'm a little stumped. Any help would be appreciated.

Attached Thumbnails
Spike in air fuel ratio-12633629_10206874198426814_6084756387438764924_o.jpg
Titus Newsome is offline   Reply With Quote
Old 02-08-2016, 02:17 PM   #2
Junior Member
iTrader: (1)

Join Date: Aug 2011
Posts: 86
Total Cats: 6
Default

Are you running through the gears in this datalog? What's your driving like?
I see that it spikes up to ~18 when you really mash the throttle. What's hydra's acceleration enrichment like?
squeegee is offline   Reply With Quote
Old 02-08-2016, 02:26 PM   #3
Junior Member
iTrader: (1)

Join Date: Aug 2011
Posts: 86
Total Cats: 6
Default

Post a pic of the throttle pump fuel trim map. That would be a good place to start
squeegee is offline   Reply With Quote
Old 02-08-2016, 05:37 PM   #4
Newb
Thread Starter

Join Date: Jan 2016
Posts: 8
Total Cats: 0
Default

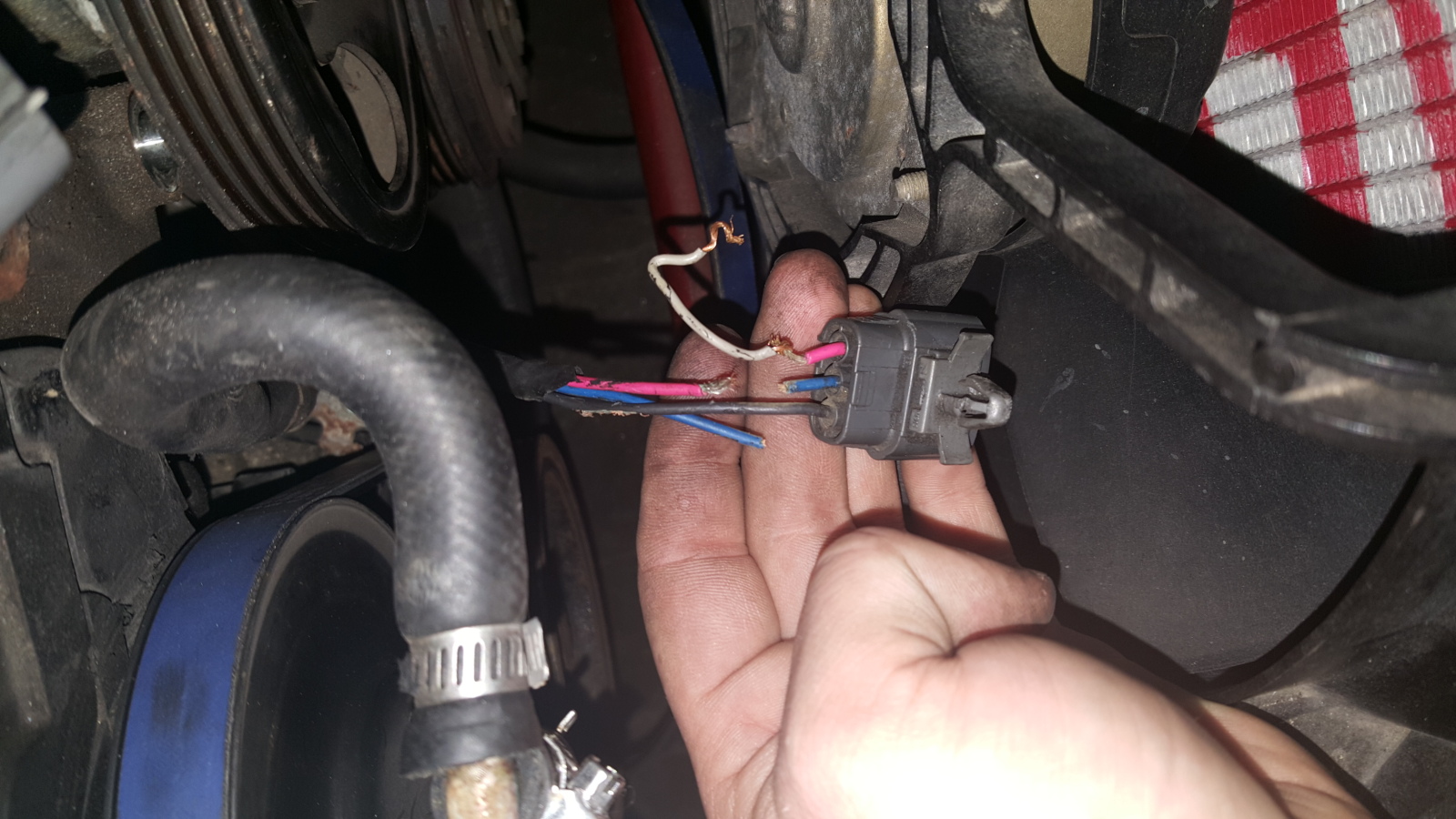

I'm sorry I forgot to update I found this awesome wiring job to my crank positioning sensor

Attached Thumbnails
Spike in air fuel ratio-2gvlfnp.jpg
