Old 10-14-2010, 05:38 PM   #41
Elite Member
Thread Starter
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

Cool video

leatherface24 is offline   Reply With Quote
Old 10-15-2010, 11:34 AM   #42
Elite Member
Thread Starter
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

The ebay seller got back to me saying this:

"Our Supplier, CAT Power Engine, supplied to Eagle, Lunati, Scat, Summit, and Tomie before. They have the best quality and reasonable price. Don't be fooled by these name brands."



Sincerely
CrankShaft Depot eStore

For $206 shipped we'll see how they are when I get them...
leatherface24 is offline   Reply With Quote
Old 10-22-2010, 02:01 PM   #43
Elite Member
Thread Starter
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

leatherface24 is offline   Reply With Quote
Old 10-22-2010, 05:11 PM   #44
Senior Member

Join Date: Feb 2009
Location: DF-DUB
Posts: 640
Total Cats: 19
Default

Ive seen cheap rods in lots of SBCs. As long as you have your machining and balancing done properly ive never heard of an issue.

I know of one guy spraying a 200 hit on a 383 lt1 using 5.7" ebay I beams. No problems.
Same story, come to find out they are from CAT which do scat, ohio crankshaft, and a bunch of others.

You should be fine if you actually have them checked and installed properly.

Seems like the majority of built engine failures I see, cheap parts or not, aren't from an overstressed part but are from installer error or a tuning issue.
Opti is offline   Reply With Quote
Old 10-25-2010, 04:48 PM   #45
Senior Member
iTrader: (12)

Join Date: May 2008
Location: Roselle, Illinois
Posts: 846
Total Cats: -35
Default

i orderded mine last week they should be at my house today, are the bolts good? or it it worth upgradiong the the 2000's? im looking for 350hp
Hot_Wheels is offline   Reply With Quote
Old 11-03-2010, 12:25 AM   #46
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by shlammed View Post
-the small end bore is 20.1mm... most pistons iirc are 20.0 (this alone would deter me from buying)
Can anyone confirm this? The M-Tuned rod small end is 0.788". These china rods are 0.791". What is the size of the stock piston hole and small end on the stock rod? I have also read that stock piston hole diameter is 20.0mm
dgmorr is offline   Reply With Quote
Old 11-03-2010, 12:07 PM   #47
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Anybody? ^^^
dgmorr is offline   Reply With Quote
Old 11-03-2010, 07:47 PM   #48
Senior Member
iTrader: (3)

Join Date: May 2008
Location: Fargo, ND
Posts: 534
Total Cats: 3
Default

Btw, out of the maybe half dozen rod manufacturers, I feel cat power systems is the worst quality wise. Did a lot of research into these companies and traced the source of the materials, foundries for the ingots, etc, and cat is the bottom.

This doesn't mean they wont work, but id go belfab long before CAT. Carrillo does all their own **** with US forged ingots from timken steel, and pauter is also great. Belfab has good controls in place for their product as well.

Just sayin, if you want to save a buck, get aluminized exhaust, not cheap roatating assembly parts.
chance91 is offline   Reply With Quote
Old 11-03-2010, 10:20 PM   #49
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by shlammed View Post
Also, would the 0.1mm over (0.004") be to make the rod "floating" type as opposed to press fit, or is that mainly with the piston itself?

To give you an idea, a piece of paper is usually .005". A press fit rod is usually .001 bigger than the id of the item being pressed in. At work i usually make the rod .002 bigger than the id of the item press fitted and its VERY TIGHT. A .004 difference is enough for knock. If you had a non concentric gear on a rod and that gear was .004 off to one side, when that gear is spinning you'd easily be able to see it wobbling with the naked eye.
triple88a is offline   Reply With Quote
Old 11-04-2010, 09:26 PM   #50
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

This sounds bad, I guess we'll have to wait for Leatherface to get his engine finished.
dgmorr is offline   Reply With Quote
Old 11-05-2010, 11:01 AM   #51
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Even the big end diameter of this rod is off

China - 1.889"
MTuned - 1.891"
dgmorr is offline   Reply With Quote
Old 11-05-2010, 11:17 AM   #52
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Quote:
Originally Posted by chance91 View Post
Btw, out of the maybe half dozen rod manufacturers, I feel cat power systems is the worst quality wise. Did a lot of research into these companies and traced the source of the materials, foundries for the ingots, etc, and cat is the bottom.

This doesn't mean they wont work, but id go belfab long before CAT. Carrillo does all their own **** with US forged ingots from timken steel, and pauter is also great. Belfab has good controls in place for their product as well.

Just sayin, if you want to save a buck, get aluminized exhaust, not cheap roatating assembly parts.
The rods I got from belfab a few years ago on their first run came in a CAT box. Just sayin....
neogenesis2004 is offline   Reply With Quote
Old 11-05-2010, 12:48 PM   #53
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

I asked the seller about the specs and why they're different. This is the response. I'm not experienced enough to know if it's correct or not.

Quote:
The big end is 100% as OEM specification. But most people take wrong when measure the big end ID to compare with crank pin OD. There has bearing between the ID and OD. The small end is slight larger than pinston pin. Because this rod is designed for FLOATING PIN PISTON not press fit piston.

Sincerely
CrankShaft Depot eStore
dgmorr is offline   Reply With Quote
Old 11-05-2010, 04:21 PM   #54
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

the small end can be bushed down if the clearances are too big, but there goes the $ saved from cheap rods to regular ones.

also you can probably oversize the bearing on the big end... big end wasnt a worry when i said that above so i didnt state it.

But i think in this thread we have determined that 0.004" is too loose for the wrist pin.
shlammed is offline   Reply With Quote
Old 11-05-2010, 05:06 PM   #55
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

A local shop charges $12 each to put a new bushing in the small end. Still cheaper, but I'd rather have an M-Tuned if this is required.
dgmorr is offline   Reply With Quote
Old 11-07-2010, 10:23 PM   #56
Senior Member
iTrader: (3)

Join Date: May 2008
Location: Fargo, ND
Posts: 534
Total Cats: 3
Default

H
Quote:
Originally Posted by neogenesis2004 View Post
The rods I got from belfab a few years ago on their first run came in a CAT box. Just sayin....
They did at one time colaborate but disolved that partnership over 2 years ago.
chance91 is offline   Reply With Quote
Old 11-11-2010, 06:49 PM   #57
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Just noticed the CAT website lists the pin as 20.0 mm. All these mismatched specs are retarded, why didn't I pull out the dial bore gauge 2 weeks ago.

Length 132.0, Rod 48.0, Pin 20.0, Rew 21.84, 323/Miata/Protege, Weight 530g, '85-00
dgmorr is offline   Reply With Quote
Old 01-30-2011, 06:51 PM   #58
Senior Member
iTrader: (12)

Join Date: May 2008
Location: Roselle, Illinois
Posts: 846
Total Cats: -35
Default

so i bought a set of the crankshaft depot rods, got them for 195 shipped? i plan on using them with my b6t build, the spec sheet said 3 of them where exactly the same and 1 rods was off by 1 gram ( pretty good tolerances per the sheet) who knows if there scale is accurate. Well i know theres allot of speculation that these rods (CAT) are the same ones at eagle, bellfab, etd, ect. so i also bought a set of ka1's for my bpt build, got them for a good prices and i figured that ka1 would have better tolerances, from the pics they looked just like the CAT rods, from what ive read is KA1 is owned by carillo but they get everything made in China and they are sent to the US to be finished. well when i compared the 2 there are some pretty significant differences, for one weight Ka1's are much smaller, ka1 have arp2000 hardware and Cat has the standard ARP hardware, the other difference seems CAT has a oil hole on the top of rod im guessing to help cool the piston maybe? the ka1's dont have that hole. they both have brass small ends, seems as thought there is bigger sleeve on the CAT rods. I dont have a scale so i cant give you the exact difference but just some food for thought i guess.

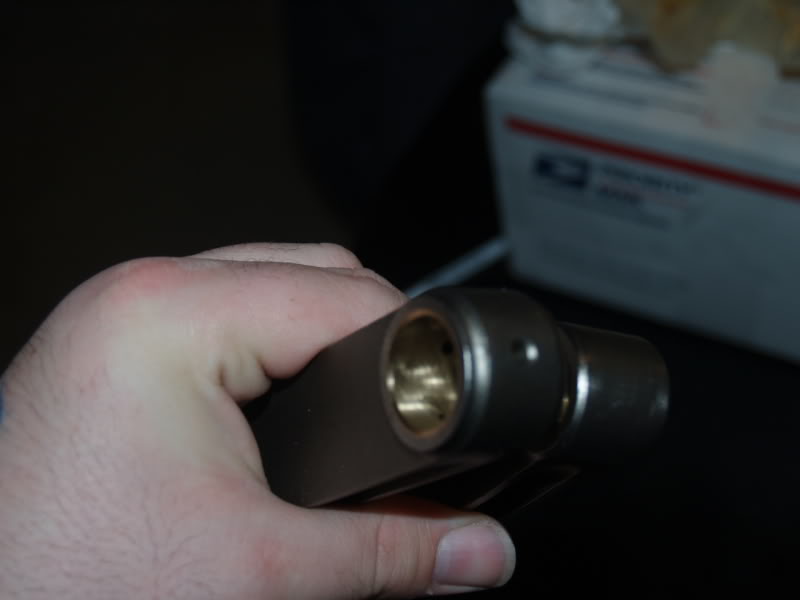

Name:  P1014006.jpg
Views: 24
Size:  23.7 KB

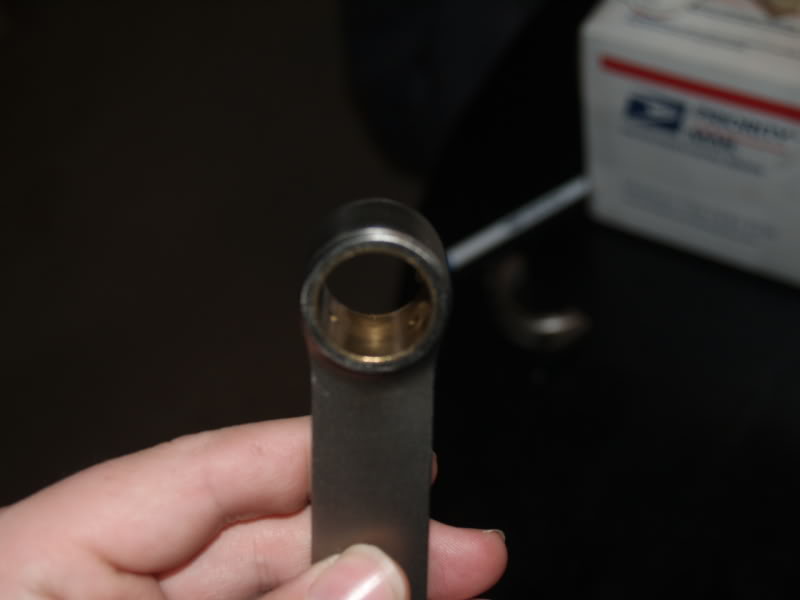

Name:  P1014005.jpg
Views: 24
Size:  20.5 KB

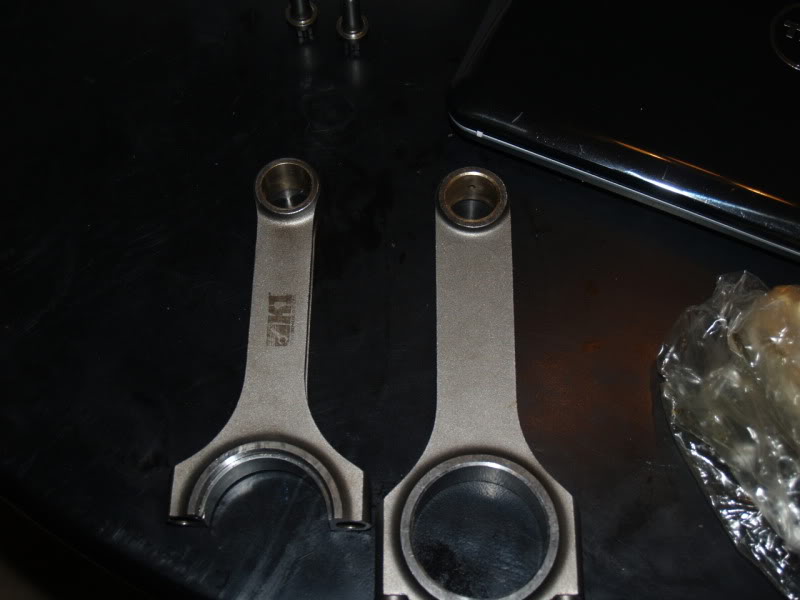

Name:  P1014004.jpg
Views: 25
Size:  46.0 KB
Hot_Wheels is offline   Reply With Quote
Old 02-01-2011, 04:42 AM   #59
Junior Member
iTrader: (2)

Join Date: Jul 2009
Location: langley BC
Posts: 134
Total Cats: 0
Default

looks like a good set of rods for 200 bucks
sasquatch is offline   Reply With Quote
Old 02-01-2011, 11:32 AM   #60
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Are you able to measure the size of the big and small ends accurately?
dgmorr is offline   Reply With Quote
