Old 01-25-2014, 01:27 PM   #41
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

If you're making X times more power than stock then its a no brainer. The reasoning is simple - crankshaft rotation is not smooth. The crankshaft accelerates with every combustion event. If you're making 3 times the stock power, then guess what, that acceleration is 3 times higher. The belt rides directly on the crankshaft and therefore it is subject to much higher forces as well.

Hence I have the blue belt.
soviet is offline   Reply With Quote
Old 01-25-2014, 02:34 PM   #42
Elite Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,510
Total Cats: 142
Default

Quote:
Originally Posted by relte View Post
...The guy had 10 listed and I grabbed the last one. I will let you guys know if he relists some more.
Looks like they're already listing again. Shows three available. I agree, for that price, why the hell wouldn't you go blue.
Gates T179RB Engine Timing Belt High Performance Automotive Timing Belt | eBay
good2go is offline   Reply With Quote
Old 01-27-2014, 10:13 AM   #43
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

Yup, that is the same guy. They ship fast too!
Rallas is offline   Reply With Quote
Old 05-17-2014, 01:54 PM   #44
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I just cranked it for the first time since I did the turbo install and timing belt swap. I forgot I stuck the blue belt in there since it didn't sound any different. My car isn't quiet by any means, but I don't hear any sounds that would be considered annoying on the street. I have not tried a 30 degree cold start, which might be a different story.
Rallas is offline   Reply With Quote
Old 06-05-2014, 12:06 PM   #45
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

SOB!!! While getting ready to pull new wires for sequential fuel and COP I noticed something strange.

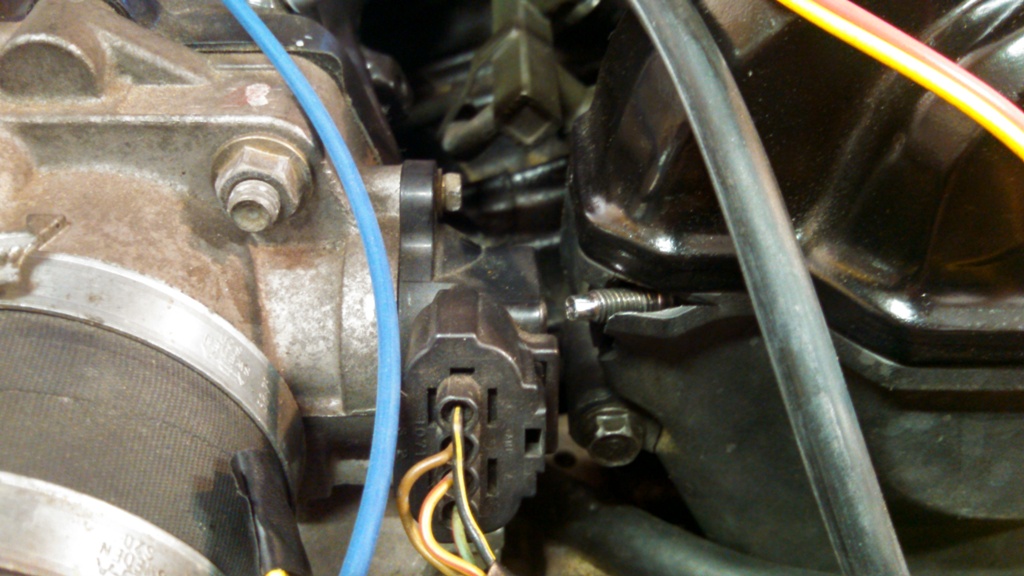

I noticed a small bolt sticking through the upper timing belt cover right below the valve cover. I pulled the valve cover and timing belt cover and found this.


That is freaking less than 100 miles on a brand new belt. Luckily I found the first one for cheap and picked up a replacement from the same guy for $35 again. I am glad timing belt replacements are easy on these cars. I am used to the hell of front wheel drive timing belt replacements on 1.8T VW engines (i've done 8 of those) and rank 2nd on my worst jobs to do, right after FWD clutch replacement.

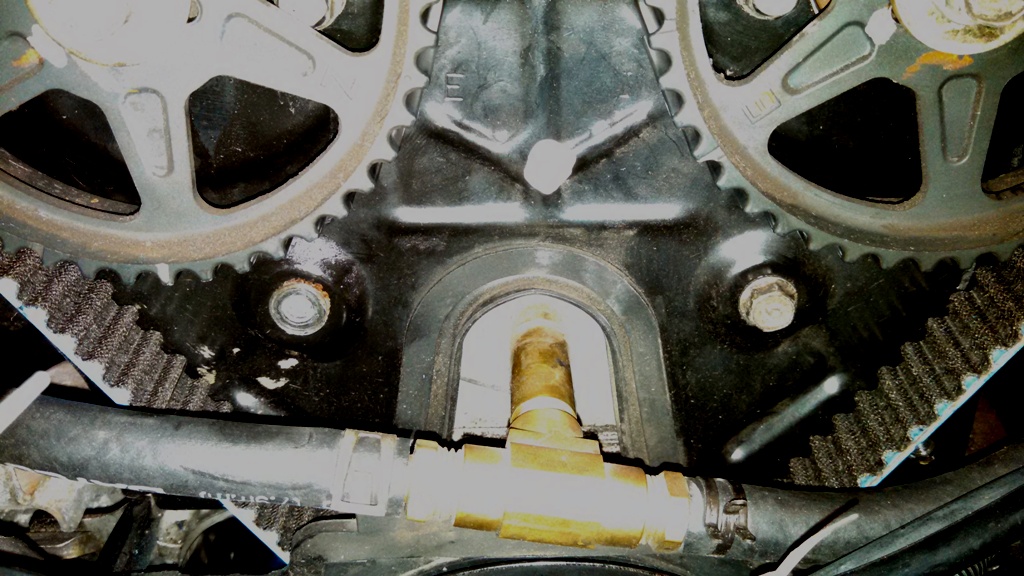

I found the culprit.


I found one of the timing belt cover backing plate bolts missing and three others were loose too. I knew I should have used locktite on these too, i did on every other bolt. Bad news is that I think the one that came out is stripped on the head side. I will have too drill and tap for a slightly larger bolt or come up with some way to prevent this from happening in the future. Right now I wish I could just leave all these covers off!

I never heard any strange noises or anything. By the look of the belt I am lucky to have made it home. These belts must be real strong if it can stay in tact with half of the cords being cut!
Attached Thumbnails
Gates standard or Blue Racing Timing Belt?-img_20140604_202014_731.jpg   Gates standard or Blue Racing Timing Belt?-img_20140604_203248_935.jpg   Gates standard or Blue Racing Timing Belt?-img_20140604_203651_957.jpg
Rallas is offline   Reply With Quote
Old 06-05-2014, 12:08 PM   #46
Junior Member
iTrader: (8)

Join Date: Jun 2012
Location: Indianapolis, IN
Posts: 421
Total Cats: 9
Default

Nice front thermostat block off btw!
slammed200 is offline   Reply With Quote
Old 06-05-2014, 12:10 PM   #47
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

I had that happen to me, except the bolt went through the valve cover O_O
Thats the story of how I have exposed timing belt.
soviet is offline   Reply With Quote
Old 06-05-2014, 12:12 PM   #48
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,008
Total Cats: 583
Default

Be careful with those bolts. They are different lengths and you really need to pay attention. The holes are blind. If you put a too-long bolt into one of the holes and torque, the result is either a sheared head or stripped threads.

Oh . . . and loktite FTW!
hornetball is offline   Reply With Quote
Old 06-05-2014, 01:00 PM   #49
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I've started to just use my drill to "torque" those M6x1 bolts. It says 19ft/lbs. Whatever that means.

If I try to put any force on them I snap the heads off.
curly is offline   Reply With Quote
Old 06-05-2014, 02:33 PM   #50
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I might look into running an exposed belt. I have always been worried about getting crap in an exposed belt, but after this crap I might just get some adjustable cam gears and run with an exposed belt. I need to do some research first. Do you guys take all the covers off? I always thought most people just trim the valve cover so you can access the can gears but leave other covers on.
Rallas is offline   Reply With Quote
Old 06-05-2014, 02:36 PM   #51
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

Quote:
Originally Posted by slammed200 View Post
Nice front thermostat block off btw!
Thanks! Made it out of 1/4" 6061 plate tapped for 1/4 NPT and used 1/4 NPT tee and barbed fittings. Works great. 3 years and 5 track days with no leaks or issues.
Rallas is offline   Reply With Quote
Old 06-05-2014, 03:46 PM   #52
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I've been running fully exposed with blue belt for 3 years...no issue yet as daily driver...

homo question to thread jack this a little....is there a safe way to clean this belt to keep it shiny blue and pretty??
Preluding is offline   Reply With Quote
Old 06-05-2014, 08:41 PM   #53
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 598
Total Cats: 30
Default

Yes. Leave it covered.
SchmoozerJoe is offline   Reply With Quote
Old 06-06-2014, 11:09 AM   #54
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Quote:
Originally Posted by SchmoozerJoe View Post
Yes. Leave it covered.
Preluding is offline   Reply With Quote
Old 06-20-2014, 03:27 AM   #55
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Who's run these consistently in sub zero weather and can comment on the cold start (literally) noise?
Landrew is offline   Reply With Quote
Old 06-20-2014, 09:07 AM   #56
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I have had a few PMs now about the source of the $35 blue belt.

Engine Timing Belt High Performance Automotive Timing Belt Gates T179RB | eBay

Just do an EBay search for Miata gates timing belt and this guy pops up. He seems to relist frequently.
Rallas is offline   Reply With Quote
Old 07-01-2014, 03:43 PM   #57
Newb

Join Date: Jun 2014
Posts: 9
Total Cats: 0
Default

Glad to know that it's properly listed. I was convinced that he had accidentally listed this as a timing belt rather than a serpentine/accessory belt.

Let's hope there is no such thing as a Gates "rep"
julezer is offline   Reply With Quote
Old 07-01-2014, 03:45 PM   #58
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

I'll give anyone a $20 bounty to find a Gates Blue belt for an F2T.
concealer404 is offline   Reply With Quote
Old 07-01-2014, 05:28 PM   #59
Newb

Join Date: Jun 2014
Posts: 9
Total Cats: 0
Default

Quote:
Originally Posted by concealer404 View Post
I'll give anyone a $20 bounty to find a Gates Blue belt for an F2T.
Is it the same belt as the F2?
julezer is offline   Reply With Quote
Old 07-01-2014, 05:30 PM   #60
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by julezer View Post
Is it the same belt as the F2?

12v F2, yes. No idea if the 8v F2 uses the same one.
concealer404 is offline   Reply With Quote
