Default

Quote:
Originally Posted by greenday3437 View Post
Back on topic: I thought you were looking for solutions for the MF to turbo connection not the turbo to dp?
That is exactly right: turbo to mf and thats what I will have welded. Were you distracted by the turbo to dp vband link?

I will get new mf gasget and nuts for mf and dp. Should I replace the studs in head and turbo too or should they be fine? There are all quite new (sept 08). Im leaning towards leaving them alone and shortening them where they are excessively long.
Laur3ns is offline   Reply With Quote
Old 06-05-2009, 05:27 PM   #22
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Thumbs down

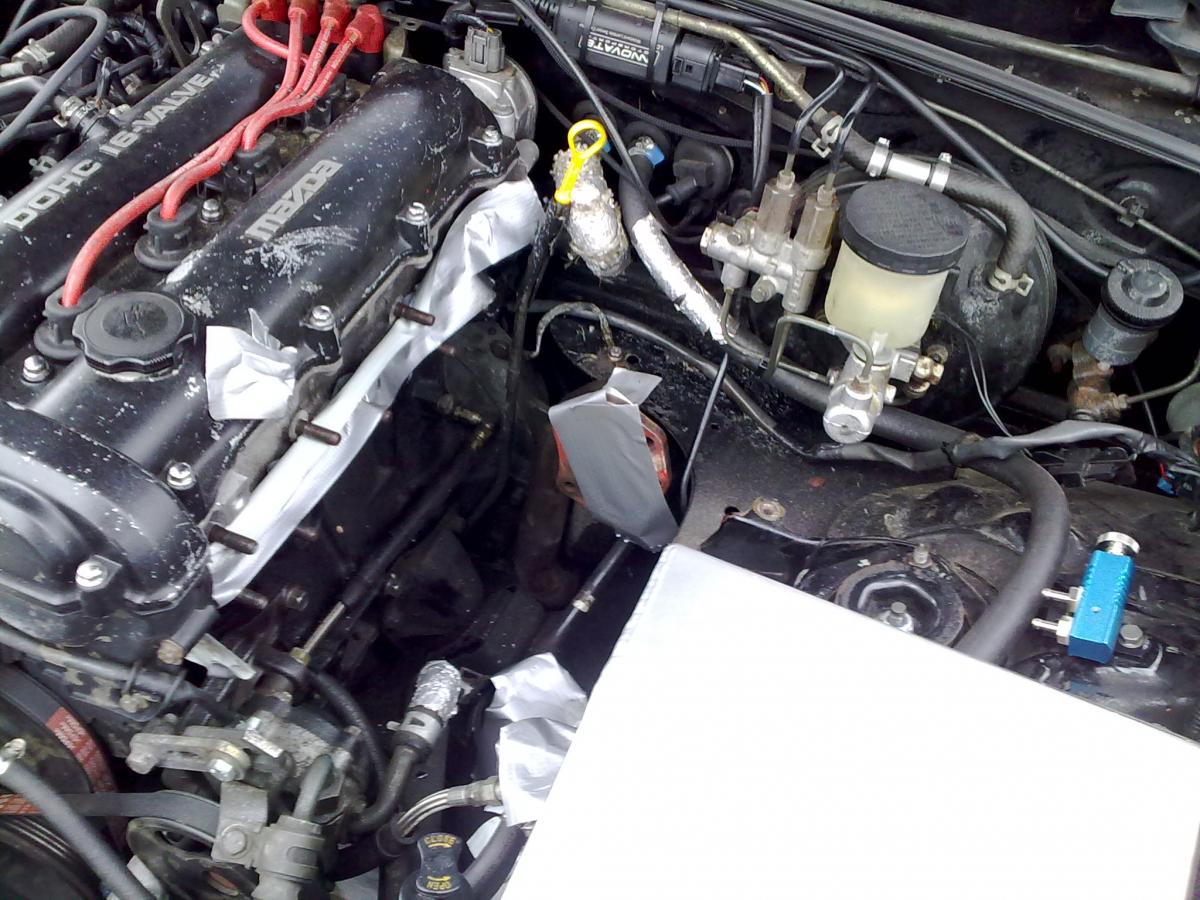

Removed the turbo and manifolde earlier this week and took them to the race shop to have the broken stud removed.

Discussed the various options and they strongly advised against welding them. Welding injects a lot of heat and would alter the material and it would probably crack right next to the weld...

They will source some incredibly strong studs and meanwhile I got the manifold and turbo back with the 'regular' studs so I can put together the car for street use at least...

So while I can drive again once I get it back together, I am still at a loss at the solution to this never ending issue...

During dis assembly I noticed the hex nuts on the oil return flange where not fully tight, so that probably caused some oil loss there I noticed a while back.

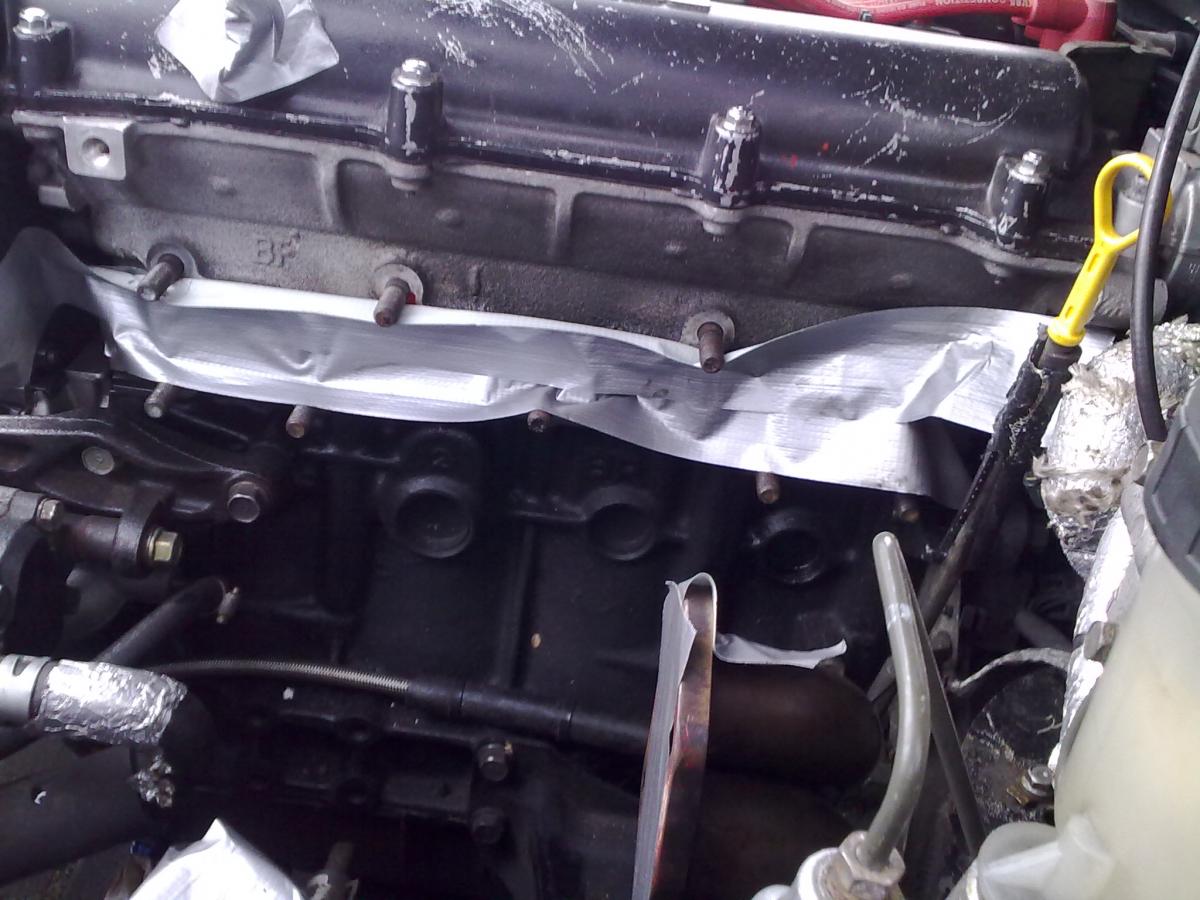

Attached Thumbnails
Going f!ix my turbo to manifold joint for good!-04062009029.jpg   Going f!ix my turbo to manifold joint for good!-04062009030.jpg
Laur3ns is offline   Reply With Quote
Old 06-05-2009, 05:49 PM   #23
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I'm going to safety wire bolts with large diameter safety wire. If that fails, one time, I'm going with a begi s4 with v-bands on everything and a tial wastegate. There's a reason racecars use v-bands.
hustler is offline   Reply With Quote
Old 06-06-2009, 09:28 PM   #24
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

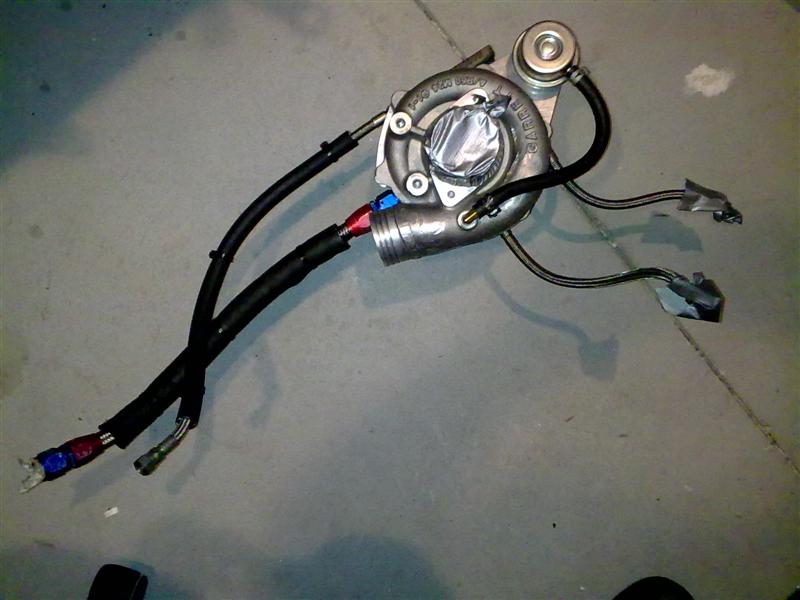

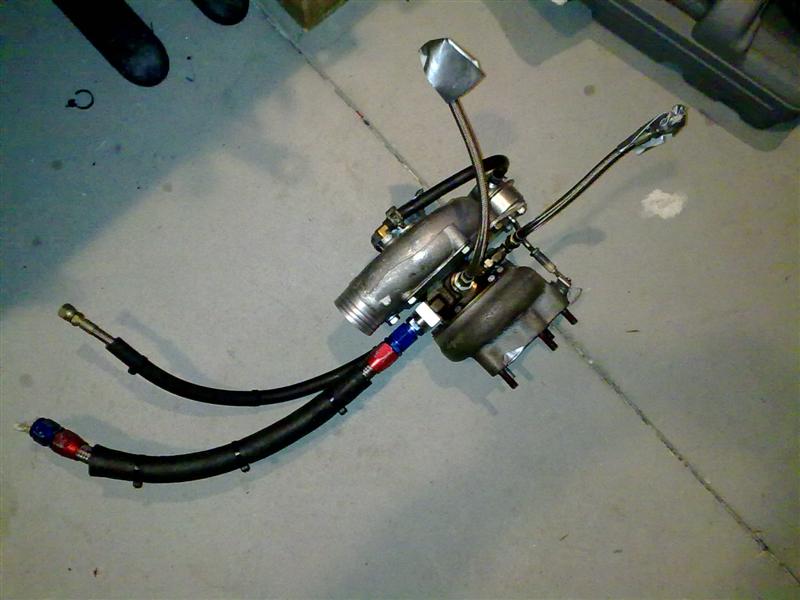

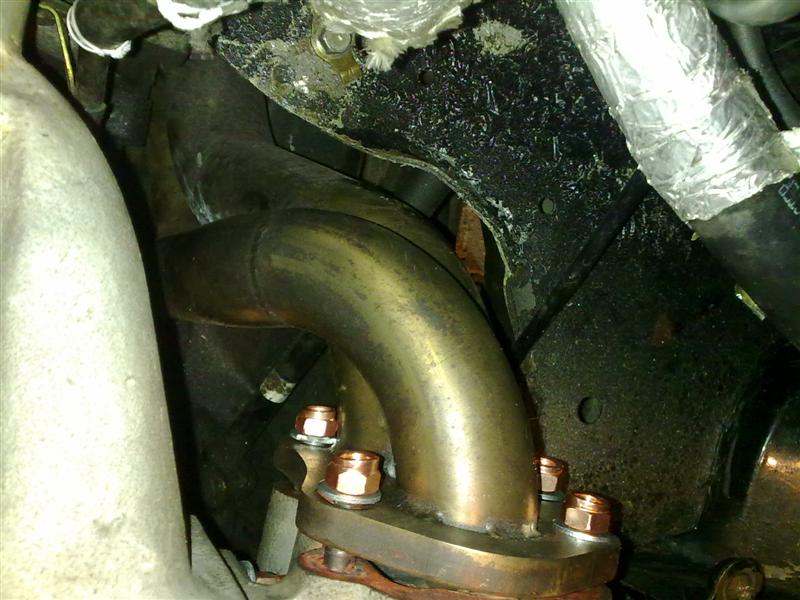

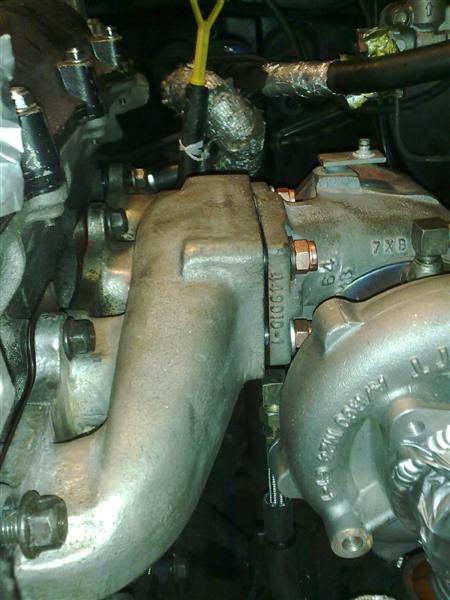

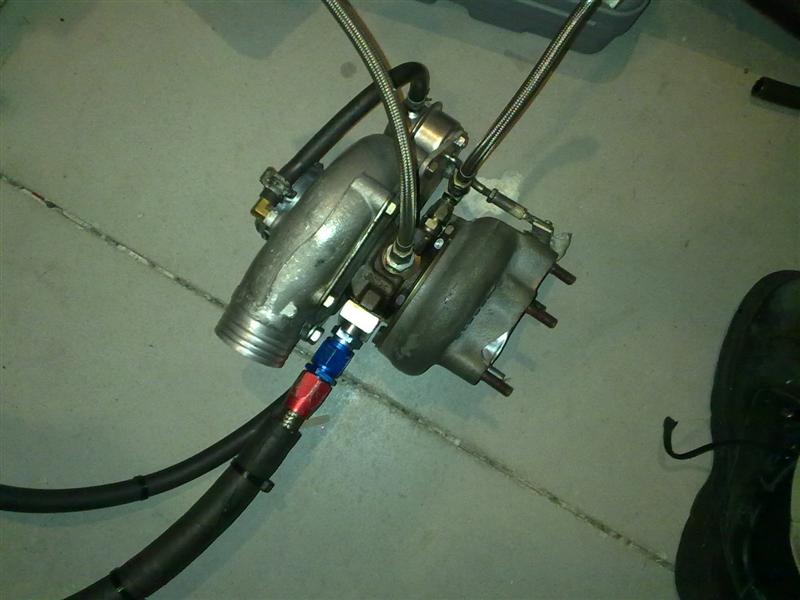

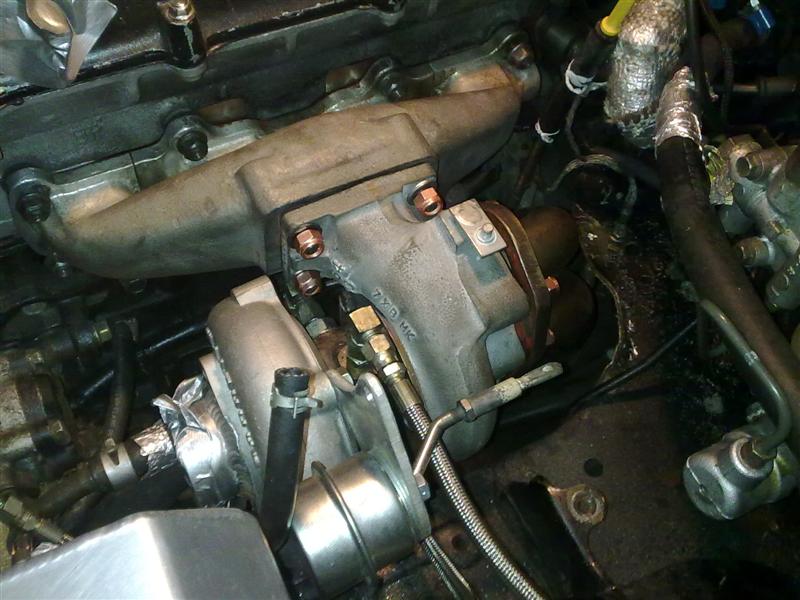

Stuff back together:

It's good to have the car back together. But I am still debating the permanent solution for track abuse.
Attached Thumbnails
Going f!ix my turbo to manifold joint for good!-06062009031.jpg   Going f!ix my turbo to manifold joint for good!-06062009032.jpg   Going f!ix my turbo to manifold joint for good!-06062009033.jpg   Going f!ix my turbo to manifold joint for good!-06062009034.jpg   Going f!ix my turbo to manifold joint for good!-06062009035.jpg

Going f!ix my turbo to manifold joint for good!-06062009036.jpg
Laur3ns is offline   Reply With Quote
Old 06-07-2009, 08:35 AM   #25
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

is that the same turbo I saw in a box at Zomer last friday?
Oscar is online now   Reply With Quote
Old 06-07-2009, 10:21 AM   #26
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Yes, most probably. They drilled out a broken stud in the manifold for me (and the other three because they were stuck) and replaced all four. Picked it up Friday at the end of the day and got it all back together last night.
Laur3ns is offline   Reply With Quote
Old 06-07-2009, 10:21 AM   #27
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

BTW, you should have told me you where going there so I could come over.
Laur3ns is offline   Reply With Quote
Old 06-07-2009, 11:06 AM   #28
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

New idea:

Brace turbo to block to unload manifold loading.
Laur3ns is offline   Reply With Quote
Old 06-07-2009, 11:06 AM   #29
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Laur3ns is offline   Reply With Quote
Old 06-07-2009, 11:08 AM   #30
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

dirty dutch, lol.
hustler is offline   Reply With Quote
Old 06-07-2009, 11:34 AM   #31
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Other brace sample:
Laur3ns is offline   Reply With Quote
Old 06-07-2009, 05:01 PM   #32
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

The race shop suggested we source some Inconel (space material) studs.

Others also go that route:
Inconel studs - where to get em Syd? - PerformanceForums
Laur3ns is offline   Reply With Quote
Old 06-07-2009, 08:53 PM   #33
Junior Member
iTrader: (8)

Join Date: Jul 2008
Location: Portland, OR
Posts: 397
Total Cats: 9
Default

There are several threads about this problem and I am a bit confused. if it is the studs stretching due to thermal expansion would you want to use a material for the stud that had a lower COE like titanium or if it is stretch of the stud caused by expansion of the flanges do you want something more resistant to stretch(is titanium more resistant to tension than steel?), just larger diameter studs, somehow add additional studs to the flanges?
kaisersoze is offline   Reply With Quote
Old 06-07-2009, 09:12 PM   #34
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by Spookyfish View Post
BTW, you should have told me you where going there so I could come over.

must've missed you by a couple of hours then. No worries, I'll be back there soon to get my adjustable camgears mounted and have the car retuned. Hope to break 150 rwhp then.

I'll let you know when I go so we can meet up.
Oscar is online now   Reply With Quote
Old 06-07-2009, 10:39 PM   #35
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I'm looking for an affordable set of titanium nuts and studs right now.
hustler is offline   Reply With Quote
Old 07-29-2009, 09:38 AM   #36
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

I said I would:
https://www.miataturbo.net/forum/t37578/#post435998



This, or v-bands.
Laur3ns is offline   Reply With Quote
Old 07-29-2009, 10:48 AM   #37
Senior Member
iTrader: (6)

tyson87's Avatar

Join Date: Aug 2008
Location: West Palm Beach, FL
Posts: 1,023
Total Cats: 1
Default

seems like it will be a bitch to put in now...
tyson87 is offline   Reply With Quote
Old 07-29-2009, 10:57 AM   #38
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

and if you break a stud?
y8s is offline   Reply With Quote
Old 07-29-2009, 12:04 PM   #39
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Bitch? yes
Impossible? no

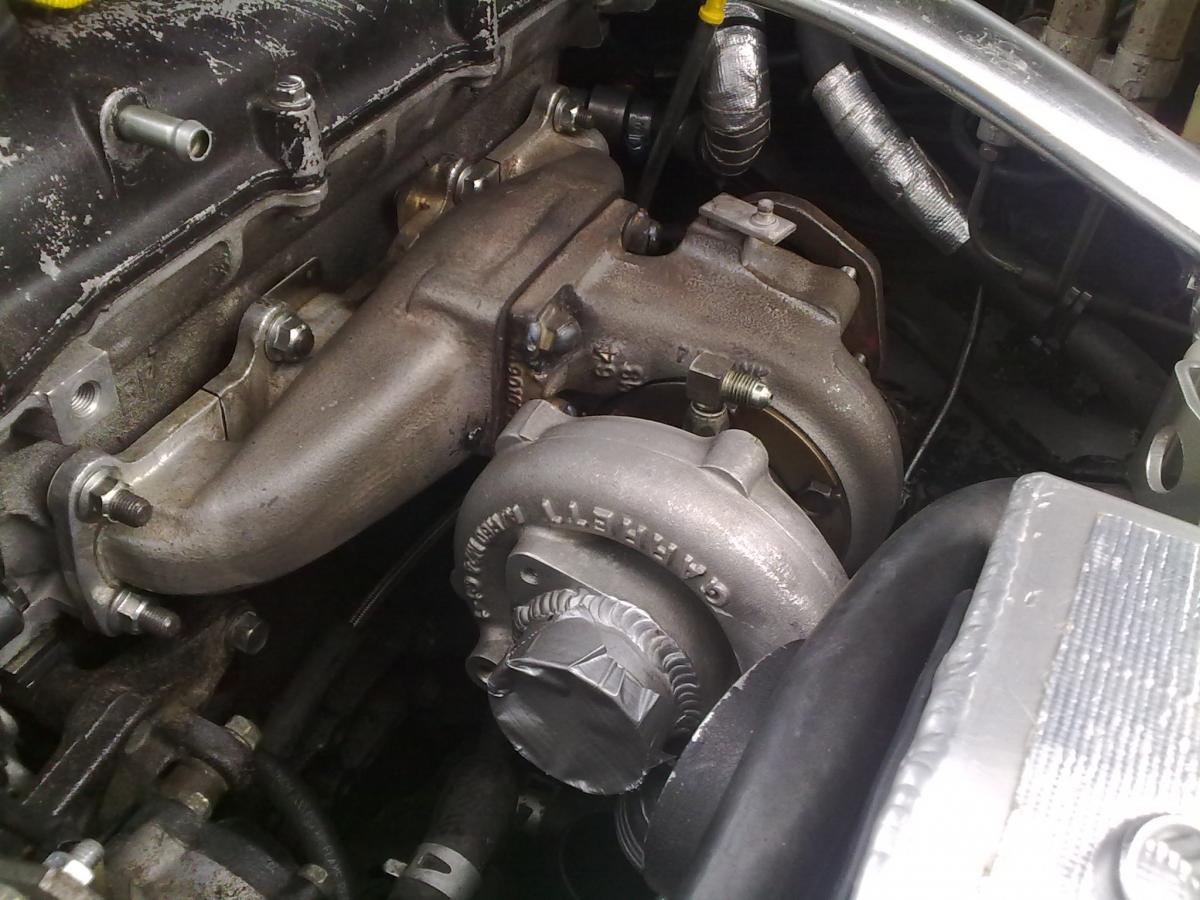

Attached Thumbnails
Going f!ix my turbo to manifold joint for good!-29072009132.jpg
Laur3ns is offline   Reply With Quote
Old 08-12-2009, 05:39 PM   #40
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Stuff is still together after a 3-session track day and several street test runs. Anyone in for a batch of those studs and how much would you pay?
Laur3ns is offline   Reply With Quote
