Old 04-16-2012, 05:56 PM   #21
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by falcon View Post
What do you mean breather hoses clear?
Clear as in not blocked. But, if you're not getting anything in the catch can, probably not blowby.
hornetball is offline   Reply With Quote
Old 04-16-2012, 07:29 PM   #22
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

u prob have a squirrel or butt plug in your breather hose. That is what hornet means.
Faeflora is offline   Reply With Quote
Old 04-16-2012, 07:51 PM   #23
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by Faeflora View Post
u prob have a squirrel or butt plug in your breather hose. That is what hornet means.
Thanks. I said it all wrong.
hornetball is offline   Reply With Quote
Old 04-16-2012, 08:31 PM   #24
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Gotcha. No it's not blocked. One of the first things I checked. This motor has never given me any blowby to worry about.
falcon is offline   Reply With Quote
Old 04-16-2012, 11:42 PM   #25
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Alright so I re sealed it today. Made sure all the mating surfaces were completely dry and scraped off all the old goo. When I pulled it off though, there was oil on the entire mating surface of the whole gasket. Is that a sign that I overtightend? I did it again today with a new gasket and in the proper order slowly tightening everything down and doing a few "laps." it's currently drying. How long should I leave it before starting the car up?

I also made sure to clean all the old drips off so I can watch and see if any new sweating appears.
falcon is offline   Reply With Quote
Old 04-17-2012, 12:03 AM   #26
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

36 hrs
Faeflora is offline   Reply With Quote
Old 04-17-2012, 12:32 AM   #27
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

well i guess i won't be going to work for 2 days.

tube says fully cured in 24 hours. i did it this morning so it should be close enough. that's not where it's leaking from anyways so i think it should be ok.
falcon is offline   Reply With Quote
Old 04-18-2012, 12:51 AM   #28
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

So I may have figured out why it's leaking. After re-sealing yesterday I kept a close eye on it after driving a short distance. The gasket was fine, but I noticed oil coming out of one of the bolt holes. I thought this was odd, so I popped the cover back off and discovered that the bolt cylinder part (cylinder that the bolt goes through) was missing a small bit and looked like it was not touching the head flange anymore. It seems like its a bit of a press fit to seal off the bolt hole area from oil. I think this is where the oil has been coming from all along. I threw some goop in it for the time being until i finish up my capri cover. We'll see tomorrow if it stays leak free and if so, that's what the problem was.

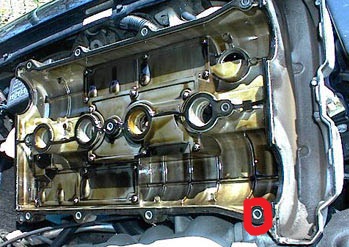

This is what was broken. Not that exact hole, but that part.

Attached Thumbnails
having real trouble getting valve cover to seal-auchhz.jpg
falcon is offline   Reply With Quote
