Old 06-07-2016, 01:20 AM   #21
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

codrus was the one who had issues. He is also running a returnless.

It probably isn't a big deal with the fpr close to the rail, but you need a fuel pressure sensor to be sure.
aidandj is offline   Reply With Quote
Old 06-07-2016, 01:44 AM   #22
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Madjak View Post
What are everyone's thoughts on running fuel rails without dampers?

I haven't had one for 2 years an haven't seen any issues, though my engine doesn't idle well at the bet of times. My understanding is that most aftermarket FPR's have some damping anyway although it's not located at the fuel rail. Anyone have some more info on it?
Rubber lines, or a regulator close to the rail, will dampen the pulses. If you put a regulator in the gas tank, and run stiff lines all the way to the rail, you'll need a damper at or close to the rail. If you keep a regulator close to the rail, it will dampen pulses on its own well enough. I'm doing the latter, and running all the boost and have a fuel pressure sensor, no issues.
patsmx5 is offline   Reply With Quote
Old 06-07-2016, 02:27 AM   #23
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

Quote:
Originally Posted by aidandj View Post
codrus was the one who had issues. He is also running a returnless.

It probably isn't a big deal with the fpr close to the rail, but you need a fuel pressure sensor to be sure.
You need a fuel pressure sensor and you need to look at it with something high-enough resolution to see the pulses. A gauge is worthless, something that logs at the speed of the MS3 (~ 16 hz, IIRC) will show what looks like random noise around the shape that the fuel pressure curve is supposed to be, and with an oscilloscope you can see the injectors open.

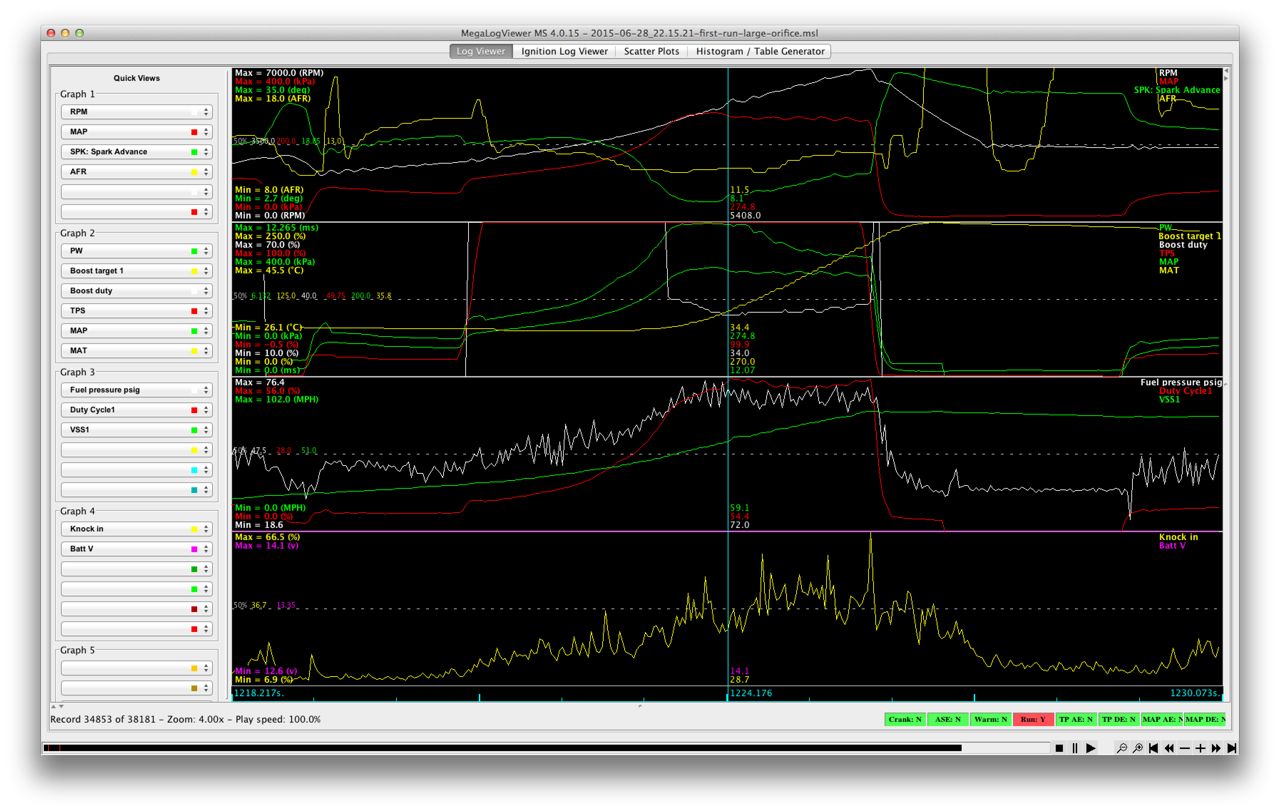

FWIW, this is what the fuel pressure looked like with a Walbro pump, stainless lines, non-return system, id1000s, AEM FPR, manifold referenced, and using an FM fuel rail. The the small factory on-rail damper is installed and the big on-fender damper is deleted. It's the white line in the third graph:



Note that there was no obvious drivability problem in the car, the only reason I know there were 10-15 psi fuel pressure swings is because of the sensor I had installed. Does a return-based system have these same swings? I don't know, I haven't measured one, and AFAIK neither has anybody else on mt.net.

I installed a Radium damper and it completely eliminated the pressure variance.

--Ian
Attached Thumbnails
ID1000's -> fuel rail fittment-270-kpa-fp.jpg
codrus is offline   Reply With Quote
Old 06-07-2016, 02:32 AM   #24
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by codrus View Post
Does a return-based system have these same swings? I don't know, I haven't measured one, and AFAIK neither has anybody else on mt.net.

--Ian

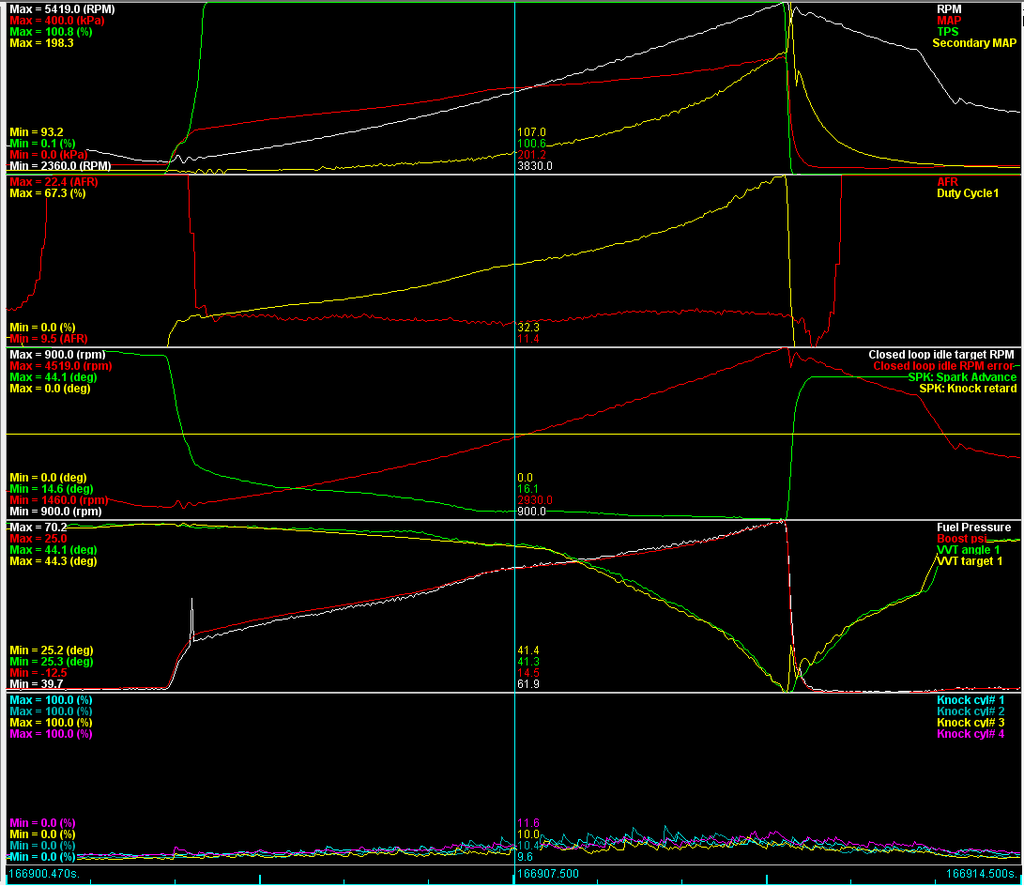

I did.

Attached Thumbnails
ID1000's -> fuel rail fittment-vd%25205th%2520log_zps19wxfz7o.png
patsmx5 is offline   Reply With Quote
Old 06-07-2016, 02:52 AM   #25
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

I hate the returnless system.
And I love a well set up return system.

The results are pretty clear.
18psi is offline   Reply With Quote
Old 06-07-2016, 04:17 AM   #26
ʎpunq qoq
Thread Starter

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

I see fluctuations in the logs of my fuel pressure, however I think it's actually electrical interference rather than actual readings. When I had the wiring temporarily running to the ECU for testing the fuel pressure sat dead flat, but when I wired it up properly the following day the noise appeared in the signal. It's something I've been meaning to fix as it's most likely my CAS wiring that's not shielded properly... I hate electrics!
Madjak is offline   Reply With Quote
