Old 01-10-2010, 06:01 PM   #21
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Don't think there is one? Though I'm not au-fait with the MK2.5 motor so may well have missed it. I'll have a proper look tomorrow evening, I need to strip bits off it ready for install onto my car.
richyvrlimited is offline   Reply With Quote
Old 01-10-2010, 06:24 PM   #22
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by richyvrlimited View Post
I actually just picked one up to fit to my MK1 today.

What do you want to see/have pictures of?

This is just as I dropped it off in my garage
MOAR PICS

also, crack that baby open

Ive been searching on google for like an hour trying to find more pictures of that manifold but cant find anything anywhere, or any info
Full_Tilt_Boogie is offline   Reply With Quote
Old 01-10-2010, 11:22 PM   #23
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

So by what I could find, all VVT equipped 1.8L engines that were not sold in the US market came with this intake manifold.

Dammit, I want one. Be easier than pulling mine apart and gutting the butterflies. I'm going to see if I can get a part number tomorrow...and a price.
Doppelgänger is offline   Reply With Quote
Old 01-11-2010, 10:10 AM   #24
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Moar pics...


2003 S-package auto



(most S-package Mk2.5 seem to be automatics)

VS Automatic



SG-Limited 6MT



Mazdaspeed Turbo



RS-II



1.6 Mk2.5



2004 RS



2001 RS



2000 RS



2000 S 6MT

Doppelgänger is offline   Reply With Quote
Old 01-11-2010, 11:16 AM   #25
Junior Member

Join Date: Jan 2008
Location: Atlanta, GA
Posts: 69
Total Cats: -1
Default



1.6 Mk2.5


i wonder if this intake can fit the old u.s. 1.6 ? and does it flow better? any ideas Mr.Ganger?
EvilMiata is offline   Reply With Quote
Old 01-11-2010, 11:18 AM   #26
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

Quote:
Originally Posted by EvilMiata View Post


1.6 Mk2.5


i wonder if this intake can fit the old u.s. 1.6 ? and does it flow better?

sorry, the titles are above the pictures. the 1.6 never had VVT.
y8s is online now   Reply With Quote
Old 01-11-2010, 11:28 AM   #27
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Title over picture...
this is the 1.6



I don't really know much about the 1.6 engine at all. I have wondered if they updated the later 1.6 with solid lifters though (anyone know?) It looks like a completely different beast... CAS is on the front of the CAM cover like the 99/00 1.8L, no weird IAC stuck to the side of the manifold. I'd imagine the later 1.6 intake flows better considering how Mazda revised the 1.8 I don't see why they wouldn't revise the 1.6 knowing that it was going to be sold in large numbers for years to come.
Doppelgänger is offline   Reply With Quote
Old 01-11-2010, 07:10 PM   #28
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

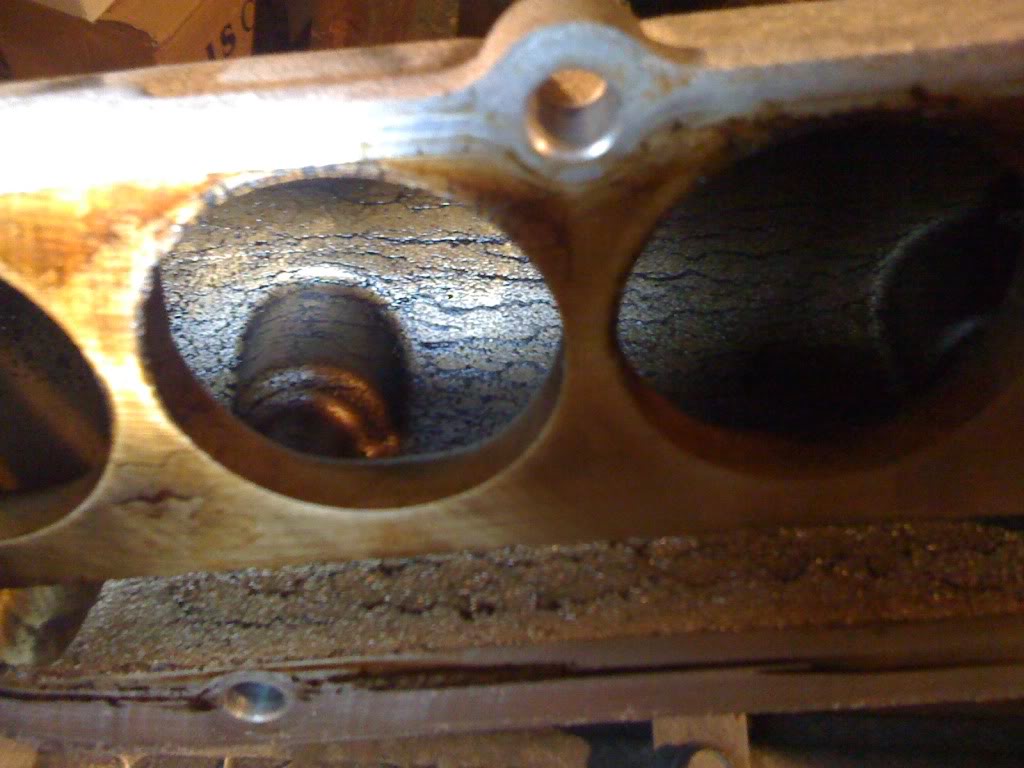

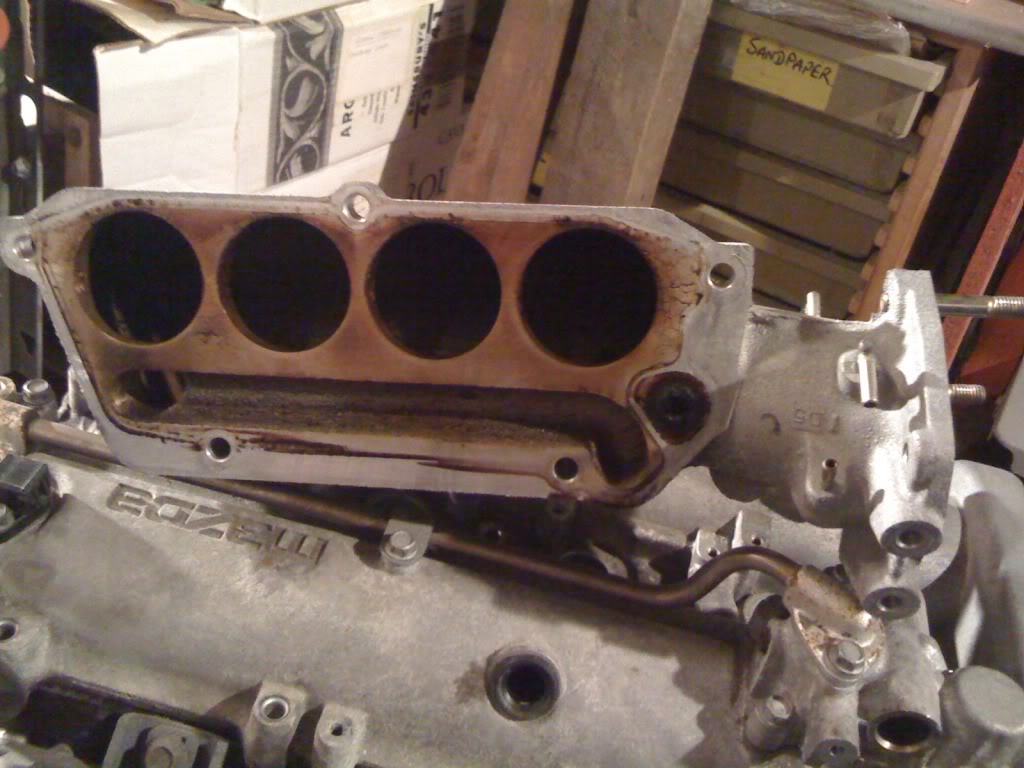

Cracked open the manifold.

There's no VICS, VTCS nothing, just an empty plenum.

Name:  IMG_0391.jpg
Views: 14
Size:  98.9 KB

Name:  IMG_0392.jpg
Views: 15
Size:  123.5 KB

Name:  IMG_0393.jpg
Views: 14
Size:  97.9 KB

Name:  IMG_0394.jpg
Views: 14
Size:  91.8 KB

Garage is lit only with fluorescent tubes and so lighting wasn't great. Plus it's my iPhone taking the pictures. Last pic I had a torch trying to light up the insides
richyvrlimited is offline   Reply With Quote
Old 01-11-2010, 07:16 PM   #29
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Can you take a picture of the bottom part?
ismael_pt is offline   Reply With Quote
Old 01-11-2010, 07:21 PM   #30
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

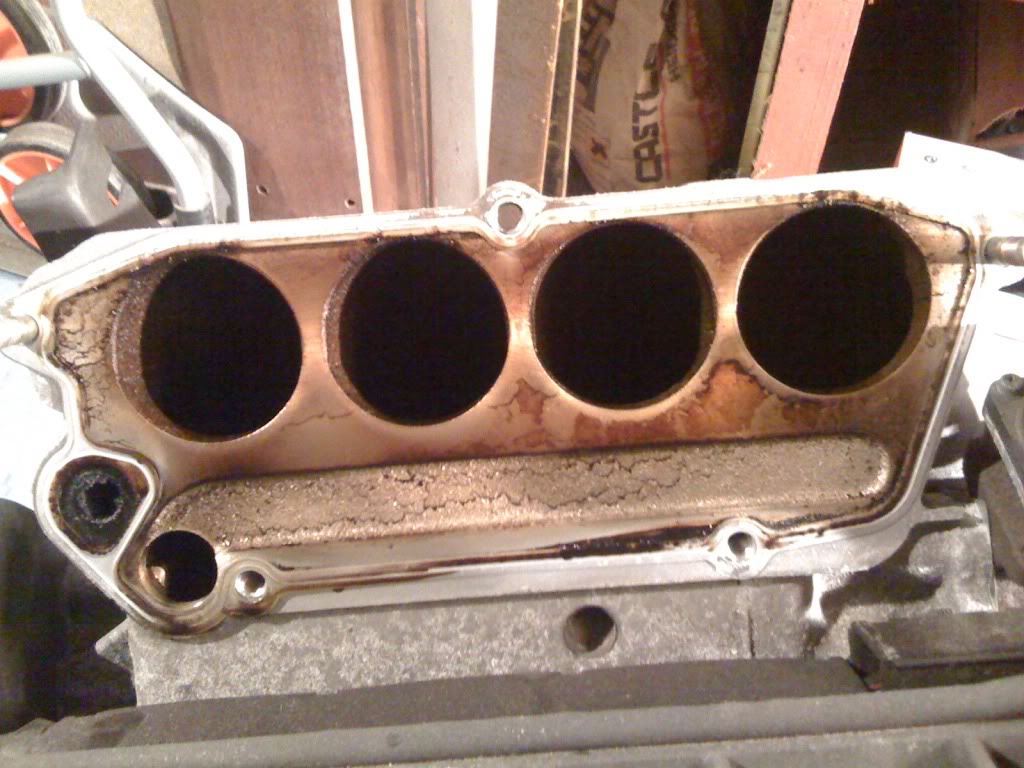

2nd & 3rd picture down is of the bottom part

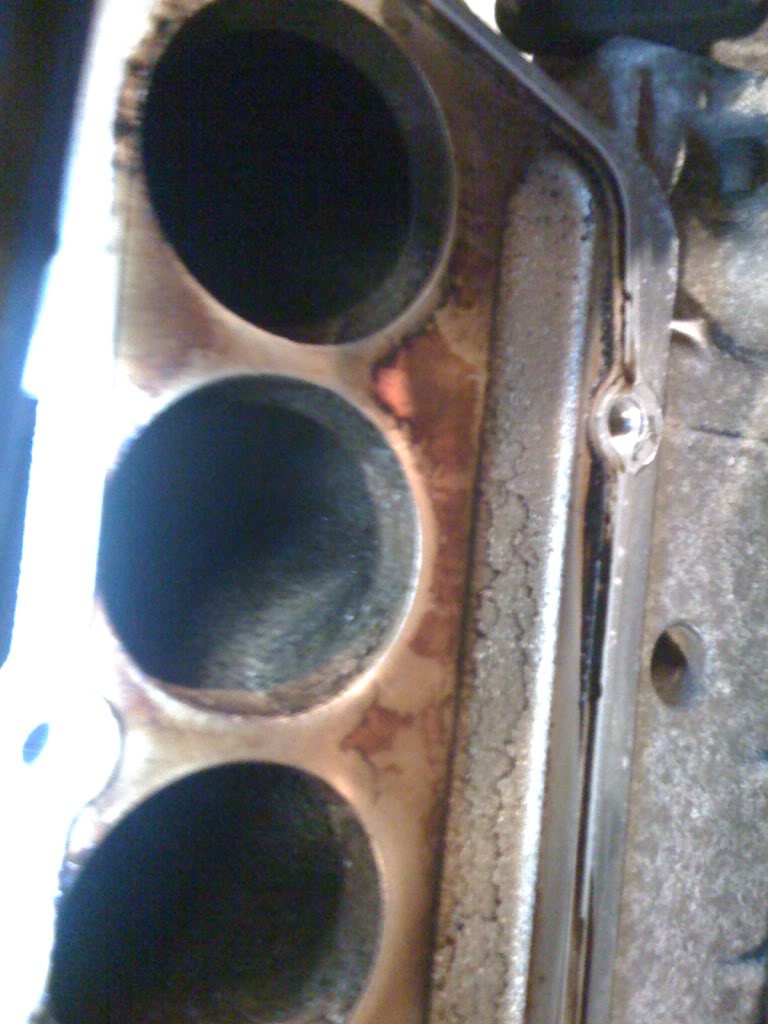

1 & 4 are of the top part. Dunno why I did that, sorry!

This one
Name:  IMG_0392.jpg
Views: 15
Size:  123.5 KB
richyvrlimited is offline   Reply With Quote
Old 01-11-2010, 07:40 PM   #31
Elite Member
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,116
Total Cats: 43
Default



Emilio said that the TB has less obstructed flow to the plenum, possibly making more power. I think he's putting it on the OGK but he'd need to verify that.

I wonder how hard it would be to get ahold of this manifold.
flier129 is offline   Reply With Quote
Old 01-11-2010, 10:11 PM   #32
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Quote:
Originally Posted by flier129 View Post

I wonder how hard it would be to get ahold of this manifold.
I'm already working on this. If there is even a slight benefit to be had, I'd imagine many of us here would be interested and so would those guys the run things like CSP class autoX.


I wonder if the runners are a different diameter as well, they look bigger. And if anything, the reduced mass saves a little weight as well.
Doppelgänger is offline   Reply With Quote
Old 01-11-2010, 10:29 PM   #33
Elite Member
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,116
Total Cats: 43
Default

Yeah, basically all of the top CSP cars don't use IRTBs. They run the stock manifold. If there was gains on this manifold they would definately jump on it. At least I would lol.

Let us know if you find any "hook-ups" for this manifold.
flier129 is offline   Reply With Quote
Old 01-12-2010, 12:20 AM   #34
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,273
Total Cats: 52
Default

Quote:
Originally Posted by flier129 View Post
Yeah, basically all of the top CSP cars don't use IRTBs. They run the stock manifold. If there was gains on this manifold they would definately jump on it. At least I would lol.

Let us know if you find any "hook-ups" for this manifold.
They run modified stock modified manifolds. The ones I've seen open up the throat at the TB to allow a better flow in.
Midtenn is offline   Reply With Quote
Old 01-12-2010, 09:26 AM   #35
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Yup, known as "throating" the manifold. I have pictures of an intake a friend of mine did that too.
Doppelgänger is offline   Reply With Quote
Old 01-12-2010, 10:00 AM   #36
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Awwwwwwww *****!!! Phat JDM manifoldd yo!

Why do we care? I can't see the big awesome plenum. Wait, there is none.

This is cool buttfuck where the hell is a good 1.8 aftermarket manifold? Should I be inspired by the engineering fail pdf and make one out of a 2 liter bottle and pvc pipe? That would work actually wouldn't it...
Faeflora is offline   Reply With Quote
Old 01-12-2010, 10:04 AM   #37
Junior Member

Join Date: Jan 2008
Location: Atlanta, GA
Posts: 69
Total Cats: -1
Default

Quote:
Originally Posted by Doppelgänger View Post
Title over picture...
this is the 1.6


I don't really know much about the 1.6 engine at all. I have wondered if they updated the later 1.6 with solid lifters though (anyone know?) It looks like a completely different beast... CAS is on the front of the CAM cover like the 99/00 1.8L, no weird IAC stuck to the side of the manifold. I'd imagine the later 1.6 intake flows better considering how Mazda revised the 1.8 I don't see why they wouldn't revise the 1.6 knowing that it was going to be sold in large numbers for years to come.
yeah i looked at the title under the first picture....kind of thought it would have been done a thousand times by now if there was some advantage toit...thanks fo the info
EvilMiata is offline   Reply With Quote
Old 01-12-2010, 11:53 AM   #38
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

Quote:
Originally Posted by richyvrlimited View Post
Cracked open the manifold.

There's no VICS, VTCS nothing, just an empty plenum.
when you get a moment, get some pictures of the head flange of the intake manifold.

so we can compare like this:

99-00 VICS manifold:



2001+ VTCS manifold:


2001+ RS/JDM/non USDM manifold with nothing:

[insert richyvrlimited picture here]
y8s is online now   Reply With Quote
Old 01-12-2010, 03:11 PM   #39
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Quote:
Originally Posted by y8s View Post
when you get a moment, get some pictures of the head flange of the intake manifold.

so we can compare like this:

99-00 VICS manifold:



2001+ VTCS manifold:


2001+ RS/JDM/non USDM manifold with nothing:

[insert richyvrlimited picture here]
That's was what I was asking for.
ismael_pt is offline   Reply With Quote
Old 01-12-2010, 05:09 PM   #40
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

Quote:
Originally Posted by Doppelgänger View Post
Yup, known as "throating" the manifold. I have pictures of an intake a friend of mine did that too.
You can post? Please?
miatamania is offline   Reply With Quote
