Old 03-18-2012, 01:00 PM   #21
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I recently bought that intake, so technically it's a spare. I am going to gut my upper plenum and see what happens. If it robs me on the butt dyno, I can simply swap it with my stock one.
thirdgen is online now   Reply With Quote
Old 03-19-2012, 10:30 AM   #22
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

How much different would my fuel VE table be if I swapped out my upper plenums? If it's gutted, would it need more fuel when VICS is open? I ask this, because once my upper plenum is gutted, I would like to do a dyno pull with my stock plenum, and then swap it with my gutted one.
thirdgen is online now   Reply With Quote
Old 03-19-2012, 10:55 AM   #23
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by pdexta View Post
The bottom half of the intake manifold was untouched with VICS active. I can only assume that the ported top disrupted flow enough to lose power. I'm putting it back to stock until the whole manifold is ported and I'll try again.

I'm doing some more comparisons today since I'm undoing it anyway, and it's difficult for me to believe it would be THIS bad. I'm doing a log at 19psi, and one with the wastegate disconnected (since my friend is running this setup on his NA car). I'll let you guys know how the numbers come out.

Easy way to tell if you're losing airflow is to look at the log of your AFR. If it goes richer by x%, you're flowing that much air. It's not quite that simple, but it is a measurable indicator.

Make sure that you log on the same strip of road in the same direction. I used this method when tuning VVT, although VVT is different because it affects the amount of time for combustion.


Quote:
Originally Posted by thirdgen View Post
How much different would my fuel VE table be if I swapped out my upper plenums? If it's gutted, would it need more fuel when VICS is open? I ask this, because once my upper plenum is gutted, I would like to do a dyno pull with my stock plenum, and then swap it with my gutted one.

If you are flowing more or less air, you will indeed need to retune. Should just be a couple of % scaling up or down and take like 5 minute.


Also, guys, check your boost levels too. Small changes 1-2 psi because of less or more restricted airflow or better/worse spool will obviously affect the results a lot.

Not enough people spend time trying to tune and optimize boost and spool. That's where all our power is too :|
Faeflora is offline   Reply With Quote
Old 03-19-2012, 12:33 PM   #24
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

The law of speed density:
If it does anything, it will require tuning.
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-19-2012, 01:03 PM   #25
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

If it drops pressure and leans out, its flowing more.
If it doesn neither of those things and requires no addition in fuel, its failaids.

I'm really surprised more people aren't going the OBX/Honda mani route. Its 2-300 bux all said and done, and is in every way more awesome than gutting the stocker.....Just sayin
18psi is offline   Reply With Quote
Old 03-19-2012, 03:21 PM   #26
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

18psi novody cares about power here so no interedt.

I mean we only have one vvt cam on the market. Sort of. Suck.
Faeflora is offline   Reply With Quote
Old 03-19-2012, 03:24 PM   #27
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

lol, so you don't care about power either?
cause you're still rocking one with the lamest excuse I've ever heard.
18psi is offline   Reply With Quote
Old 03-19-2012, 03:53 PM   #28
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Wink

Quote:
Originally Posted by 18psi View Post
lol, so you don't care about power either?
cause you're still rocking one with the lamest excuse I've ever heard.
Hay now i have to dyno to see how it does with this tirbo. On my old trbo i held power to 8000
Faeflora is offline   Reply With Quote
Old 03-19-2012, 03:57 PM   #29
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

You realize how retarded that is right? With a ginormous turbo it will of course compensate for the restriction by cramming insane pressure through the mani and you most likely won't even see a dropoff at all. Because that turbo is probably bigger than your engine.

Anyways, back on topic.
18psi is offline   Reply With Quote
Old 03-19-2012, 04:17 PM   #30
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Wut???


Me no understand. R u saying that big turbo no need intakemani?????
Faeflora is offline   Reply With Quote
Old 03-19-2012, 04:25 PM   #31
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

I'm saying just because you're not seeing the power plummet up top doesn't mean you wouldn't gain a good chunk of power from switching to the hawnduhh mani. just like the 2.5" vs 3" exhaust argument. Both make power, one just makes more of it.

I really hope thirdgen gets some really good and consistent logs when he hogs out his though. So far the 4 examples I've seen 1 gained 10hp and 3 either didn't gain anything or lost a few.
18psi is offline   Reply With Quote
Old 03-19-2012, 07:03 PM   #32
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by 18psi View Post
I'm saying just because you're not seeing the power plummet up top doesn't mean you wouldn't gain a good chunk of power from switching to the hawnduhh mani. just like the 2.5" vs 3" exhaust argument. Both make power, one just makes more of it.

Hmm interesting. I mean honestly, I know that I would be best with a nice 4L dual plenum with medium runners.

ARTech may be helping me out with that. Gotta get car on road first
Faeflora is offline   Reply With Quote
Old 03-20-2012, 01:04 AM   #33
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Quote:
Originally Posted by 18psi View Post
So far the 4 examples I've seen 1 gained 10hp and 3 either didn't gain anything or lost a few.
Were those examples on real dyno's? I'm not busting on virtual dyno, simply because people bust on me when I do pulls with my g-tech pro. They say "that thing is BS". Really? Then how come everytime I ran the actual 1/4 mile, my g-tech was within 2/10's on a second?
Virtual dyno may be correct, but I just like to see actual physical properties to give a genuine answer. Another difference between everybody elses results will be my turbo selection, my IC plumbing sizing, my atmospheric conditions, my IAT temp, etc.
thirdgen is online now   Reply With Quote
Old 03-20-2012, 01:19 AM   #34
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Sav posted up real dyno comparisons of honda mani
So did levnubnin
So did leatherface

iirc
18psi is offline   Reply With Quote
Old 03-20-2012, 01:21 AM   #35
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

thirdgen is online now   Reply With Quote
Old 03-31-2012, 11:37 PM   #36
Slowest Progress Ever
Thread Starter
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default Played with the plasma cutter and die grinder today...

My attempt at gutting the '99 intake-lower2.jpg

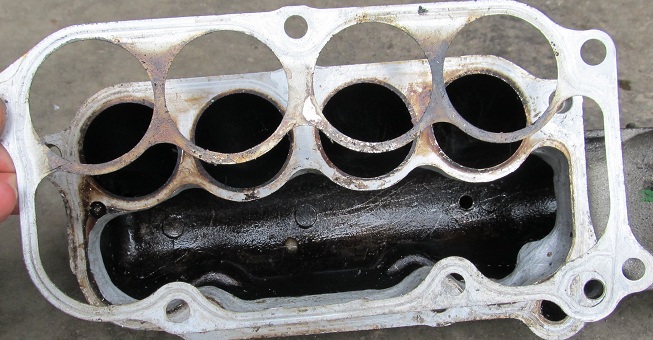

My attempt at gutting the '99 intake-upper2.jpg

Today I cut the upper plenum out with a plasma cutter, then took a die grinder with a carbie bit and smoothed it all out.
The only thing I removed on the lower plenum was the little port between 2&3. I did this just for piece of mind to better evenly distribute airflow to the VICS.
This all took me like 2 hours of my Saturday, and I hope it'll make a difference when I eventually put it on the car.
I'm just glad I finally actually did some work on performance miata related stuff.
thirdgen is online now   Reply With Quote
Old 02-10-2013, 02:09 PM   #37
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by pdexta View Post
Blue is stock, Red is with the ported top. Both done at 15psi.

This is not valid. Until 5.25k the lines would be the same.
triple88a is offline   Reply With Quote
Old 02-11-2013, 07:52 AM   #38
Senior Member
iTrader: (1)

Join Date: Jan 2013
Location: Jacksonville FL
Posts: 649
Total Cats: 211
Default

Quote:
Originally Posted by triple88a View Post
This is not valid. Until 5.25k the lines would be the same.
Not necessarily, although I'm always a little bit leery of virtual dyno pulls- It's possible that gutting the manifold might have a detrimental effect on how air flows into the normal intake runners at all RPM ranges. And while VD is sort of inaccurate in terms of generating absolute quotable numbers, it is useful for comparing before and after situations like this.
Pinky is offline   Reply With Quote
Old 02-12-2013, 08:29 AM   #39
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Honestly my experience with Virtual dyno has been horrible. I've yet to get 2 similar plots even when ran back to back.
triple88a is offline   Reply With Quote
Old 02-12-2013, 09:40 AM   #40
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 128
Default

Quote:
Originally Posted by triple88a View Post
This is not valid. Until 5.25k the lines would be the same.
I've got no problem with someone questioning my results, but insisting the graphs would be identical to 5250rpms between a stock manifold and one with the top of the manifold ported is just blatantly ignorant. Perhaps you've never looked in a 99 manifold before?

I can't remember where I posted the completed results (with top and bottom ported) but my results showed a decent gain up top but still lost a little down low. FWIW.
pdexta is offline   Reply With Quote
