Old 04-22-2015, 10:39 PM   #61
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by williams805 View Post
100% street. Tried changing driving habits and absolutely nothing changed. This was my last attempt before next overbore, new rings... Glad this seems to have worked.

What PtW clearance and ring gaps are you running? Your Pistons do have the drain back holes near the oil control ring right?
I'm not sure what the piston-to-wall clearance is, I gave the pistons and block to the machinist and let him worry about it (same machinist Savington uses for his builds, so it's probably whatever Savington usually sets them at). Ring gap is .018 for the top, .020 for the second ring, IIRC.

The pistons have holes near the oil control ring, yes:



--Ian
codrus is offline   Reply With Quote
Old 04-23-2015, 01:54 AM   #62
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

Same gaps as mine. My rings are wiseco XX. Is that what you have?

My PtW is .0036", .0037", .0038" and .0039". These were measured on the engine stand and it makes me wonder if on a table they would be a little closer together. One ten thousandth every hole out from the stand. A little loose, but I wouldn't say excessive.
williams805 is offline   Reply With Quote
Old 04-23-2015, 04:24 AM   #63
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by williams805 View Post
Same gaps as mine. My rings are wiseco XX. Is that what you have?

My PtW is .0036", .0037", .0038" and .0039". These were measured on the engine stand and it makes me wonder if on a table they would be a little closer together. One ten thousandth every hole out from the stand. A little loose, but I wouldn't say excessive.
For rings, I have whatever it is that TSE sells, because that's where I bought them.

Did you bore with a bore plate?

--Ian
codrus is offline   Reply With Quote
Old 04-23-2015, 08:35 AM   #64
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,701
Total Cats: 319
Default

This makes me sad. My motor is already in the car, with Supertechs and squirts. But I guess it doesn't matter, I don't have consumption issues because my car doesn't run. I should finish that huh?
psyber_0ptix is online now   Reply With Quote
Old 04-23-2015, 10:20 AM   #65
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

No plate. I didn't find out I could rent one until afterward.
williams805 is offline   Reply With Quote
Old 04-23-2015, 11:21 AM   #66
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

For what it's worth, I have Weisco low comp pistons, factory squirters, and run Rotella T6. I drive mostly street (sometimes hard) and produce a peak of a bit over 300whp.

The only oil consumption I seemed to have was when my tuner had the car for 3 weeks and was romping on in on the street and the dyno and during that time it needed an extra half quart or so. For when I drive the car, my oil level stays fairly steady (nothing that is concerning) and certainly not as bad as the OP had with his setup.

My motor is not the tightest setup either, so some use is expected. I even asked the tuner what he thought about the oil consumption and he said that for the power the car is producing and how he was driving it, it was totally normal. I had a habit of checking my oil level at work and always panicked about it reading low until I realized our parking lot is not flat.
Mazdaspeeder is offline   Reply With Quote
Old 04-23-2015, 02:36 PM   #67
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

Do the wiseco's have the drain back holes in the pistons?

I've made a habit of always parking in the same spot at work. Pretty level by eyeball. However more importantly I alway check it there so I can see if it has actually lost some or not. It really doesn't take much tilt to really throw things off.
williams805 is offline   Reply With Quote
Old 04-23-2015, 02:37 PM   #68
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Quote:
Originally Posted by williams805 View Post
Do the wiseco's have the drain back holes in the pistons?

I've made a habit of always parking in the same spot at work. Pretty level by eyeball. However more importantly I alway check it there so I can see if it has actually lost some or not. It really doesn't take much tilt to really throw things off.
I do not remember off the top of my head, and I don't have photos of the piston bottoms. Yes, level can really mess with the oil level, especially in my lot where the nose is angled down and the back of the pan (dipstick part) gets low for no reason

The pistons did have some holes, IIRC where the oil control rings go.
Mazdaspeeder is offline   Reply With Quote
Old 04-23-2015, 02:43 PM   #69
Goin Innnnn!!!
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 460
Total Cats: 40
Default

99% sure wisecos have oil drainback holes on oil control ring lands. My 10.5:1 ones did at least.
Chooofoojoo is offline   Reply With Quote
Old 04-23-2015, 02:45 PM   #70
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

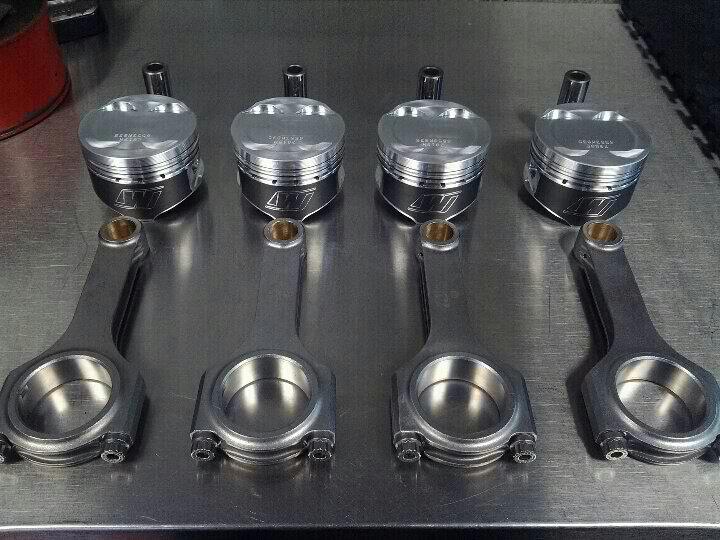

Here are my Weiscos before they went in



Attached Thumbnails
Oil squirters/ piston oilers discussion-198065_580030131137_1554977718_n.jpg
Mazdaspeeder is offline   Reply With Quote
Old 06-06-2015, 01:18 PM   #71
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

Update: at 2200 miles since removing the squirters, I added one quart. So far oil consumption is roughly cut in half.

I'm thinking that hone and PTW clearance are the contributing factors here. Although not ideal, I can live with 1/2 quart in 1K miles. I may be going on a pretty long road trip in the next few weeks so I'll get to see if consumption goes down with less cold starts in between fills.
williams805 is offline   Reply With Quote
Old 06-06-2015, 01:44 PM   #72
Goin Innnnn!!!
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 460
Total Cats: 40
Default

Installed and have about 500mi on new engine without squirters. Wiseco 10.5:1, coated skirts, .003" p2w clearance, XX rings.

Have been driving the crap out of motor during break-in and not a lick of oil loss, oil pressure is rock solid, oil temps have been more stable, and about 10 cooler than last motor. Aples to oranges comparing motors, but I am very happy with my choice to remove them for this build.
Chooofoojoo is offline   Reply With Quote
Old 06-08-2015, 11:33 AM   #73
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

You ***' have me second guessing my choice to leave the squirters in my motor.
EO2K is offline   Reply With Quote
Old 06-08-2015, 11:54 AM   #74
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

There is never a clear cut answer on this G, don't even stress about it
18psi is offline   Reply With Quote
Old 06-08-2015, 11:56 AM   #75
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

Yeah, seriously. I know of two vendors on here who run them in all their engines.
williams805 is offline   Reply With Quote
Old 06-08-2015, 11:57 AM   #76
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Quote:
Originally Posted by 18psi View Post
There is never a clear cut answer on this G, don't even stress about it
I'd say for sure, stock cast pistons, keep them. The pistons will run cooler, which will help keep them alive.

For Weisco's, I would not run them as they are not needed due to the alloy. They will not get hot enough to ever fail from temperature in normal use since they are much stronger at temp vs other alloys.
patsmx5 is online now   Reply With Quote
Old 06-08-2015, 11:59 AM   #77
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Quote:
Originally Posted by williams805 View Post
Yeah, seriously. I know of two vendors on here who run them in all their engines.
Supertechs are not as strong at higher temps than Weisco due to the alloy. So they help keep those pistons alive. I wouldn't run supertechs, but if I did, I'd run the squirters to help keep them cool/happy.

Squirters/no squirters really depends on the piston you are running.
patsmx5 is online now   Reply With Quote
Old 06-09-2015, 02:41 PM   #78
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

I wouldn't put Supertech pistons in my lawn mower......just saying.
TNTUBA is offline   Reply With Quote
Old 06-09-2015, 04:49 PM   #79
Senior Member
Thread Starter
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

Quote:
Originally Posted by TNTUBA View Post
I wouldn't put Supertech pistons in my lawn mower......just saying.
Seeing your car... your lawn mower probably has more power than my car.
williams805 is offline   Reply With Quote
Old 06-09-2015, 04:52 PM   #80
Goin Innnnn!!!
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 460
Total Cats: 40
Default

Quote:
Originally Posted by williams805 View Post
Seeing your car... your lawn mower probably has more power than my car.
My Thoughts exactly.
Chooofoojoo is offline   Reply With Quote
