Old 04-14-2014, 10:10 PM   #21
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Cam seals and valve cover gasket are good. No cas, that plug is holding fine. It's pooling under the water pump on top of the oil pump. Trickling by that hex cap (that covers the relief valve?)

Motor has to come out again. I just don't know how to seal it any better than I had the first time.

Liberal amounts, finger tighten, wait 30 minutes, then torque all the way?
psyber_0ptix is offline   Reply With Quote
Old 04-14-2014, 10:43 PM   #22
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Quote:
Originally Posted by Savington View Post
Nonono. 90-93 had a paper gasket and no o-ring. 94-05 had an o-ring, no gasket, and RTV. If your pump has a groove line for RTV and a channel for an o-ring around the pressure port, don't use a gasket.
I've used just a gasket before. It was a mess shortly after the first start up.

And I seriously doubt I had a '94+ oil pump.
curly is offline   Reply With Quote
Old 04-15-2014, 08:11 AM   #23
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

The oil pump I have is shimmed to run at a slightly higher oil pressure (+14psi), this shouldn't overpower the o-ring in any way right? I don't need to move on to a fatter plush oring to create a tighter seal?

In any event, stock parts are coming in soon. Just the last question:

Do you guys wait for the RTV to become tacky before you fully torque against the block, or do you just tighten it and hope for the best?
psyber_0ptix is offline   Reply With Quote
Old 04-15-2014, 08:23 AM   #24
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by psyber_0ptix View Post
The oil pump I have is shimmed to run at a slightly higher oil pressure (+14psi), this shouldn't overpower the o-ring in any way right? I don't need to move on to a fatter plush oring to create a tighter seal?

In any event, stock parts are coming in soon. Just the last question:

Do you guys wait for the RTV to become tacky before you fully torque against the block, or do you just tighten it and hope for the best?
My BE pump is also shimmed and I had no leaks at it with the stock OEM o-ring or one made at the local hydraulic shop.
shuiend is offline   Reply With Quote
Old 04-15-2014, 03:09 PM   #25
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by curly View Post
I've used just a gasket before. It was a mess shortly after the first start up.

And I seriously doubt I had a '94+ oil pump.
I don't build 1.6s, but Comp had the wrong p/n on their '94 page for the oil pump so I ended up with a 1.6 pump for a custom '94 build (my standard builds get Boundary VVT pumps). Gasket only, no o-ring, no RTV, clean surfaces, no mess.
Savington is offline   Reply With Quote
Old 04-15-2014, 03:13 PM   #26
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by Savington View Post
Gasket only, no o-ring, no RTV, clean surfaces, no mess.
+1.

It really should be either/or, not both. Something else was wrong with your 1.6 Curly.
hornetball is offline   Reply With Quote
Old 04-15-2014, 03:30 PM   #27
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Huh, weird. It's leakless as of now, so oh well.
curly is offline   Reply With Quote
Old 04-15-2014, 03:40 PM   #28
Senior Member

Join Date: Feb 2007
Location: Aliso Viejo, CA
Posts: 799
Total Cats: 175
Default

I am also using a +1 shim BE pump, RTV in the groove, no gasket. No leaks south of the head gasket. All my issues are up top, valve cover and cam seals.
doward is offline   Reply With Quote
Old 04-15-2014, 03:52 PM   #29
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by doward View Post
I am also using a +1 shim BE pump, RTV in the groove, no gasket. No leaks south of the head gasket. All my issues are up top, valve cover and cam seals.
Are you running the rubber O ring? I just looked and my new OEM pump has the groove for it, but did not come with a new o-ring. Guess that is what I'll be hunting down next.
Fireindc is offline   Reply With Quote
Old 04-15-2014, 03:58 PM   #30
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

From reading several install articles, it just looks like I lay the bead of RTV and bolt the pump right on completely. I had previously installed it, left it finger tight, then after a half an hour, tightened the rest of the way. Perhaps this method (read from somewhere I cannot locate) allowed for the creation of microchannels as the RTV started to set. My bad. Redo.



Quote:
Originally Posted by Fireindc View Post
Are you running the rubber O ring? I just looked and my new OEM pump has the groove for it, but did not come with a new o-ring. Guess that is what I'll be hunting down next.
O-RING (FE1H-14-122B) - $3.76 - FE1H14122B
psyber_0ptix is offline   Reply With Quote
Old 04-15-2014, 05:16 PM   #31
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by psyber_0ptix View Post
From reading several install articles, it just looks like I lay the bead of RTV and bolt the pump right on completely. I had previously installed it, left it finger tight, then after a half an hour, tightened the rest of the way. Perhaps this method (read from somewhere I cannot locate) allowed for the creation of microchannels as the RTV started to set. My bad. Redo.
I used this method for my oil pan the last time I had it off with great success. However, for the pump i'd agree that this is a bad idea. I'd put a light line of silicone on there and torque it to spec immediately, then let it dry.
Fireindc is offline   Reply With Quote
Old 04-15-2014, 05:49 PM   #32
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

In general, letting RTV setup a bit (15 minutes or so) prior to final torque is good practice (for example, do this on your oil pan). For the pump, it's imperative to get the O-ring fully compressed -- so torque right away.
hornetball is offline   Reply With Quote
Old 04-15-2014, 09:10 PM   #33
Junior Member

Join Date: Oct 2009
Location: SF, Bay Area
Posts: 63
Total Cats: 0
Default o ring

I had to pull my motor once because I didn't realize the pump I got needed an o-ring. I was pissed, at myself.
mx5booster is offline   Reply With Quote
Old 04-20-2014, 11:41 AM   #34
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

I just started the car up after sealing it back up nice and fresh. It still leaks; looks like from the same area. I wonder if the surfaces aren't flat.

Anyone have any leak issues with boundary engineering pumps? I'm at such a loss I have no idea what to do. I have no clue if a dealer would even touch this. But I have no facility to pull the motor myself another time.

anyone in the new england area willing to take on an oil pump job for pay?
psyber_0ptix is offline   Reply With Quote
Old 04-21-2014, 12:50 AM   #35
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Did you use dye? Do you know EXACTLY where your leak is coming from?
hornetball is offline   Reply With Quote
Old 04-21-2014, 02:06 AM   #36
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Yea the first time I saw it pooling at the top of the oil pump near where the o ring was housed. It's the same. I'm wondering if the o ring is unseating itself
psyber_0ptix is offline   Reply With Quote
Old 04-21-2014, 05:31 PM   #37
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Pooling at the top of the oil pump makes me think cam seals.

Seriously, clean it up, dye it, run (idle only in the driveway -- no airflow) until you have oil. Take a black light picture for us.

I would be shocked at this point if you have an oil pump leak. Remember the definition of insanity.
hornetball is offline   Reply With Quote
Old 04-21-2014, 05:45 PM   #38
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Wouldn't it collect on the water pump first?

I tried taking a picture/video today of the location and it's near impossible for me to angle properly and provide light.

I can try again, but last time I used the UV dye, the valve cover gasket and cam seals were fine. Even the back of the block didn't show evidence of leakage.

Last edited by psyber_0ptix; 04-22-2014 at 10:17 AM.
psyber_0ptix is offline   Reply With Quote
Old 04-21-2014, 05:46 PM   #39
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

I think Leach took some images on his phone of the UV mess
psyber_0ptix is offline   Reply With Quote
Old 04-22-2014, 10:16 AM   #40
Junior Member

Join Date: Sep 2012
Location: Cranston, RI
Posts: 276
Total Cats: 10
Default

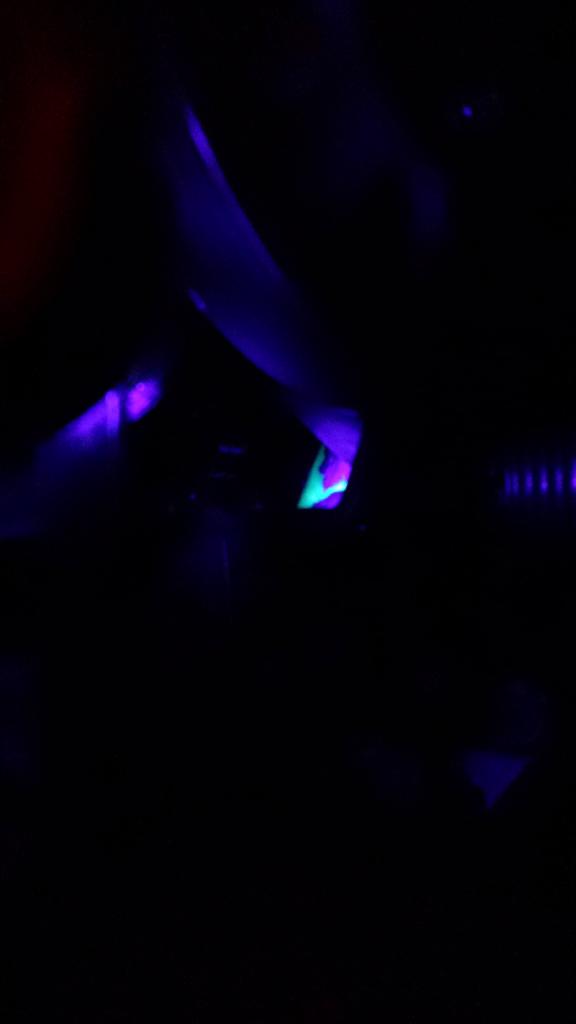

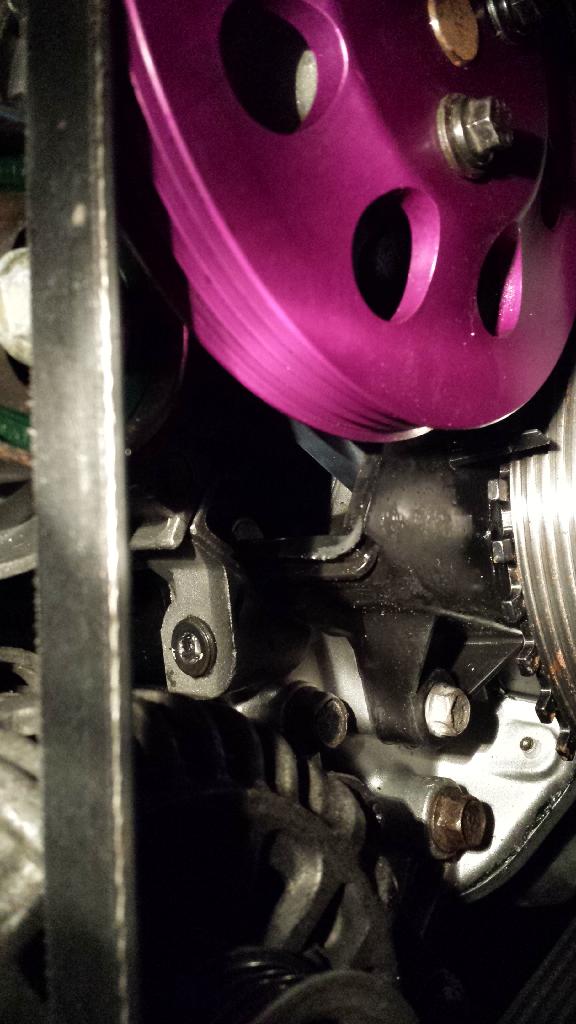

Same photo first in normal light, then blacklight.



Attached Thumbnails
Re-sealing an oil pump?-20140414_205743_zpstk4f104y.jpg   Re-sealing an oil pump?-20140414_205719_zpsv2eurhjj.jpg
Leach0789 is offline   Reply With Quote
