Old 08-14-2013, 12:12 PM   #21
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Quote:
Originally Posted by 18psi View Post
wat?
In the same way the combustion pressure pushes the rings against the cylinder walls, the vacuum pulls the rings to the walls during intake stroke, and increases VE. Supposedly.

Dann
nitrodann is offline   Reply With Quote
Old 08-14-2013, 12:16 PM   #22
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Dont send it directly back to the sump. Part of the job of the crank case vent is to evacuate combustion acids, gasoline, and water from the oil. Most of those are vapors at operating temp, but a good bit of them will cool down to a liquid and get left in the catch can. These are things you dont want going back into the crank case. If you REALLY want it to auto drain I would put a coolant loop through the liquid in the catch can to keep it above 180*F and put a restrictor in the drain line so it takes a long time for the can to drain. Otherwise just make it easy to take out and drain into the waste oil bucket.
Leafy is offline   Reply With Quote
Old 08-14-2013, 12:16 PM   #23
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

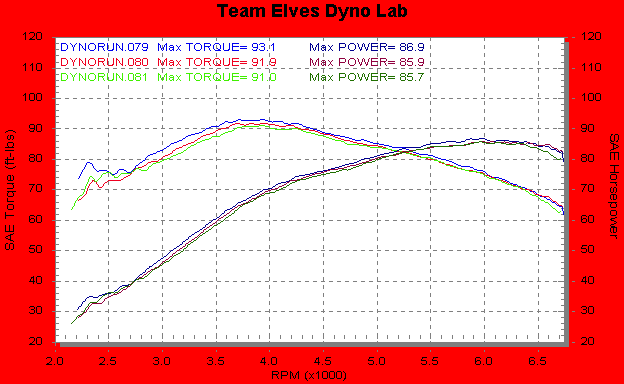

So far with the keywords i'm using this is the only site with dynos i've found. Motorcycle dyno testing...

Red is stock.

Blue is with vacuum source applied to the breather hose.

Green is with it just flowing out to the atmo.

Attached Thumbnails
Slash cuts, whos got the info?-7869.gif
triple88a is offline   Reply With Quote
Old 08-14-2013, 12:19 PM   #24
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

hmm so we're talking 1 or less hp. Noticeable is an overstatement, but looks like there might be at least some merit to doing this
18psi is offline   Reply With Quote
Old 08-14-2013, 12:21 PM   #25
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by 18psi View Post
hmm so we're talking 1 or less hp. Noticeable is an overstatement, but looks like there might be at least some merit to doing this
On a tiny 2 cyl 600cc motor yes.
triple88a is offline   Reply With Quote
Old 08-14-2013, 12:21 PM   #26
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

This is supposedly a big part of why dry sumps make more power also.

Ok, so if miataturbo can collectively design a catch can setup Ill build it and run it on a customers car, lucky bastard.

Obviously Ill post results.

And then everyone will say I faked them of course.

Dann
nitrodann is offline   Reply With Quote
Old 08-14-2013, 12:23 PM   #27
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Quote:
Originally Posted by 18psi View Post
hmm so we're talking 1 or less hp. Noticeable is an overstatement, but looks like there might be at least some merit to doing this
Looks like between 1 and 2% and we have no idea what amount of vac we are talking about.

Thats 5hp on a serious BP. Which also likely has way worse ring seal than a tiny n/a bike, so could be more.

Dann
nitrodann is offline   Reply With Quote
Old 08-14-2013, 12:25 PM   #28
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Quote:
Originally Posted by triple88a View Post
On a tiny 2 cyl 600cc motor yes.
Thats a 2 pop 600 making 85hp stock? I guess that seems reasonable, just remember that compared to cars sport bike engines are basically full out 10 hour race engines, they only last longer because the smaller size reduces the forces.
Leafy is offline   Reply With Quote
Old 08-14-2013, 12:26 PM   #29
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Quote:
Originally Posted by nitrodann View Post
This is supposedly a big part of why dry sumps make more power also.

Ok, so if miataturbo can collectively design a catch can setup Ill build it and run it on a customers car, lucky bastard.

Obviously Ill post results.

And then everyone will say I faked them of course.

Dann
Google images is your friend.

Also if you stopped whining about people calling your bs dyno's long enough to actually get legitimate results we'd like you a whole lot more on here.
18psi is offline   Reply With Quote
Old 08-14-2013, 12:30 PM   #30
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Drove it yesterday, came from the dyno retune for spool with a hair under 500tq.
Eat a dick
Shreds 5th gear with 18" reemz. I dont need your approval.


So catch cans.

I dont want photos of cylinders with pipes in them , I meant internal design, where the hoses go, how the baffles look etc.

I'll do it all and post results and everyone gets a bit smarter.

Dann
nitrodann is offline   Reply With Quote
Old 08-14-2013, 12:31 PM   #31
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,579
Total Cats: 155
Default

Quote:
Originally Posted by 18psi View Post
Google images is your friend.

Also if you stopped whining about people calling your bs dyno's long enough to actually get legitimate results we'd like you a whole lot more on here.
I think there are plenty of us that like Dann just fine now. I am not saying he is Jesus but I enjoy his enthusiasm to try things and the fact that he will then produce write up and share with the community. He may not have done anything revolutionary but he provides good documentation and pictures to help guide others through the process.

Keep at it Dann, I enjoy your posts and silently soak up as much info as I can even if you posted a wonky looking dyno.
Ryan_G is offline   Reply With Quote
Old 08-14-2013, 12:38 PM   #32
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Thankyou Ryan. I know people appreciate it because I would have not too long ago.

The main upshot I have is that my time is worth **** all to anyone and there are plenty of enthusiastic people who want to try **** out, so in the process of making a buck and building parts I can learn by doing, and teach by documenting. I enjoy it.

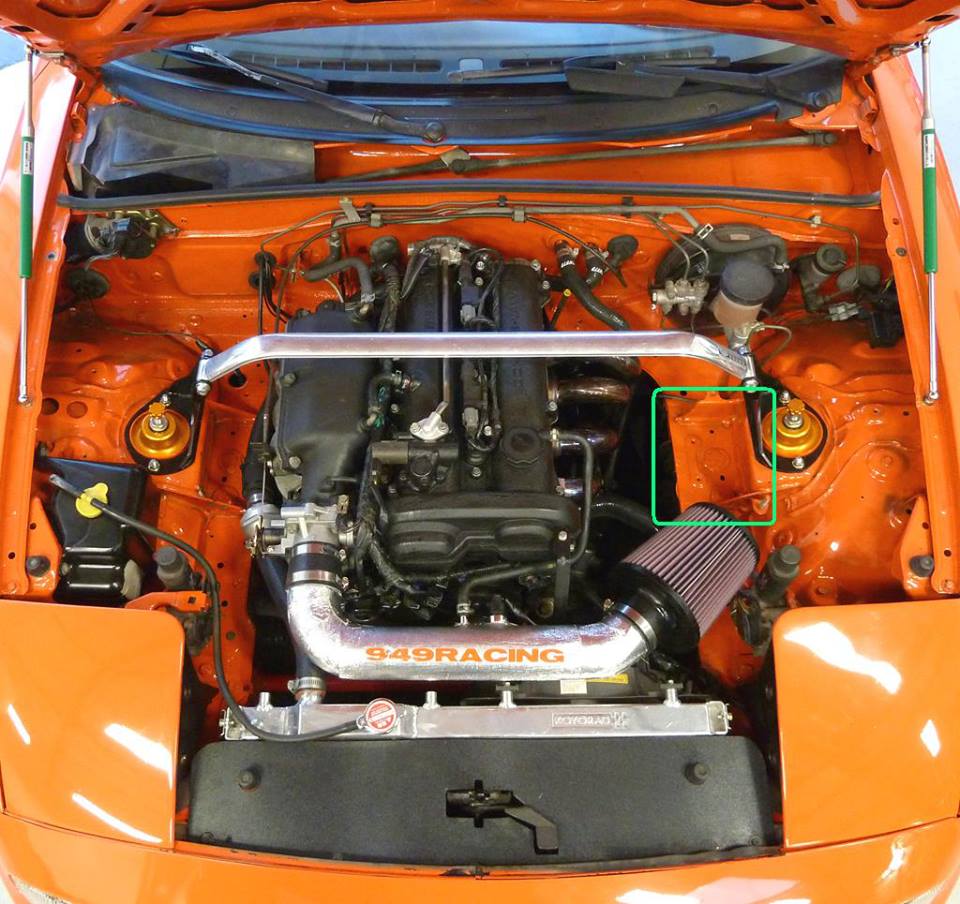

Anyways, This is my plan so far,
Fit catch can in this location, using oem weld nuts to secure it.



I want to run 2x1/2" hoses into it, It seems one from the OEM hotside and another from the rear of the hotside, other one blocked somehow (welded I spose).

One outlet on the bottom, the MSM drips straight back to the sump but perhaps that isnt ideal.

And one outlet on the other side of a baffle to a slash cut on the downpipe.

But Im concerned about the fitting welded to the exhaust getting very hot and damaging the rubber hose which connects it to the catch can.

Dann
Attached Thumbnails
Slash cuts, whos got the info?-1150415_186243278219699_1219625431_n.jpg
nitrodann is offline   Reply With Quote
Old 08-14-2013, 12:42 PM   #33
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Why not build a cover for the header and eliminate 2 problems with 1 stone?
triple88a is offline   Reply With Quote
Old 08-14-2013, 12:47 PM   #34
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Quote:
Originally Posted by triple88a View Post
Why not build a cover for the header and eliminate 2 problems with 1 stone?
If you mean for the car above, well to start Im in Australia and that car is in america, also it belongs to Emilio and he probably doesnt want some teenagers grubby hands all over it.

Dann

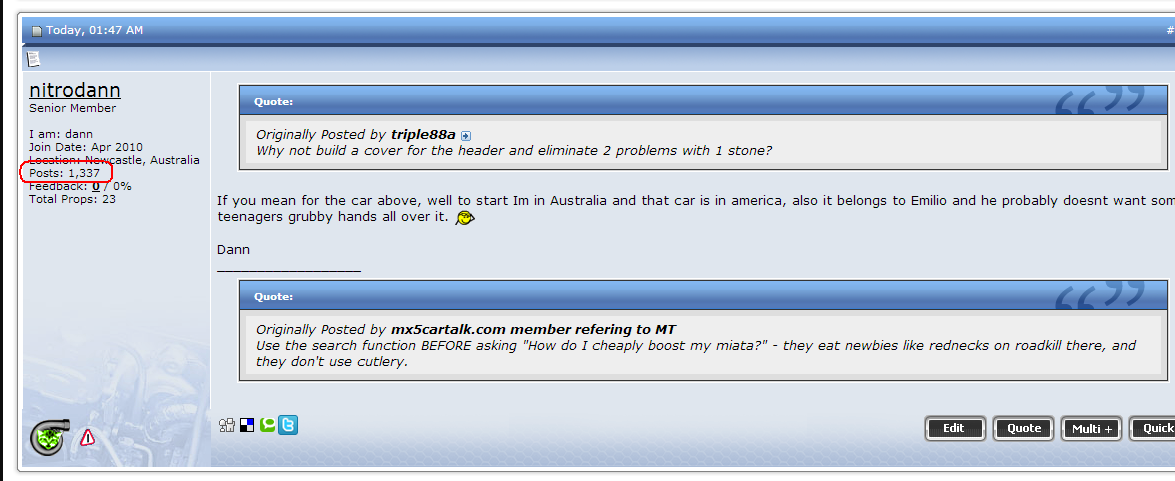

EDIT: Now I cannot post again for weeks, until the awesome seen here wears off, ****.



Attached Thumbnails
Slash cuts, whos got the info?-leet.png

Last edited by nitrodann; 08-14-2013 at 01:17 PM.
nitrodann is offline   Reply With Quote
Old 08-14-2013, 12:57 PM   #35
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Yeah i thought it looked familiar.
triple88a is offline   Reply With Quote
Old 08-14-2013, 01:02 PM   #36
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Attached Thumbnails
Slash cuts, whos got the info?-f7944_orig-i_am_monitoring_this_thread.jpg
Fireindc is offline   Reply With Quote
Old 08-15-2013, 04:11 AM   #37
Junior Member

Join Date: Dec 2006
Location: Vancouver, BC
Posts: 131
Total Cats: 6
Default

Quote:
Originally Posted by nitrodann View Post
So catch cans.

I dont want photos of cylinders with pipes in them , I meant internal design, where the hoses go, how the baffles look etc.
Dann
This design looks pretty good:
Saikou Michi OCC Explanation
VanMSM is offline   Reply With Quote
Old 08-16-2013, 07:32 PM   #38
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

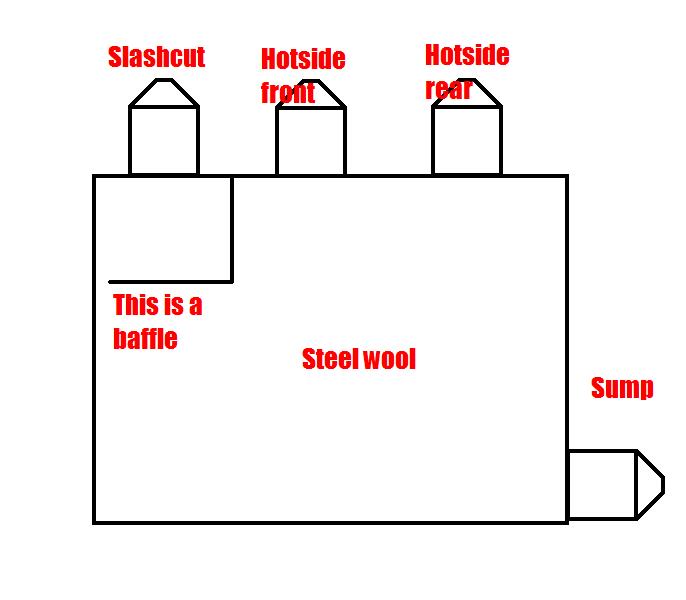

The customer has agreed to my terms which include dyno testing this setup with the slash cut fitted and slash free back to back.

Im pretty sure this will suffice.



Anyone?

Probably around a quart. maybe 2.

1/2" hoses.

Dann
Attached Thumbnails
Slash cuts, whos got the info?-catch_can.jpg
nitrodann is offline   Reply With Quote
Old 08-17-2013, 04:57 AM   #39
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I would put the hotsides on the bottom corner by the sump. Also would make it more vertical.
triple88a is offline   Reply With Quote
Old 08-17-2013, 09:45 AM   #40
Elite Member
Thread Starter

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

why on the bottom?
