Default Weakest points in engine?

Hi all.

Curious to know at what levels of power and/or boost components start failing. Ive read time and again that rods will go at c.250bhp in both the 1.6 and 1.8 NA and NB, but I'm more interested in once stronger rods pistons (and potentially crank) have been fitted (crank obviously 1.8). Where are the weaknesses?

Thanks in advance for any input, and apologies if this is a common question by I couldn't find what I was looking for through searching.
Reubiedoo is offline   Reply With Quote
Old 06-23-2016, 07:32 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

No one that I can think of (on this site) has tested the limits like that around here, and those that did break stuff broke different things, so the results are inconclusive.

You start breaking things like transmission, axles, etc and 90% of your drivetrain becomes a consumable.
18psi is offline   Reply With Quote
Old 06-23-2016, 07:49 PM   #3
Newb
Thread Starter

Join Date: Jun 2016
Posts: 17
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
No one that I can think of (on this site) has tested the limits like that around here, and those that did break stuff broke different things, so the results are inconclusive.

You start breaking things like transmission, axles, etc and 90% of your drivetrain becomes a consumable.
So you roll the dice and take your chances? I'm not aiming for huge figures, so if those upgrades and the rest of the lump will be safe to 300 then I have no worries. Just wanted to make sure everything is well within tolerance.

Thanks.
Reubiedoo is offline   Reply With Quote
Old 06-23-2016, 07:52 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

300 is no problem. we have people at 450-500 with not much more than rods/pistons
18psi is offline   Reply With Quote
Old 06-23-2016, 07:58 PM   #5
Junior Member

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

Quote:
Originally Posted by Reubiedoo View Post
So you roll the dice and take your chances? I'm not aiming for huge figures, so if those upgrades and the rest of the lump will be safe to 300 then I have no worries. Just wanted to make sure everything is well within tolerance.

Thanks.
Just put a 2jz in yo
Shortpersonbk is offline   Reply With Quote
Old 06-23-2016, 08:05 PM   #6
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 129
Default

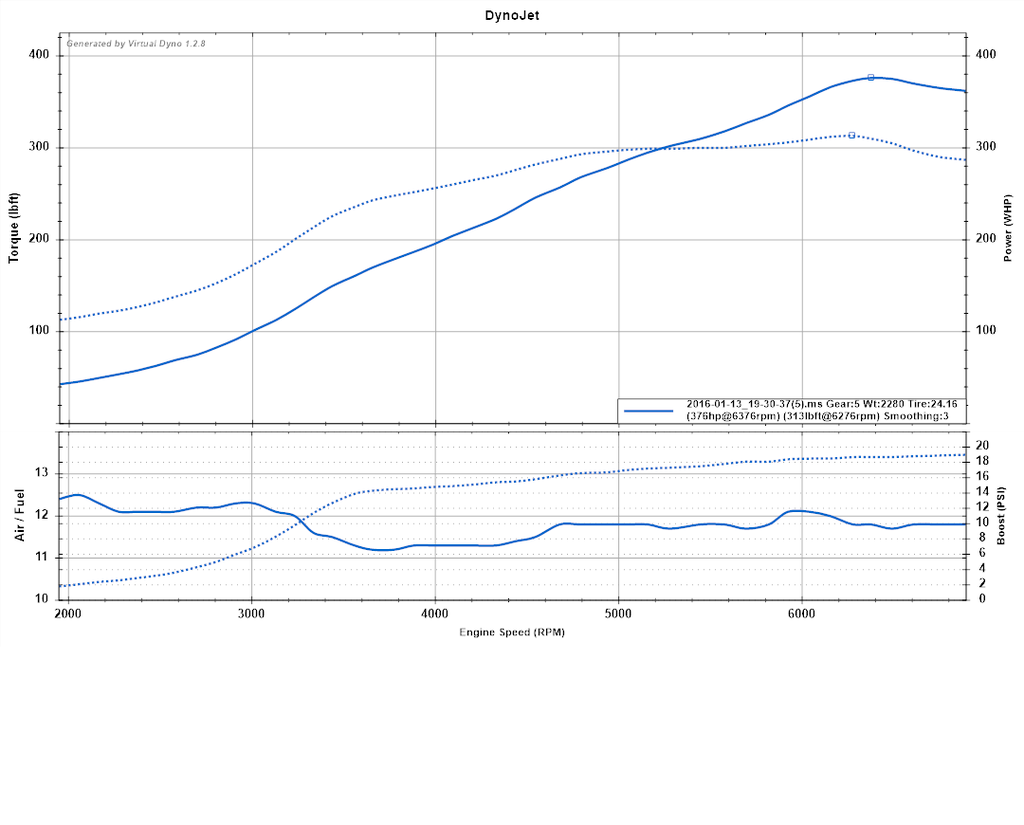

I daily drove a miata over 30k miles at over 300whp on a stock NA8 bottom end with eagle rods (stock pistons and everything else). My last miata was at ~370whp for about 5k miles before I broke the 6 speed transmission.

Maybe I've just been lucky, but I've never broken anything in the motor other than things that are the direct result of my shoddy mechanic skills.



Attached Thumbnails
Weakest points in engine?-20160116_133935.jpg   Weakest points in engine?-11.13.15.pull.png
pdexta is offline   Reply With Quote
Old 06-23-2016, 08:07 PM   #7
Newb
Thread Starter

Join Date: Jun 2016
Posts: 17
Total Cats: 0
Default

Quote:
Originally Posted by Shortpersonbk View Post
Just put a 2jz in yo
Ha I'd love to but I think the only way to get one in the UK is out a Supra.
Reubiedoo is offline   Reply With Quote
Old 06-23-2016, 08:14 PM   #8
Newb
Thread Starter

Join Date: Jun 2016
Posts: 17
Total Cats: 0
Default

Quote:
Originally Posted by Shortpersonbk View Post
Just put a 2jz in yo
Quote:
Originally Posted by pdexta View Post
I daily drove a miata over 30k miles at over 300whp on a stock NA8 bottom end with eagle rods (stock pistons and everything else). My last miata was at ~370whp for about 5k miles before I broke the 6 speed transmission.

Maybe I've just been lucky, but I've never broken anything in the motor other than things that are the direct result of my shoddy mechanic skills.



Wow I'd have been watching the bonnet the whole time waiting for something to smash up through it.
Reubiedoo is offline   Reply With Quote
Old 06-23-2016, 08:16 PM   #9
Junior Member
iTrader: (1)

Join Date: Jan 2016
Location: Utah
Posts: 109
Total Cats: -30
Default

The only time I let somebody besides me drive my car my cam broke. and I'm only pushing 185whp. No idea how he did it, but nonetheless it was done.
Pretending2koolz is offline   Reply With Quote
Old 06-23-2016, 08:19 PM   #10
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

I have an expensive motor now, but if it were to break, I'd use FM wiseco pistons, cheap ebay rods, an ATI damper (already have it, so I'd reuse it) and that's it. Boost the nuts off of it. OEM gaskets/seals, stock everything else.

I ran 20+ pounds of boost on a rods-only motor for years, though I did break stock pistons around 350whp (on pump gas, pdextra is on E85). I think a rods only motor would live on E85 at 350whp, pdextra's car is a great example of this.
patsmx5 is offline   Reply With Quote
Old 06-23-2016, 08:35 PM   #11
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Autocrossers break transmissions and axles, drag racers break axles and differentials, road racers break transmissions and CV joints.
Savington is online now   Reply With Quote
Old 06-23-2016, 08:39 PM   #12
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by Savington View Post
...road racers break transmissions and CV joints.
And rear hubs.

--Ian
codrus is offline   Reply With Quote
Old 06-23-2016, 11:03 PM   #13
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Daily Drivers break speed limits.
stefanst is offline   Reply With Quote
Old 06-24-2016, 10:23 AM   #14
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,062
Total Cats: 48
Default

Quote:
Originally Posted by stefanst View Post
Daily Drivers break speed limits.
I have seen a street only car strip out 3rd on a 5 speed. He was around 280-290hp to the rear though (on a 1.6!).

Yeah, from what I have seen/read, the motors are good with rods, pistons, damper and an oil pump for well above the power level where you will need to fix everything else in the drive train.
x_25 is offline   Reply With Quote
Old 06-24-2016, 01:08 PM   #15
Senior Member

Join Date: Jun 2015
Location: TAMPA, FL
Posts: 644
Total Cats: 27
Default

Consensus is:
1) Rods will break somewhere in the mid 200s. Where exactly depends on luck, how good of a tune, how much torque you make, etc.
2) There is dispute as to whether pistons are necessary or not. I think they give insurance personally and they're cheap compared to the total cost of a rebuild.
3) Oil pump gears are notorious for not liking big power or high rpm. Might as well upgrade the harmonic damper as well while you're in there.
4) Everything else is capable of holding immense amounts of power.
5) Except the transmission, which will become a wear item past 300whp. Six speed is stronger than the five speed, but neither one of them is going to tolerate more than say 350whp for long especially for sustained track duty.

The real annoying problem you'll eventually run in to is that the miata aftermarket has great resources for fixing every conceivable problem except transmission strength. A bunch of people here have awesome builds... and a couple of spare trannies sitting in the garage for when their OEM one breaks again.
AlwaysBroken is offline   Reply With Quote
Old 06-24-2016, 01:27 PM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

Many are keeping their fingers crossed for the hopefully near future T5 conversion setup
18psi is offline   Reply With Quote
Old 06-24-2016, 03:20 PM   #17
Senior Member

Join Date: Jun 2015
Location: TAMPA, FL
Posts: 644
Total Cats: 27
Default

His website reported being a week away from production... like five or ten years ago. I would love one too but I'm not holding my breath.
AlwaysBroken is offline   Reply With Quote
Old 06-24-2016, 03:38 PM   #18
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

Im not talking about begi. They are basically extinct.
Im talking about andrew/tse
18psi is offline   Reply With Quote
Old 06-24-2016, 04:10 PM   #19
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 170
Total Cats: 9
Default

Quote:
Originally Posted by x_25 View Post
I have seen a street only car strip out 3rd on a 5 speed. He was around 280-290hp to the rear though (on a 1.6!).

Yeah, from what I have seen/read, the motors are good with rods, pistons, damper and an oil pump for well above the power level where you will need to fix everything else in the drive train.
Mine is also a daily driver and broke 3rd gear of a 5speed. Virtualdyno tells my something like 275whp and 300wtq(lbft)
Vincentmiata is offline   Reply With Quote
Old 06-24-2016, 07:13 PM   #20
Mr Broke Pants
iTrader: (9)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,599
Total Cats: 30
Default

I'm getting a cryo treated 6 speed, with a few billet bronze parts. I doubt I'll break it soon, but I'm curious how it holds up to frequent racetrack/drag/very hard street driving. I only expect around 200wtq and 260whp.
thumpetto007 is offline   Reply With Quote
