Old 12-08-2012, 06:07 PM   #21
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Quote:
Originally Posted by miata2fast View Post
I am currently running a Webb Cam. I also thought they were good to work with.

Is your motor buillt to handle the extra rpm? How much port work have you done? Any flow testing? What about gearing? Brake booster?

The answers to those questions will help you determine how radical you should go.
and this is the ticket, you need to have some info and some goals. my motor was designed for high rpm power, im flowing just under 250cfm at .500 lift, i sent my flow data to integral and they recommended the R3/R1 combo for my application. my rpm goals were 9k
ctdrftna is offline   Reply With Quote
Old 12-08-2012, 10:58 PM   #22
Junior Member
iTrader: (1)

Join Date: Jan 2008
Posts: 161
Total Cats: 0
Default Megacycles

Although the catalog (on the website) does not show Mazda Miata, give them a call. Integralcams sold the profiles to them, look to spend 700 or so with core.

Megacycle Cams

I used to have a set from Integralcams, now I regret I got rid of them as the company IC went south.

(Note: see attachment)
Attached Files
File Type: pdf IntegralCams.pdf (156.7 KB, 143 views)
psiturbo is offline   Reply With Quote
Old 12-08-2012, 11:13 PM   #23
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

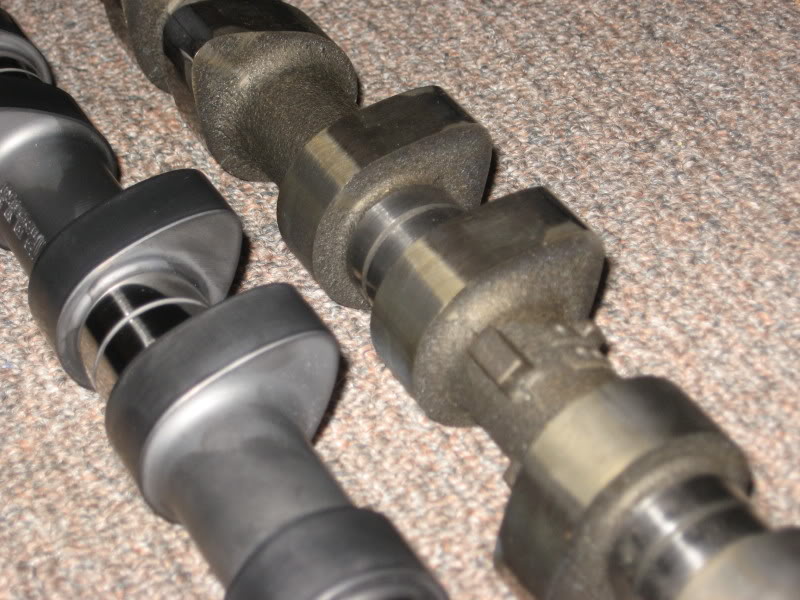

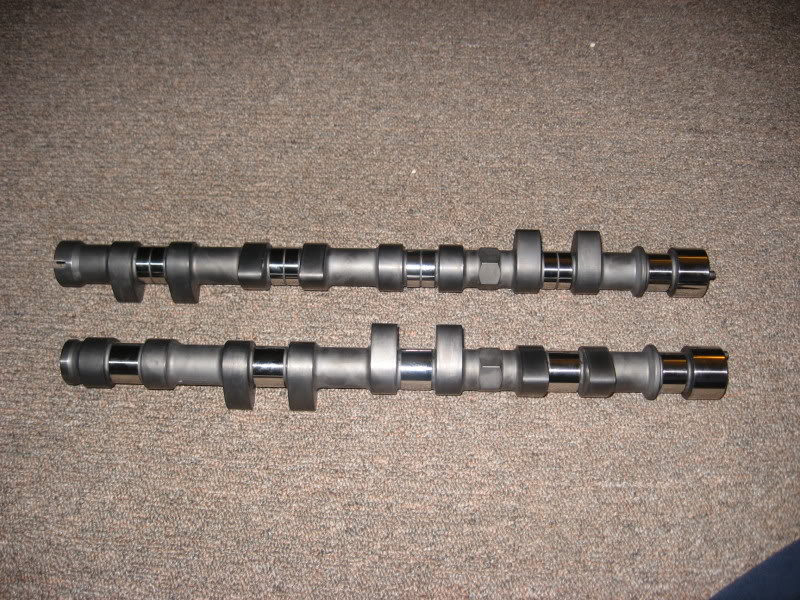

you shouldnt need cores with them, mine are full billet cams, most beautiful cams i have ever seen, and i have looked at alot of aftermarket cams for other engines.

Attached Thumbnails
what cams for turbo race car?-miata038.jpg   what cams for turbo race car?-miata040.jpg
ctdrftna is offline   Reply With Quote
Old 12-09-2012, 02:10 AM   #24
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,069
Total Cats: 253
Default

Every miata needs a set of Kelford 272's

viperormiata is offline   Reply With Quote
Old 12-09-2012, 05:16 AM   #25
Junior Member

Join Date: Oct 2009
Location: Anaheim hills, CA
Posts: 76
Total Cats: 4
Default

Quote:
Originally Posted by ctdrftna View Post
im running integral cams, they are out of business not, and were bought by another company, if you search you will find them, they do motorcycle stuff. they may make the cams for you though as the bought integrals grinds.

i am running

R3 intake .495 lift 292 duration
R1 exaust .455 lift 282 duration

i think those are the specs. i dont have the paper right in front of me. for the people who say cams dont make any difference are talking out there *** from no experience. I have talked to someone with a nearly identical engine setup,and turbo set up and i made 30 more horse and like 5psi less. and the main difference was that they had no cams.

i run a GT3071R and made 418 whp on a dynopack, at 18psi at 8000rpm. this is a race car and i idle the car at 1500 rpm. i had to mill clearence into the head so they could have room to spin, and convert to shim under bucket
Wow that is huge compared to any OTS cam offering. Do you run low cr pistons as well? I would think those cams would love ~10:1 cr + boost, or higher with e85.
1vicissitude is offline   Reply With Quote
Old 12-09-2012, 09:03 AM   #26
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

i am about 9.5:1 i think. those kelfords sound super aggresive, what is the setup ?



this is a better video

Last edited by ctdrftna; 12-09-2012 at 09:29 AM.
ctdrftna is offline   Reply With Quote
Old 12-10-2012, 01:43 AM   #27
Junior Member

Join Date: Oct 2009
Location: Anaheim hills, CA
Posts: 76
Total Cats: 4
Default

Sounds sexy! Iirc the 1.6 idling in that video wasn't tuned properly yet, which is why it sounded so crazy.

That is a 1.6 with kelford 272s
- - Retail -.1mm In/Ex 1mm In/Ex In. Ex Centerline in/ex
T203-C $600.00 - 272 272 230 230 10.00mm 9.00mm 108 116
1vicissitude is offline   Reply With Quote
Old 12-10-2012, 09:09 AM   #28
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

webcam is $691 for weld/regrind two camshafts.

Jesel is about $1500 each for a new tool steel cam.
TurboTim is offline   Reply With Quote
Old 12-10-2012, 12:10 PM   #29
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

The good thing about webcam is that they do rewelding so you can get the cam ground without changing the base circle. Also, read their disclaimer on the ordering policies page. That is the kind of business I like to give my business to.

And subbing because there is more miata cam information in this thread than any other one I've seen.
Leafy is offline   Reply With Quote
Old 12-10-2012, 01:16 PM   #30
Junior Member
iTrader: (11)

Join Date: Oct 2011
Location: Bellingham, WA
Posts: 285
Total Cats: 7
Default

Quote:
Originally Posted by Leafy View Post
And subbing because there is more miata cam information in this thread than any other one I've seen.
True that! cam info is relatively scarce.


I have a set of webcam 505 +2.5 cams that I am going to run in a jdm GTR motor but for my other motor, I picked up a bp4w head and would like something a little more aggressive.

Are there any aftermarket solutions for the VVT head?
iantboyd is offline   Reply With Quote
Old 12-10-2012, 04:28 PM   #31
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,069
Total Cats: 253
Default

Quote:
Originally Posted by ctdrftna View Post
i am about 9.5:1 i think. those kelfords sound super aggresive, what is the setup ?
I believe that is Fastcolt's old car.

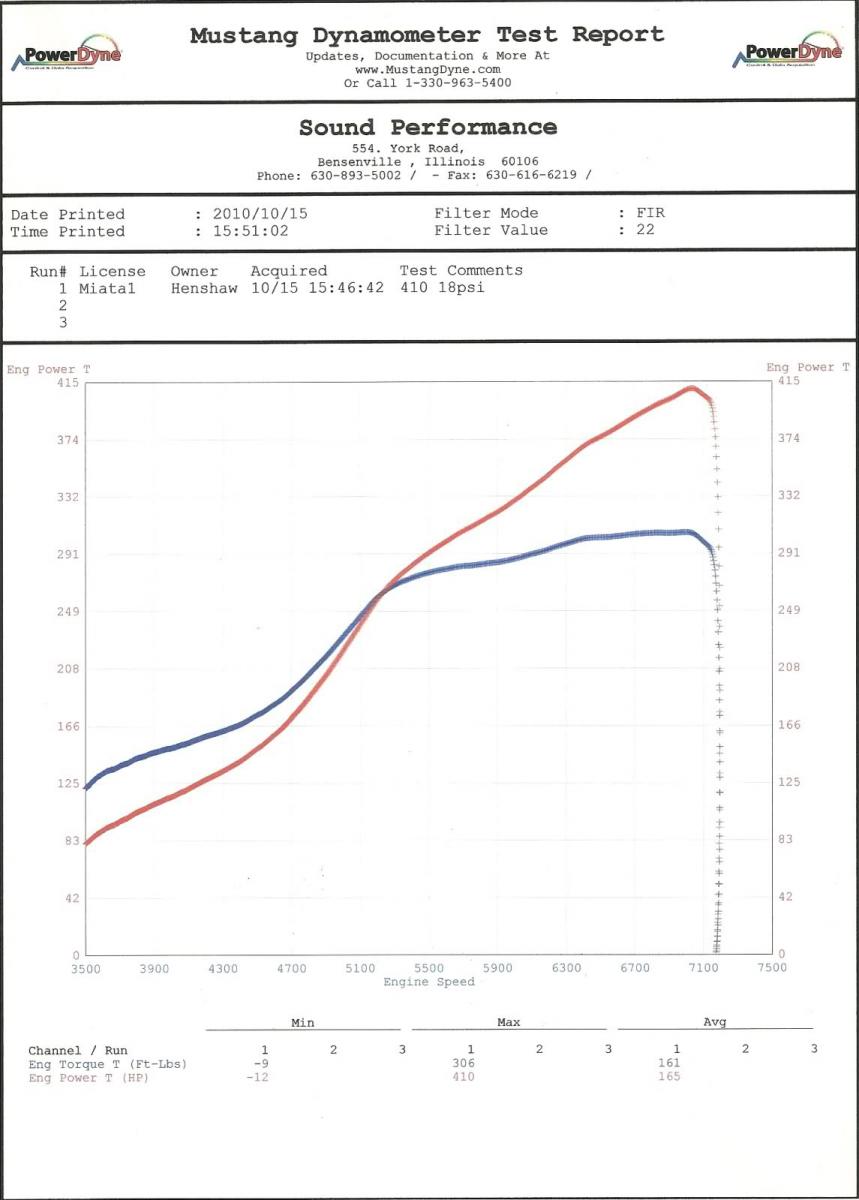

I don't know the details, but those cams in a different car did this.
Attached Thumbnails
what cams for turbo race car?-6fnldx.jpg
viperormiata is offline   Reply With Quote
Old 12-11-2012, 07:08 PM   #32
Junior Member

Join Date: Oct 2009
Location: Anaheim hills, CA
Posts: 76
Total Cats: 4
Default

Quote:
Originally Posted by iantboyd View Post
True that! cam info is relatively scarce.


I have a set of webcam 505 +2.5 cams that I am going to run in a jdm GTR motor but for my other motor, I picked up a bp4w head and would like something a little more aggressive.

Are there any aftermarket solutions for the VVT head?
Mahura and Tomei have some but they are very pricey. IMO you would be best off talking to somewhere like Webcam and see if they can weld/grind them. I know Keegan engineering can do them as well. I bet the VVT cam prices are a bit more than standard though, but it should easily beat out Mahura's sky high prices. Plus, you could have the cam tailored to your specific wants and use.

Viperormiata- What member did that dyno come from? I would love to look more into those cams, that video sounds fantastic. I remember the owner of that car in the video wasn't too happy with them though and ended up selling them, and it was running rough which is probably why is sounds so lumpy. I have emailed kelford about them in the past, I'm very suspicious that they can actually be ran with the HLAs like they claim. Its a ton of duration and lift over stock, no other manufacturer claims such aggressive cams can be ran with the HLAs. I wonder if the 400whp+ dyno car was using solid shim unders?
1vicissitude is offline   Reply With Quote
Old 12-11-2012, 07:22 PM   #33
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

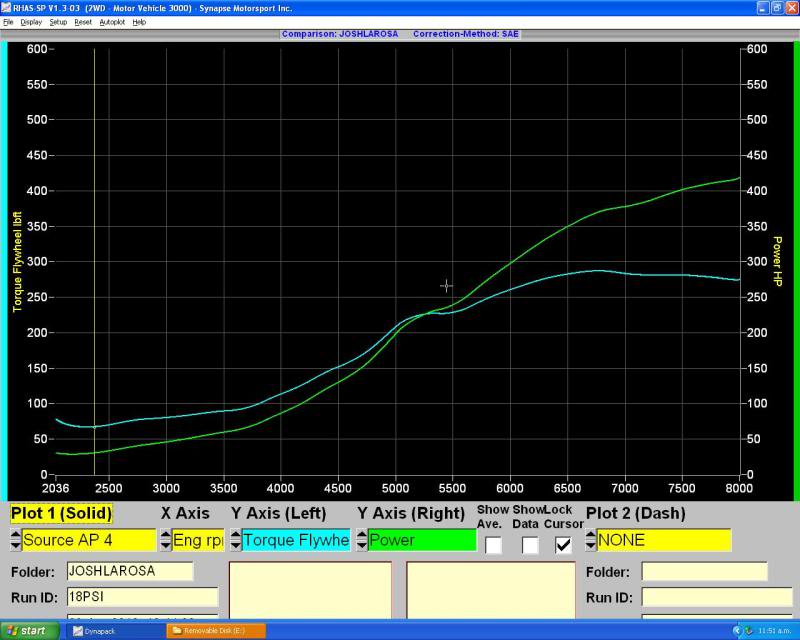

here is my dyno graph, now keep in mind that i was running on a 14psi waste gate spring and it was creeping to 18psi. I had no boost controller holding the gate closed to the desired level was reached. but you can see that the cams i have pull all the way to 8k, i should have kept going to 9k but i reached my goal of 400hp and the weather was shitty so i called it a day. i think these cams have more in them.

Name:  JOSHLAROSE.jpg
Views: 74
Size:  64.6 KB
Attached Thumbnails
what cams for turbo race car?-joshlarose.jpg
ctdrftna is offline   Reply With Quote
Old 12-11-2012, 07:24 PM   #34
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,575
Default

Have you ever re-tuned it with a boost controller?
18psi is offline   Reply With Quote
Old 12-11-2012, 07:27 PM   #35
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

i added a ball and spring manual controller and brought it up to 20psi to get it off the spring, it helped out a little with spool. but my plans after i fix my drivetrain is get a aem tru boost on it and bring it back to the dyno, 25-27psi on race gas and 9000-9200 rpm. the cams are degreed in now, but i wanna play with the gears and try to dial out some overlap and build some more compression.
ctdrftna is offline   Reply With Quote
Old 12-11-2012, 07:58 PM   #36
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 218
Total Cats: 5
Default

so what cam specs would be recommended for peak power at around 7k? +1mm valves, moderately ported... any other info needed?
mr2daj is offline   Reply With Quote
Old 12-11-2012, 08:02 PM   #37
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

the more lift the better, lift will not really effect the powerband, turbos like lift so if you can afford to do shim under bucket, get something in the .400's (high 11-12mm) duration i would run something in the 270's advertised. the idle shouldnt be bad and have a bit of lump
ctdrftna is offline   Reply With Quote
Old 12-11-2012, 08:34 PM   #38
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 218
Total Cats: 5
Default

The head that is on the car at the minute had some slight damage in the past so i am going to build another head to replace it re-use the uprated valves, springs etc. May as well go shim under bucket whilst i am at it.

is there anywhere i can get cams like that off the shelf?
mr2daj is offline   Reply With Quote
Old 12-11-2012, 08:48 PM   #39
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

well it doesnt look like there are to many off the shelf people, integral was the best but is gone now, i would still call megacycle and see if they can do something for you.

but here are your options

megacycle
keegan
web
toda
maruha
tomei

fuji racing ?
ctdrftna is offline   Reply With Quote
Old 12-11-2012, 08:49 PM   #40
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 256
Default

Quote:
Originally Posted by viperormiata View Post
Every miata needs a set of Kelford 272's

Fully built Turbo Miata w/ Kelford 272 cams idle - YouTube
Sounds gay, I'll stick with stock.

I was all excited by spending money on cams, a built head and other stuff. But then I dyno'ed 400whp and stopped caring.
soviet is offline   Reply With Quote
