Default SALE: Fab9 Bolt-on Intercoolers - BLACK + RAW Finish available!



Our intercoolers are not only some the largest cores offered, they are of the highest quality. Precision tig-welded, direct bolt-on bar and plate intercoolers that are assembled using a CNC accurate jig. These use FACTORY mounting locations and fit perfectly centered in your grill.

PM or email us for additional details - [email protected]

Dozens of you are already sporting our IC but for those who weren't aware:

Stage 1 Features
-350hp PEAK Bar and Plate Vibrant Core
-Direct bolt in for NA/NB Miata
-Compatible with AC (all years)
-Uses existing factory hardware and mounting location

Intercooler Dimensions:
Core Width: 20" (Overall Width with End Tanks: 26")
Core Height: 6.50"
Core Thickness: 3.25"
Inlet Diameter: 2.50"
Outlet Diameter: 2.50"
Inlet/Outlet Neck Location: Offset



Stage 2 Features:
-550hp PEAK Bar and Plate Vibrant Core
-Direct bolt in for NA/NB Miata
-Compatible with AC ONLY on 01-05
-Uses existing factory hardware and mounting location
-SOME MODIFICATION must be made to the core support when installing this huge core.

Intercooler Dimensions:
Core Width: 24" (Overall Width with End Tanks: 30")
Core Height: 9.25"
Core Thickness: 3.25"
Inlet Diameter: 2.50"
Outlet Diameter: 2.50"
Inlet/Outlet Neck Location: Offset

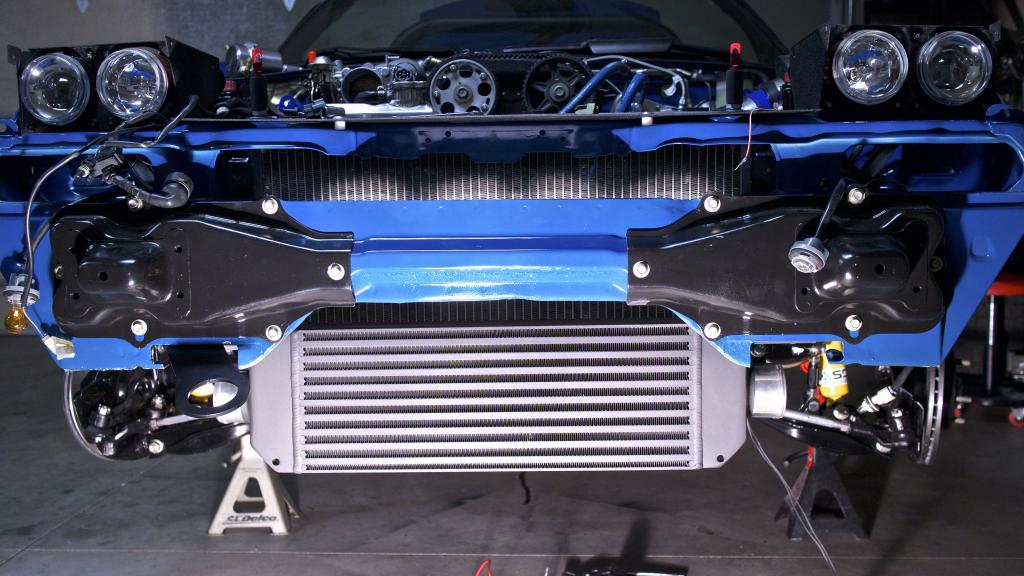

Installed Photos:




We also offer a full line of components to help fit your configuration.



PM or email us for details - [email protected]

Shown here in our recently offered HI-TEMP BLACK COATING:







Shown here our Stage 1 using the FACTORY MSM intercooler pipes:

The install is similar for the NA guys.








FAB is offline   Reply With Quote
Old 06-05-2014, 03:42 PM   #2
Junior Member

Join Date: Oct 2011
Location: New Hampshire
Posts: 318
Total Cats: 53
Default

How long will the sale go on?
adamiata is offline   Reply With Quote
Old 06-06-2014, 04:32 PM   #3
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 935
Total Cats: 395
Default

Hi Adam - I'll keep this price until our inventory levels are back to normal - we produced a batch of 20 units and I'm running out of room around here.
FAB is offline   Reply With Quote
Old 06-07-2014, 01:09 PM   #4
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 935
Total Cats: 395
Default

Weekend bump and tracking issued - Please send us install photos

Last edited by FAB; 06-11-2014 at 11:37 PM.
FAB is offline   Reply With Quote
Old 06-19-2014, 05:30 PM   #5
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 935
Total Cats: 395
Default

2 X Stage 1 - Black units going out today - Tracking issued.


Last edited by FAB; 06-19-2014 at 05:50 PM.
FAB is offline   Reply With Quote
Old 07-17-2014, 11:43 PM   #6
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 935
Total Cats: 395
Default

2 more Black Stage1 going out today - Tracking issued. The ratio of Black/Raw finish is surprisingly on the dark side... sneaky boosted Miata guys.
FAB is offline   Reply With Quote
Old 09-29-2014, 12:13 PM   #7
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 935
Total Cats: 395
Default

Discounted price still in effect. Just got another batch of these finished up.
FAB is offline   Reply With Quote
Old 09-30-2014, 08:14 PM   #8
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Can't recommend this enough. Buy one and revel at not having to find a good way to bolt your intercooler on. Plus this is one of the few setups that is perfectly centered in your bumper opening!
Jeffbucc is offline   Reply With Quote
Old 12-03-2014, 04:06 PM   #9
Junior Member

Join Date: Sep 2014
Location: Portland (left coast)
Posts: 214
Total Cats: 2
Default

Can anyone confirm if this 3.5" wide FMIC will leave enough room for a larger radiator? Like a nice cross flow one?
tazswing is offline   Reply With Quote
Old 12-03-2014, 04:29 PM   #10
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Easily.
Jeffbucc is offline   Reply With Quote
Old 01-15-2015, 11:57 AM   #11
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 935
Total Cats: 395
Default

Feeling out interested in an anodized intercooler option? Our Fab9 Stage 1 and 2 intercoolers have been hugely popular the last few months with the addition of our black coating option. We're curious if other color options might be popular? Purple? Green? Not for everyone but if there is a demand for it, we're excited about it. Also not a cheap option - likely in the $100 up-charge range as opposed to the $19 up-charge for the Black.



FAB is offline   Reply With Quote
Old 01-15-2015, 01:09 PM   #12
Junior Member

Join Date: Sep 2014
Location: Portland (left coast)
Posts: 214
Total Cats: 2
Default

Suggestion would be to offer an upper intercooler hose replacement since if you got the bumper off you might as well change out those old hoses and put on better clamps.

Last edited by tazswing; 01-15-2015 at 01:10 PM. Reason: added to my thought
tazswing is offline   Reply With Quote
Old 01-22-2015, 08:06 PM   #13
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 935
Total Cats: 395
Default

More matte black Stage 1 intercoolers hitting the mail today!

FAB is offline   Reply With Quote
Old 01-22-2015, 10:15 PM   #14
Junior Member
iTrader: (1)

Join Date: Jun 2010
Location: Bradenton, FL
Posts: 386
Total Cats: 19
Default

Damn. After seeing this while reading Jeff's thread start to finish, I definitely plan on going with a Stage one in black rather than E-bay/

Don't know when I'll be buying, as I'm only buying parts for now, we'll see.
Corifto is offline   Reply With Quote
Old 01-23-2015, 10:45 AM   #15
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,688
Total Cats: 238
Default

I am very interested in an anodized black stage1.
Girz0r is offline   Reply With Quote
Old 09-11-2015, 08:30 AM   #16
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,227
Total Cats: 249
Default

Did the 350hp intercooler cores ever receive the newer high fin density core? Also, do you offer service to weld a IAT bung on the end tank?
psyber_0ptix is offline   Reply With Quote
Old 10-06-2016, 10:59 PM   #17
Junior Member

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 0
Default

Quote:
Originally Posted by psyber_0ptix View Post
Did the 350hp intercooler cores ever receive the newer high fin density core? Also, do you offer service to weld a IAT bung on the end tank?
Question, is it normal for one side of the core to not be coated? Just got mine. Thought that was a bit strange, and so did my tuner. Thanks again!
hraday93 is offline   Reply With Quote
Old 10-20-2016, 02:06 PM   #18
FAB
Fab9Tuning.com
Thread Starter
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 935
Total Cats: 395
Thumbs up

Quote:
Originally Posted by hraday93 View Post
Question, is it normal for one side of the core to not be coated? Just got mine. Thought that was a bit strange, and so did my tuner. Thanks again!

Just saw this question - Yes, the visible side should be coated - The less coating the better for thermal reasons as it was an early concern when we started offering the option. Once installed, everything visible should be black and stealthy.
FAB is offline   Reply With Quote
