Old 11-06-2013, 01:40 PM   #101
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Can i get skyline lights on mineee?
triple88a is offline   Reply With Quote
Old 11-06-2013, 02:07 PM   #102
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

You can put whatever lights you want to on yours.

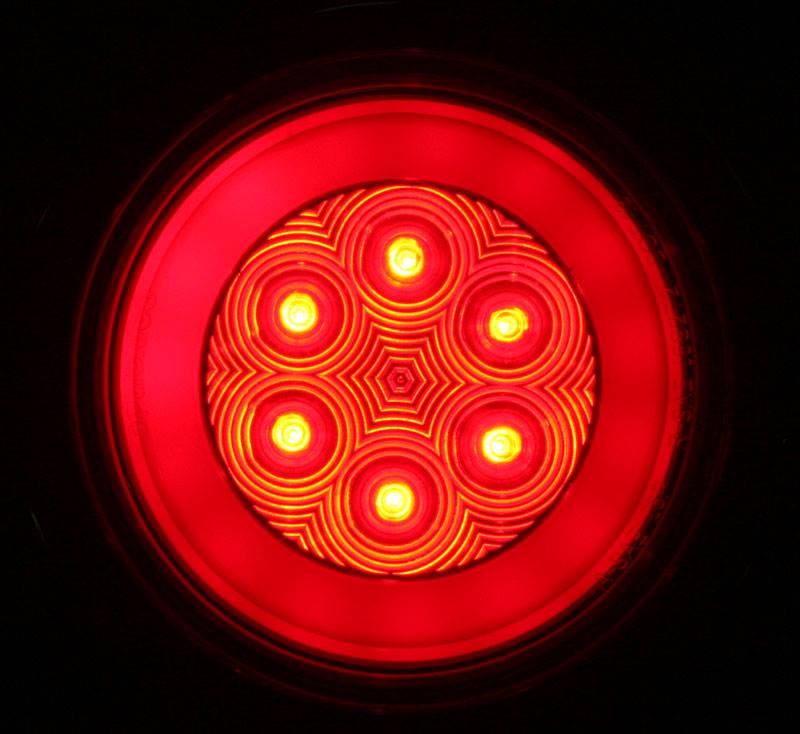

Here's the taillight we'll be offering. The outer ring is the tail and has a nice even glow in person. The inner section is the brake/turn light and is seriously bright. We have the appropriate electronics as well.


Lights off. Available with a red center as well, they light up the same way. I haven't been able to get a good photo of just the tail ring lit up.
Attached Thumbnails
The Exocet is now available from Flyin' Miata!-1450871_10152062485708623_236890826_n.jpg
Keith@FM is offline   Reply With Quote
Old 11-06-2013, 02:19 PM   #103
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

It'd be extra special if those were recessed into the bodywork somewhat. I guess we'll have to see on Friday.
TurboTim is offline   Reply With Quote
Old 11-06-2013, 02:22 PM   #104
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

They are not frenched, as the bodywork is not designed around a specific taillight set. If you're handy with fibreglass, you could flush-mount anything you want. Remember, this is still a kit car. You build it your way.

The ones we're using are pretty close to flush, they only stick out about 1/8" or so.
Keith@FM is offline   Reply With Quote
Old 11-06-2013, 02:27 PM   #105
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

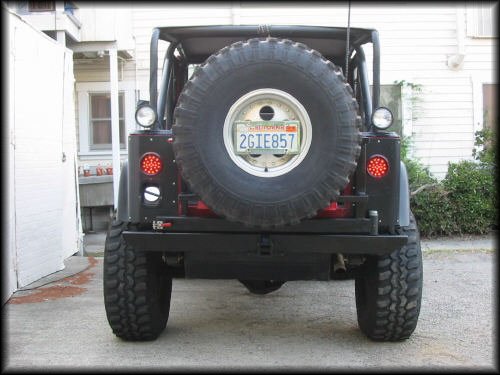

You can look at the wrangler tail conversion lights. Very common mod actually. I've seen them almost flush.

Attached Thumbnails
The Exocet is now available from Flyin' Miata!-rearend01.jpg
triple88a is offline   Reply With Quote
Old 11-06-2013, 02:36 PM   #106
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default


Yeah, the lights on my boat trailer are more interesting than those.






EDIT: What Keith is offering is better.
Attached Thumbnails

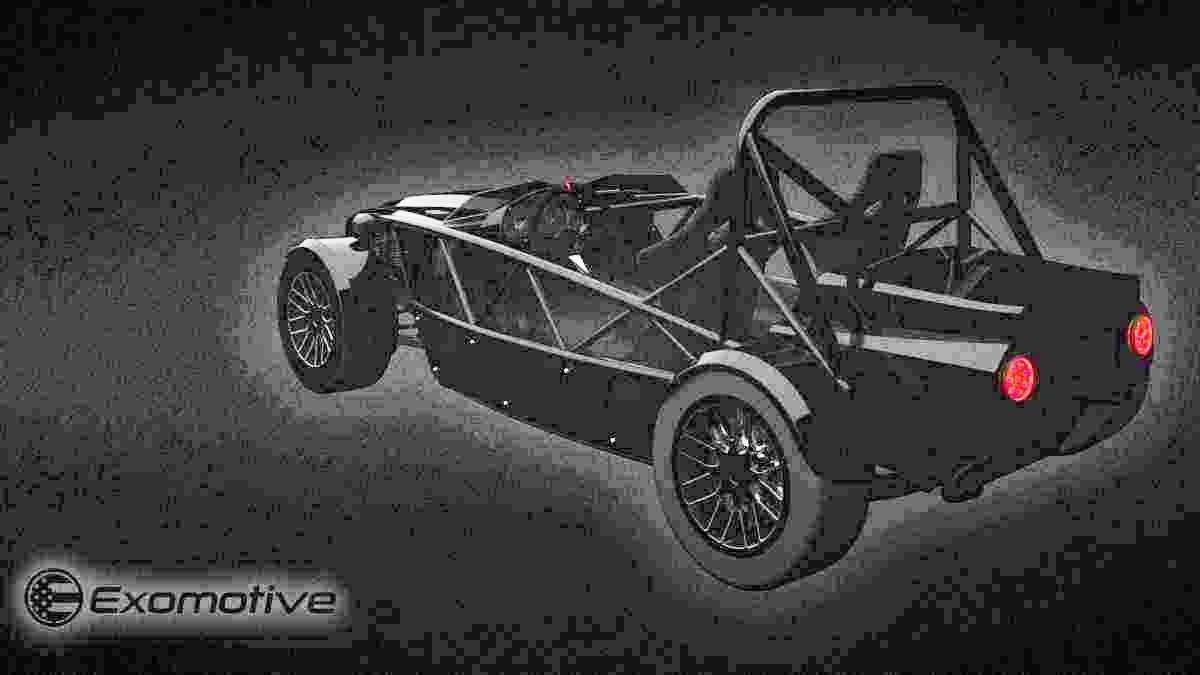

The Exocet is now available from Flyin' Miata!-2014-teaser2.jpg   The Exocet is now available from Flyin' Miata!-2014headlightteaser-logo.jpg
sixshooter is online now   Reply With Quote
Old 11-06-2013, 02:52 PM   #107
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

Quote:
Originally Posted by triple88a View Post
You can look at the wrangler tail conversion lights. Very common mod actually. I've seen them almost flush.

4" round taillights are an industry standard for trailers and trucks, including the grommet mounts used in the above picture. The Wrangler guys are just using them because they're readily available, there's nothing Wrangler-specific about them. We're going to use a flange mount for ours because it gives a bit more leeway for a slightly funky hole cut.

The newest rendering wasn't really intended to showcase the taillights, but that's what everyone's latched on to. Pity, as it's both inaccurate (for us) and not really the point.
Keith@FM is offline   Reply With Quote
Old 11-06-2013, 04:39 PM   #108
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 187
Default

I got it!!! You're going to be offering wallpapers!!!
fooger03 is offline   Reply With Quote
Old 11-06-2013, 06:23 PM   #109
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

Quote:
Originally Posted by [email protected] View Post

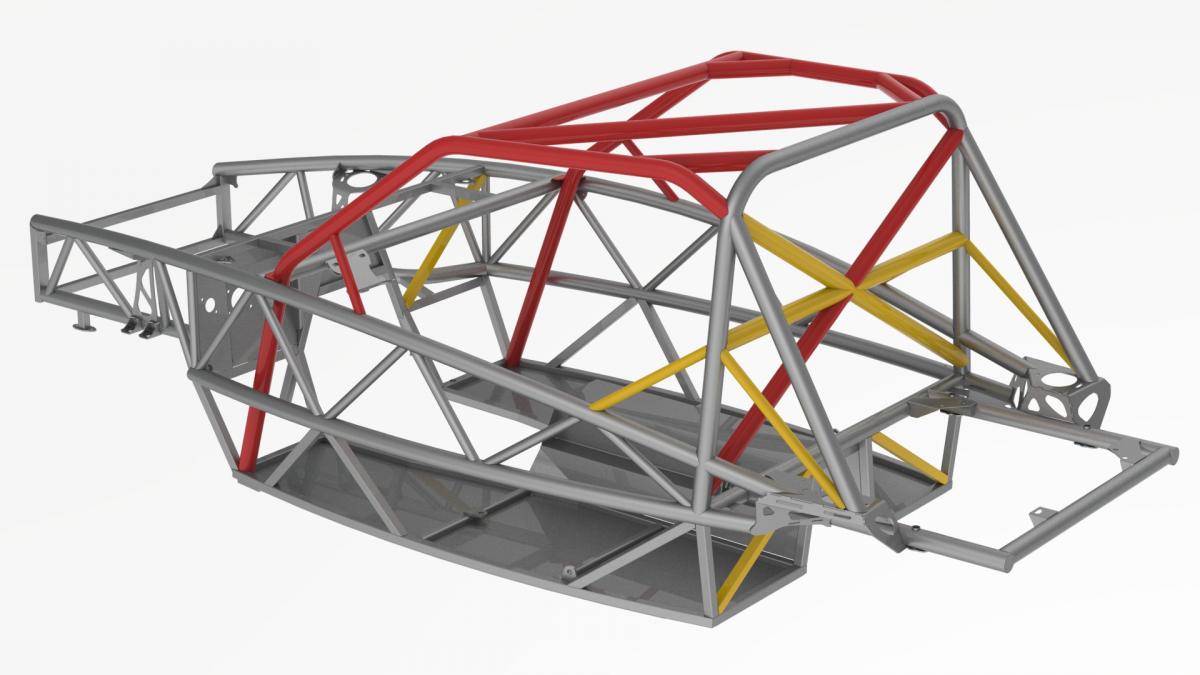

Here's a cool comparison image I just got from the design engineer. It shows the Base frame (silver) with the Sport (yellow) and Race (red+yellow) additions.
I received the latest FM catalog yesterday and noticed that this pic is wrong. The rear 'diagonals' where the optional wing mounts attach should be silver.

--Ferdi

Last edited by ftjandra; 11-07-2013 at 04:55 PM. Reason: Edit: silver
ftjandra is offline   Reply With Quote
Old 11-06-2013, 06:30 PM   #110
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

Good catch. I'll fix that on our site and flog the fellow who did the rendering.

Actually, they should be silver. Those tubes are on all the frame variations. Unless there's a change in spec with the Race kit, let me confirm.

Last edited by [email protected]; 11-06-2013 at 06:43 PM.
Keith@FM is offline   Reply With Quote
Old 11-06-2013, 08:24 PM   #111
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

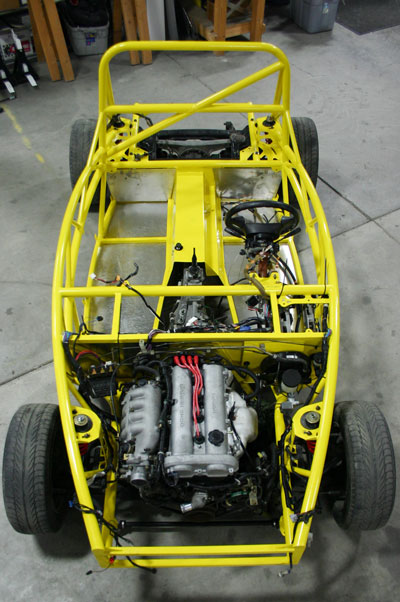

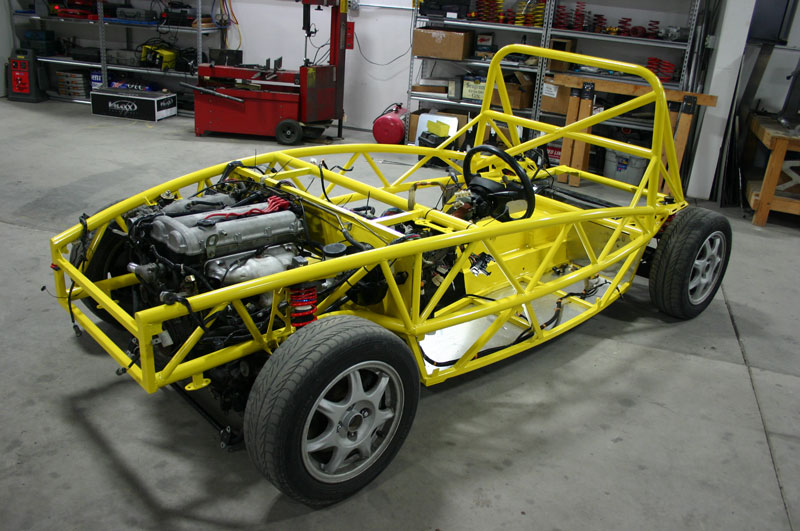

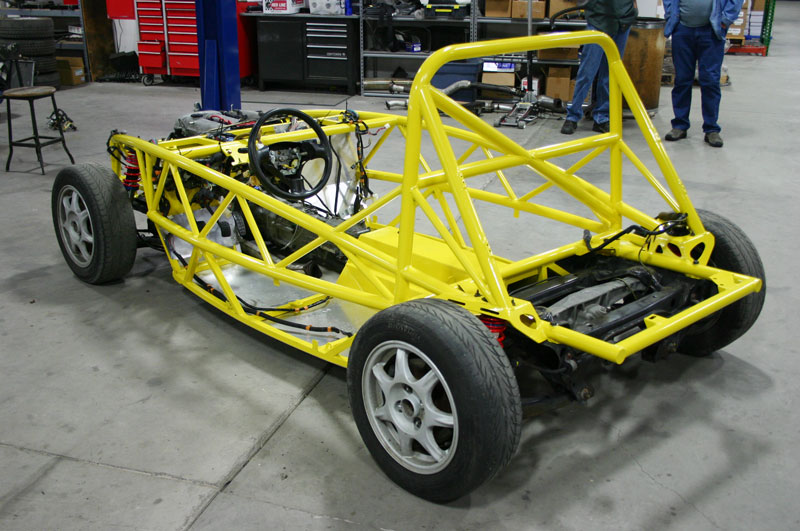

Rollers!

Flyin' Miata : Exocet kits : Rollers


Basically, we'll take a Miata, strip it down for you, install the drivetrain and suspension in the chassis, and hand it over to you. We've done the messy heavy lifting, and you get to do the detail work. This detail work takes a while, which means it's expensive to pay someone else to do it. But you won't need any special tools - and more importantly, you won't need space for three cars as you tear one apart, pile it up and build another.


Prices depend on the specs, but a fairly typical one will run $15,000 plus the powdercoat cost. That includes the Exocet Sport kit, a good donor (we're using a 1999 as an example), shipping to the FM shop plus all the labor to tear everything apart and build the roller. We'll pack all the bits you'll need to finish the job in the frame.

The price is for stock everything. If you want to upgrade the suspension, brakes, radiator, etc then it's easy to do. We can also do a clutch change or maintenance on the engine while the whole thing's apart.

Attached Thumbnails
The Exocet is now available from Flyin' Miata!-roller1.jpg   The Exocet is now available from Flyin' Miata!-roller2.jpg   The Exocet is now available from Flyin' Miata!-roller3.jpg
Keith@FM is offline   Reply With Quote
Old 11-06-2013, 08:55 PM   #112
Senior Member
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

Am I imagining seeing a $14k pricepoint by you guys for this service?
Tekel is offline   Reply With Quote
Old 11-06-2013, 09:06 PM   #113
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

$15k for the car in the pictures (with stock suspension) plus the powdercoat cost.
Keith@FM is offline   Reply With Quote
Old 11-06-2013, 10:17 PM   #114
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by [email protected] View Post
4" round taillights are an industry standard for trailers and trucks, including the grommet mounts used in the above picture. The Wrangler guys are just using them because they're readily available, there's nothing Wrangler-specific about them.
Well right was just saying if someone wants flush tails, check out how they do it.
triple88a is offline   Reply With Quote
Old 11-07-2013, 11:55 AM   #115
Newb

Join Date: Dec 2011
Posts: 35
Total Cats: 9
Default

Quote:
Originally Posted by [email protected] View Post
Good catch. I'll fix that on our site and flog the fellow who did the rendering.

Actually, they should be silver. Those tubes are on all the frame variations. Unless there's a change in spec with the Race kit, let me confirm.


Hopefully no one noticed the pedalbox isn't in that render, either...whoops.

Yeah, the rear downtubes are exactly the same for the Base, Sport, and Race. 1.75" x 0.095" high-elongation-spec DOM.


http://exocet.us/engineering/img/ExoUSGen3Frame.jpg
Attached Thumbnails
The Exocet is now available from Flyin' Miata!-exousgen3frame.jpg
dutchbag is offline   Reply With Quote
Old 11-08-2013, 12:52 PM   #116
Newb

Join Date: Dec 2011
Posts: 35
Total Cats: 9
Default







Attached Thumbnails

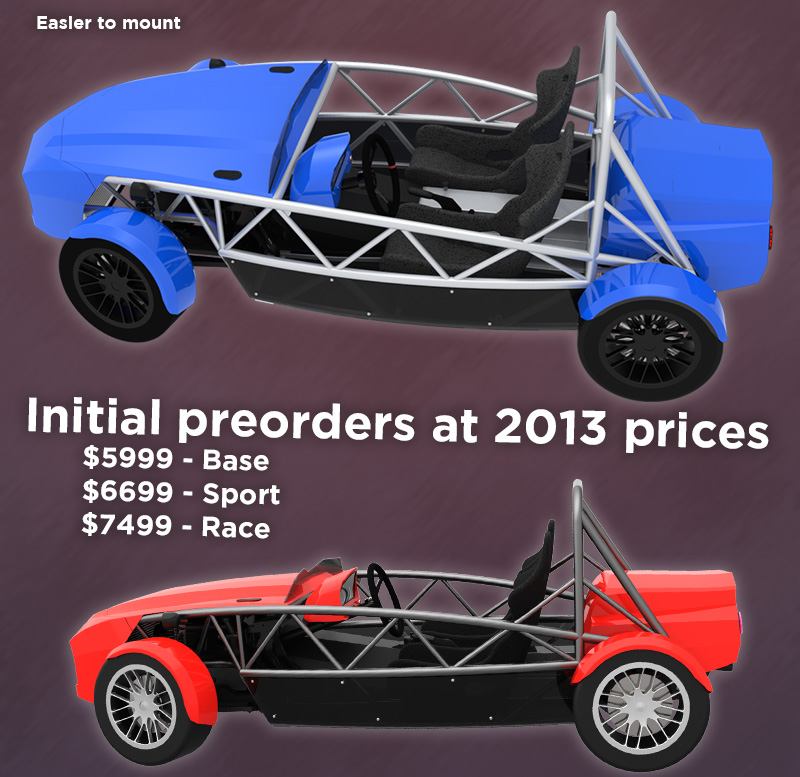

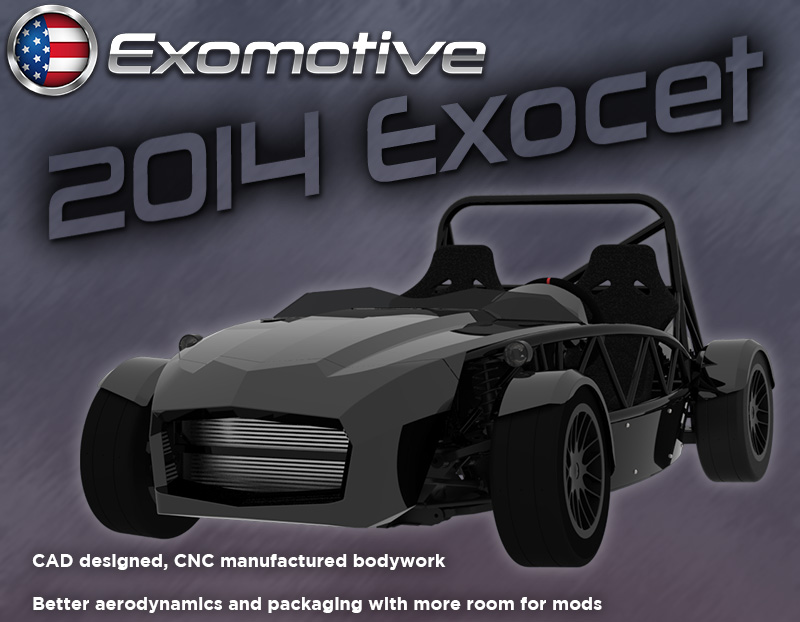

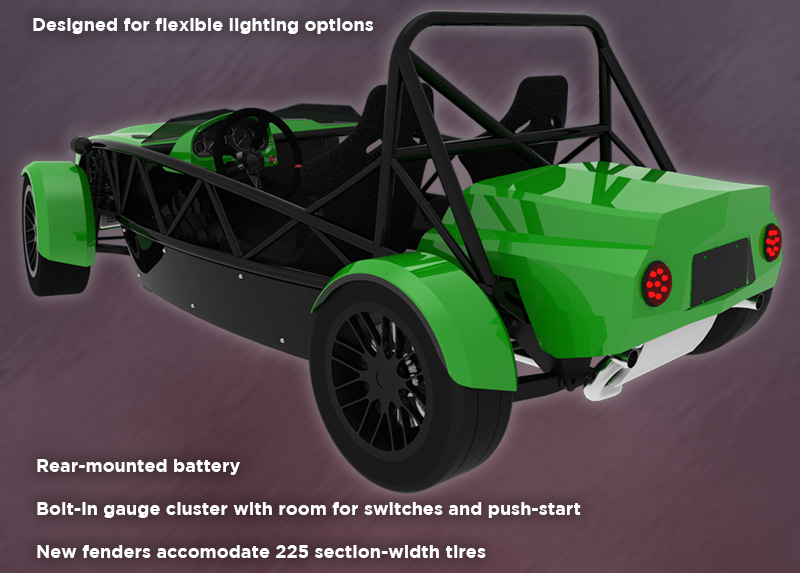

The Exocet is now available from Flyin' Miata!-release_01.jpg   The Exocet is now available from Flyin' Miata!-release_02.jpg   The Exocet is now available from Flyin' Miata!-release_03.jpg   The Exocet is now available from Flyin' Miata!-release_04.jpg
dutchbag is offline   Reply With Quote
Old 11-08-2013, 05:28 PM   #117
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,051
Total Cats: 7
Default

Front bodywork = OK....an improvement

Rear bodywork = OMG barrrrfff!?!!?


???
Efini~FC3S is offline   Reply With Quote
Old 11-08-2013, 10:58 PM   #118
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,460
Total Cats: 48
Default

It goes from stealth fighter up front to fanny pack in the back.
Chilicharger665 is offline   Reply With Quote
Old 11-09-2013, 06:57 PM   #119
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 187
Default

My opinion agrees. My opinion prefers a round a$$.
fooger03 is offline   Reply With Quote
Old 11-09-2013, 08:03 PM   #120
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

A corvette or a mobydick *** would better flow with the front end.
triple88a is offline   Reply With Quote
