Old 07-11-2013, 05:10 PM   #1
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default New four-piston rear brakes

There's a good selection of big brake kits for the front of the Miata. Heck, we've had various versions since 1995, and currently offer a number of exclusive options. But there's never been a good option for the rear before.

We took the Wilwood Powerlite caliper - the same one used in our Little Big Brake Kit - and mounted it to a custom bracket on the rear. We sized it to work with the factory brake rotors from 1994-02 and 2001-05, to keep rotor costs down. This also makes it a drop-in upgrade for almost every big brake kit on the market.

But the parking brake has traditionally been the problem for this sort of setup. So we're using a custom caliper that has a cable-actuated parking brake with almost no weight penalty. That's right, a lightweight four-piston rear caliper with an integrated parking brake.

Now, we're not going to claim the parking brake is as strong as stock. It'll hold the car on a mild slope. It's not going to work for drifting. If you park in San Francisco, you'll need to leave the car in gear. But it's good enough to make the kit SCCA legal.

I've run this setup on my 400 hp V8 Miata at Laguna Seca quite happily as well as on the street. When paired with our Little Big Brake kit on the front, it's a really nice, light setup with inexpensive consumables, a firm pedal and very good braking power.

The Track version (no parking brake) is $495. That includes the calipers, pads (Wilwood E compound), lines and brackets. We have these in stock and ready to ship.

The Street version (with parking brake) is $595. That includes the calipers, pads (Wilwood E compound), lines, brackets and custom cables. We're waiting for some more calipers on this one, it will likely be 6 weeks before they're able to ship.


Attached Thumbnails

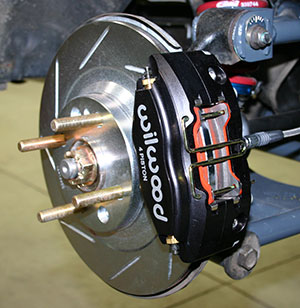

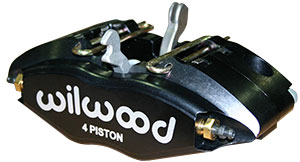

New four-piston rear brakes-14-16660.jpg   New four-piston rear brakes-14-16650.jpg
Keith@FM is offline   Reply With Quote
Old 07-11-2013, 06:49 PM   #2
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

This seems like a good alternative to replacing a seized NAPA caliper every 3-4 years...on that alone, it might pay for itself in 20 years...

Does wilwood warranty these for at least 20 years? ;-)
fooger03 is offline   Reply With Quote
Old 07-12-2013, 06:03 PM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

I'll let you ask them about that...

I need to come up with snappier names, but here are the kit details. If you don't want the parking brake capability, knock $100 off these prices.

4-wheel Little Big Brake kit with 4-piston rear calipers and parking brake
FM part 14-16170
without proportioning valve (for 2001-05 ABS cars and autocrossers with class restrictions): $995
with proportioning valve (recommended) $1045

Includes:
Wilwood Powerlite 4-piston calipers front and rear
Wilwood Polymatrix E pads
stainless braided lines front and rear
parking brake cables
note - no rotors included
available for 9", 10" or 11" front rotors
available for 10" or 11" rear rotors
rotor sizes can be mixed and matched if you want to mess with bias, no charge


4-wheel big brake kit with 4-piston rear calipers and parking brake
FM part 14-16220
without proportioning valve (for 2001-05 ABS cars and autocrossers with class restrictions): $1324
with proportioning valve (recommended) $1374

Includes:
Wilwood Dynalite 4-piston calipers and Wilwood BP-10 pads front
Wilwood Powerlite 4-piston calipers and Wilwood Polymatrix E pads rear
two-piece 11" front rotors
one-piece 11" rear rotors
stainless braided lines front and rear
parking brake cables


Big Mama Jama Brake Kit (contains 20 pistons!)
4-wheel big brake kit with 6-piston front calipers and 4 piston rear calipers and parking brake
FM part # not yet available
without proportioning valve (for 2001-05 ABS cars and autocrossers with class restrictions): $1724
with proportioning valve (recommended) $1774

Includes:
Wilwood Superlite 6-piston calipers and Wilwood BP-10 pads front
Wilwood Powerlite 4-piston calipers and Wilwood Polymatrix E pads rear
two-piece 11" front rotors
one-piece 11" rear rotors
stainless braided lines front and rear
parking brake cables
Keith@FM is offline   Reply With Quote
Old 07-15-2013, 06:33 PM   #4
k2-
Newb

Join Date: Sep 2009
Location: Long Beach
Posts: 22
Total Cats: 0
Default

Keith will FM sell this kit stripped down a bit? I would like the Big Mama Jama Brake kit minus rotors, minus pads, minus parking cable, but with proportioning valve. That an option?
k2- is offline   Reply With Quote
Old 07-15-2013, 08:14 PM   #5
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

Of course, we'll sell any individual part. However, the kits that come from Wilwood are heavily, heavily discounted. I doubt that deleting the front rotors and pads would actually save any money. Deleting the rear rotors and pads, definitely.

Minus parking brake cable - but with the parking brake caliper? It's a custom cable, you can't pick one up off the shelf.

Give us a call or email me at [email protected] and we'll sort out exactly what you're looking for and what it would cost.
Keith@FM is offline   Reply With Quote
Old 07-16-2013, 02:34 PM   #6
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Do you guys have the LBBK's in stock again? I waited like 2 months before finally giving up and canceling my order. Might have to give it another try, it seems like such a great option for street/autocross.
pdexta is offline   Reply With Quote
Old 07-16-2013, 02:53 PM   #7
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Snappier name recommendation for "big mama jama mumbo jumbo..."

"Flyin' Miata Supersize 4-wheel Brake Happy Meal"

FM is already using "Supersize" to reference "bigger", and FM is already using "Happy Meal" to reference a kit where "everything you need is included". This might just be improved branding unless a certain fast-food chain legal team finds out.
fooger03 is offline   Reply With Quote
Old 07-16-2013, 03:27 PM   #8
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

The LBBKs did initially sell out and there was a long wait for us to replenish stock, as Wilwood takes a while to build calipers. We've had them in stock ever since - until about two weeks ago. We're waiting for a new shipment of calipers, but it shouldn't take too long.

If you keep your order in the queue, you'll get the next available set and you don't pay until we ship. If you cancel your order, you go back to the back of the line. Just FYI.
Keith@FM is offline   Reply With Quote
Old 07-18-2013, 02:17 PM   #9
Elite Member

Join Date: Oct 2011
Location: OKC, OK
Posts: 2,646
Total Cats: 76
Default

Keith, what does the LBBK cost when you add the 2-piece front and 1-piece rear rotors to the kit?
z31maniac is offline   Reply With Quote
Old 07-18-2013, 02:54 PM   #10
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

We have no two-piece rotors in a suitable size. The ones used in the BBK are a full 11", the stock Sport diameter is actually 10.6" and we rounded up.

We don't have a kit price for rotors with the LBBK - mostly because we've just got too many kits already. So just add in the price of stock-size rotors.
Keith@FM is offline   Reply With Quote
Old 09-06-2013, 02:12 PM   #11
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: France
Posts: 74
Total Cats: 1
Default

Hello Keith,

Any news about the availability of the Street version with the parking brake ?

Thanks
regards
Joel
joeldc13 is offline   Reply With Quote
Old 09-06-2013, 02:18 PM   #12
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

We've shipped a bunch of them already - enough that we ran out of cables from the first shipment. We expect another shipment in the next week or two, and then everything should stay in stock from that point on. Calipers are in stock.
Keith@FM is offline   Reply With Quote
Old 11-06-2013, 11:29 PM   #13
Junior Member

Join Date: Aug 2008
Location: Toronto, Canada
Posts: 129
Total Cats: -1
Default

Is there some version of this rear kit possible that will run two-piece rotors??
GT42R is offline   Reply With Quote
Old 11-07-2013, 01:57 AM   #14
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

It will work with any 1994-05 stock size rear rotor. So if you can source two-piece rear rotors in either the 10" or 11" size - and they're out there - then you've got it.
Keith@FM is offline   Reply With Quote
Old 11-07-2013, 11:03 AM   #15
Junior Member

Join Date: Aug 2008
Location: Toronto, Canada
Posts: 129
Total Cats: -1
Default

Keith, I have 11" (.810" thick) two-piece rotors from a monstermiata rear brake kit, any chance your kit would work with those? Or would the brackets definitely not match up?

Are the rear wilwood combination calipers fixed, or floating/sliding?
GT42R is offline   Reply With Quote
Old 11-07-2013, 12:46 PM   #16
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

If the rotors are built to stock dimensions, they will fit. That's the general rule for anyone who's wondering about compatibility.

0.810" is probably a vented rotor, it's not going to fit in place of a 0.5" stock rotor. So no, those wouldn't work in the rear.

The Wilwood calipers are fixed, two pistons per side.
Keith@FM is offline   Reply With Quote
Old 11-07-2013, 06:56 PM   #17
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: France
Posts: 74
Total Cats: 1
Default

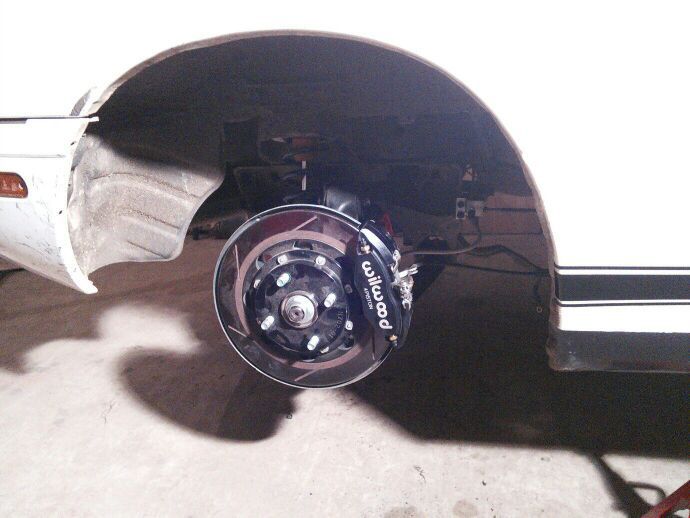

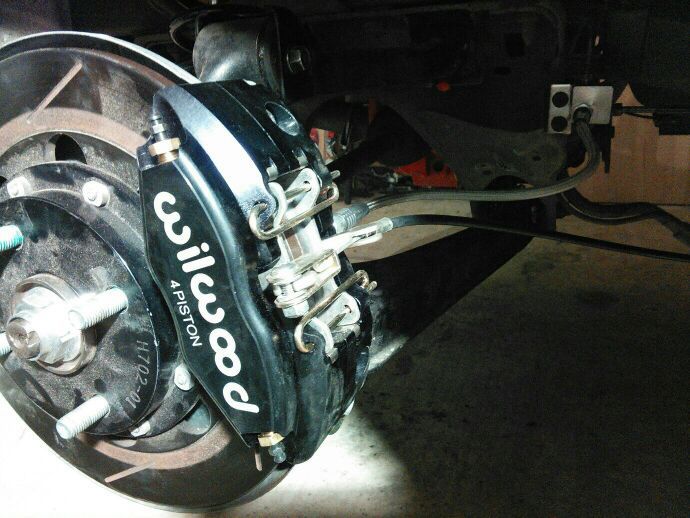

I have just installed the street version with two-pieces 11" racing brake rotors they fit perfectly



Attached Thumbnails
New four-piston rear brakes-7uzady4e.jpg   New four-piston rear brakes-u2umypaq.jpg
joeldc13 is offline   Reply With Quote
Old 11-29-2013, 08:17 PM   #18
Junior Member

Join Date: Aug 2008
Location: Toronto, Canada
Posts: 129
Total Cats: -1
Default

great pics, thank you!

keith, seeing these are being custom built by wilwood for you, can you not get them to do a .810 rotor thickness version?
GT42R is offline   Reply With Quote
Old 11-29-2013, 08:43 PM   #19
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

I'm sure we could make that happen, but we'd probably have to order 50 sets. There's not much need for a vented rear rotor, honestly.

We could easily do a no-parking brake version, though. That uses an off-the-shelf caliper, so we'd just have to do special brackets. I'm pretty sure Brandon's already done the CAD work for that, although there's no guarantee that whatever random rotor Monster used would match up to the majority of 11" two-piece rotors on the market.

We are getting special run done in red due to lots of requests. They're in production now, so we should have red ones available around the new year. The calipers are usually anodized, so the red powdercoat does add a bit of cost. $100 extra for the rears, $200 extra for a four-wheel kit.
Keith@FM is offline   Reply With Quote
Old 11-29-2013, 10:23 PM   #20
Junior Member

Join Date: Aug 2008
Location: Toronto, Canada
Posts: 129
Total Cats: -1
Default

Ah, I figured they might be able to build the same caliper to .810 rotor thickness spec, and I could make the brackets later to match my particular rotor,

the mechanical actuator for the handbrake you guys built-in is really nice solution,

ahh, so you already have brackets to adapt the dynalite to the vented 11" two-piece rears? cool...
GT42R is offline   Reply With Quote
