Default [Request for pictures] of VVT Actuador from head side

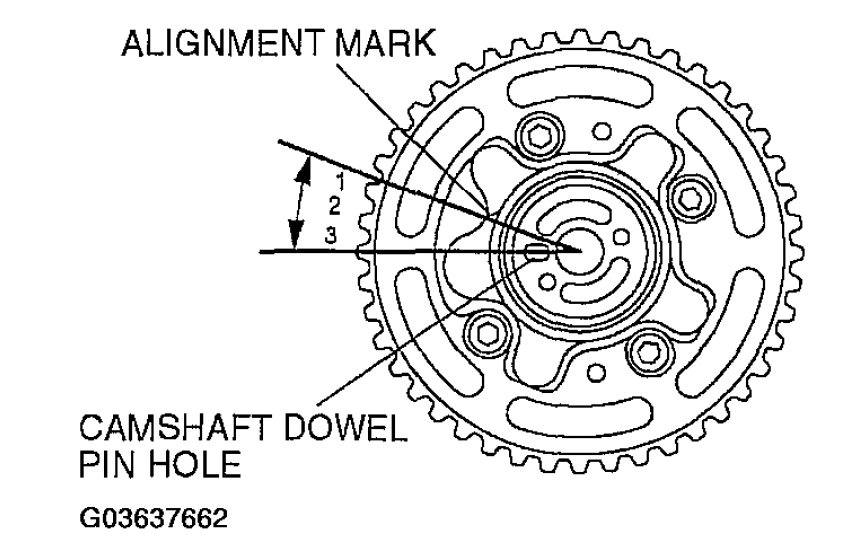

Need pictures of a working VVT actuator Miata 01-05 (intake cam gear) from the head side to compare with the manual drawing in attach.

Attached Thumbnails
[Request for pictures] of VVT Actuador from head side-vvt-actuator-head-side.jpg
