Default 01+ big skirt to 99-00 small skirt

Has anyone ever taken off their big 01+ side skirts and put on a 99-00 small skirt? Is this a direct swap, or will I need to make new holes?
dgmorr is offline   Reply With Quote
Old 07-19-2010, 01:21 PM   #2
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

You will need new holes. You will have holes in the rear quarter panels from the mounts that hold the large ones on. The only holes that are the same are the ones on the borrom of the rocker panel.
Doppelgänger is offline   Reply With Quote
Old 07-19-2010, 01:42 PM   #3
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by Doppelgänger View Post
You will need new holes. You will have holes in the rear quarter panels from the mounts that hold the large ones on. The only holes that are the same are the ones on the borrom of the rocker panel.
Are the holes in the rear quarter panel going to be visible, or are they on the lip in the wheel well?
dgmorr is offline   Reply With Quote
Old 07-19-2010, 01:53 PM   #4
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

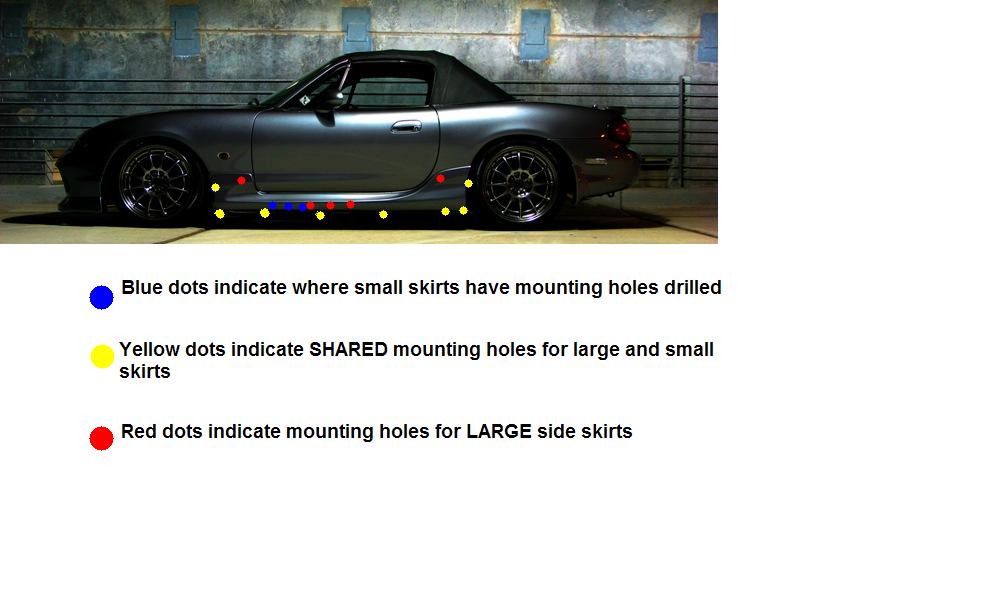

Here is a rough indication of where the holes are for mounting the side skirts.
Attached Thumbnails
01+ big skirt to 99-00 small skirt-sidesillmountingholes.jpg
Doppelgänger is offline   Reply With Quote
Old 07-19-2010, 01:57 PM   #5
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Damn, I didn't think there were so many. Thanks for that info.
dgmorr is offline   Reply With Quote
Old 07-19-2010, 03:35 PM   #6
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

the 99 had side skirts??? I've only seen 01_ with side skirts
Pitlab77 is offline   Reply With Quote
Old 07-19-2010, 03:40 PM   #7
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Well, the ones on the bottom are all tree clips, the three under the door are holding a bracket on that the skirt rests in and the holes on the front and rear wheel-wells are just clips that go over existing holes (are are the only bolts- 8mm). On the large skirts, the ones by the front and rear of the door are a plastic velcro-ish clip. It's easier to go from small to large or from nothing to either...but going from large to small leaves those two holes exposed and needing to be filled...or going from skirts to no skirts will leave the three under the door exposed. All the yellow dots/mounts are NOT visible once the skirts are removed.

clips along bottom rocker panel are



the two specific clips on the LARGE skirts are these 2-piece clips that look like a regular push clip (base) but with a solid flat top and a velcro-like surface. The other side also has a velcro-like surface on one side and adhesive o nthe other. This bonds the skirt to the body.



The three holding the bracket under the door are like this (large and small)

Doppelgänger is offline   Reply With Quote
Old 07-23-2010, 04:19 PM   #8
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Just to be clear, this is the skirt we are both talking about right?

dgmorr is offline   Reply With Quote
