Default 94 Oil Pan Cracked

I swear I used a torque wrench putting a 94 motor into my 97 miata.

Couldn't find an oil leak... OMG found it! Anybody know how this happened? starting to think I should drop yet another newer motor in...

Attached Thumbnails

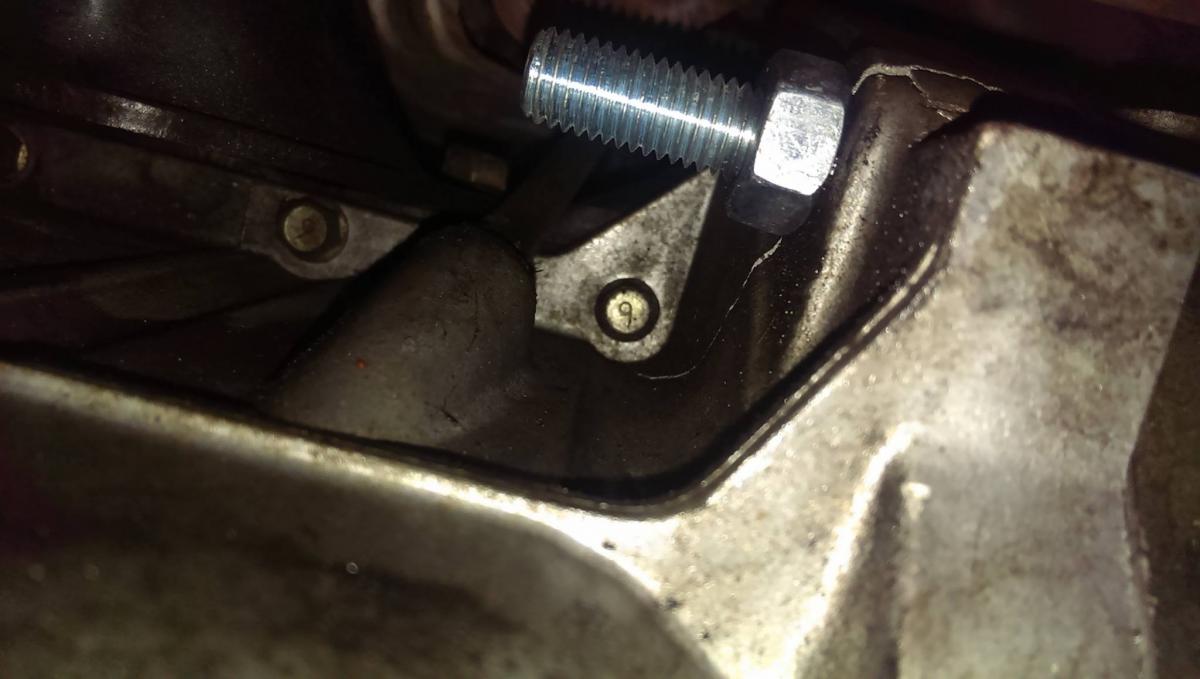

94 Oil Pan Cracked-10007303_10100873171554025_1488182568_o.jpg
jspadaro is offline   Reply With Quote
Old 04-06-2014, 05:50 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

You did use the wrong bolt and nut, that's fairly obvious.

That hole isn't supposed to be threaded? If I am going crazy and it's supposed to be a bolt and nut, it's a flanged nut, which would give at least help distribute the force.
curly is offline   Reply With Quote
Old 04-06-2014, 05:54 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2013
Location: Knoxville, TN
Posts: 182
Total Cats: 10
Default

It is not supposed to be threaded, the other side is. It was a bolt and nut for sure, I replaced it with grade 10.9 bolts from the hardware store because the 17 year old bolt that was there was gunked and deformed.

I don't think what I pulled off had a flange nut, but who knows what the previous owner did.

I've had issues with keeping the drain plug from leaking, as well. I torqued it down yesterday, and today it was dripping and finger tight! Hence considering a new pan at the very least...

So you think if I did replace the pan, flange nut & bolt and I should be good?

Edit: Derp, I'm such a noob, it was definitely flange and I didn't even think about it. Thanks.
jspadaro is offline   Reply With Quote
Old 04-06-2014, 06:00 PM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

No, I just checked my oil pan in the garage and all four transmission mounts are supposed to be threaded. Apparently your car's previous owner stripped the threads. Adding the nut on an uneven surface doomed your pan.

Torque specs are meant to stretch a bolt to an optimum spot before it's yeild point. At this point it acts like a spring, keeping itself tight. You can't just go buy a random nut and bolt and expect the same torque to work. Same goes for hardness, the highest hardness bolts aren't always the right ones to buy.
curly is offline   Reply With Quote
Old 04-06-2014, 06:04 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2013
Location: Knoxville, TN
Posts: 182
Total Cats: 10
Default

Well that explains the difference between my car and the clutch tutorial on m.net.

Anyone know of a good place to find used engines? I got this one from somebody recommended by the SCCA a bit north of here, and I've had a whole slew of issues.

I'd like to get something with 50k or less, even if it means going to an 05 and VVT.
jspadaro is offline   Reply With Quote
Old 04-08-2014, 08:49 AM   #6
Newb

Join Date: Jan 2012
Posts: 27
Total Cats: -2
Default

The VVT swap is not plug and play.
ED9man is offline   Reply With Quote
Old 04-08-2014, 09:36 AM   #7
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I'm still trying to figure out how you put a wrench on that nut with the engine assembled.
Leafy is offline   Reply With Quote
Old 04-08-2014, 10:41 AM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2013
Location: Knoxville, TN
Posts: 182
Total Cats: 10
Default

Who said it was plug and play? I've been talking to Reverant about an MS3 for it.

On a related note, so I need a 99-00 fuel rail according to what i've read (for an 01-05 motor), and I think the 01-05 intake.

Does anyone know which FPR I need? I read 99-00 and also 90-93.
jspadaro is offline   Reply With Quote
Old 04-08-2014, 11:52 AM   #9
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

90-93
Savington is offline   Reply With Quote
Old 04-08-2014, 12:28 PM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2013
Location: Knoxville, TN
Posts: 182
Total Cats: 10
Default

Thanks!
jspadaro is offline   Reply With Quote
Old 04-08-2014, 03:52 PM   #11
Senior Member

Join Date: Sep 2013
Posts: 903
Total Cats: 59
Default

Please rename forum to MiataVVT.net, thanks.
Dunning Kruger Affect is offline   Reply With Quote
Old 04-12-2014, 02:33 AM   #12
Newb
iTrader: (1)

Join Date: Sep 2011
Location: Boston, MA
Posts: 21
Total Cats: -2
Default

I've got a 1.8 oil pan for sale if you need one. PM in you're interested.
heyitznosaj is offline   Reply With Quote
Old 04-14-2014, 09:47 AM   #13
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2013
Location: Knoxville, TN
Posts: 182
Total Cats: 10
Default

I appreciate it Jason, I already grabbed one from a junkyard.
