Old 01-14-2008, 11:28 PM   #21
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

good job kid. lemme know if u need a hand with anything this week.
ArtieParty is offline   Reply With Quote
Old 01-15-2008, 11:10 AM   #22
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

nice work, i cant wait to see what kinda difference it actually makes, i dont think anyone ever documented the gains yet...
Zabac is offline   Reply With Quote
Old 01-15-2008, 04:23 PM   #23
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

wow I didnt realise it was that bad. Im not doing that on my NA car right now, I think that would slow down the velocity with out a turbo or s/c cramming air in there. But I really do need to get it off the head and clean it as I know they get gummy inside.
Pitlab77 is offline   Reply With Quote
Old 01-15-2008, 04:38 PM   #24
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

EGR sucks.

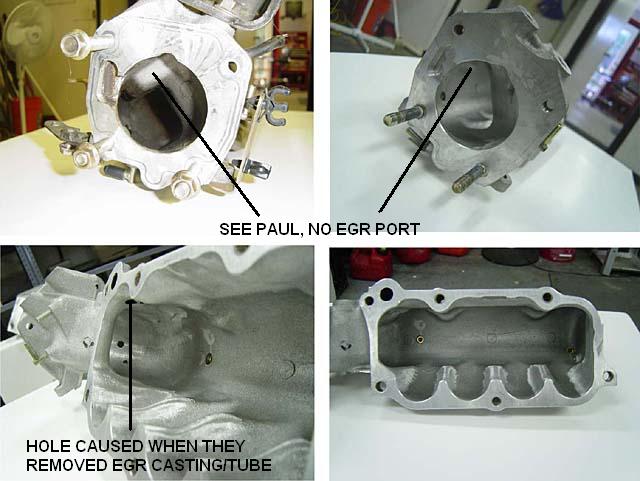

Check out this awesome modified pic for what you need to do Paul.
Attached Thumbnails
99-00 Intake Manifold Porting Anyone?-egrmanifold4.jpg
TurboTim is offline   Reply With Quote
Old 01-15-2008, 04:55 PM   #25
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

yeah, i didn't know what was behind there. it'll be done.
paul is offline   Reply With Quote
Old 01-17-2008, 12:52 AM   #26
Newb

Join Date: Jan 2008
Location: Ruskin, FL
Posts: 34
Total Cats: 0
Default

Nice love the work. Its got me thinking about picking up an extra manifold and doing it. I can't wait to see the results.
sparky95 is offline   Reply With Quote
Old 01-17-2008, 04:37 AM   #27
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by sparky95 View Post
Nice love the work. Its got me thinking about picking up an extra manifold and doing it. I can't wait to see the results.
yea me too. even if it were just for the sake of tinkering
Oscar is offline   Reply With Quote
Old 01-20-2008, 01:25 AM   #28
Junior Member
iTrader: (2)

Join Date: Nov 2007
Location: Fayetteville, NC
Posts: 143
Total Cats: 0
Default

Back when I was still rockin the MP62, I talked with Gary about doing this. He sent me the dyno graphs of higher boost (10+ psi) supercharged cars with the ported intake, and there was only like 5-8 rwhp gain, all up top, IIRC.

Clearly the MP62 and a good turbo setup are quite different beasts, but the work involved in the porting didn't seem worth it to me for such little gains.
em99sport is offline   Reply With Quote
Old 01-20-2008, 01:40 AM   #29
Junior Member
iTrader: (4)

Join Date: Sep 2006
Location: Bakersfield, Ca
Posts: 154
Total Cats: 0
Default

All it is costing is bits and time!
8whp is a considerable gain! Do you still have the dyno graphs. I would like to see what happend at lower revs.
leshok is offline   Reply With Quote
Old 01-20-2008, 02:29 AM   #30
Junior Member
iTrader: (2)

Join Date: Nov 2007
Location: Fayetteville, NC
Posts: 143
Total Cats: 0
Default

Quote:
Originally Posted by leshok View Post
All it is costing is bits and time!
8whp is a considerable gain! Do you still have the dyno graphs. I would like to see what happend at lower revs.
In your case, I agree that it might be worth the time and negligable cost of materials. When I was considering it, Gary was trying to charge me $500 for the full stage whatever port job!

8 rwhp sounds like a decent score, but this was really like 6-7k IIRC. I will try to hook you up with the graph in a bit.

Last edited by em99sport; 01-20-2008 at 02:50 AM.
em99sport is offline   Reply With Quote
Old 01-20-2008, 02:49 AM   #31
Junior Member
iTrader: (2)

Join Date: Nov 2007
Location: Fayetteville, NC
Posts: 143
Total Cats: 0
Default

here's the graph of the tdr intake porting on a heavily modified, high boost* MP62 car


*high boost is clearly a relative term, and in supercharged context, equates to anything above 8 psi, unless four PC-Pros are in use for safety reasons
Attached Files
File Type: zip tdr intake porting.zip (53.1 KB, 141 views)
em99sport is offline   Reply With Quote
Old 01-20-2008, 05:26 AM   #32
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I talked to gary today. He said it yeilds 6-8whp....and if you have a blower this is a big deal, lol.
hustler is offline   Reply With Quote
Old 01-20-2008, 11:41 PM   #33
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

8hp could mean me breaking 300 or not and considering it is just the cost of the bits and my time it's worth it. plus i added some lightness

people are making less increase between VICs being operational and not and everyone seems gung-ho about hooking that up. which begs the question, is this working VICs vs. the porting? or non-working VICs vs. porting?
paul is offline   Reply With Quote
Old 01-20-2008, 11:45 PM   #34
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by paul View Post
8hp could mean me breaking 300 or not and considering it is just the cost of the bits and my time it's worth it.

people are making less increase between VICs being operational and not. which begs the question, is this working VICs vs. the porting? or non-working VICs vs. porting?
Gary said it was compared with working vics on his red 99 car. He's only checked this out on blown cars, no turbo cars. I don't know what all that extra air means in terms of intake geometry.
hustler is offline   Reply With Quote
Old 01-20-2008, 11:46 PM   #35
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

and that is shown to be an improvement over where I am starting from with VICs not operational, right?
paul is offline   Reply With Quote
Old 01-20-2008, 11:47 PM   #36
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by paul View Post
and that is shown to be an improvement over where I am starting from with VICs not operational, right?
correct.
hustler is offline   Reply With Quote
Old 01-20-2008, 11:57 PM   #37
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

In my eyes if the port work made 8whp on a superchared motor, it would make less on a turbocharged car. The super is using power from the crankshaft to make boost, so the port work reducing boost pressure reduces the amount of power the blower takes from the crank. The benefits would be less on a turbo car I would think.

Anyway, it's looking good, and I want to do this soon. I've already got A LOT of headwork done so it could use a better intake manifold.
patsmx5 is offline   Reply With Quote
Old 01-21-2008, 12:42 AM   #38
Junior Member
iTrader: (2)

Join Date: Nov 2007
Location: Fayetteville, NC
Posts: 143
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
so the port work reducing boost pressure reduces the amount of power the blower takes from the crank.
?
em99sport is offline   Reply With Quote
Old 01-21-2008, 01:07 AM   #39
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

Dunno about that one, better ask Corky.

From the reading I did, it seems that turbo'd engines like the VICS working, and SC'd engines can deal without it. Corky would probably be the best source of info on the subject. I couldn't tell much difference between the VICS working or not on my MP62'd engine.

If the butterflies are intact, then the VICS would still be controllable. The solenoid controls the opening and closing of the butterflies.

I wish you could have done some dyno testing before and after. The data would have been a goldmine.
soflarick is offline   Reply With Quote
Old 01-21-2008, 01:18 AM   #40
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Look at a compressor map for any SC. They use more power to delivere the same amount of air at a higher pressure. If there is less restriction after the blower, the blower can deliver the air more efficiently, and works less to compress it.
patsmx5 is offline   Reply With Quote
