Default AC isn't working

I swapped my motor a while back and since it was winter I didn't bother to put the AC belt back on. Now that it's warming up I put the belt on and it doesn't blow cold.

The system is charged, the AC light in the car comes on, but the compressor doesn't seem to be kicking on and the fan for the AC doesn't come on. From what I can tell everything seems to be connected, and the AC fuse in the car is good. I'm guessing I just overlooked something stupid. Anybody have a guess or a suggestion on what to check or where to start?
pdexta is offline   Reply With Quote
Old 03-12-2011, 03:39 PM   #2
Junior Member
iTrader: (2)

Join Date: Sep 2009
Location: Chicago, IL
Posts: 250
Total Cats: 0
Default

Is the compressor plugged in?
saedrin is offline   Reply With Quote
Old 03-12-2011, 04:04 PM   #3
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Yes sir, it is connected.
pdexta is offline   Reply With Quote
Old 03-12-2011, 04:36 PM   #4
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

I don't completely remember the details of your setup, but a few pointers.

The light in the A/C button comes on independantly of the rest of the system. It merely indicates that the closure is getting as far as the switch.

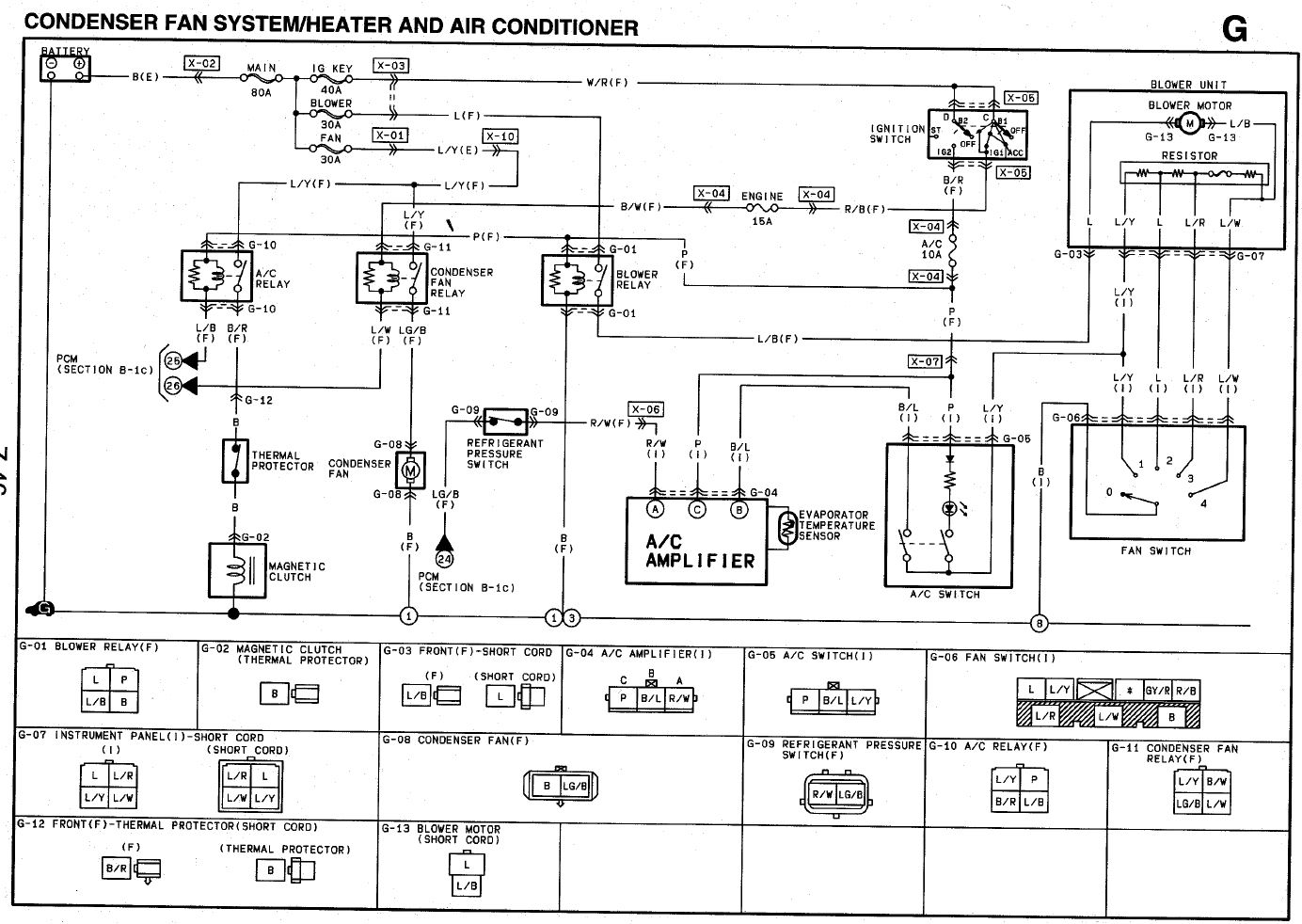

The "A/C Amplifier" is the little box hanging on the evaporator- it's basically the "has this box frozen solid?" sensor.

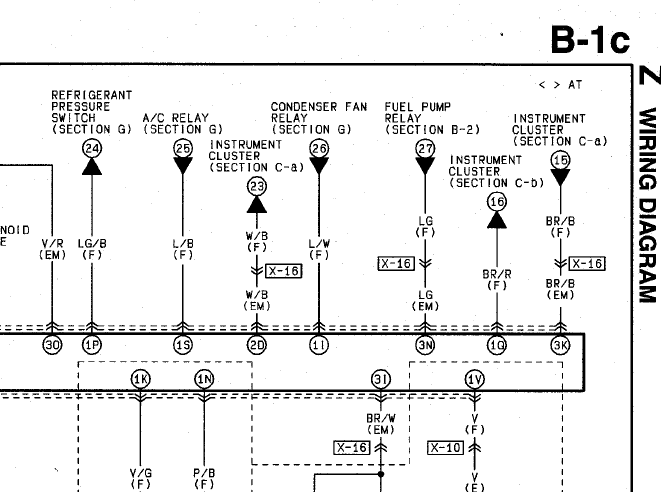

The control signal goes into the ECU and the command to turn the compressor and fan on come out of it. Refresh my memory- was yours a parallel install or a standalone?



Joe Perez is offline   Reply With Quote
Old 03-12-2011, 05:53 PM   #5
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

My megasquirt is a standalone. The AC was previously working with the megasquirt, for what it's worth.
pdexta is offline   Reply With Quote
Old 03-12-2011, 06:35 PM   #6
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Do you have R134 or whatever is proper for your A/C, in the system?
Reverant is offline   Reply With Quote
Old 03-12-2011, 08:08 PM   #7
Elite Member
Thread Starter
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Yes, it's R 134a into a '99 miata.
pdexta is offline   Reply With Quote
Old 03-12-2011, 08:10 PM   #8
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

I mean, do you actually HAVE any in? If not, the A/C won't start.
Reverant is offline   Reply With Quote
