Default Advice on used turbo setup

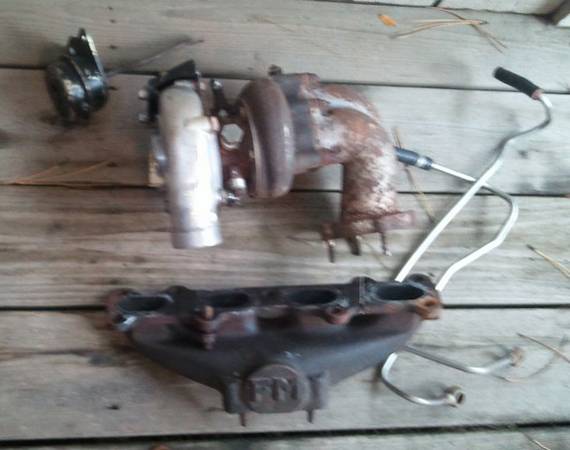

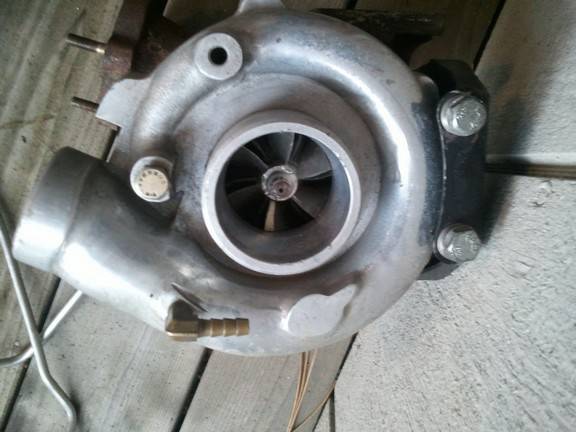

I have an opportunity to pick up a used turbo tonight but have no clue whether or not its worth my time. I guess it had the housing shaved and polished by a previous owner and supposedly only has 8K miles (2560) is there a way I can tell its really a 2560? It looks a little rough and the manifold needs the surface shaved. is it worth 475?

Attached Thumbnails
Advice on used turbo setup-2vl431z.jpg   Advice on used turbo setup-ayouab.jpg
Pdxocet is offline   Reply With Quote
Old 01-20-2015, 01:22 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

That's an old FM cast manifold, it's a good one. The turbo looks fine, you can't do too much to a turbo to make it look pretty when it sees the temperatures that it sees. Send the pieces to be ceramic coated when you get them otherwise live with the looks.

Brand new, FM's manifold, downpipe, and cast DP elbow is $750+shipping. So you don't have the downpipe, but that's available from FM for $219+shipping:

Flyin' Miata : Turbochargers : Parts and upgrades : 1994-97 Flyin' Miata turbo downpipe (lower section)

Although if the downpipe elbow is as old as the manifold looks, I don't know if the new lower downpipe section will bolt up to the older cast downpipe piece.

But if it does, and you buy the $250 (est. shipping) lower downpipe peice from FM, you're getting the mani/elbow/dp for $25+shipping less than FM's DIY kit, and you're getting a free 2560 turbo. The $25 (+/-$20) should get both surfaces milled flat, a very important step to do while it's off the engine.
curly is offline   Reply With Quote
Old 01-20-2015, 01:38 PM   #3
Newb
Thread Starter
iTrader: (3)

Join Date: Dec 2014
Posts: 40
Total Cats: 1
Default

Thanks curly. That is what I thought but still new to the miata and turbo scene. I'm picking it up tonight. It will be going on my exocet that is due to be shipped within the next week.
Pdxocet is offline   Reply With Quote
Old 01-20-2015, 01:40 PM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Sounds good. Always negotiate, I wouldn't be surprised if he'd take $425 or $450 if $475 is his asking price. Never hurts to ask.

Have the flanges flattened and ceramic coat the dp elbow and manifold and you'll have a great looking and working setup. If you're worried about the turbo, gopopshop.com sells ~$99 turbo rebuild kits that'll make it like new, assuming no compressor or turbine blade damage.
curly is offline   Reply With Quote
Old 01-20-2015, 02:03 PM   #5
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

To tell if it's a realy 2560 ask for the a close up pic of the tag on the CHRA. I'd say it's a good deal. If the turbo has little to no shaft play then I'd say its a great deal.
cyotani is offline   Reply With Quote
Old 01-20-2015, 04:14 PM   #6
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Grant are you in Portland?
turbofan is offline   Reply With Quote
Old 01-20-2015, 07:21 PM   #7
Newb
Thread Starter
iTrader: (3)

Join Date: Dec 2014
Posts: 40
Total Cats: 1
Default

Yes I am Portland. Just picked the turbo and manifold up. There is some play in the turbo but its minimal. The manifold does seem warped which I'm sure is bound to happen with the heat. I assume the machine shop can take care of that? now its time of find some cheap injectors and a used mspnp.

Last edited by Pdxocet; 01-20-2015 at 07:35 PM.
Pdxocet is offline   Reply With Quote
Old 01-20-2015, 07:34 PM   #8
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Very nice. Looking forward to seeing this completed.
turbofan is offline   Reply With Quote
Old 01-20-2015, 07:36 PM   #9
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default

Quote:
Originally Posted by Pdxocet View Post
Yes I am Portland. Just picked the turbo and manifold up. There is some play in the turbo but its minimal. The manifold does seem warped which I'm sure is bound to happen with the heat. I assume the machine shop can take care of that? now its time of find some cheap injectors and a used mspnp.
Clackamas Auto Store. Curly recommended them to me and they are wayyyy cheaper than anyone else I went to. Funny guys too.
aidandj is offline   Reply With Quote
Old 01-20-2015, 07:49 PM   #10
Newb
Thread Starter
iTrader: (3)

Join Date: Dec 2014
Posts: 40
Total Cats: 1
Default

Clackamas auto store for the machine work? Do I need to have all of the manifold planed? as in turbo side and engine block side? Should I take off the rusted down pipe elbow or just leave that part? I am thinking its not worth ceramic coating. Maybe just some header paint on the rusted down pipe elbow. I am gonna order some new studs as well. I assume I should just get the good studs and locking hardware. I don't need huge power. I need reliability.
Pdxocet is offline   Reply With Quote
Old 01-20-2015, 07:52 PM   #11
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default

Quote:
Originally Posted by Pdxocet View Post
Clackamas auto store for the machine work? Do I need to have all of the manifold planed? as in turbo side and engine block side? Should I take off the rusted down pipe elbow or just leave that part? I am thinking its not worth ceramic coating. Maybe just some header paint on the rusted down pipe elbow. I am gonna order some new studs as well. I assume I should just get the good studs and locking hardware. I don't need huge power. I need reliability.
Have them check it for flatness and surface it if needed. Get inconel studs. You can get 8mm OEM from Nissans I believe or drill out to 10mm and get either the TSE kit or I believe (need to search) rx7 studs.
aidandj is offline   Reply With Quote
Old 01-20-2015, 09:31 PM   #12
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Yes Clackamas Auto Parts, tell them Josh sent you, Art (owner/machinist) might recognize my name, just tell him it's the Josh that brings a LOT of Miata engine parts in. That might jog his memory. Great guys.

Just have both surfaces planed, either one will be bad if they're warped, might as well.

Let me know if you need any help turbo'ing. My plates pretty full but I can offer as much assistance as I can.

As for the looks, have both bead blasted (I think CAP does that too), but I dunno if I'd bother with high temp paint. It'll fail within a week.
curly is offline   Reply With Quote
Old 01-20-2015, 09:44 PM   #13
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default

When I said josh sent me he recognized the name. Awesome guy.
