Default Alternator pivot bolt fubared?

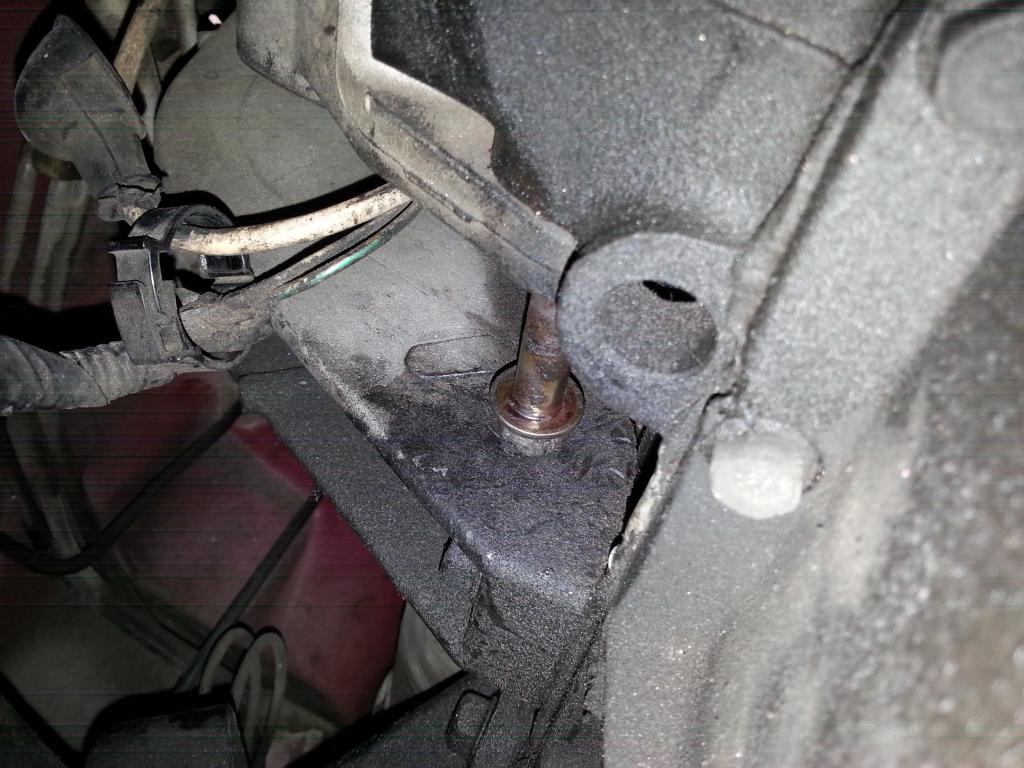

Some routine maintenance today to fix a squeaky alternator belt revealed that my car's PO apparently broke the alternator mounting bracket that is attached to the water pump. The specter of having to pull the timing belt and replace the water pump to tighten an alternator belt is bad enough, but when I went to actually remove the lower pivot bolt to remove the alternator I found that there isn't clearance to actually remove the bolt. Am I missing something simple here did someone at some point install this bolt backwards with the engine out of the car? The bolt is currently installed from the rear towards the front of the car. If I'm not missing something obvious, do I have any recourse besides a) cutting the bolt or b) pulling the engine? Thanks.

Attached Thumbnails
Alternator pivot bolt fubared?-20140616_141514_zps65b193b9.jpg
shooterschmidty is online now   Reply With Quote
Old 06-16-2014, 05:23 PM   #2
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

That intake manifold brace comes off in about 10 seconds with a 14mm Socket. Most people take it off and leave it off. That's how the bolt got put in that way.
dieselmiata is offline   Reply With Quote
Old 06-16-2014, 05:25 PM   #3
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

yup, I removed mine and broke a bolt to it, so i left it off. That was 3 years ago, and i havent had any issues with it yet...

*walks out to car to find intake manifold snapped off
supercooper is offline   Reply With Quote
Old 06-16-2014, 05:31 PM   #4
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

I've yet to see any documented failures directly related to the IM brace. It's been an argument for years as to whether it serves a real function or not. I suspect it was one of those things that the engineers said it needed by their calculations, but empirical evidence suggests otherwise.

Besides, I like how easy it is to reach the oil filter without it.
dieselmiata is offline   Reply With Quote
Old 06-16-2014, 05:37 PM   #5
Junior Member
Thread Starter

Join Date: May 2009
Location: Dayton, OH
Posts: 291
Total Cats: 12
Default

Thanks, that's a relief to hear.
shooterschmidty is online now   Reply With Quote
Old 06-16-2014, 06:29 PM   #6
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

Quote:
Originally Posted by dieselmiata View Post

Besides, I like how easy it is to reach the oil filter without it.
psh.... screw ease of access to the filter.... WEIGHT REDUCTION YO!!!!

#swag?
supercooper is offline   Reply With Quote
Old 06-20-2014, 08:47 AM   #7
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Quote:
Originally Posted by dieselmiata View Post
I've yet to see any documented failures directly related to the IM brace. It's been an argument for years as to whether it serves a real function or not. I suspect it was one of those things that the engineers said it needed by their calculations, but empirical evidence suggests otherwise.

Besides, I like how easy it is to reach the oil filter without it.
I broke 6 manifold studs without the brace on. I havent broken any since I put the brace back on.

You can drill out the threaded part of the alternator and use either a slightly longer version of the current bolt or a 3/8" (I think thats the right size) one and come from the front and use a nut.
Leafy is offline   Reply With Quote
Old 06-20-2014, 09:18 AM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I can think of half a dozen or more local track rats that have that brace removed, none have had any issues. They're running everything from blown stock mounts to poly and a set of delrin motor mounts.
curly is offline   Reply With Quote
Old 06-20-2014, 09:20 AM   #9
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Quote:
Originally Posted by curly View Post
I can think of half a dozen or more local track rats that have that brace removed, none have had any issues. They're running everything from blown stock mounts to poly and a set of delrin motor mounts.
They probably havent checked their studs recently. If one or two pop off you'll never know. Most of mine didnt even break off till I went to put the socket on them and didnt even start to turn it.
Leafy is offline   Reply With Quote
Old 06-20-2014, 09:30 AM   #10
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by dieselmiata View Post
I've yet to see any documented failures directly related to the IM brace. It's been an argument for years as to whether it serves a real function or not. I suspect it was one of those things that the engineers said it needed by their calculations, but empirical evidence suggests otherwise.

Besides, I like how easy it is to reach the oil filter without it.
My local spec miata shop swears that they are needed, I have also yet to see any issues without it.

Quote:
Originally Posted by Leafy View Post
I broke 6 manifold studs without the brace on. I havent broken any since I put the brace back on.

You can drill out the threaded part of the alternator and use either a slightly longer version of the current bolt or a 3/8" (I think thats the right size) one and come from the front and use a nut.
I pulled the brace off my 94 when I bought the car in 05, it never had an issue. In 2010 I swapped on a BEGI IM that had no provision for the brace, I have yet to have an issue with any of my studs.
shuiend is online now   Reply With Quote
Old 06-20-2014, 09:35 AM   #11
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

True, I haven't taken their intake manifolds off, however I have taken mine off with zero issues.
curly is offline   Reply With Quote
Old 06-20-2014, 09:38 AM   #12
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Spinning to 8500 rpms and cornering at 1.6g could be part of my problem.
Leafy is offline   Reply With Quote
Old 06-20-2014, 09:40 AM   #13
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Brace gets in the way of coolant reroutes and also limits options if you want to use sandwich plates for oil cooling or larger oil filters. That's why mine are gone. Haven't had an issue (knock on wood) and the better cooling is worth it.
hornetball is offline   Reply With Quote
Old 06-20-2014, 09:42 AM   #14
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by Leafy View Post
Spinning to 8500 rpms
I think this is it. You're hitting some resonant frequency that the brace changes. Like those guys that break the OEM throttle shafts.
hornetball is offline   Reply With Quote
Old 06-20-2014, 10:10 AM   #15
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,685
Total Cats: 558
Default

I had to take mine off to fit the plate for the oil filter relocation. No issues at all.
