Old 06-09-2015, 11:57 AM   #201
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by AndyHollis View Post
Looks pretty good, but datalogger results say...Fail.
vs.

Quote:
Originally Posted by m2cupcar View Post
popular Miata wisdom regarding cowl fed intakes.
hornetball is offline   Reply With Quote
Old 06-09-2015, 01:42 PM   #202
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Quote:
Originally Posted by hornetball View Post
Link: https://www.miataturbo.net/build-thr...e3/#post709118. Designed to support ~200HP though -- isn't going to cut it for Andy. Cold air from the front of the car (headlight intake on my Red car) seems to work better. On the Silver car, I'd already cut the hole in the cowl, so I went ahead and re-used it.

I think Andy's diagnosis is spot-on. He's dumping tons of heat into the engine compartment with those big, snaking, uninsulated headers.

Andy, another thing to consider is that simple circular holes cut into sheet metal don't flow well because of the sharp edges. If you riveted some of these in, the radius should help the air get through:

ALUMINUM FLANGES FOR DUCTING from Aircraft Spruce
Also, while the cowl is supposed to be a positive pressure area- Has anyone actually tested the extreme edge of the cowl? Having walls on two sides in that spot might produce a deadzone.
asmasm is offline   Reply With Quote
Old 06-09-2015, 01:44 PM   #203
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

Quote:
Originally Posted by AndyHollis View Post
Danny Popp in a Lingenfelter-motored C5 Z06, and a handful of well-built Mitsubishi Evos.

The autocross and speed stop both have stage lines about five feet from the start line, which hands the AWD cars about a half a second advantage right off the bat. Hard to make that up. But the one Evo is super well-driven and engineered (same one which podiumed at One Lap this year).

I also got dicked on the engineering review and still have no clue as to why. Almost DFL on that segment.

Event Results
I noticed that in the results and thought that category was a little silly.
asmasm is offline   Reply With Quote
Old 06-09-2015, 01:56 PM   #204
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Sorry if I've missed it, but what clutch are you currently running?

We had plenty of people laugh at us during our recent enduro race when they noticed our complete lack of hood venting. It's a huge item at the top of our list of **** to do.
curly is offline   Reply With Quote
Old 06-09-2015, 02:19 PM   #205
Junior Member
iTrader: (2)

Join Date: Sep 2014
Location: PHX, Arizona
Posts: 227
Total Cats: 13
Default

Quote:
Originally Posted by curly View Post
Sorry if I've missed it, but what clutch are you currently running?

We had plenty of people laugh at us during our recent enduro race when they noticed our complete lack of hood venting. It's a huge item at the top of our list of **** to do.
You owe me a picture.
humming is offline   Reply With Quote
Old 06-09-2015, 02:36 PM   #206
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by HoustonNW View Post
Have you considered copying the Randall Cowl Intake that Flyin Miata carries?

I was under the impression that it is the only one that really works.
LOL at a Randall cowl intake on a late NB. The factory CAI is probably more effective. You'll notice that the "dyno" Flyin' Miata uses to sell these was from an early 1.6 car (no factory CAI). Buyer beware.

And, seriously, an intake sized for a 130HP motor on Andy's 300HP car?
hornetball is offline   Reply With Quote
Old 06-09-2015, 02:40 PM   #207
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Curly are you going to be running one of&nbsp;hummings vents too?</p>

Last edited by aidandj; 06-09-2015 at 03:53 PM.
aidandj is offline   Reply With Quote
Old 06-09-2015, 02:53 PM   #208
Junior Member
iTrader: (2)

Join Date: Sep 2014
Location: PHX, Arizona
Posts: 227
Total Cats: 13
Default

I'm gonna cut some stuff at cost for Curly and GreddyGalant's enduro miata.
humming is offline   Reply With Quote
Old 06-10-2015, 03:21 PM   #209
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by hornetball View Post
LOL at a Randall cowl intake on a late NB. The factory CAI is probably more effective.
Iknowright? I'm considering air sources in my build now and was contemplating an "NB" style hole below the headlight, fed from the fender and the boxing that area in to feed the filter. Perhaps that's the source to try next?
m2cupcar is offline   Reply With Quote
Old 06-10-2015, 10:24 PM   #210
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default

Quote:
Originally Posted by hornetball View Post
He's dumping tons of heat into the engine compartment with those big, snaking, uninsulated headers.
Any idea why? Even the factory shielded the exhaust at their power levels.
sixshooter is online now   Reply With Quote
Old 06-10-2015, 11:01 PM   #211
Junior Member
iTrader: (4)

Join Date: Oct 2006
Location: Alberta Canada
Posts: 228
Total Cats: 5
Default

Andy is the belly pan under the engine in place? It needs to be there, it is part of extracting air from the engine compartment. The seal at the firewall to seal the hood helps too. Properly ducting to the rad is important as well, not only to cool the rad, but to direct the air in the right direction. These things need to be explored before venting the hood etc.

There are lots of threads about heat in MT forums.
Alta_Racer is offline   Reply With Quote
Old 06-10-2015, 11:08 PM   #212
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by curly View Post
Sorry if I've missed it, but what clutch are you currently running? We had plenty of people laugh at us during our recent enduro race when they noticed our complete lack of hood venting. It's a huge item at the top of our list of **** to do.
Quote:
Originally Posted by AndyHollis View Post
Here's the bastard child in all it's glory...followed by some of the mock-ups. Clearance between the release bearing slider tube and the clutch disc hub was still pretty tight, so I ground some off the top of the disc nub just for good measure. The flywheel is slightly recessed in the adapter, and when mocked up on the trans, pretty much the same clearance exists between the flywheel and the trans housing face that mates to the adapter. Which made me nervous. After assembly, I pulled the plugs and rotated the motor a bunch to verify no dragging sounds inside the bellhousing. A few odds and ends to put on the thing and then it goes in the hole. BTW, that's an Exedy Stage 2 cerametallic clutch. Same one I run on my CRX. Miata 1.8 pressure plates are weird...which makes the flywheels weird....

Last edited by IB Nolan; 03-09-2016 at 08:08 PM.
aidandj is offline   Reply With Quote
Old 07-07-2015, 05:22 PM   #213
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

That's nice.
concealer404 is offline   Reply With Quote
Old 07-07-2015, 08:33 PM   #214
Newb

Join Date: Jun 2015
Posts: 1
Total Cats: 0
Default

Quote:
Originally Posted by AndyHollis View Post
Ok, back on topic...

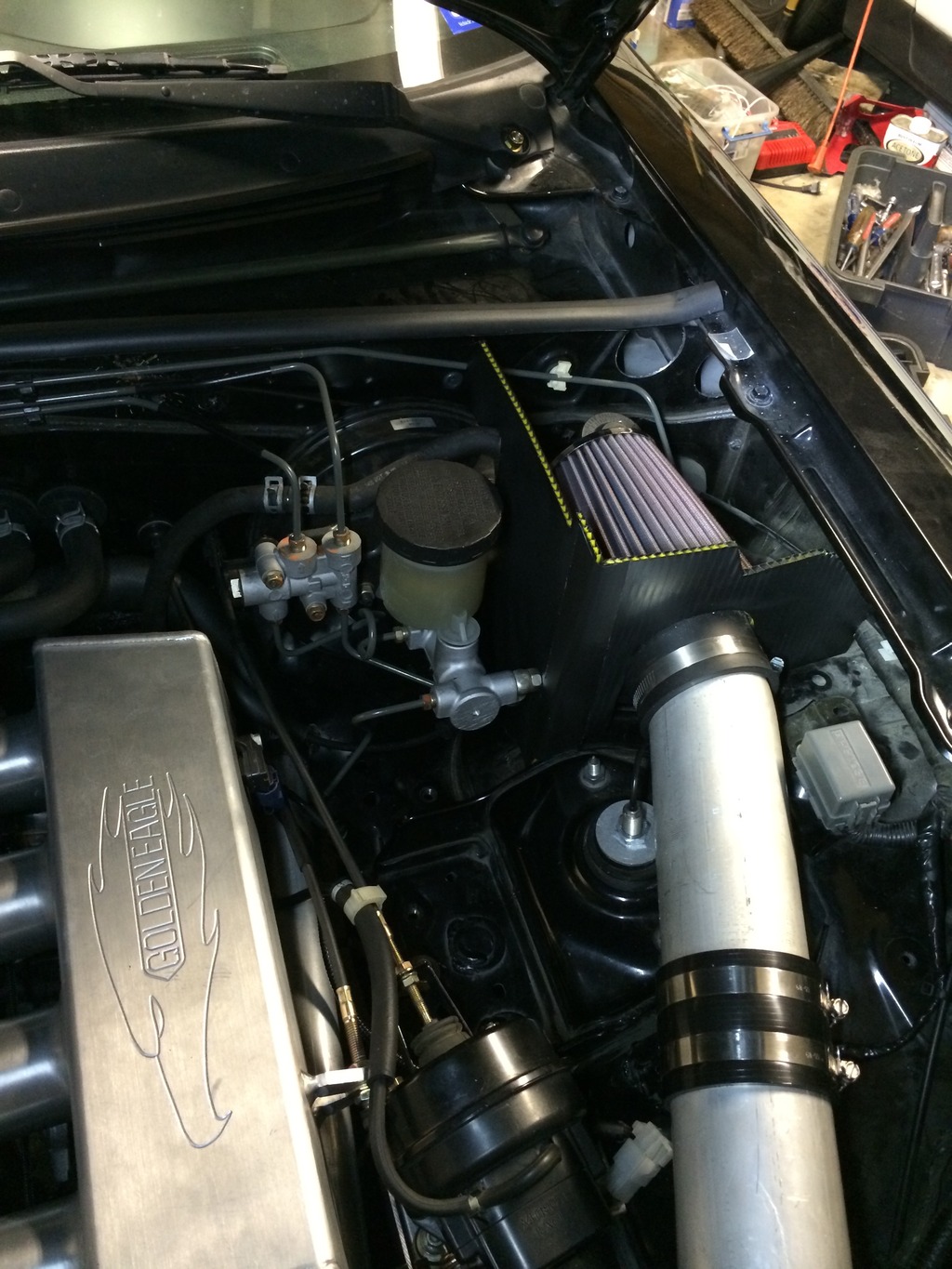

Cold-air intake, version 1: cowl-fed.

2x2" holes in the cowl feeding coroplast sealed intake chamber.

Looks pretty good, but datalogger results say...Fail. 146 degrees IAT after a couple of laps.

Back to the drawing board...


Hi Andy,

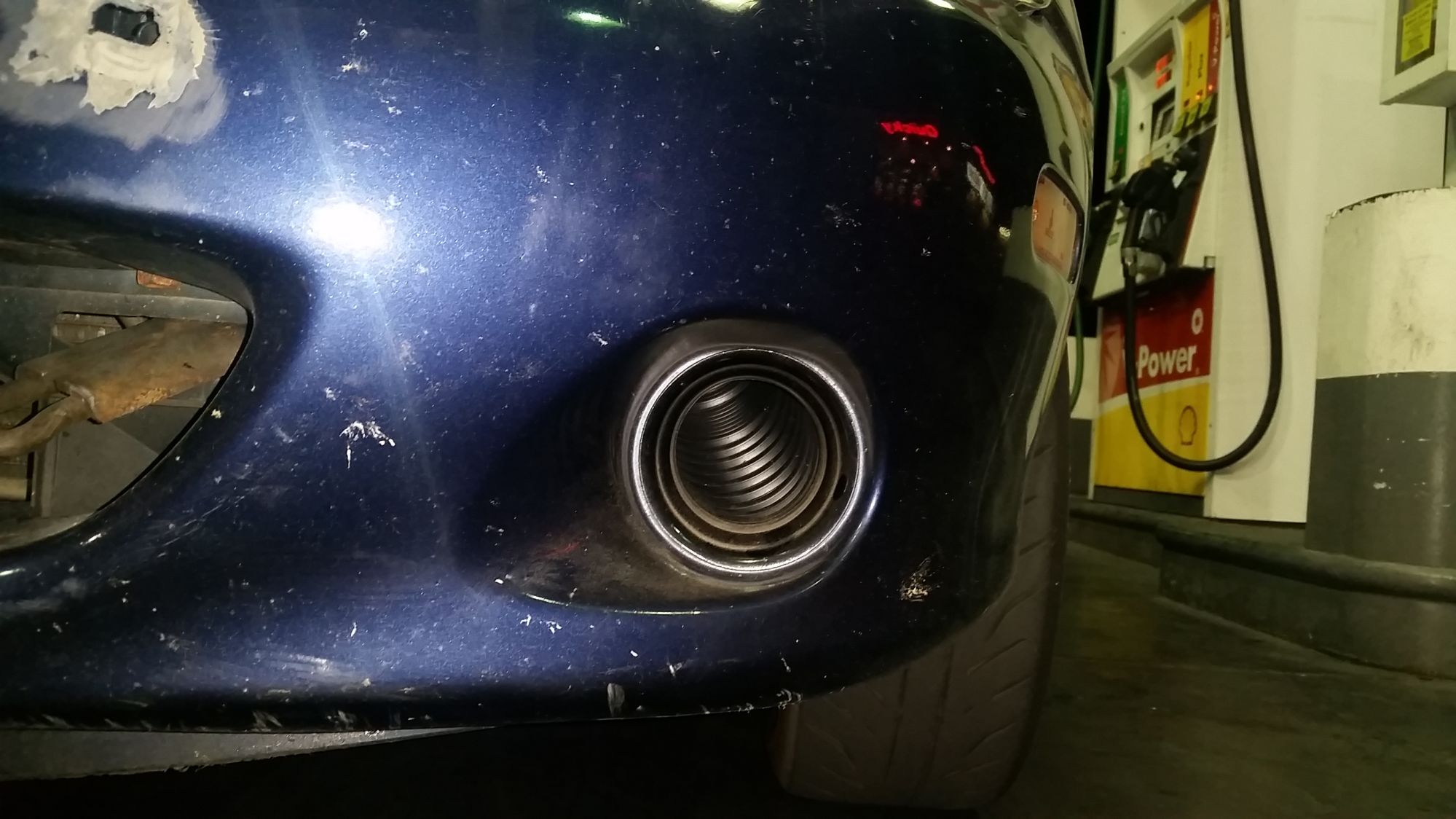

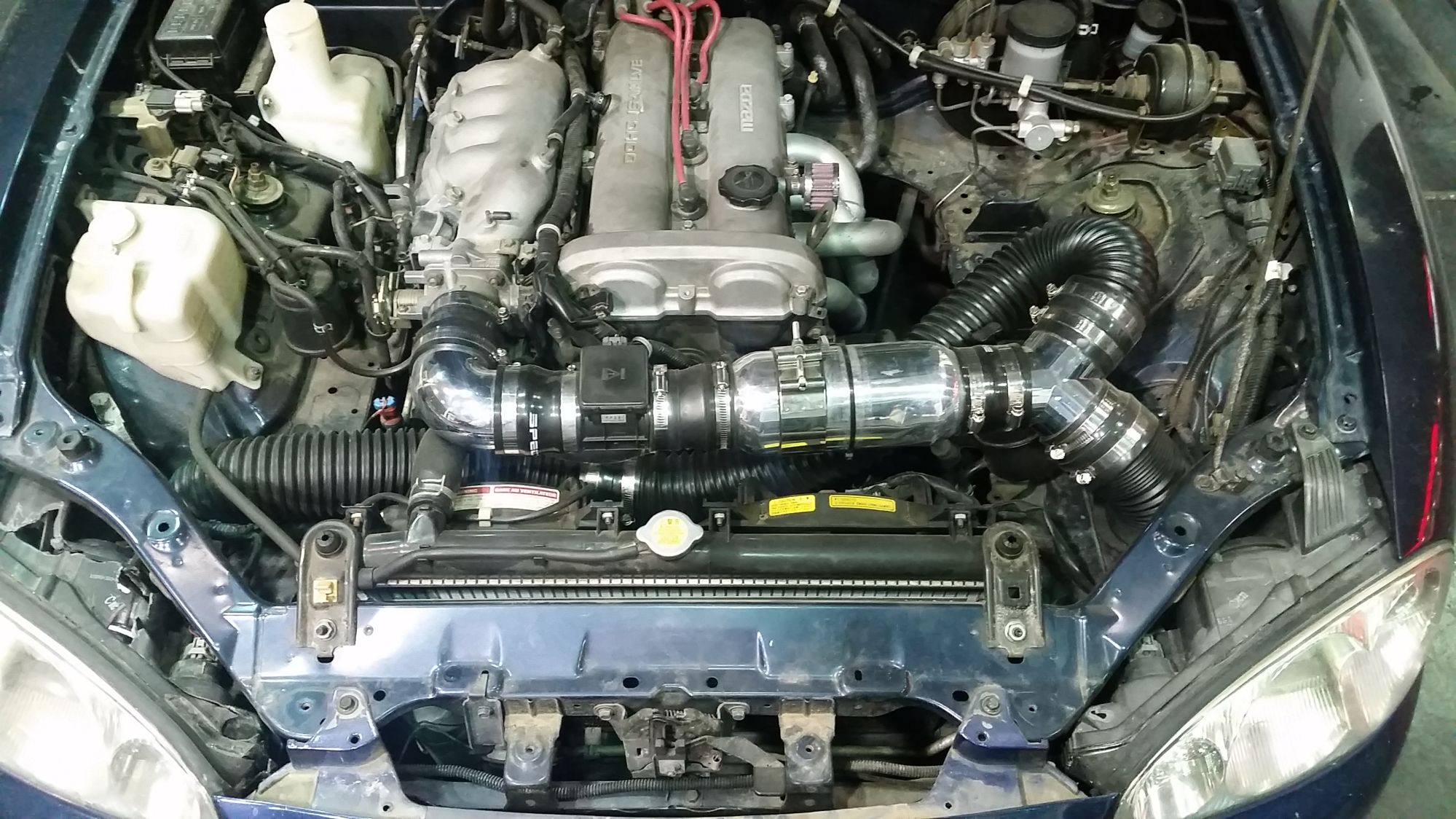

Your car already has fog light holes, I suggest trying a system similar to this one on your K Miata:





Attached Thumbnails
Andy Hollis' One Lap Miata (K24 Honda power)-80-20150418_211442_d2e46533340242bf6185e80739bdf2c0f9c1cef7.jpg   Andy Hollis' One Lap Miata (K24 Honda power)-80-20150418_211508_f7d66fbc15717018e3947a92f5e6ac24d850323e.jpg
ewsmotors is offline   Reply With Quote
Old 07-07-2015, 11:57 PM   #215
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,344
Default

Quote:
Originally Posted by ewsmotors View Post
Hi Andy,

Your car already has fog light holes, I suggest trying a system similar to this one on your K Miata:
That would be a bad idea for a few reasons

1. Your system will soak the filter when it rains
2. Those corrugated hoses flow approximately as much as a soda straw
3. Why use two intake when one will do
4. What Andy has is already really efficient
emilio700 is offline   Reply With Quote
Old 07-08-2015, 12:59 AM   #216
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 492
Default

ewsmotors -

I see what you're going for there, but the 0.5% theoretical gain in "ram air" loses twenty-fold to the massive flow loss created by the accordion hose.

edit: Emilio beat me to it
ThePass is offline   Reply With Quote
Old 09-04-2015, 08:45 AM   #217
Junior Member
Thread Starter

Join Date: Nov 2006
Posts: 284
Total Cats: 149
Default

Time to get this build moving again! Been playing with the CRX in NASA TT all summer, and just finished putting that one back into autocross trim for Solo Nats, so time to move back to the Miata. One Lap 2016 is only six months away!

Thanks for all the ideas, guys. In the end, I went with something proven to get the temps down, as this is how my CRX is plumbed. I'm headed to COTA tomorrow so I needed this done and effective.

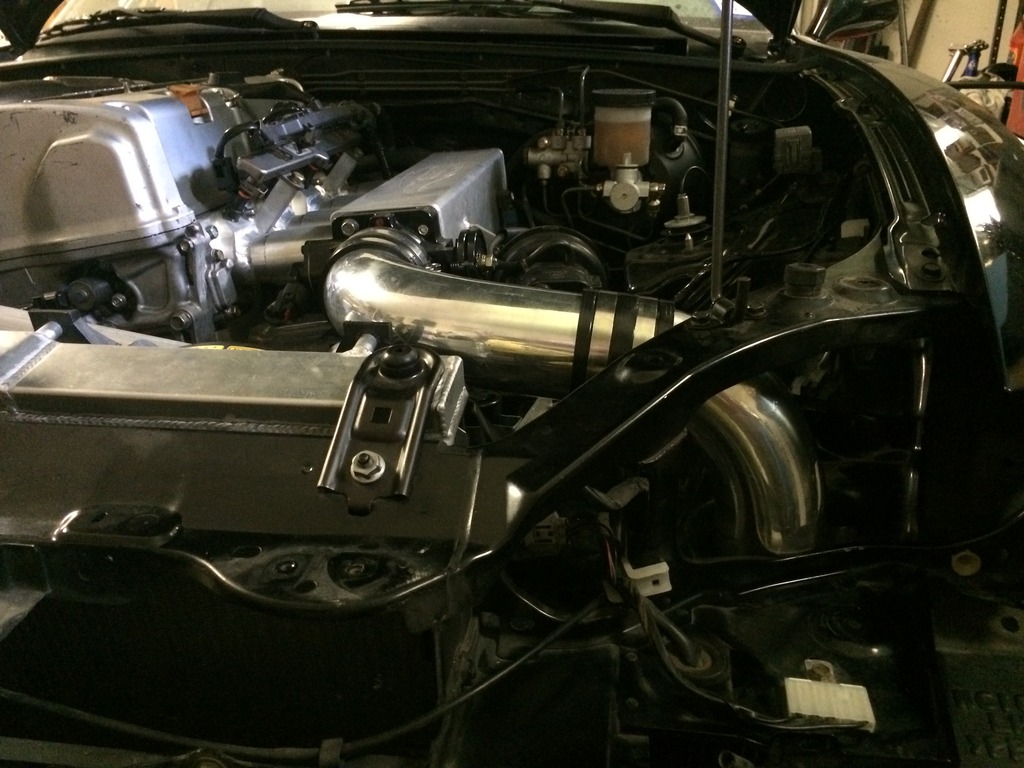

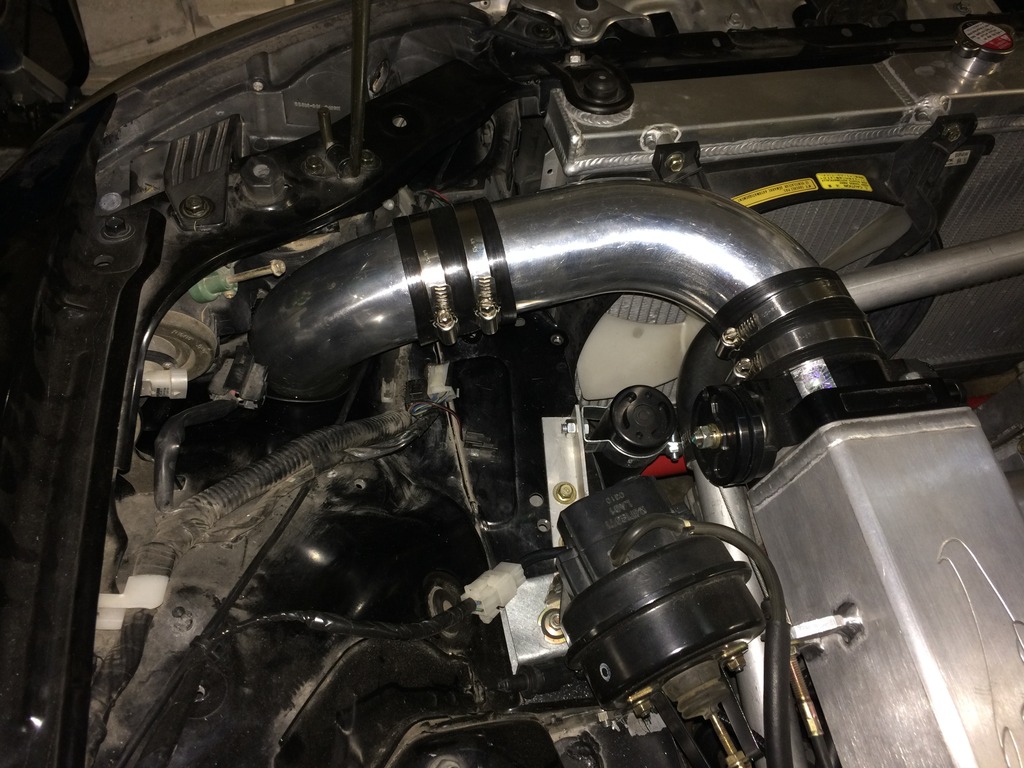

Here's intake solution V3, achieved today. Cold air from the cavity behind the fascia, fed by the fog light hole and the slats in the wheelwell liner. I will fill the fog light hole when/if it gets driven in the rain.

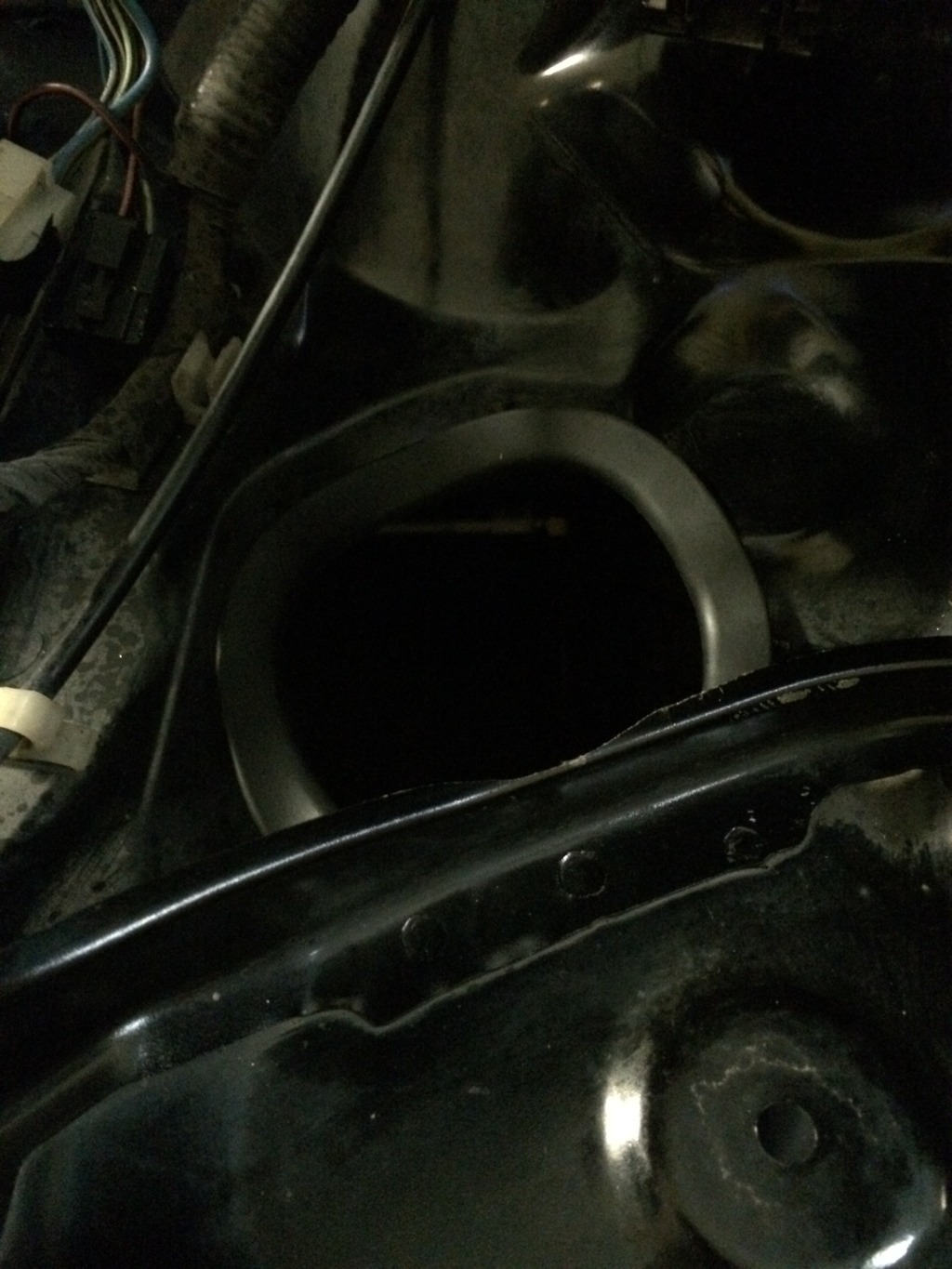

The key enabler is use of 2001+ headlights, which use a later gen halogen bulb and have shorter housings. This exposes a hole in the chassis that Mazda later used for the Mazdaspeed Miata intercooler hose passage. A little die grinder action opened it up to 3" for our purposes, and we lined it with rubber to keep from digging into the thin intake tube. A Vibrant 180 U-Bend (#2869) was sliced in half and provided the perfect pair of bends to attach our K&N filter from the previous setup.

Big thanks to Keith Tanner at Flyin' Miata for the suggestion. Watching Craigslist, I scored this pair of working lamps from a partout for $100.

PS: I have not wired up the lights yet, but I have the pigtails so its just a matter of cut n' splice.







Attached Thumbnails
Andy Hollis' One Lap Miata (K24 Honda power)-a6454bf4-3225-4335-8a33-1d3e7a52c0ba_zpssk7ur0qg.jpg   Andy Hollis' One Lap Miata (K24 Honda power)-6ea69d94-16f0-484f-8483-64cb7620c8f8_zpsjmai0grq.jpg   Andy Hollis' One Lap Miata (K24 Honda power)-d85110e1-2e13-4ca1-b736-8a021809bade_zpslrmtz0pj.jpg   Andy Hollis' One Lap Miata (K24 Honda power)-27f2ba0a-666f-480d-a293-fee8422dc613_zpsq2etxaev.jpg
AndyHollis is offline   Reply With Quote
Old 09-04-2015, 09:48 AM   #218
Junior Member

Join Date: Oct 2012
Posts: 125
Total Cats: 10
Default

****, this is baller; wish I saw earlier. Any reason you didn't want to run a K20A2 head for a hybrid setup?
TheBigChill is offline   Reply With Quote
Old 09-04-2015, 10:09 AM   #219
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Have you cut the front bumper to make them fit? Interested in seeing how you do it.
aidandj is offline   Reply With Quote
Old 09-04-2015, 11:35 AM   #220
Junior Member
Thread Starter

Join Date: Nov 2006
Posts: 284
Total Cats: 149
Default

Quote:
Originally Posted by TheBigChill View Post
****, this is baller; wish I saw earlier. Any reason you didn't want to run a K20A2 head for a hybrid setup?
Because I am?

The good motor (300hp) is a CNC-ported K20A2 head on a sleeved K24 block, forged internals, 13:1, with big Kelford cams. Runs on E85. It will rev to 9000, though I keep it limited to 8500 and usually shift at 8300.

The mock-up motor is just a simple bone stock internals 06 TSX K24A2 that makes about 250 on pump premium. Rev limited to 8000 due to stock internals.

Quote:
Originally Posted by aidandj View Post
Have you cut the front bumper to make them fit? Interested in seeing how you do it.
Yes.

Worked the car-center corner with a small hack saw and file. Also lopped off the outer thin tab of clear that sits just below the lens. And finally, I had to cut a couple thin support tabs off the back of the headlight assembly to clear the intake tube. Nothing major.

Last edited by AndyHollis; 09-04-2015 at 11:47 AM.
AndyHollis is offline   Reply With Quote
